Product Description

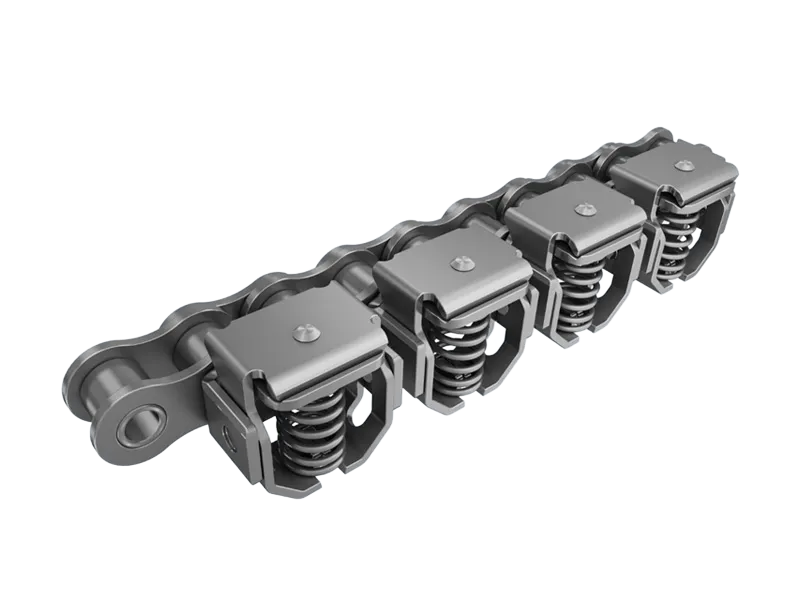

The base chain of the chain for food packaging machinery conforms to IS0, ANSI, DIN.JIS and other standards, and the main products are film clamping chain and sharp tooth conveying chain.
The product has the advantages of consistent chain length and high precision, and has a wide prospect in the application of precision transmission.The chain length precision of chain products can be selected according to practical application;

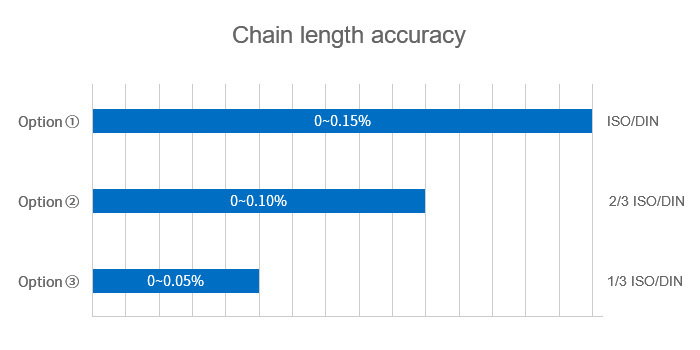

Choose ① :The dimensional tolerance of chain length is based on the chain length accuracy of ISO standard;
Choose ②:The dimensional tolerance of chain length shall be based on 2/3 chain length precision of ISO standard;
Choose ③:The dimensional tolerance of chain length is 1/3 of the chain length accuracy ISO standard;
Products are widely used in food packaging machinery with synchronous use or high-precision positioning requirements.

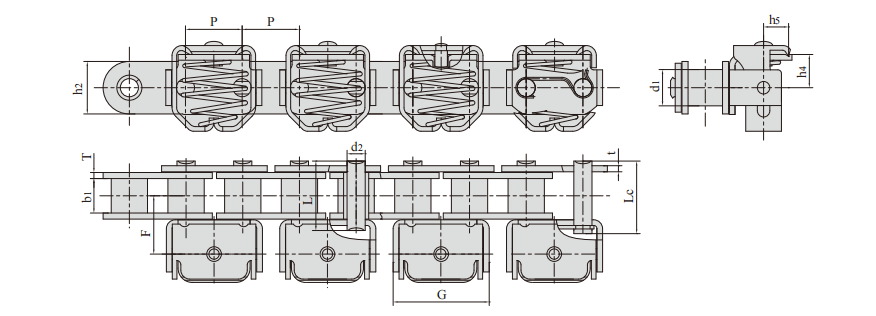

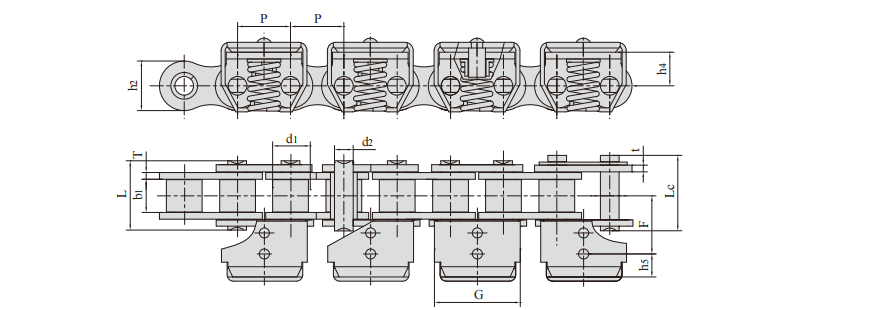

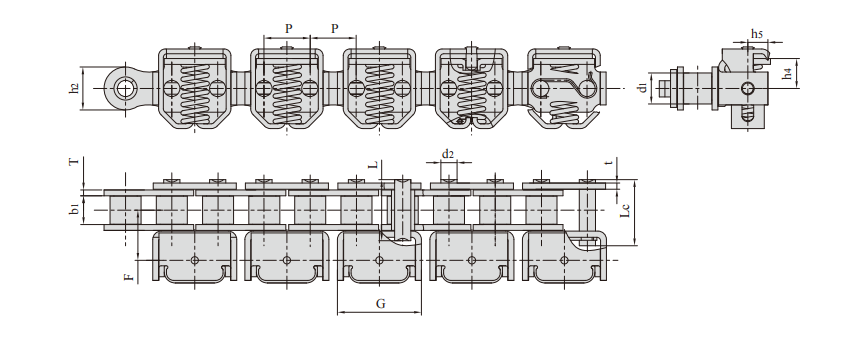

Parameter
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Attachment dimension | Tensile strength | Average tensile strength | Weight per meter | ||||
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T/t | h4 | h5 | F | G | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| 08B-GC | 12.7 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 1.60 | 8.5 | 5.5 | 13.7 | 19.8 | 18.00/4046 | 19.80 | 1.20 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Attachment dimension | Tensile strength | Weight per meter | ||||
| P | d1 max | b1 min | d2 max | L max | Lc | h2 max | T/t | h4 | h5 | F | G | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| 08BSSF32 | 12.7 | 8.51 | 7.75 | 4.45 | 16.7 | 18.2 | 11.8 | 13.8 | 8.0 | 6.5 | 13.8 | 20.4 | 12.0/2727 | 1.14 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Attachment dimension | Tensile strength | Average tensile strength | Weight per meter | ||||
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T/t | h4 | h5 | F | G | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| 10B-GC | 15.875 | 10.16 | 9.65 | 5.08 | 19.3 | 20.7 | 14.7 | 1.70 | 9.0 | 7.0 | 16.4 | 16.9 | 22.40/5036 | 24.64 | 1.60 |
