Technical Data Sheet
| DIN ISO CHAIN NO. | PITCH | ROLLER DIA. | WIDTH BETWEEN INNER PLATES | PIN DIA. | PIN LENGTH | INNER CHAIN PLATE DEPTH | ULTIMATE TENSILE STRENGTH | AVERAGE TENSILE STRENGTH | WEIGHT PER METER | |
| P | D1 MAX | B1 MIN | D2 MAX | L MAX | LC MAX | H2 MAX | Q MIN | Q0 | Q | |
| MM | MM | MM | MM | MM | MM | MM | KN | KN | KG/M | |
| 04B-1 | 6 | 4 | 2.8 | 1.85 | 6.8 | 7.8 | 5 | 3 | 3.4 | 0.11 |
| 05B-1 | 8 | 5 | 3 | 2.31 | 8 | 8.9 | 7.11 | 5 | 5.7 | 0.2 |
| *06B-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.2 | 14.2 | 8.2 | 9 | 10.2 | 0.41 |
| 08B-1 | 12.7 | 8.51 | 7.75 | 4.45 | 16.7 | 18 | 11.8 | 18 | 19.1 | 0.69 |
| 10B-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.6 | 21 | 14.7 | 22.4 | 26.5 | 0.93 |
| 12B-1 | 19.05 | 12.07 | 11.68 | 5.72 | 22.5 | 24 | 16.1 | 29 | 32.2 | 1.15 |
| 16B-1 | 25.4 | 15.88 | 17.02 | 8.28 | 36 | 37.2 | 21.05 | 60 | 70.4 | 2.71 |
| 20B-1 | 31.75 | 19.05 | 19.56 | 10.19 | 41.1 | 44.7 | 26.31 | 95 | 101.5 | 3.7 |
| 24B-1 | 38.1 | 25.4 | 25.4 | 14.63 | 53.3 | 57.5 | 33.3 | 160 | 174 | 7.1 |
| 28B-1 | 44.45 | 27.94 | 30.99 | 15.9 | 64.8 | 69.5 | 36.9 | 200 | 213.9 | 8.5 |
| 32B-1 | 50.8 | 29.21 | 30.99 | 17.81 | 66.2 | 71 | 42.1 | 250 | 267.5 | 10.25 |
| 40B-1 | 63.5 | 39.37 | 38.1 | 22.89 | 82.2 | 89.2 | 52.96 | 355 | 379.9 | 16.35 |
| 48B-1 | 76.2 | 48.26 | 45.72 | 29.24 | 99.1 | 107 | 63.8 | 560 | 599 | 25 |
China chain manufacturer, chinese pulley supplier, produce: Transmission chain(Driving Chain), Conveyor Chain - roller chain, Engineering Chain, Stainless Steel Chain, Lifting Chain, Agricultural Chain, Forging Series, Cast Iron Chain. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: oceanindustry@vip.163.com
Product Description
Short pitch precision roller chains (B series).pdf

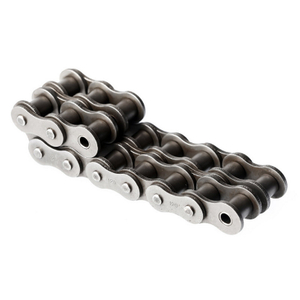

Short Pitch Transmission Precision Roller Chains B Series Simplex Chain
04B-1，05B-1，*06B-1，08B-1，10B-1，12B-1，16B-1，20B-1，24B-1，28B-1，32B-1，40B-1，48B-1
