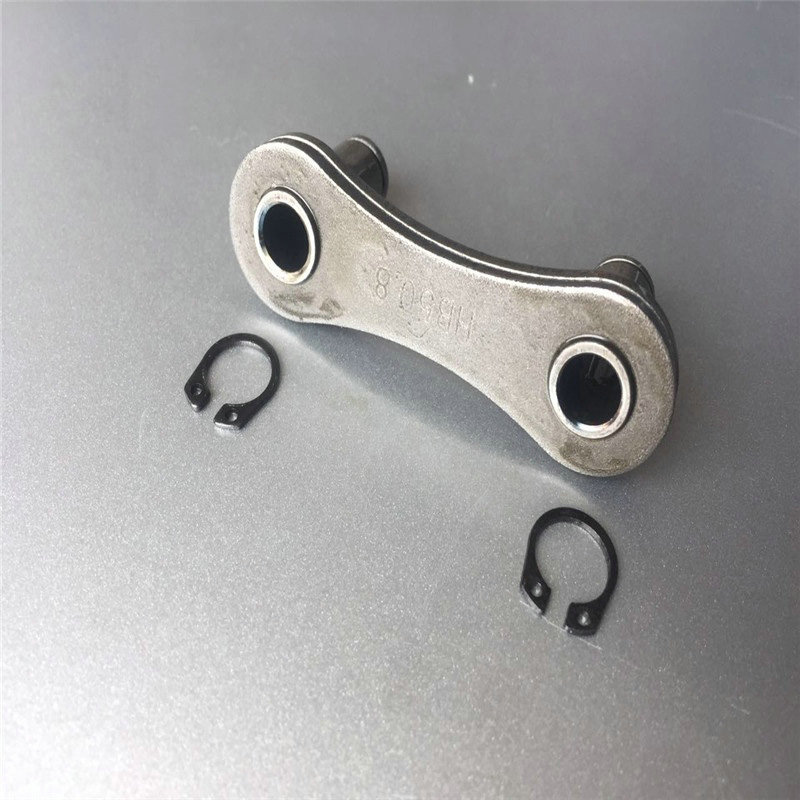

Hollow pin chains.pdfHollow Pin Chains 08BP 40HP, 50HPSS, 60HP, 12BHP, 80HP, C2040HP, C2050HP, C2060HP, C2080HP, HB50.8, C2042HP, C2052HP, C2062HP, C2082HP, C2042H-HP, C2052H-HP, C2062H-HP, C2082H-HP
Technical Data Sheet
® Chain®No. | 节距Pitch | 滚子直径Roller diameter | 内节内宽Width between inner plates | 销轴直径Pin diameter | 销轴长度Pin length | 内链板高度Inner plate depth | 链板厚度Plate thickness | 极限拉伸载荷Ultimate tensile strength | 平均拉伸载荷Average tensile strength | 每米长重Weight per meter | 型号Type | ||
P | d1 max | b1 min | d2 max | d3 min | L max | Lc max | h2 max | t/T max | Q min | Q0 | q | ||
mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | ||
10BHB | 15.875 | 10.16 | 9.65 | 5.94 | 4.04 | 19.30 | 20.60 | 14.70 | 1.70 | 17.00/3864 | 20.80 | 0.86 | A |
12BHP | 19.050 | 12.07 | 11.68 | 6.50 | 4.00 | 21.60 | 22.80 | 15.90 | 1.85 | 23.60/5364 | 25.90 | 1.09 | A |
60HB | 19.050 | 11.91 | 12.70 | 7.00 | 5.01 | 25.50 | 26.60 | 18.00 | 2.42 | 20.00/4545 | 22.40 | 1.35 | A |
12AHBF2 | 19.050 | 11.91 | 12.70 | 7.00 | 5.10 | 26.50 | 27.60 | 18.0 | 2.42 | 20.00/4545 | 22.40 | 1.39 | A |
12BHPF6SLR | 19.050 | 12.07 | 11.68 | 6.50 | 4.04 | 22.30 | 23.50 | 15.9 | 1.85 | 23.60/5364 | 25.96 | 1.12 | A |
12BHPF10 | 19.050 | 12.07 | 11.68 | 6.50 | 4.00 | 21.60 | 22.80 | 15.90 | 1.85 | 23.60/5364 | 25.90 | 1.08 | A |
16BHBF1 | 25.400 | 15.88 | 12.70 | 9.53 | 7.05 | 30.80 | 32.20 | 23.00 | 4.15/3.10 | 40.00/9091 | 45.00 | 2.28 | A |
HB25.4 | 25.400 | 20.00 | 8.00 | 8.00 | 5.20 | 19.50 | 20.50 | 17.00 | 2.03 | 25.00/5680 | 28.00 | 1.30 | A |
16BHBF4 | 25.400 | 15.88 | 17.02 | 6.05 | 4.20 | 28.00 | 29.00 | 14.00 | 2.03 | 10.00/2248 | 11.00 | 1.50 | A |
HB28.58 | 28.580 | 15.88 | 16.20 | 8.03 | 5.50 | 36.30 | 37.00 | 24.00 | 4.00 | 22.00/4945 | 24.20 | 3.00 | A |
HP35 | 35.000 | 20.00 | 16.00 | 13.35 | 10.20 | 30.40 | 31.60 | 26.30 | 2.50 | 23.52/5345 | 26.40 | 2.02 | A |
HB35 | 35.000 | 20.00 | 16.00 | 14.00 | 10.2 | 32.00 | 33.50 | 38.10 | 3.00 | 40.00/9091 | 45.00 | 2.39 | A |
HB38.1 | 38.100 | 20.00 | 8.00 | 8.00 | 5.30 | 19.60 | 20.70 | 17.30 | 2.03 | 28.00/5682 | 28.80 | 0.98 | B |
HB38.1F1 | 38.100 | 20.00 | 18.00 | 10.50 | 5.10 | 39.00 | 40.30 | 22.00 | 4.00 | 60.00/13636 | 64.30 | 2.59 | B |
HB38.1F3 | 38.100 | 25.40 | 12.70 | 12.00 | 8.30 | 27.00 | 28.60 | 21.00 | 2.50 | 25.00/5682 | 28.80 | 1.51 | B |
HB38.1F4 | 38.100 | 20.00 | 12.70 | 8.00 | 5.20 | 26.00 | 27.20 | 17.00 | 2.42 | 24.00/5455 | 26.90 | 1.48 | B |
HP38.1F9 | 38.100 | 22.20 | 12.70 | 11.00 | 8.15 | 26.50 | 27.50 | 18.0 | 2.50 | 22.00/5000 | 24.40 | 1.46 | B |
HB38.1F10 | 38.100 | 25.40 | 25.40 | 14.63 | 10.50 | 54.00 | 54.30 | 33.20 | 6.00/4.80 | 50.00/11240 | 55.00 | 6.10 | A |
HP40F4 | 40.000 | 26.00 | 10.00 | 11.40 | 8.20 | 26.50 | 28.00 | 24.00 | 3.00 | 50.00/11364 | 56.70 | 2.20 | B |
*HB41.4F1 | 41.400 | 25.40 | 15.00 | 13.80 | 10.50 | 35.50 | 37.00 | 32.00 | 4.00 | 45.00/10116 | 49.50 | 3.66 | B |
HP41.75F1 | 41.750 | 17.10 | 20.20 | 11.11 | 8.20 | 35.70 | 39.00 | 21.65 | 3.10 | 26.50/6022 | 29.20 | 1.60 | A |
HP41.75F2 | 41.750 | 17.10 | 20.20 | 11.11 | 8.20 | 35.70 | 41.00 | 25.26 | 3.10 | 49.00/11136 | 54.80 | 2.04 | A |
Chain®No. | 节距 Pitch | 滚子直径Roller diameter | 内节内宽Width between inner plates | 销轴直径Pin diameter | 销轴长度Pin length | 内链板高度Inner plate depth | 链板厚度Plate thickness t/ T | 极限拉伸载荷Ultimate tensile strength | 平均拉伸载荷Average tensile strength | 每米长重Weight per meter | 型号 Type | ||
P | d1 max | b1 min | d2 max | d3 min | L max | Lc max | h2 max | max | Q min | Q0 | q | ||
mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | ||
HP41.75F3 | 41.750 | 17.00 | 20.50 | 11.00 | 8.30 | 36.00 | 39.50 | 21.40 | 3.00 | 27.00/6136 | 28.00 | 1.62 | A |
HP41.75F6 | 41.750 | 17.10 | 20.20 | 11.11 | 8.20 | 36.70 | 37.50 | 25.26 | 3.10 | 49.00/11015 | 53.90 | 2.04 | A |
HP50F2 | 50.000 | 31.00 | 15.00 | 13.20 | 10.20 | 36.50 | 38.00 | 25.00 | 4.00 | 40.00/9091 | 43.20 | 3.40 | B |
DH16500HP | 50.000 | 30.00 | 10.50 | 11.40 | 8.20 | 27.40 | 28.60 | 26.00 | 3.10 | 50.00/11364 | 53.60 | 2.23 | B |
HB50F4 | 50.000 | 30.00 | 10.00 | 16.00 | 8.00 | 26.60 | 30.00 | 25.40 | 3.00 | 60.00/13635 | 67.20 | 2.03 | B |
HB50F1-C30 | 50.000 | 30.00 | 10.00 | 12.00 | 8.20 | 26.50 | 28.10 | 26.00 | 3.00 | 45.00/11016 | 49.50 | 2.36 | B |
HB50.8 | 50.800 | 30.00 | 10.50 | 11.40 | 8.20 | 27.40 | 28.60 | 26.00 | 3.10 | 50.00/11364 | 53.60 | 2.56 | B |
HB50.8F4 | 50.800 | 30.00 | 10.50 | 13.60 | 8.20 | 27.40 | 28.90 | 26.00 | 3.10 | 42.00/9545 | 48.20 | 2.28 | B |
HB50.8F14 | 50.800 | 30.00 | 10.00 | 16.00 | 8.00 | 26.60 | 30.00 | 25.40 | 3.00 | 60.00/13635 | 67.20 | 2.01 | B |
HB60F6 | 60.000 | 30.00 | 10.00 | 16.00 | 8.00 | 26.60 | 30.00 | 26.00 | 3.00 | 46.00/10341 | 50.60 | 2.06 | B |
HB60F7 | 60.000 | 30.00 | 10.00 | 16.00 | 8.00 | 26.60 | 30.00 | 25.40 | 3.00 | 60.00/13635 | 66.00 | 1.82 | B |
HB63 | 63.000 | 30.00 | 10.00 | 11.40 | 8.10 | 26.70 | 28.10 | 26.50 | 3.10 | 50.00/11364 | 53.60 | 2.07 | B |
HB63F1 | 63.000 | 40.00 | 10.00 | 11.40 | 8.10 | 26.70 | 28.10 | 26.50 | 3.10 | 50.00/11364 | 53.60 | 2.27 | B |
HB63F2 | 63.000 | 40.00 | 20.00 | 11.40 | 8.10 | 36.70 | 38.10 | 26.50 | 3.10 | 50.00/11364 | 53.60 | 3.20 | B |
HB63F3 | 63.000 | 40.00 | 15.00 | 11.40 | 8.20 | 35.60 | 37.00 | 26.50 | 4.00 | 35.00/7955 | 38.50 | 3.90 | B |
HB63F4 | 63.000 | 30.00 | 20.00 | 11.40 | 8.10 | 36.70 | 38.10 | 26.50 | 3.10 | 50.00/11364 | 53.60 | 2.97 | B |
HB63F6 | 63.000 | 30.00 | 10.00 | 11.70 | 8.20 | 26.70 | 28.10 | 26.50 | 3.10 | 50.00/11364 | 56.70 | 2.08 | B |
HB63F7 | 63.000 | 40.00 | 18.00 | 14.00 | 10.20 | 38.00 | 39.50 | 28.00 | 4.00 | 50.00/11364 | 56.70 | 4.26 | B |
HB63F8 | 63.000 | 30.00 | 20.00 | 11.70 | 8.10 | 36.50 | 38.00 | 26.50 | 3.10 | 50.00/11364 | 56.70 | 2.91 | B |
HB63F14 | 63.000 | 30.00 | 10.00 | 11.40 | 8.10 | 30.20 | 31.60 | 26.50 | 4.00 | 50.00/11240 | 55.00 | 2.45 | B |
HB80F3 | 80.000 | 45.00 | 20.00 | 24.00 | 18.00 | 39.00 | 40.60 | 40.00 | 3.50 | 75.00/16858 | 82.50 | 4.60 | B |
HB100 | 100.000 | 30.00 | 10.50 | 11.40 | 8.20 | 27.40 | 28.60 | 26.00 | 3.10 | 50.00/11364 | 53.60 | 1.56 | B |
HB100F8 | 100.000 | 30.00 | 10.00 | 16.00 | 8.00 | 26.60 | 30.00 | 25.40 | 3.00 | 60.00/13635 | 67.20 | 1.37 | B |
Chain® No. | 节距Pitch | 滚子直径Roller diameter | 内节内宽Width between inner plates | 销轴直径Pin diameter | 销轴长度Pin length | 内链板高度Inner plate depth | 链板厚度Plate thickness | 极限拉伸载荷Ultimate tensile strength | 平均拉伸载荷Average tensile strength | 每米长重Weight per meter | ||
P | d1 max | b1 min | d2 max | d3 min | L max | Lc max | h2 max | t/T max | Q min | Q0 | q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
C2042HP | 25.40 | 15.88 | 7.85 | 5.63 | 4.00 | 16.5 | 17.6 | 12.00 | 1.50 | 11.0/2500 | 12.6 | 0.78 |
C2052HP | 31.75 | 19.05 | 9.53 | 7.22 | 5.12 | 20.5 | 21.8 | 15.00 | 2.03 | 20.4/4636 | 22.8 | 1.25 |
C2062HP | 38.10 | 22.23 | 12.70 | 8.31 | 6.00 | 25.8 | 26.8 | 17.00 | 2.42 | 24.0/5455 | 27.1 | 1.72 |
C2082HP | 50.80 | 28.58 | 15.75 | 11.40 | 8.05 | 32.4 | 33.8 | 24.00 | 3.25 | 50.0/11364 | 52.0 | 2.82 |
C2042H-HP | 25.40 | 15.88 | 7.85 | 5.63 | 4.00 | 18.8 | 19.9 | 12.00 | 2.03 | 11.0/2500 | 13.2 | 0.95 |
C2052HPF1 | 31.75 | 19.05 | 9.40 | 7.03 | 5.12 | 20.0 | 21.5 | 15.30 | 1.85 | 15.0/3409 | 17.3 | 1.21 |
C2052HPF3 | 31.75 | 19.05 | 9.53 | 7.02 | 5.13 | 20.1 | 21.6 | 15.09 | 2.03 | 19.6/4455 | 21.6 | 1.20 |
C2052H-HP | 31.75 | 19.05 | 9.53 | 7.22 | 5.12 | 22.1 | 23.4 | 15.00 | 2.42 | 20.4/4545 | 23.5 | 1.44 |
C2062H-HP | 38.10 | 22.23 | 12.70 | 8.31 | 6.00 | 29.2 | 30.2 | 17.00 | 3.25 | 24.0/5455 | 27.6 | 1.99 |
C2082H-HP | 50.80 | 28.58 | 15.75 | 11.40 | 8.05 | 35.7 | 37.0 | 24.00 | 4.00 | 50.0/11364 | 56.5 | 3.34 |
HP40 | 40.00 | 22.00 | 8.75 | 9.00 | 6.00 | 23.0 | 24.2 | 18.00 | 2.50 | 27.0/4545 | 28.0 | 1.49 |
HB40F1 | 40.00 | 22.00 | 9.00 | 9.00 | 6.00 | 23.0 | 24.5 | 18.00 | 2.50 | 20.0/4546 | 22.0 | 1.58 |
HB41.4 | 41.40 | 25.40 | 15.00 | 13.80 | 10.50 | 35.5 | 37.0 | 32.00 | 4.00 | 45.0/10227 | 48.0 | 4.20 |
HP50 | 50.00 | 31.00 | 14.50 | 13.20 | 10.40 | 31.1 | 32.5 | 25.00 | 3.10 | 30.0/6818 | 34.2 | 3.29 |
HP50F4 | 50.00 | 31.00 | 15.00 | 13.20 | 10.20 | 36.5 | 38.0 | 25.00 | 4.00 | 40.0/9091 | 44.8 | 3.73 |
HB50 | 50.00 | 31.00 | 15.00 | 14.00 | 10.20 | 36.0 | 37.5 | 25.00 | 4.00 | 40.0/9091 | 43.2 | 3.98 |
HB50.8F8 | 50.80 | 32.00 | 20.00 | 19.10 | 12.40 | 44.6 | 46.4 | 40.00 | 5.00/4.00 | 100.0/22727 | 108.0 | 6.75 |
C1655HP | 50.80 | 30.00 | 10.50 | 13.00 | 8.20 | 27.4 | 28.9 | 26.00 | 3.10 | 42.0/9545 | 48.2 | 2.72 |
HP50.8 | 50.80 | 26.00 | 15.88 | 20.00 | 14.30 | 41.0 | 42.2 | 38.10 | 4.80 | 100.0/22727 | 108.0 | 5.32 |
HB50.8F9 | 50.80 | 35.00 | 12.00 | 15.50 | 10.20 | 36.0 | 37.3 | 30.00 | 5.00 | 70.0/15909 | 77.0 | 4.92 |
HB50.8F20 | 50.80 | 38.10 | 15.20 | 14.28 | 9.50 | 36.6 | 37.2 | 26.40 | 4.00 | 40.0/8992 | 44.0 | 4.88 |
63HPF1 | 63.00 | 40.00 | 15.00 | 16.00 | 12.10 | 35.0 | 36.2 | 28.50 | 4.00 | 50.0/11364 | 56.7 | 4.20 |
DH4202HP | 50.80 | 31.80 | 15.00 | 14.00 | 10.10 | 36.3 | 39.0 | 26.00 | 3.80 | 42.0/9545 | 51.6 | 3.75 |
DH4203HP | 76.20 | 31.80 | 15.00 | 14.00 | 10.10 | 36.3 | 39.0 | 26.00 | 3.80 | 42.0/9545 | 47.1 | 3.01 |
Chain® No. | 节距Pitch | 滚子直径Roller diameter | 内节内宽Width between inner plates | 销轴直径Pin diameter | 销轴长度Pin length | 链板高度Plate depth | 链板厚度Plate thickness | 极限拉伸载荷Ultimate tensile strength | 平均拉伸载荷Average tensile strength | 每米长重Weight per meter | ||
P | d1 max | b1 min | d2 max | d3 min | L max | Lc max | h2 max | T | Q min | Q0 | q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/ bf | kN | kg/m | |
HB50.8F1 | 50.8 | 38.1 | 15.7 | 15.5 | 10.3 | 35.2 | 36.7 | 27.2 | 4.00 | 55.46/51650 | 58.8 | 4.97 |
Chain®No. | 节距Pitch | 滚子直径Roller diameter | 内节内宽Width between inner plates | 销轴直径Pin diameter | 销轴长度Pin length | 内链板高度Inner plate depth | 链板厚度Plate thickness | 极限拉伸载荷Ultimate tensile strength | 平均拉伸载荷Average tensile strength | 每米长重Weight per meter | ||
P | d1 max | b1 min | d2d3 | LLc | h2 max | t/T max | Q min | Q0 | q | |||
max | min | max | max | |||||||||
mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
HB25.4F2 | 25.40 | 15.89 | 17.26 | 9.00 | 6.35 | 31.3 | 32.5 | 20.0 | 2.50 | 20.0/4545 | 22.40 | 1.97 |
HB 25.4F4 | 25.40 | 20.00 | 11.00 | 12.00 | 8.35 | 27.0 | 28.4 | 24.0 | 3.00 | 32.0/7273 | 35.80 | 2.48 |
C2062H-HPF3 | 38.10 | 22.23 | 12.70 | 8.31 | 6.00 | 25.8 | 26.8 | 17.0 | 2.42 | 24.0/5455 | 27.10 | 1.72 |
HB38.1F6-R | 38.10 | 25.40 | 15.20 | 14.00 | 10.20 | 34.5 | 36.5 | 27.0 | 3.70 | 45.0/10228 | 49.50 | 3.20 |
HB50.42 | 50.42 | 37.30 | 15.00 | 14.00 | 10.20 | 36.0 | 37.5 | 26.2 | 4.00 | 40.0/9090 | 44.80 | 4.46 |
HB50.8F12 | 50.80 | 28.58 | 16.00 | 14.00 | 9.00 | 36.4 | 37.5 | 25.5 | 3.50 | 42.0/9545 | 47.00 | 3.26 |
HB50.8F11 | 50.80 | 38.10 | 16.00 | 13.80 | 9.70 | 37.2 | 39.5 | 25.4 | 3.90 | 57.0/12953 | 63.84 | 5.01 |
HB50.8F18 | 50.80 | 38.10 | 16.00 | 13.80 | 9.70 | 37.2 | 39.5 | 25.4 | 4.80/3.90 | 57.0/12812 | 62.70 | 4.85 |
HB63F11 | 63.00 | 40.00 | 20.00 | 20.00 | 18.00 | 42.5 | 43.5 | 42.0 | 4.00 | 46.0/10454 | 50.60 | 5.83 |
HB63F12 | 63.00 | 30.00 | 10.00 | 11.40 | 8.10 | 26.7 | 28.1 | 26.5 | 3.10 | 50.0/11364 | 56.50 | 2.39 |
C2102HP | 63.50 | 39.67 | 18.90 | 13.60 | 9.50 | 40.3 | 42.0 | 30.0 | 4.00 | 60.0/13636 | 72.00 | 5.13 |
HB63.5F1 | 63.50 | 32.00 | 15.00 | 16.00 | 12.20 | 32.0 | 33.0 | 25.0 | 3.00 | 20.4/4636 | 22.80 | 2.69 |
HB65 | 65.00 | 45.00 | 20.00 | 25.00 | 18.00 | 38.0 | 40.0 | 40.0 | 3.00 | 46.0/10454 | 50.60 | 4.49 |
HB100F10 | 100.00 | 45.00 | 33.00 | 18.00 | 12.10 | 48.5 | 49.7 | 35.0 | 5.00 | 75.0/17046 | 84.70 | 6.05 |
HB100F11 | 100.00 | 40.00 | 20.60 | 16.00 | 12.50 | 42.1 | 43.4 | 35.0 | 4.00 | 75.0/17046 | 84.70 | 4.58 |
HB100F9 | 100.00 | 45.00 | 32.80 | 18.00 | 12.40 | 49.0 | 49.0 | 35.0 | 5.00 | 75.0/17046 | 84.70 | 6.14 |
HB100F7 | 100.00 | 30.00 | 15.00 | 16.00 | 12.30 | 36.5 | 37.8 | 35.0 | 4.00 | 75.0/17046 | 84.70 | 3.49 |
HB100F3 | 100.00 | 30.00 | 24.00 | 15.95 | 10.30 | 46.0 | 47.3 | 35.0 | 4.00 | 75.0/17046 | 84.70 | 4.04 |
HB100F13 | 100.00 | 48.00 | 25.00 | 16.00 | 11.30 | 51.0 | 52.8 | 35.0 | 5.00 | 95.0/21356 | 104.50 | 7.03 |
HP101.6F1 | 101.60 | 47.60 | 19.00 | 19.00 | 13.20 | 46.2 | 48.0 | 40.0 | 5.0/4.0 | 53.0/12045 | 58.20 | 6.09 |
HP101.6F2 | 101.60 | 66.70 | 25.40 | 26.90 | 20.10 | 59.2 | 60.7 | 51.0 | 7.1/5.1 | 150.0/34088 | 160.00 | 14.23 |
HP101.6F6 | 101.60 | 47.60 | 20.50 | 21.00 | 16.11 | 45.0 | 46.5 | 40.0 | 5.00/4.00 | 60.0/13488 | 66.00 | 6.20 |
HP101.6F8 | 101.60 | 63.50 | 27.50 | 19.05 | 13.10 | 60.7 | 65.5 | 50.8 | 6.40 | 120.0/26977 | 132.00 | 13.12 |
HB125 | 125.00 | 70.00 | 37.00 | 26.00 | 16.20 | 73.5 | 75.0 | 60.0 | 7.00 | 250.0/56202 | 275.00 | 17.56 |
HP130 | 130.00 | 40.00 | 21.00 | 18.10 | 12.10 | 41.3 | 42.5 | 35.0 | 3.80 | 80.0/18183 | 89.60 | 4.21 |
HP152 | 152.40 | 66.70 | 25.40 | 26.90 | 19.56 | 57.2 | 59.5 | 50.8 | 7.1/5.1 | 94.0/21362 | 107.80 | 9.90 |
HP152.4F1 | 152.40 | 47.60 | 19.00 | 19.00 | 13.20 | 46.2 | 48.0 | 40.0 | 5.0/4.0 | 54.0/12270 | 59.50 | 5.00 |
HP152.4F4 | 152.40 | 64.00 | 25.40 | 29.00 | 21.00 | 59.5 | 60.1 | 50.0 | 8.00/5.00 | 71.3/16028 | 78.43 | 9.82 |
