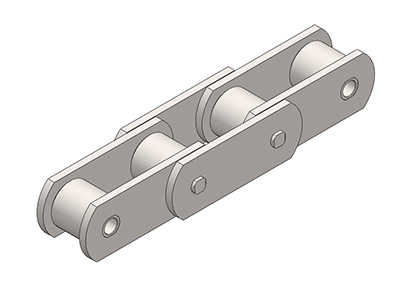

Hollow Pin Conveyor Chains (MC Series)

Availability:
Quantity:

Product Description

Metric (M series) conveyor chain conforms to ISO and DlN standards, mainly including M type conveyor chain, MT type conveyor chain and MC type hollow pin shaft conveyor chain:

 Metric conveyor chain refers to roller chain or sleeve chain whose chain pitch is metric integer (various pitches ranging from 40 mm to 1000 mm). The rollers have various structural forms, and various accessories are arranged according to the service conditions

M-type is solid pin conveyor chain, MC-type is hollow pin conveyor chain, MT-type is large roller heightening chain plate conveyor chain, and MC-type and MT-type chain shave two kinds of products with tensile strength indexes for users to choose from.

Products are widely used in mechanical conveying and loading and unloading equipment in metallurgy, mining, sugar making, wine making, ceramics, paper making and other industries.

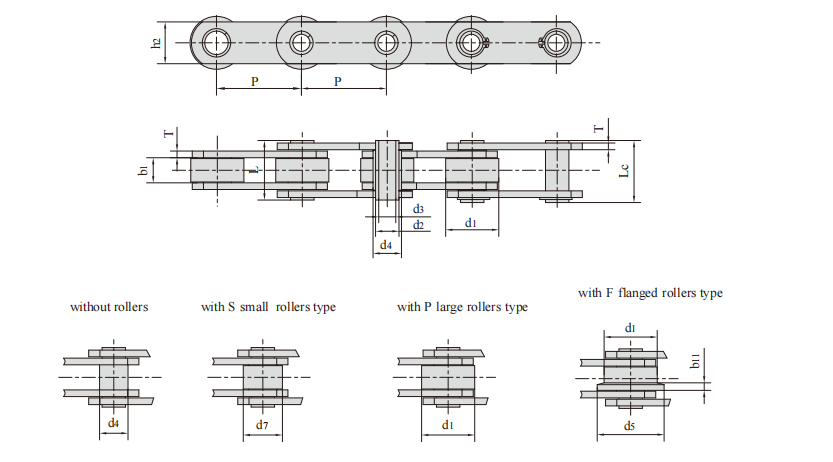

Parameter

产品图纸1.2

DIN
Chain No
Pitch Roller
dimesion
Bush
diameter
Plate
depth
P d1
max
d7
max
d5
max
b11 d4
max
h2
max
mm mm mm mm mm mm mm
MC28 63.0 80.0 100.0 125.0 160.0 - 36.0 25.0 45.0 4.5 17.5 25.0
MC56 80.0 100.0 125.0 160.0 200.0 250.0 50.0 30.0 60.0 5.0 21.0 35.0
MC112 100.0 125.0 160.0 200.0 250.0 315.0 70.0 42.0 85.0 7.0 29.0 50.0
MC224 160.0 200.0 250.0 315.0 400.0 500.0 100.0 60.0 120.0 10.0 41.0 70.0
DIN
Chain No
Width
between
inner plates
Pin
diameter
Pin
length
Plate
thickness
Tensile
strength
b1
min
d2
max
d3
min
L
max
Lc
max
T
max
Q
min
*Q
min
mm mm mm mm mm mm   kN/lbf kN/lbf
MC28 20.0 13.0 8.2 36.0 38.5 3.5  28.0/6364 40.0/9091
MC56 24.0 15.5 10.2 45.0 47.5 4.0  56.0/12727 90.0/20454
MC112 32.0 22.0 14.3 62.5 64.3 6.0   112.0/25454 180.0/40908
MC224 43.0 31.0 20.3 83.0 85.5 8.0  224.0/50909 350.0/79544
*Q denotes the tensile strength after hardened
