Product Description
YDT801-4/2----YDT315L2-8/6/4

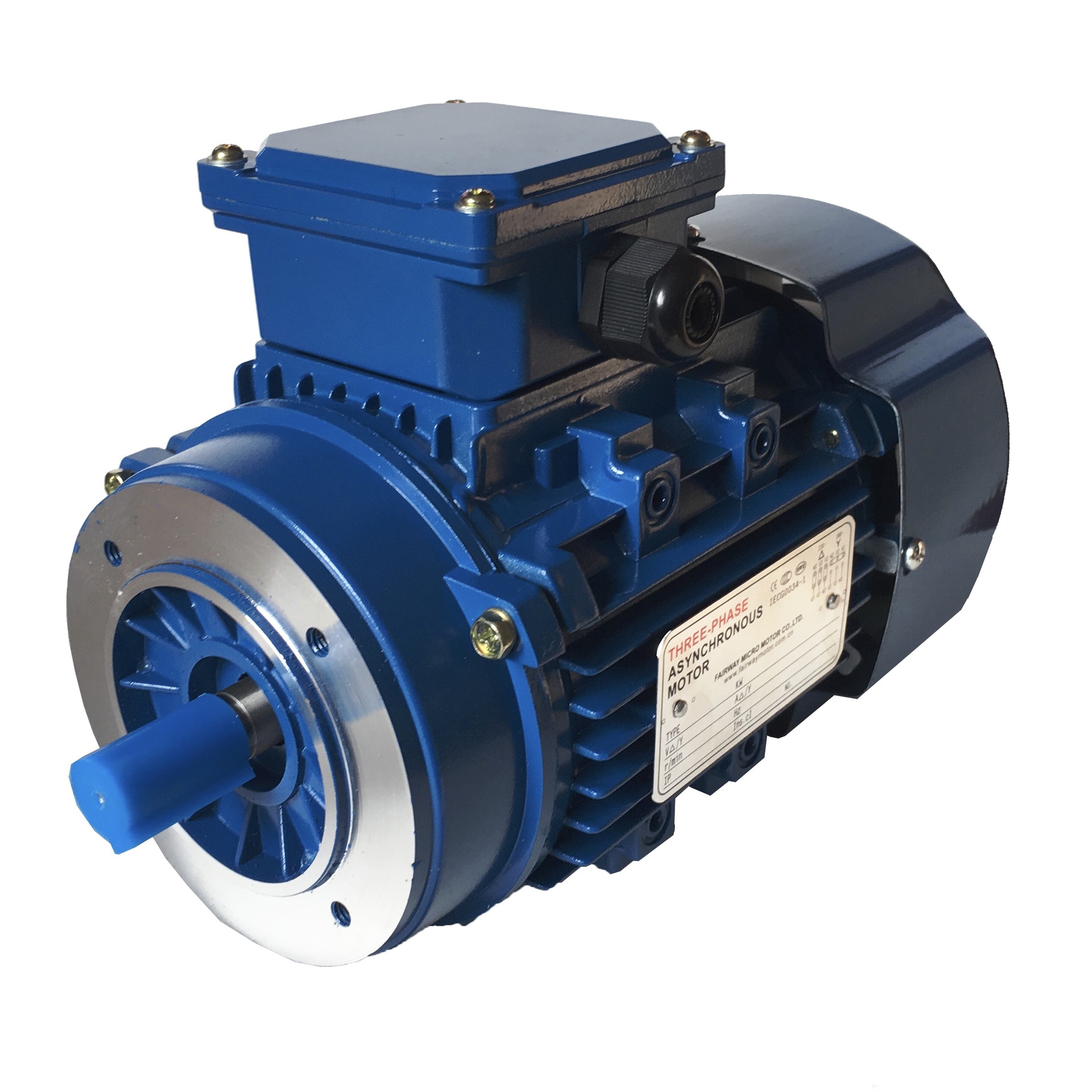

The YDT series change pole multi-speed three phase asynchronous motor for fan and pump is a derived series product of the Y series motor with excellent mechanical behaviour, elegant shape and outstanding interchangeability with the overseas similar products. Its protective grade is IP44.
The motors of this series includes tow types: dual-speed and tri-speed. The speed varies step by step. The products are used in fan, water pump and other plant equipment.
The rate voltage is 380V,the rate frequency is 50HZ, and the class the insulation is B class. The code of the frame (the central height), structure type, and the parts of the motor, the mounting dimensions and contour dimension are correspondingly identical with those of the Y series motor for the conveniences of the customers in choosing, installing, using and maintaining the products.
Technical Data Sheet
| Model | Synchronous Speed/ min | Outputkw | Rated Current A | Eff.% | Power Factor Cosø | Locked Rotor Current | Locked Rotor Torque | Max Torque |
| Full Load Current | Full Load Torque | Load Torque | ||||||
| YDT801-4/2 | 1500/3000 | 0.17/0.75 | 0.65/1.86 | 62/72 | 0.62/0.82 | 5.5/7.5 | 1.4/2.0 | 1.8 |
| YDT802-4/2 | 1500/3000 | 0.25/0.95 | 0.87/2.33 | 66/74 | 0.65/0.81 | 5.5/7.5 | 1.4/2.0 | 1.8 |
| TDT90S-4/2 | 1500/3000 | 0.3/1.4 | 0.85/3.43 | 73/74 | 0.72/0.82 | 5.5/7.5 | 1.4/2.0 | 1.8 |
| YDT90L-4/2 | 1500/3000 | 0.4/1.9 | 1.08/4.27 | 74/77 | 0.73/0.86 | 5.5/7.5 | 1.4/2.0 | 1.8 |
| YDT100L1-4/2 | 1500/3000 | 0.65/2.5 | 1.85/5.25 | 74/82 | 0.72/0.87 | 5.5/7.5 | 1.4/2.0 | 1.8 |
| YDT100L2-4/2 | 1500/3000 | 0.8/3.1 | 2.17/6.39 | 76/82 | 0.72/0.87 | 5.5/7.5 | 1.4/2.0 | 1.8 |
| YDT112M-4/2 | 1500/3000 | 1.1/4.4 | 2.42/9.15 | 80/82 | 0.74/0.88 | 5.5/7.5 | 1.4/2.0 | 1.8 |
| YDT132S-4/2 | 1500/3000 | 1.4/5.9 | 3.5/11.68 | 80/83 | 0.74/0.91 | 5.5/7.5 | 1.3/1.9 | 1.8 |
| YDT132M-4/2 | 1500/3000 | 2月8日 | 4.65/15.29 | 83/85 | 0.77/0.91 | 5.5/7.5 | 1.3/1.9 | 1.8 |
| YDT160M-4/2 | 1500/3000 | 2.8/12.5 | 6.56/24.04 | 85/86 | 0.75/0.91 | 5.5/7.5 | 1.3/1.9 | 1.8 |
| YDT160L-4/2 | 1500/3000 | 3.8/16.5 | 8.64/30.98 | 86/87 | 0.76/0.91 | 5.5/7.5 | 1.5/1.9 | 1.8 |
| YDT90S-8/4 | 750/1500 | .22/1.0 | 0.92/2.44 | 57/73 | 0.62/0.82 | 5.0/7.5 | 1.5/1.9 | 1.8 |
| YDT90L-8/4 | 750/1500 | 0.3/1.3 | 1.18/3.10 | 60/75 | 0.63/0.82 | 5.0/7.5 | 1.5/1.9 | 1.8 |
| YDT100L1-8/4 | 750/1500 | 0.55/2.0 | 2.07/4.68 | 65/80 | 0.61/0.80 | 5.0/7.5 | 1.5/1.9 | 1.8 |
| YDT100L2-8/4 | 750/1500 | 0.65/2.4 | 2.37/5.48 | 66/80 | 0.61/0.80 | 5.0/7.5 | 1.5/1.9 | 1.8 |
| YDT112M-8/4 | 750/1500 | 0.9/3.2 | 3.24/7.40 | 71/83 | 0.59/0.78 | 5.0/7.5 | 1.2/2.0 | 1.8 |
| YDT132S-8/4 | 750/1500 | 1.1/4.5 | 3.68/9.68 | 75/84 | 0.59/0.82 | 5.0/7.5 | 1.2/2.0 | 1.8 |
| YDT132M-8/4 | 750/1500 | 1.5/6.3 | 4.84/13.13 | 78/85 | 0.59/0.83 | 5.0/7.5 | 1.2/2.0 | 1.8 |
| YDT160M-8/4 | 750/1500 | 2.0/8.9 | 5.34/18.14 | 82/85 | 0.67/0.85 | 5.0/7.5 | 1.2/2.0 | 1.8 |
| YDT160L-8/4 | 750/1500 | 2.7/12 | 6.9/23.47 | 84/86 | 0.67/0.86 | 5.0/7.5 | 1.2/2.0 | 1.8 |
| YDT180M-8/4 | 750/1500 | 4月16日 | 10.83/31.77 | 84/88 | 0.65/0.85 | 5.0/7.5 | 1.2/2.0 | 1.8 |
| YDT180L-8/4 | 750/1500 | 5/19.5 | 13.32/38.56 | 85/89 | 0.66/0.85 | 5.0/7.5 | 1.2/2.0 | 1.8 |
| YDT200L-8/4 | 750/1500 | 7.5/29 | 19.57/56.8 | 87/90 | 0.66/0.85 | 5.0/7.5 | 1.2/2.0 | 1.8 |
| YDT225M-8/4 | 750/1500 | 9.5/40 | 25.43/74.57 | 88/91 | 0.64/0.88 | 5.0/7.5 | 1.3/2.0 | 1.8 |
| YDT250M-8/4 | 750/1500 | 14.5/52 | 36.97/97.29 | 88/91 | 0.66/0.87 | 5.0/7.5 | 1.3/2.0 | 1.8 |
| YDT280S-8/4 | 750/1500 | 17/65 | 41.73/122.74 | 89/91 | 0.68/0.87 | 5.0/7.5 | 1.3/2.0 | 1.8 |
| YDT280M-8/4 | 750/1500 | 18.5/75 | 43.86/137.39 | 90/91 | 0.70/0.88 | 5.0/7.5 | 1.3/2.0 | 1.8 |
| YDT315S-8/4 | 750/1500 | 25/92 | 58.71/174.76 | 90/91 | 0.70/0.86 | 5.0/7.5 | 1.3/2.0 | 1.8 |
| YDT315M-8/4 | 750/1500 | 30/110 | 70.11/2.8026 | 91/92 | 0.70/0.86 | 5.0/7.5 | 1.3/2.0 | 1.8 |
| YDT315L1-8/4 | 750/1500 | 36/135 | 83.99/253.26 | 91/92 | 0.70/0.87 | 5.0/7.5 | 1.3/2.0 | 1.8 |
| YDT315L2-8/4 | 750/1500 | 41/155 | 94.72/287.97 | 91/92 | 0.71/0.87 | 5.0/7.5 | 1.3/2.0 | 1.8 |
| YDT90S-6/4 | 1000/1500 | 0.32/1.1 | 1.0/2.86 | 66/73 | 0.66/0.78 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| YDT90L-6/4 | 1000/1500 | 0.45/1.4 | 1.43/3.43 | 70/75 | 0.66/0.81 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| YDT100L1-6/4 | 1000/1500 | 0.7/2.2 | 2.15/5.22 | 73/80 | 0.66/0.79 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| YDT100L2-6/4 | 1000/1500 | 0.9/2.5 | 2.86/5.96 | 74/81 | 0.67/0.78 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| YDT112M-6/4 | 1000/1500 | 1.1/3.2 | 3.09/7.03 | 78/82 | 0.68/0.82 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| YDT132S-6/4 | 1000/1500 | 1.5/4.7 | 4.06/10 | 81/84 | 0.68/0.83 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| YDT132M-6/4 | 1000/1500 | 2.2/6.7 | 5.7/13.71 | 83/85 | 0.69/0.85 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| YDT160M-6/4 | 1000/1500 | 3.1/9.5 | 7.9/19.3 | 83/87 | 0.69/0.84 | 7.0/7.5 | 1.6/1.8 | 1.8 |
| YDT160L-6/4 | 1000/1500 | 4月12日 | 10/24.36 | 83/88 | 0.69/0.84 | 7.0/7.5 | 1.6/1.8 | 1.8 |
| YDT180M-6/4 | 1000/1500 | 5.1/15.5 | 11.5/29 | 81/87 | 0.72/0.84 | 7.0/7.5 | 1.6/1.8 | 1.8 |
| YDT180L-6/4 | 1000/1500 | 6.2/18.5 | 13.85/34.3 | 81/87 | 0.74/0.85 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| YDT200L-6/4 | 1000/1500 | 8.7/26 | 19.1/48.2 | 83/88 | 0.77/0.85 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| YDT225S-6/4 | 1000/1500 | 11/33 | 8.2/60.7 | 84/99 | 0.84/0.86 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| YDT225M-6/4 | 1000/1500 | 13/39 | 27.3/71.3 | 85/90 | 0.85/0.86 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| YDT250M-6/4 | 1000/1500 | 16/47 | 32.3/84.2 | 85/90 | 0.87/0.89 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| YDT280S-6/4 | 1000/1500 | 18.5/55 | 37.3/99.6 | 85/90 | 0.86/0.88 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| YDT280M1-6/4 | 1000/1500 | 25/70 | 48.4/125 | 87/91 | 0.87/0.88 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| YDT280M2-6/4 | 1000/1500 | 28/84 | 54.8/150.6 | 87/91 | 0.87/0.88 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| YDT315S-6/4 | 1000/1500 | 32/95 | 65.3/177.4 | 89/91 | 0.79/0.86 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| YDT315M-6/4 | 1000/1500 | 38/115 | 77.9/217.5 | 90/92 | 0.78/0.86 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| YDT315L1-6/4 | 1000/1500 | 45/135 | 90.5/260 | 90/92 | 0.80/0.86 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| YDT315L2-6/4 | 1000/1500 | 55/160 | 113.4/294 | 91/93 | 0.80/0.86 | 7.0/7.5 | 1.5/1.5 | 1.8 |
| YDT90S-8/6 | 750/1000 | 0.25/0.65 | 1.22/2.24 | 52/65 | 0.58/0.63 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| YDT90L-8/6 | 750/1000 | 0.35/0.80 | 1.58/2.87 | 56/67 | 0.58/0.63 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| YDT100L1-8/6 | 750/1000 | 0.55/1.30 | 2.23/4.07 | 62/71 | 0.58/0.66 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| YDT100L2-8/6 | 750/1000 | 0.75/1.60 | 2.86/3.11 | 66/74 | 0.59/0.67 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| YDT112M-8/6 | 750/1000 | 0.9/2.20 | 3.32/6.0 | 68/77 | 0.59/0.70 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| YDT132S-8/6 | 750/1000 | 1.20/2.60 | 4.05/6.85 | 73/79 | 0.60/0.71 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| YDT132M1-8/6 | 750/1000 | 1.60/3.30 | 5.26/7.96 | 76/80 | 0.60/0.76 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| YDT132M2-8/6 | 750/1000 | 2.20/4.50 | 7.02/10.95 | 77/82 | 0.60/0.75 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| YDT160M-8/6 | 750/1000 | 3.20/6.50 | 9.43/14.84 | 81/85 | 0.61/0.76 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| YDT160L-8/6 | 750/1000 | 4.50/9.0 | 12.97/20.21 | 82/86 | 0.62/0.77 | 6.0/7.0 | 1.6/1.8 | 1.8 |
| YDT180L-8/6 | 750/1000 | 6.5/13.0 | 17.77/29.07 | 81/86 | 0.65/0.77 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| YDT200L1-8/6 | 750/1000 | 8.5/17 | 20.6/35.5 | 82/87 | 0.66/0.80 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| YDT200L2-8/6 | 750/1000 | 11月22日 | 27.8/44.3 | 83/88 | 0.68/0.80 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| YDT225M-8/6 | 750/1000 | 15/30 | 32.2/62.3 | 87/89 | 0.78/0.83 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| YDT250M-8/6 | 750/1000 | 18/37 | 38.5/72.1 | 87/90 | 0.81/0.86 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| YDT280S-8/6 | 750/1000 | 22/45 | 46.2/86.8 | 88/90 | 0.81/0.86 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| YDT280M1-8/6 | 750/1000 | 28/55 | 57.2/104.7 | 89/91 | 0.81/0.82 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| YDT280M2-8/6 | 750/1000 | 32/65 | 66.6/122 | 89/91 | 0.81/0.82 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| YDT315S-8/6 | 750/1000 | 37/75 | 40.4/145.1 | 90/91 | 0.78/0.84 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| YDT315M-8/6 | 750/1000 | 45/90 | 90.4/171.6 | 91/92 | 0.80/0.85 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| YDT315L1-8/6 | 750/1000 | 55/110 | 115.7/209.7 | 91/92 | 0.78/0.85 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| YDT315L2-8/6 | 750/1000 | 66/132 | 137.4/252 | 91/92 | 0.78/0.85 | 6.0/7.0 | 1.5/1.5 | 1.8 |
| YDT112M-8/6/4 | 750/1000/1500 | 0.6/0.8/2.3 | 2.74/3.16/5.88 | 61/65/79 | 0.53/0.57/0.73 | 4.0/6.5/7.5 | 1.3/1.7/2.0 | 1.8 |
| YDT132S-8/6/4 | 750/1000/1500 | 0.8/1.1/3.1 | 3.06/3.9/7.14 | 68/71/81 | 0.57/0.60/0.79 | 4.0/6.5/7.5 | 1.3/1.7/2.0 | 1.8 |
| YDT132M-8/6/4 | 750/1000/1500 | 1.1/1.5/4.5 | 3.92/4.66/9.76 | 72/74/83 | 0.57/0.65/0.82 | 4.0/6.5/7.5 | 1.3/1.7/2.0 | 1.8 |
| YDT160M-8/6/4 | 750/1000/1500 | 1.5/2.6/7.5 | 4.79/7.33/15.98 | 79/79/84 | 0.58/0.67/0.82 | 4.0/6.5/7.5 | 0.95/1.6/1.8 | 1.8 |
| YDT160L-8/6/4 | 750/1000/1500 | 2.0/3.5/10.2 | 6.03/9.46/20.64 | 81/81/86 | 0.60/0.68/0.85 | 4.0/6.5/7.5 | 0.95/1.6/1.8 | 1.8 |
| YDT180M-8/6/4 | 750/1000/1500 | 2.6/4.5/13 | 7.72/10.62/24.22 | 80/80/86 | 0.63/0.80/0.90 | 5.5/7.5/8.0 | 0.95/1.6/1.8 | 1.8 |
| YDT180L-8/6/4 | 750/1000/1500 | 3.3/6/16 | 9.69/13.56/29.63 | 81/81/87 | 0.63/0.81/0.90 | 5.5/7.5/8.0 | 0.95/1.6/1.8 | 1.8 |
| YDT200L-8/6/4 | 750/1000/1500 | 4.5/8/22 | 13.23/17.75/40.56 | 82/82/87 | 0.62/0.82/0.90 | 5.5/7.5/8.0 | 0.95/1.6/1.8 | 1.8 |
| YDT225S-8/6/4 | 750/1000/1500 | 5.5/10/28 | 13.43/21.1/53.32 | 85/83/89 | 0.70/0.85/0.88 | 5.5/7.5/8.0 | 1.1/1.7/1.8 | 1.8 |
| YDT225M-8/6/4 | 750/1000/1500 | 7.5/12/34 | 17.22/24.71/63.11 | 87/83/90 | 0.74/0.86/0.89 | 5.5/7.5/8.0 | 1.1/1.7/1.8 | 1.8 |
| YDT250M-8/6/4 | 750/1000/1500 | 10/15.5/44 | 22.58/32.12/78.09 | 88/85/90 | 0.75/0.85/0.92 | 5.5/7.5/8.0 | 1.1/1.7/1.8 | 1.8 |
| YDT280S-8/6/4 | 750/1000/1500 | 12/18/55 | 27.33/37.0/98.47 | 88/85/90 | 0.74/0.85/0.92 | 5.5/7.5/8.0 | 1.1/1.7/1.8 | 1.8 |
| YDT280M-8/6/4 | 750/1000/1500 | 15/21/66 | 32.79/42.54/116.88 | 89/86/91 | 0.76/0.86/0.92 | 5.5/7.5/8.0 | 1.1/1.7/1.8 | 1.8 |
| YDT315S- 8/6/4 | 750/1000/1500 | 19/27/75 | 43.8/55.27/136.34 | 89/87/90 | 0.73/0.84/0.91 | 5.5/7.5/8.0 | 1.3/1.4/1.8 | 1.8 |
| YDT315M-8/6/4 | 750/1000/1500 | 22/32/90 | 50.56/64.79/162 | 90/88/91 | 0.72/0.84/0.91 | 5.5/7.5/8.0 | 1.3/1.4/1.8 | 1.8 |
| YDT315L1-8/6/4 | 750/1000/1500 | 28/40/115 | 62.47/79.73/204.23 | 90/88/91 | 0.74/0.85/0.91 | 5.5/7.5/8.0 | 1.3/1.4/1.8 | 1.8 |
| YDT315L2-8/6/4 | 750/1000/1500 | 35/51/140 | 80.16/101.83/253.64 | 91/89/92 | 0.72/0.84/0.90 | 5.5/7.5/8.0 | 1.3/1.4/1.8 | 1.8 |
