Round Pin Type Silent Chains

Quantity:

Product Description

Round pin type silent chains.pdf

圆销式静音链

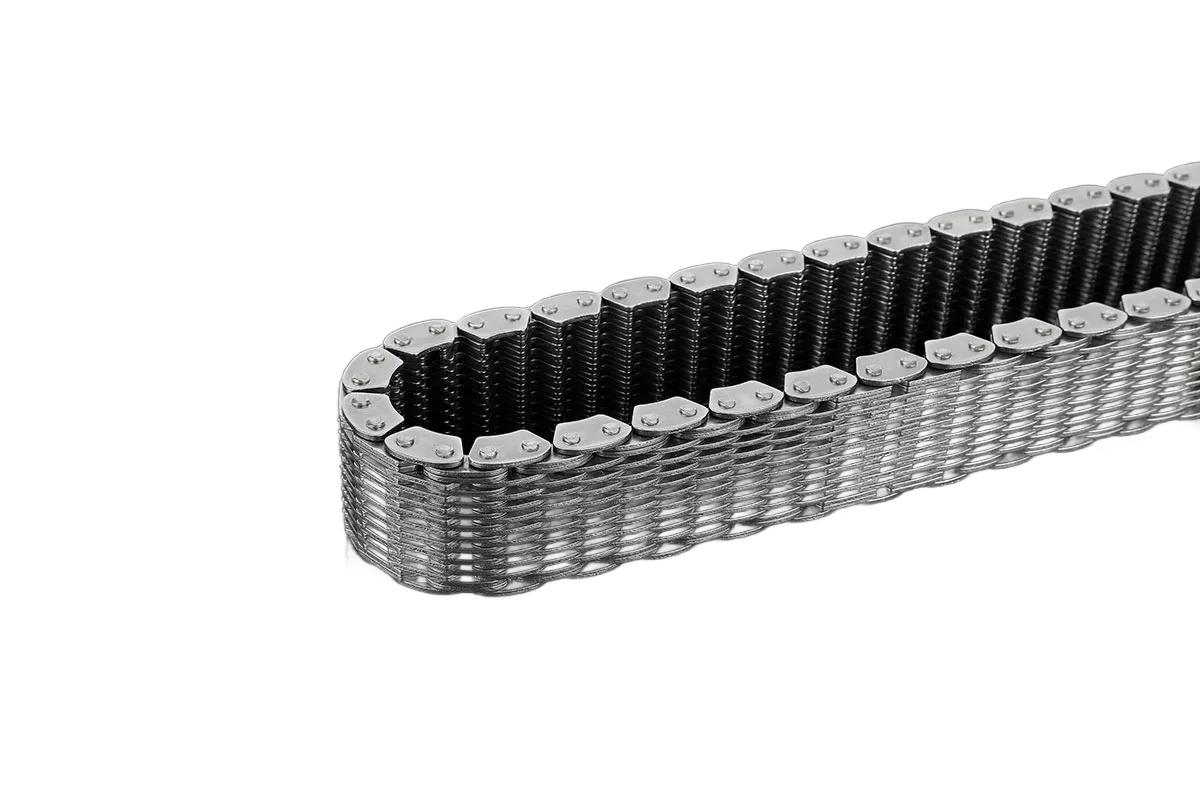

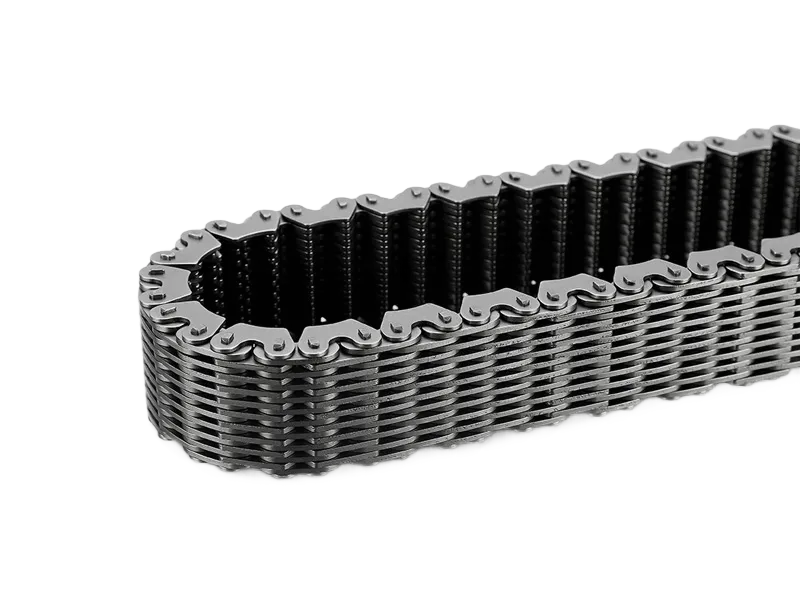

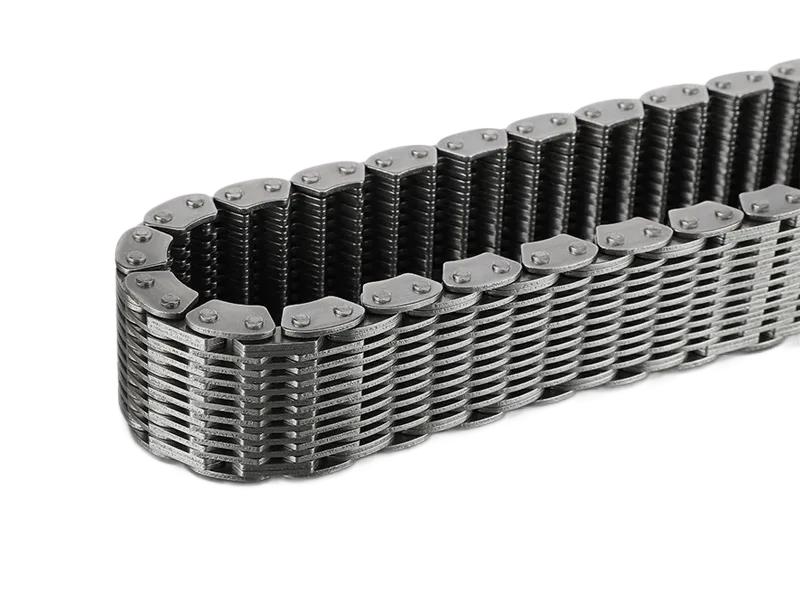

Round pin type silent chains

圆销式静音链主要用于分动箱和变速箱动力总成驱动系统,是驱动系统的核心部件。链条采用优质钢,链板采取等温淬火,能适应高强度、高耐磨、低噪声、大扭矩等多种工况。

Round pin type silent chain is mainly used for transfer case and gearbox assembly drive system, which is the core component of the drive system. The chain is made from superior quality steel and the plates of which are austempered, which is especially suitable for various conditions such as high strength, high wear resistance, low noise and big torque etc..


圆销式静音链Round pin type silent chains



Chain No.


节距Pitch

P

mm


链宽

Chain width


b1 min

mm


销轴长度

Pin length


L

max

mm


链板高度

Plate depth


h2 max

mm


链板厚度

Plate thickness

导向型式

Guide form


片数

Number of plate


n


抗拉强度Tensile strength


Q

min

kN/lbf


每米长重

Weight per meter

q kg/m


t max

mm

T

max

mm

CL06

9.525

17.00

22.70

11.57

1.54

1.54

(外)Outside

13(6×7)

37/8318

1.28

CL06D


9.525

32.80

38.20

11.57

1.55

1.55

(外)Outside

23(12×11)

73/16410

2.23

9.525

42.50

38.20

11.57

1.55

1.55

(外)Outside

29(14×15)

86/19333

2.90

BC1252


12.780

29.60

35.10

15.50

1.54

1.54

(外)Outside

21(10×11)

80/17984

2.66

12.780

30.50

36.00

15.50

1.54

1.54

(外)Outside

21(11×10)

80/17984

2.76


SC1252



12.780

31.20

36.70

15.50

1.54/1.76

1.54

(外)Outside

21(11×10)

80/17984

2.82

12.780

37.50

43.20

15.50

1.54/1.76

1.54

(外)Outside

25(13×12)

96/21581

3.33

12.780

43.90

49.70

15.50

1.54/1.76

1.54

(外)Outside

29(15×14)

112/25178

3.85
