Timing Roller Chains for Automobile Engine

Quantity:

Product Description

Timing Roller Chains for Automobile Engine.pdf

汽车发动机正时滚子链

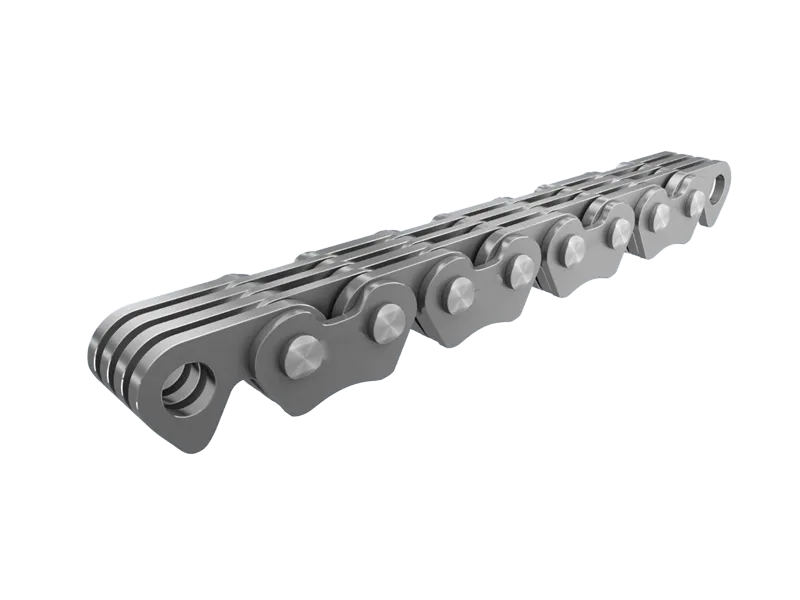

Timing roller chains for automobile engine

发动机正时滚子链主要用于汽车发动机正时系统、机油泵、平衡轴和共轨泵驱动系统,是发动机的关键零部件。具备较高的强度、耐久性能。

Roller chain for engine timing is mainly used for automobile engine timing system, oil pump, balance shaft and common rail pump drive system etc.. This chain is the key engine component with high strength and durability.

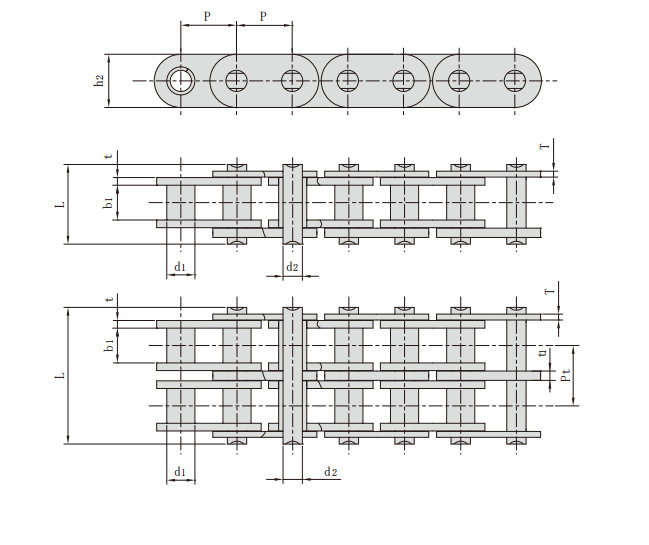

Chain No.


节距Pitch

P

mm


滚子直径Roller diameter


d1 max

mm


内节内宽Width between inner plates

b1 min

mm


销轴直径Pin diameter


d2 max

mm


销轴长度Pin length

L

max

mm


内链板高度Inner plate depth

h2 max

mm


链板厚度Plate thickness

排距Transverse pitch

Pt mm


抗拉强度Tensile strength

Q

min

kN/lbf


每米长重Weight per meter

q kg/m


t/t1 max

mm

T

max

mm

05BT

8.000

5.65

4.60

3.05

12.15

7.65

1.3

1.20

-

8.5/1912

0.41

06BT

9.525

6.35

5.75

3.28

12.50

8.20

1.3

1.04

-

9.0/2025

0.38

06BT-2

9.525

6.35

5.75

3.28

22.90

8.20

1.3/1.6

1.04

10.24

16.9/3802

0.67

06BTH-2

9.525

6.35

5.72

3.28

25.10

8.20

1.6

1.20

11.40

17.8/4005

0.86
