Product Description
Timing Bush Chains for Automobile Engine.pdf
汽车发动机正时套筒链
Timing bush chains for automobile engine
发动机正时套筒链主要用于柴油发动机正时系统、平衡轴系统，套筒链与滚子链相比，结构简单，具备较高的耐磨性能。
Bush chain for engine timing is mainly used for diesel engine timing system and the balance shaft system etc.. Compared with the roller chain, it has simpler structuce and higher wear resistance.

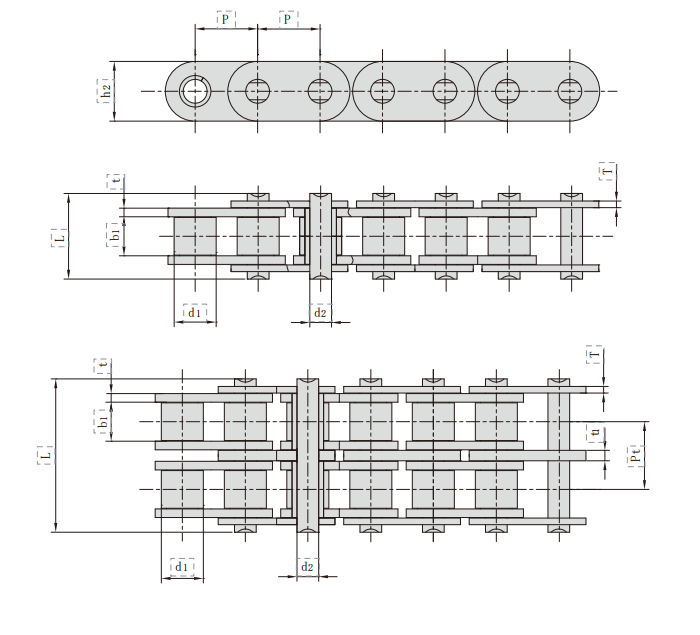

Chain No. | 节距Pitch P mm | 套筒直径 Bush diameter d1 max mm | 内节内宽 Width between inner plates b1 min mm | 销轴直径 Pin diameter d2 max mm | 销轴长度 Pin length L max mm | 内链板高度 Inner plate depth h2 max mm | 链板厚度 Plate thickness | 排距 Transverse pitch Pt mm | 抗拉强度Tensile strength Q min kN/lbf | 每米长重 Weight per meter q kg/m | |
t/t1 max mm | T max mm | ||||||||||
P7 | 7.000 | 4.00 | 3.50 | 2.70 | 9.60 | 6.8 | 1.15 | 1.00 | - | 6.9/1551 | 0.31 |
P7F1 | 7.000 | 4.00 | 3.40 | 2.70 | 9.80 | 6.8 | 1.20 | 1.20 | - | 6.9/1551 | 0.33 |
05C | 8.000 | 5.00 | 4.76 | 3.15 | 11.80 | 7.6 | 1.30 | 1.00 | - | 8.5/1932 | 0.35 |
06D | 9.525 | 6.35 | 3.80 | 4.45 | 10.70 | 9.6 | 1.35 | 1.04 | - | 9.0/2024 | 0.41 |
06DTF1 | 9.525 | 6.35 | 5.72 | 4.45 | 14.25 | 9.6 | 1.80 | 1.30 | - | 14.5/3259 | 0.57 |
06DTF2 | 9.525 | 6.35 | 5.72 | 4.45 | 14.55 | 9.6 | 1.75 | 1.40 | - | 14.5/3259 | 0.60 |
06DF2-2 | 9.525 | 6.35 | 3.80 | 4.46 | 18.80 | 9.6 | 1.35/1.40 | 1.04 | 8.30 | 16.2/3641 | 0.76 |
06DF3-2 | 9.525 | 6.35 | 4.40 | 4.46 | 21.70 | 9.6 | 1.50 | 1.30 | 9.70 | 18.7/4203 | 0.86 |
