Timing silent chains for automobile engine

Quantity:

Product Description

Timing silent chains for automobile engine.pdf

汽车发动机正时静音链

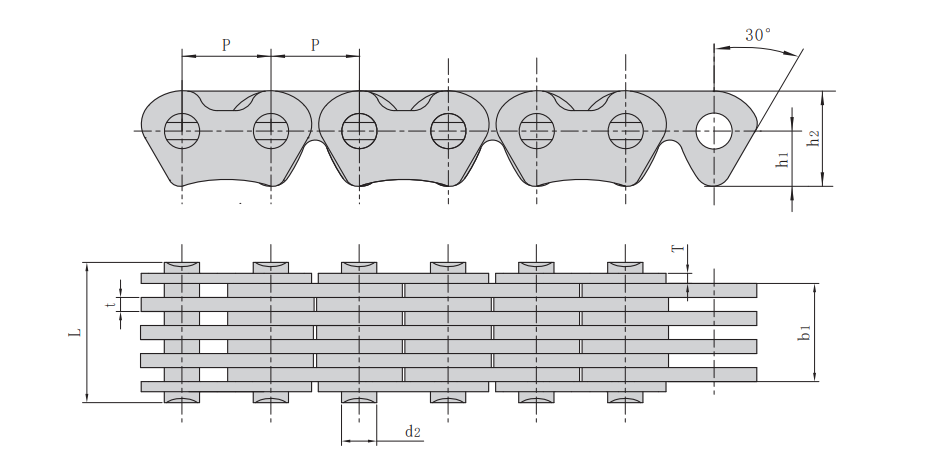

Timing silent chains for automobile engine


发动机正时静音链主要用于汽车发动机正时系统,是发动机关键零部件,具有较高的强度、耐久性和静音性等优良性能。

Silent chain for engine timing is mainly used for automobile engine timing system. The chain is the key engine component with excellent performances such as high strength, durability and silencing and so on.



C ain No.


节距Pitch

P

mm


链宽

Chain width


b1 min

mm


销轴直径

Pin diameter


d2 max

mm


销轴长度

Pin length


L

max

mm


链板高度

Plate depth


h2 max

mm


链板厚度

Plate thickness

导向型式

Guide form


片数

Number of plate


n


抗拉强度Tensile strength


Q

min

kN/lbf


每米长重

Weight per meter

q kg/m


t max

mm

T

max

mm

CL04DF3


6.35

7.80

2.70

11.20

7.13

1.04/1.4

1.04

(外)Outside

8(4×4)

10.0/2250

0.38

6.35

8.86

2.70

12.30

7.13

1.04/1.4

1.04

(外)Outside

9(4×5)

12.5/2813

0.41

CL04DF10

6.35

8.60

2.72

12.70

7.13

1.2

1.20

(外)Outside

9(5×4)

12.0/2700

0.41

CL05D


8.00

6.50

2.92

10.48

9.59

1.3

1.04

(外)Outside

7(3×4)

12.0/2700

0.46

8.00

7.80

2.92

11.78

9.59

1.3

1.04

(外)Outside

8(4×4)

16.0/3600

0.52

CL05V

8.00

7.70

3.15

11.80

9.59

1.3

1.00

(外)Outside

8(4×4)

12.0/2700

0.48
