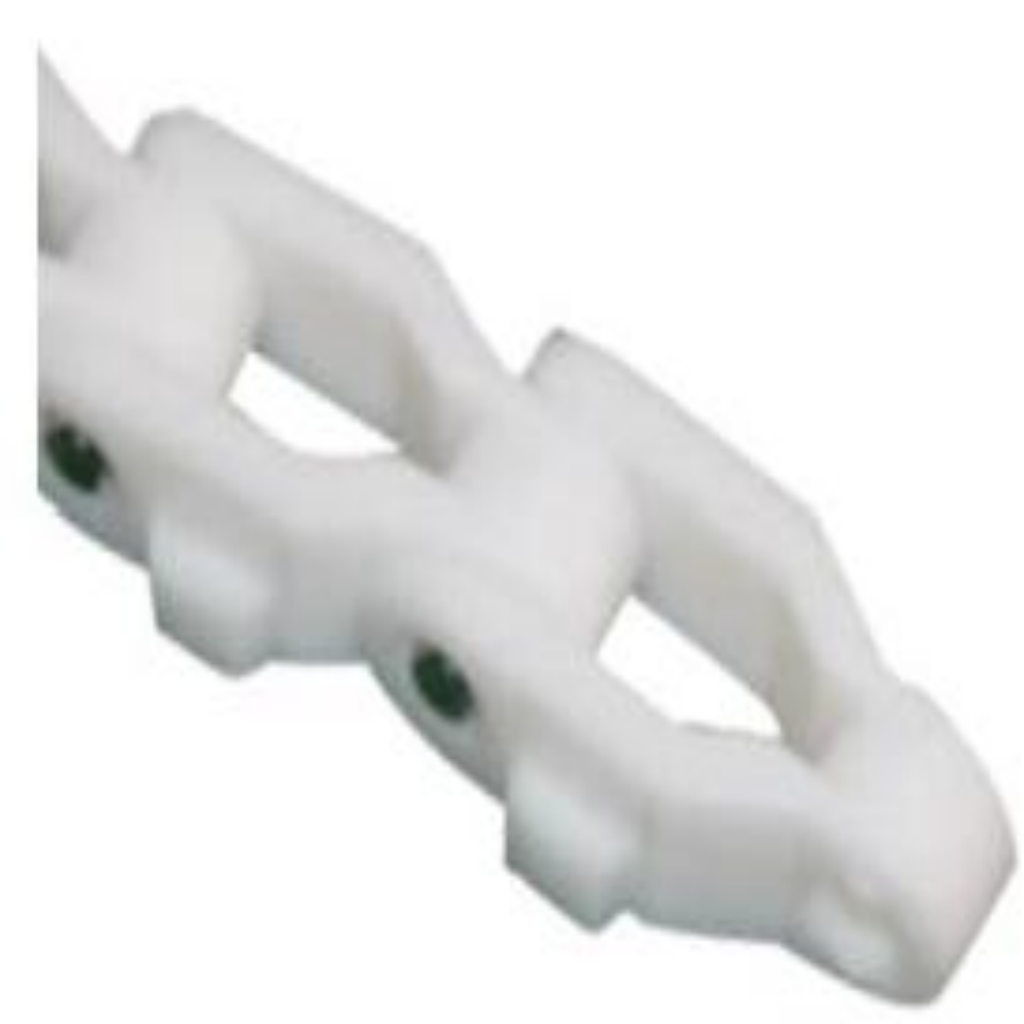

2600TAB Straight Run Single Hinge Chain

Availability:

Quantity:



Inquire Add to Basket

Product Description

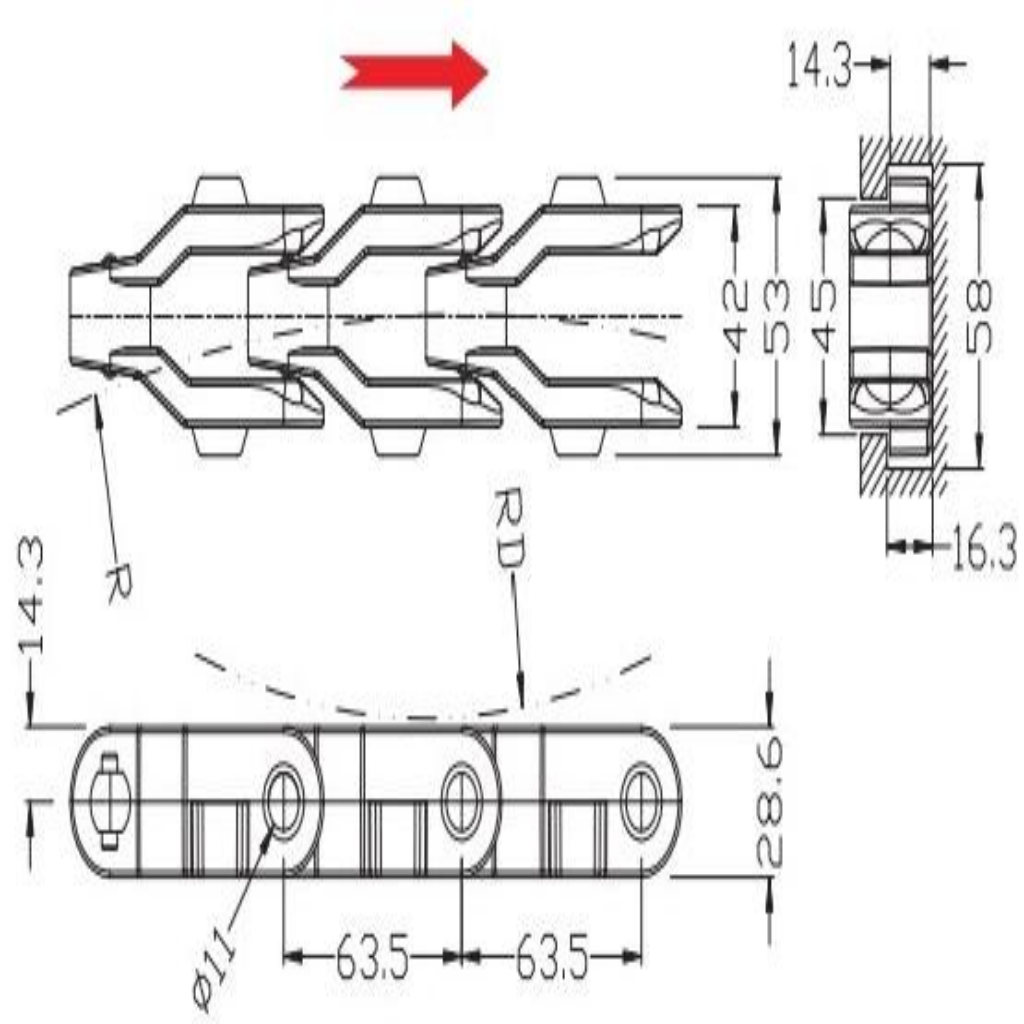

2600TAB Straight Run Single Hinge Chain图纸

链板型号 Chain Type	链板宽度 Chian width	节距 Pitch	最小转弯半径	最小背弯半径	工作载荷	链板重量	链板材质
	链板宽度 Chian width	节距 Pitch	Sideflex Raius(Min)	Backflex Radius(Min)	Working Load(Max)	Weight	Chain Material
	mm	mm	mm	mm	牛顿N(21℃)	Kg/m
2600TAB	42	63.5	457	50	8000	1.3	XLHS
2600TAB	42	63.5	457	50	11000	1.3	HGHS
