Angular Drive Unit

Product description

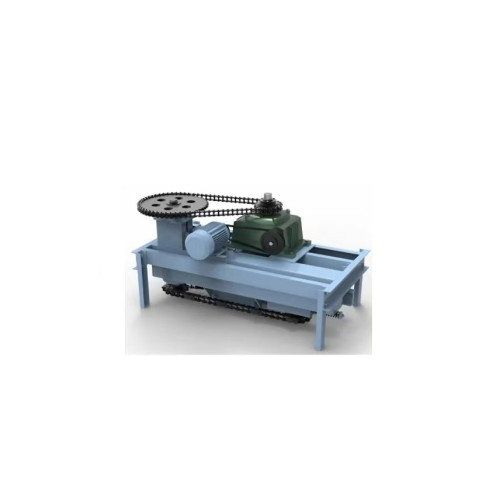

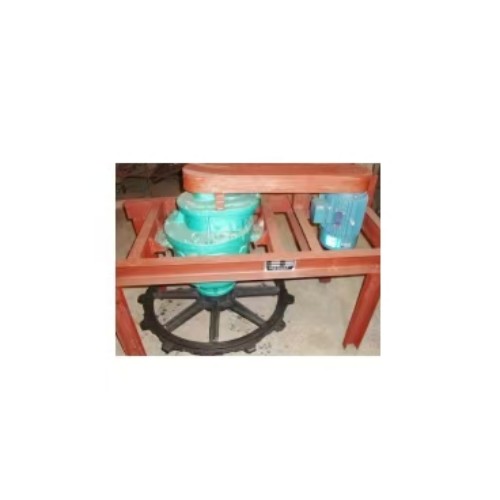

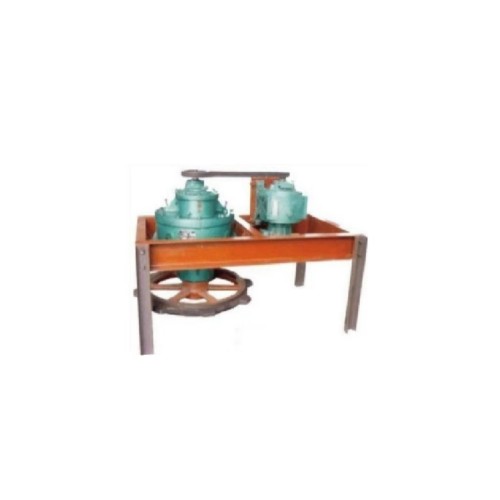

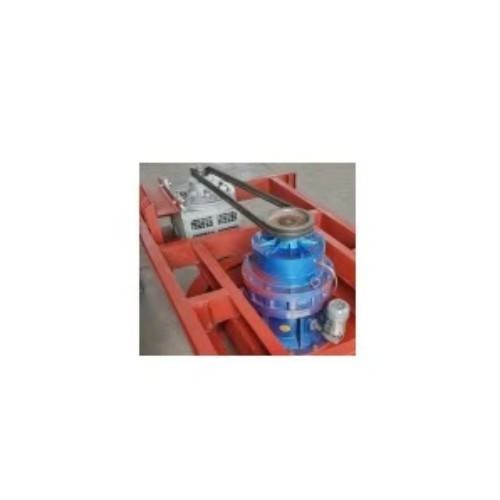

The device adopts a transmission device with a planetary reducer belt structure.The standard number of teeth of the drive wheel is 10. If the user has special needs, on the premise of ensuring the strength of the reducer, a drive wheel with 13 teeth can be provided. The speed range is 0.5 to 10m/min, taking into account the smoothness and stability of line transportation.For service life, it is recommended that the linear speed should be 2 to 6m/min within the allowable range of the conveying volume. When designing this drive, it was considered that the drive may be damaged due to accidents such as overloading, so it is equipped with a safety pin to protect the drive. As soon as the traction force is overloaded, the pin will be cut off immediately to protect the drive device.

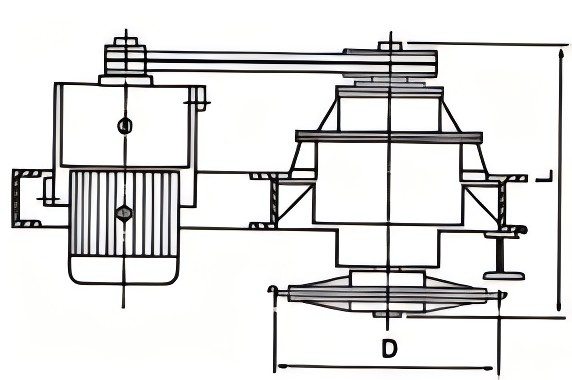

Product Specification

Application

Industrial Production

On automation lines, they drive equipment needing angle adjustment (e.g.,conveyor belt turners and robotic arm joints) for precise control, enhancing efficiency and product quality.

In machine tool processing, they adjust tool feed systems or worktable angles for high-precision machining.

For packaging machinery, they ensure accurate and intact packaging by controlling material angles.

Material Handling

In suspension conveying systems, they act as drivers for chains, enabling aerial material transport and improving space utilization.

Belt conveyor systems use them to adjust turning drums or tension for stable operation.

Energy Field

In solar tracking systems, they drive panel trackers for maximum solar reception.

For wind turbines, they optimize blade angles according to wind conditions.

Construction Field

In door and window processing, they control opening and closing angles for quality testing.

For curtain wall installation, they ensure accurate positioning and stability.

Medical Equipment Field

In medical devices like surgical robots and imaging equipment, they provide precise angle control.

Rehabilitation equipment uses them for joint training at different angles.

FAQ

Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is your delivery time and shipment?
1.Sample Lead-times: generally 15 workdays.
2.Production Lead-times: 30-60 workdays after getting your deposit.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q4: What is your advantages?
1. Manufacturer,the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.
Q5. If you can’t find the product on our website,what do you next?
Please send us inquiry with product pictures and drawings by email or other ways and we'll check.
