Auto Timing Belt

Availability:
Quantity:
Inquire Add to Basket

Product Description

Tips:（Timing Belt Structure)

1.Top rubber:(CR HNBR) to protect the lining tensile member

2.Teeth rubber:protect the adhesive force of thetensile member & maintain the shape of the rubber(CR,HNBR）

3.Tensile member:critical material to pass the dynamic forceGlass fiber)

4.Teeth fabric:maintain the rubber teeth shape


Technical Data Sheet

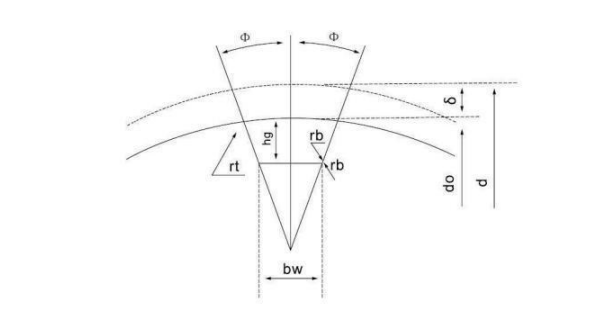

 belt

Type ZA ZB ZH YH ZR YS ZS YA ZAS ZBS S8MYU FS MY MR RU ZLB
Pitch 9.53 9.53 9.53 8 9.53 8 9.53 8 9.53 9.53 8 9.53 8 9.53 9.53 9.53
Tooth height 1.91

2.29

 3.5 3.04 3.2 2 3.53 2.95 2.32 2.76 3.05 3.05 3.06 3.54 3.41 2.7
Belt height 4.1 4.5 5.5 5.2 5.7 5.1 5.7 5.2 4.62 5.06 5.3 5.35 5.2 5.69 5.4 5.05

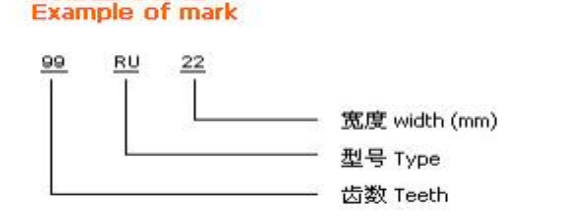

 微信图片_20250217151757



ZA
S8M
teeth number type width teeth number type width
teeth number type width teeth number type width
45 ZA 15-32mm 133 ZA 15-32mm
58 S8M 15-32mm 216 S8M 15-32mm
54 ZA 15-32mm 134 ZA 15-33mm
65 S8M 15-32mm 218 S8M 15-32mm
55 ZA 15-32mm 137 ZA 15-34mm
85 S8M 15-32mm 223 S8M 15-32mm
63 ZA 15-32mm 139 ZA 15-35mm
91 S8M 15-32mm 225 S8M 15-32mm
64 ZA 15-32mm 142 ZA 15-36mm
98 S8M 15-32mm 229 S8M 15-32mm
65 ZA 15-32mm 144 ZA 15-37mm
105 S8M 15-32mm 239 S8M 15-32mm
69 ZA 15-32mm 146 ZA 15-38mm
106 S8M 15-32mm 253 S8M 15-32mm
76 ZA 15-32mm 148 ZA 15-39mm
110 S8M 15-32mm 281 S8M 15-32mm
80 ZA 15-32mm 169 ZA 15-40mm
112 S8M 15-32mm


83 ZA 15-32mm



113 S8M 15-32mm


84 ZA 15-32mm



115 S8M 15-32mm


85 ZA 15-32mm



119 S8M 15-32mm


86 ZA 15-32mm



122 S8M 15-32mm


87 ZA 15-32mm



123 S8M 15-32mm


88 ZA 15-32mm



128 S8M 15-32mm


89 ZA 15-32mm



130 S8M 15-32mm


90 ZA 15-32mm



132 S8M 15-32mm


91 ZA 15-32mm



133 S8M 15-32mm


92 ZA 15-32mm



135 S8M 15-32mm


93 ZA 15-32mm



136 S8M 15-32mm


94 ZA 15-32mm



137 S8M 15-32mm


95 ZA 15-32mm



138 S8M 15-32mm


96 ZA 15-32mm



139 S8M 15-32mm


97 ZA 15-32mm



141 S8M 15-32mm


98 ZA 15-32mm



142 S8M 15-32mm


99 ZA 15-32mm



146 S8M 15-32mm


100 ZA 15-32mm



147 S8M 15-32mm


102 ZA 15-32mm



148 S8M 15-32mm


104 ZA 15-32mm



149 S8M 15-32mm


105 ZA 15-32mm



150 S8M 15-32mm


106 ZA 15-32mm



151 S8M 15-32mm


107 ZA 15-32mm



152 S8M 15-32mm


108 ZA 15-32mm



153 S8M 15-32mm


109 ZA 15-32mm



154 S8M 15-32mm


110 ZA 15-32mm



162 S8M 15-32mm


111 ZA 15-32mm



163 S8M 15-32mm


112 ZA 15-32mm



164 S8M 15-32mm


113 ZA 15-32mm



168 S8M 15-32mm


115 ZA 15-32mm



169 S8M 15-32mm


116 ZA 15-32mm



171 S8M 15-32mm


117 ZA 15-32mm



173 S8M 15-32mm


118 ZA 15-32mm



175 S8M 15-32mm


119 ZA 15-32mm



176 S8M 15-32mm


120 ZA 15-32mm



179 S8M 15-32mm


121 ZA 15-32mm



191 S8M 15-32mm


122 ZA 15-32mm



192 S8M 15-32mm


123 ZA 15-32mm



193 S8M 15-32mm


124 ZA 15-32mm



196 S8M 15-32mm


126 ZA 15-32mm



201 S8M 15-32mm


127 ZA 15-32mm



209 S8M 15-32mm


RU
ZBS RPP
teeth number type width teeth number type width
teeth number type width teeth number type width
59 RU 15-32mm 144 RU 15-32mm
55 ZBS 15-32mm 75 RPP 15-32mm
65 RU 15-32mm 145 RU 15-32mm
76 ZBS 15-32mm 76 RPP 15-32mm
70 RU 15-32mm 146 RU 15-32mm
77 ZBS 15-32mm 85 RPP 15-32mm
76 RU 15-32mm 148 RU 15-32mm
81 ZBS 15-32mm 94 RPP 15-32mm
78 RU 15-32mm 149 RU 15-32mm
83 ZBS 15-32mm 97 RPP 15-32mm
79 RU 15-32mm 150 RU 15-32mm
87 ZBS 15-32mm 101 RPP 15-32mm
83 RU 15-32mm 151 RU 15-32mm
89 ZBS 15-32mm 104 RPP 15-32mm
87 RU 15-32mm 152 RU 15-32mm
91 ZBS 15-32mm 108 RPP 15-32mm
89 RU 15-32mm 153 RU 15-32mm
92 ZBS 15-32mm 111 RPP 15-32mm
91 RU 15-32mm 154 RU 15-32mm
98 ZBS 15-32mm 113 RPP 15-32mm
92 RU 15-32mm 157 RU 15-32mm
99 ZBS 15-32mm 114 RPP 15-32mm
93 RU 15-32mm 158 RU 15-32mm
101 ZBS 15-32mm 116 RPP 15-32mm
95 RU 15-32mm 159 RU 15-32mm
112 ZBS 15-32mm 117 RPP 15-32mm
96 RU 15-32mm 163 RU 15-32mm
117 ZBS 15-32mm 118 RPP 15-32mm
97 RU 15-32mm 164 RU 15-32mm
118 ZBS 15-32mm 119 RPP 15-32mm
99 RU 15-32mm 167 RU 15-32mm
119 ZBS 15-32mm 124 RPP 15-32mm
101 RU 15-32mm 169 RU 15-32mm
120 ZBS 15-32mm 125 RPP 15-32mm
102 RU 15-32mm 175 RU 15-32mm
122 ZBS 15-32mm 128 RPP 15-32mm
103 RU 15-32mm 176 RU 15-32mm
123 ZBS 15-32mm 129 RPP 15-32mm
104 RU 15-32mm 177 RU 15-32mm
134 ZBS 15-32mm 130 RPP 15-32mm
105 RU 15-32mm 178 RU 15-32mm
135 ZBS 15-32mm 131 RPP 15-32mm
106 RU 15-32mm 192 RU 15-32mm
136 ZBS 15-32mm 135 RPP 15-32mm
107 RU 15-32mm 196 RU 15-32mm
137 ZBS 15-32mm 136 RPP 15-32mm
108 RU 15-32mm 197 RU 15-32mm
139 ZBS 15-32mm 138 RPP 15-32mm
109 RU 15-32mm 63 RU 15-32mm
141 ZBS 15-32mm 140 RPP 15-32mm
110 RU 15-32mm



143 ZBS 15-32mm 150 RPP 15-32mm
111 RU 15-32mm



149 ZBS 15-32mm 153 RPP 15-32mm
112 RU 15-32mm



153 ZBS 15-32mm 158 RPP 15-32mm
113 RU 15-32mm



163 ZBS 15-32mm 164 RPP 15-32mm
116 RU 15-32mm



203 ZBS 15-32mm 167 RPP 15-32mm
117 RU 15-32mm



207 ZBS 15-32mm 168 RPP 15-32mm
118 RU 15-32mm



111 ZBS 15-32mm


119 RU 15-32mm









120 RU 15-32mm









122 RU 15-32mm









123 RU 15-32mm









124 RU 15-32mm









125 RU 15-32mm









126 RU 15-32mm









127 RU 15-32mm









128 RU 15-32mm









129 RU 15-32mm









130 RU 15-32mm









131 RU 15-32mm









132 RU 15-32mm









133 RU 15-32mm









134 RU 15-32mm









135 RU 15-32mm









136 RU 15-32mm









137 RU 15-32mm









142 RU 15-32mm









MR
MY


teeth number type width teeth number type width
teeth number type width


70 MR 15-32mm 146 MR 15-32mm
65 MY 15-32mm


78 MR 15-32mm 147 MR 15-32mm
95 MY 15-32mm


87 MR 15-32mm 148 MR 15-32mm
99 MY 15-32mm


88 MR 15-32mm 150 MR 15-32mm
100 MY 15-32mm


89 MR 15-32mm 151 MR 15-32mm
101 MY 15-32mm


91 MR 15-32mm 152 MR 15-32mm
102 MY 15-32mm


92 MR 15-32mm 153 MR 15-32mm
103 MY 15-32mm


94 MR 15-32mm 157 MR 15-32mm
105 MY 15-32mm


95 MR 15-32mm 163 MR 15-32mm
106 MY 15-32mm


96 MR 15-32mm 164 MR 15-32mm
107 MY 15-32mm


97 MR 15-32mm 167 MR 15-32mm
108 MY 15-32mm


98 MR 15-32mm 177 MR 15-32mm
109 MY 15-32mm


101 MR 15-32mm 188 MR 15-32mm
110 MY 15-32mm


102 MR 15-32mm 253 MR 15-32mm
111 MY 15-32mm


103 MR 15-32mm



112 MY 15-32mm


104 MR 15-32mm



114 MY 15-32mm


105 MR 15-32mm



116 MY 15-32mm


106 MR 15-32mm



117 MY 15-32mm


107 MR 15-32mm



119 MY 15-32mm


108 MR 15-32mm



121 MY 15-32mm


109 MR 15-32mm ZAS

123 MY 15-32mm


110 MR 15-32mm 119


124 MY 15-32mm


111 MR 15-32mm 122


127 MY 15-32mm


112 MR 15-32mm 124


128 MY 15-32mm


113 MR 15-32mm 133


129 MY 15-32mm


114 MR 15-32mm



131 MY 15-32mm


116 MR 15-32mm



137 MY 15-32mm


117 MR 15-32mm



143 MY 15-32mm


118 MR 15-32mm



144 MY 15-32mm


119 MR 15-32mm



145 MY 15-32mm


120 MR 15-32mm



146 MY 15-32mm


121 MR 15-32mm



155 MY 15-32mm


122 MR 15-32mm



159 MY 15-32mm


123 MR 15-32mm



163 MY 15-32mm


124 MR 15-32mm



169 MY 15-32mm


125 MR 15-32mm



171 MY 15-32mm


127 MR 15-32mm



175 MY 15-32mm


128 MR 15-32mm



177 MY 15-32mm


129 MR 15-32mm



178 MY 15-32mm


130 MR 15-32mm



191 MY 15-32mm


131 MR 15-32mm



197 MY 15-32mm


133 MR 15-32mm



198 MY 15-32mm


134 MR 15-32mm



211 MY 15-32mm


136 MR 15-32mm









138 MR 15-32mm









139 MR 15-32mm









140 MR 15-32mm









141 MR 15-32mm









143 MR 15-32mm









144 MR 15-32mm






















YU

ZB


teeth number type width teeth number type width
teeth number type width
teeth number type
65 YU 15-32mm 191 YU 15-32mm
75 ZB 15-32mm
55 ZLB
69 YU 15-32mm 193 YU 15-33mm
76 ZB 15-32mm
83 ZLB
99 YU 15-32mm 195 YU 15-34mm
77 ZB 15-32mm
92 ZLB
100 YU 15-32mm 197 YU 15-35mm
80 ZB 15-32mm
122 ZLB
101 YU 15-32mm 200 YU 15-36mm
83 ZB 15-32mm
163 ZLB
103 YU 15-32mm 201 YU 15-37mm
87 ZB 15-32mm


104 YU 15-32mm 202 YU 15-38mm
90 ZB 15-32mm


105 YU 15-32mm 207 YU 15-39mm
98 ZB 15-32mm
ZAR
106 YU 15-32mm 211 YU 15-40mm
117 ZB 15-32mm
124 ZAR
107 YU 15-32mm 223 YU 15-41mm
118 ZB 15-32mm


109 YU 15-32mm 225 YU 15-42mm
119 ZB 15-32mm


110 YU 15-32mm 226 YU 15-43mm
122 ZB 15-32mm


111 YU 15-32mm 228 YU 15-44mm
123 ZB 15-32mm
ZAS
113 YU 15-32mm 238 YU 15-45mm
124 ZB 15-32mm
124 ZAS
114 YU 15-32mm 239 YU 15-46mm
130 ZB 15-32mm
122 ZAS
116 YU 15-32mm 241 YU 15-47mm
134 ZB 15-32mm
119 ZAS
117 YU 15-32mm 245 YU 15-48mm
135 ZB 15-32mm
133 ZAS
118 YU 15-32mm 253 YU 15-49mm
136 ZB 15-32mm


119 YU 15-32mm 257 YU 15-50mm
137 ZB 15-32mm
ZBR
121 YU 15-32mm 259 YU 15-51mm
140 ZB 15-32mm
135 ZBR
122 YU 15-32mm 265 YU 15-52mm
141 ZB 15-32mm
137 ZBR
123 YU 15-32mm 281 YU 15-53mm
149 ZB 15-32mm


124 YU 15-32mm 106 YU 15-54mm
152 ZB 15-32mm
SP
125 YU 15-32mm



153 ZB 15-32mm
58 SP
127 YU 15-32mm



163 ZB 15-32mm
130 SP
129 YU 15-32mm



169 ZB 15-32mm
STDN
133 YU 15-32mm



219 ZB 15-32mm
136 STDN
134 YU 15-32mm







173 STDN
135 YU 15-32mm









137 YU 15-32mm







ZD
140 YU 15-32mm







111 ZD
141 YU 15-32mm









142 YU 15-32mm









144 YU 15-32mm







RPP8M
145 YU 15-32mm







776 RPP
146 YU 15-32mm









147 YU 15-32mm







ZAD
148 YU 15-32mm







88 ZAD
152 YU 15-32mm







111 ZAD
153 YU 15-32mm









154 YU 15-32mm







8RPP
155 YU 15-32mm







193 8RPP
156 YU 15-32mm







129 8RPP
159 YU 15-32mm









164 YU 15-32mm









168 YU 15-32mm







HBNR125
169 YU 15-32mm





RPP
SHPN158
170 YU 15-32mm






SHPN125
173 YU 15-32mm






SHPN129
177 YU 15-32mm







SHDS154
187 YU 15-32mm







SHX119
