Product Description
Automatic oiler systems
Product description

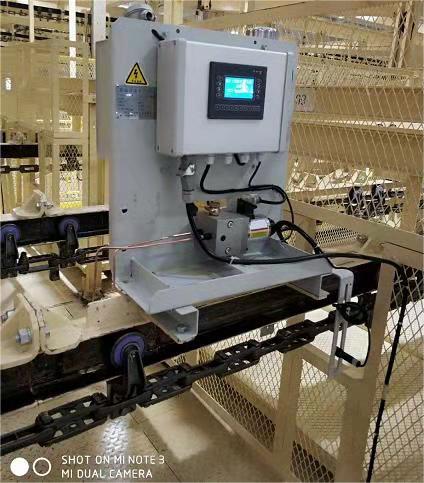

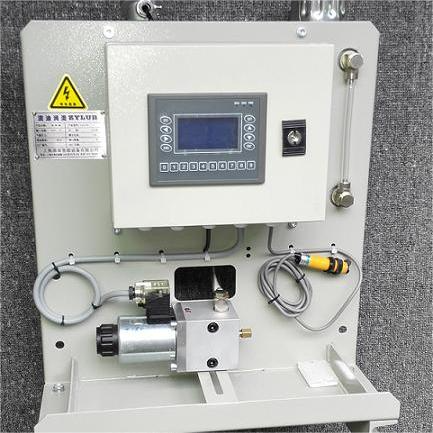

Specifically designed for automatic lubrication of various types of conveyor chains, the automatic oiler consists of two main parts: the main .unit and the oil spray nozzle, connected by a transparent oil hose. This separate design allows for flexible positioning of the main unit and adaptability to different chain styles. The oil spray nozzle can be adjusted accordingly. Additionally, the oil level in the transparent hose makes it easy to inspect the oiling condition.
Product Specification
Structure Parameter | Specific Value Range |
Injection pressure | For small automatic oil sprayers: 0.3 - 0.8 MPa; for medium-sized automatic oil sprayers: 0.6 - 1.2 MPa; for large industrial automatic oil sprayers: 1.0 - 2.0 MPa and above. |
Nozzle diameter | 0.3 - 2.5 millimeters (for fine spraying operations: 0.3 - 1 millimeter; for ordinary spraying: 1 - 1.5 millimeters; for scenarios requiring a large amount of oil spraying: 1.5 - 2.5 millimeters). |
Movement speed of spray gun | Generally 50 - 500 millimeters/second (The specific speed depends on factors such as spraying precision requirements, workpiece shape and size.). |
Rotation speed of rotary table (if any) | 10 - 300 revolutions per minute (For example, for spraying small workpieces, the rotation speed of the rotary table may be higher; for spraying large and complex-shaped workpieces, the rotation speed will be relatively lower.). |
Conveyor speed (for oil sprayers with conveyor devices) | 0.5 - 5 meters/minute (The conveyor speed needs to match the oil spraying speed and drying time to ensure spraying quality.). |
Oil pump flow rate | Depending on the size of the equipment and oil spraying requirements, the oil pump flow rate of small equipment may be 5 - 20 liters/minute, and that of large equipment can reach 50 - 200 liters/minute or more. |
Performance characteristics:
High Efficiency：Quickly and continuously sprays oil, boosting production efficiency.
Precision Spraying：With advanced technology and control systems, it offers precise and uniform spraying for better product quality.
Programmable and Adjustable：Can be programmed to adjust parameters for customization.
Automated Operation：Operates automatically, reducing labor costs and errors.
Durability and ReliabilityMade of high-quality materials, it's durable and reliable.
Safety Features:Equipped with safety devices for operator and equipment safety.
Application
Manufacturing:Used in factories for products like electronics and auto parts for lubrication, protection, and enhancing appearance. Handles high-volume production.
Woodworking:Sprays oil on wooden surfaces for moisture protection, scratch resistance, and a smooth finish.
Printing:Lubricates presses and rollers, improving print quality and preventing smudging.
Coating:Applies oil as primer or topcoat for better adhesion and protection.
Other Industries:Also finds use in aerospace, medical devices, jewelry making for precision lubrication, corrosion protection, and aesthetics.
How does it work
It is usually equipped with a reservoir to hold the oil. A pumping system draws the oil from the reservoir and pressurizes it. The pressurized oil is then directed through a nozzle or a series of nozzles.
Advanced control systems determine the spraying pattern, duration, and intensity. Sensors may be used to detect the presence of the object to be sprayed or to monitor various parameters for optimal spraying.
The nozzles are designed to atomize the oil into fine droplets, ensuring even coverage on the target surface. The spraying process can be programmed to start and stop automatically based on specific triggers or time intervals.
This automated operation provides consistent and efficient oil spraying, reducing human error and increasing productivity.
Structural parameter

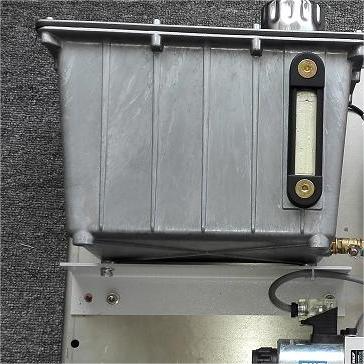

Reservoir Capacity:Determines oil storage and refill frequency. Larger capacity supports longer operation.
Pumping System:Type and power affect pressure and flow rate. More powerful pumps improve atomization and coverage.
Nozzle Design:Shape, size, and number impact spraying pattern and quality. Different designs yield various spray angles, droplet sizes, and flow rates.
Control System:Includes programmable settings, sensors, and user interfaces for precise control.
Frame and Housing:Need to be sturdy and durable for continuous operation. Designed for easy installation and maintenance.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is your delivery time and shipment?
1.Sample Lead-times: generally 15 workdays.
2.Production Lead-times: 30-60 workdays after getting your deposit.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q4: What is your advantages?
1. Manufacturer,the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.
Q5. If you can’t find the product on our website,what do you next?
Please send us inquiry with product pictures and drawings by email or other ways and we'll check.
