Product Description
The CC type coupling is an elastic device crafted from precision-cast grease cast iron and assembled with oil-resistant NBR rubber rings, featuring an embedded rigid tube core. This design ensures efficient transmission and remarkable durability.
Additionally, CC type couplings, also referred to as MH/CC core or composite rubber ring elastic couplings, are extensively employed in transmission machinery including pumps, air compressors, tractors, and metal cutting machines. This product is designed for the American standard market and adheres to all relevant standards and specifications.
In summary, CC type couplings are a vital component in many industrial settings, noted for their superior transmission capabilities and durability. They effectively absorb installation deviations, vibrations, and impacts, thereby ensuring stable equipment operation.

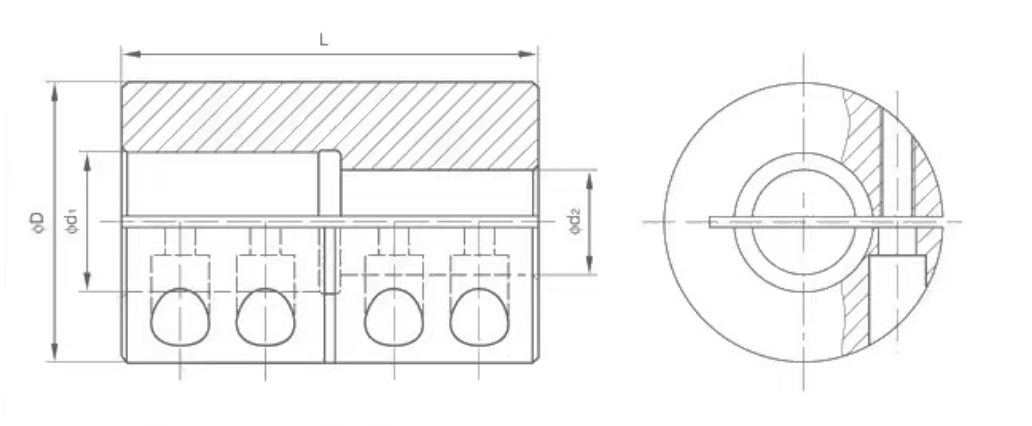

NSPT CC-Coupling图纸

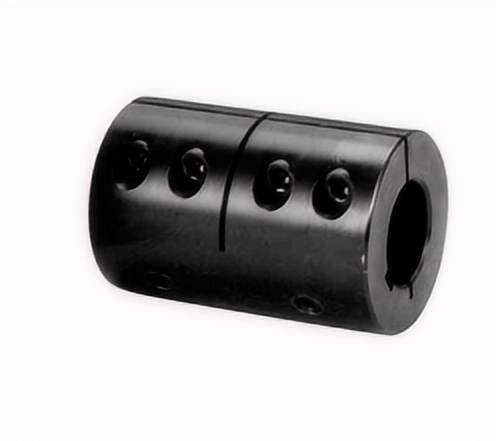

NSPT CC-Coupling
| Catalog | Fundamental Dimensions | Bore | Bolts | Max Torque (in.Lbs) | Max Revolution (rpm) | G (Lbs) | ||||
| Black Oxide Stell | Black Oxide Stell With Keykey | D | L | d1 | d2 | Sizes | Qty | |||
| CC-025-025 CC-037-025 CC-037-037 CC-050-037 CC-050-050 | CC-037-037KW CC-050-050KW | 13/16 1-1/16 1-1/6 1-1/4 1-1/4 | 1-1/4 1-5/8 1-5/8 1-7/8 1-7/8 | 1/4 3/8 3/8 1/12 1/2 | 1/4 1/4 3/8 3/8 1/2 | #4-40x3/8 #6-32x3/8 #6-32x3/8 #8-32x1/2 #8-32x1/2 | 4 | 130 288 290 453 461 | 4600 3500 3500 3000 3000 | 0.141 0.320 0.311 0.508 0.481 |
| CC-062-050 CC-062-062 CC0-75-075 CC-075-062 CC-075-075 | CC-062-062KW CC-075-075KW | 1-1/2 1-1/2 1-3/4 1-3/4 1-3/4 | 2-1/4 2-1/4 2-5/8 2-5/8 2-5/8 | 5/8 5/8 3/4 3/4 3/4 | 1/2 5/8 1/2 5/8 3/4 | #10-32x1/2 #10-32x1/2 1/4-28x5/8 1/4-28x5/8 1/4 -28x5/8 | 787 798 1256 1256 1267 | 2500 2500 2100 2100 2100 | 0.832 0.832 1.377 1.377 1.309 | |
| CC-087-062 CC-087-087 CC-100-050 CC-100-075 CC-100-100 | CC-087-087KW CC-100-100KW | 1-7/8 1-7/8 2 2 2 | 2-7/8 2-7/8 3 3 3 | 7/8 7/8 1 1 1 | 5/8 7/8 1/2 3/4 1 | 1/4-28x5/8 1/4-28x5/8 1/4-28x5/8 1/4-28x5/8 1/4-28x5/8 | 1498 1519 1804 1804 1813 | 2000 2000 1800 1800 1800 | 1.715 1.589 1.053 1.965 1.815 | |
| CC-112-100 CC-112-112 CC-125-100 CC-125-125 CC-137-100 | CC-112-112KW CC-125-125KW | 2-1/8 2-1/8 2-1/4 2-1/4 2-3/8 | 3-1/4 3-1/4 3-3/8 3-3/8 3-5/8 | 1-1/8 1-1/8 1-1/4 1-1/4 1-3/8 | 1 1-1/8 1 1-1/4 1 | 1/4-28x3/4 1/4-28x3/4 1/4-28x3/4 1/4-28x3/4 1/4-28x3/4 | 2126 2136 2479 2490 2863 | 1700 1700 1600 1600 1500 | 2.247 2.172 2.616 2.402 3.130 | |
| CC-137-137 CC-150-100 CC-150-150 CC-175-175 CC-200-200 | CC-137-137KW CC-150-150KW CC-175-175KW CC-200-200KW | 2-3/8 2-1/2 2-1/2 3 3-1/4 | 3-5/8 3-3/4 3-3/4 4-1/2 4-7/8 | 1-3/8 1-1/2 1-1/2 1-3/4 2 | 1-3/8 1 1-1/2 1-3/4 2 | 1/4-28x3/4 1/4-28x3/4 1/4-28x3/4 5/16-24x1 5/16-24x1 | 2874 3275 3286 5804 7066 | 1500 1450 1450 1200 1100 | 2.797 3.592 3.097 5.634 6.695 | |
