Views: 0 Author: Site Editor Publish Time: 2025-07-02 Origin: Site
Chain drive and synchronous belt drive are both commonly used transmission methods in the field of mechanical transmission. The two transmission methods realize the efficient transmission of power and motion by different technical paths. Today, let's have a brief analysis of these two transmission technologies.
1.Transmission Principle
Chain drive is a mechanical transmission method that transmits power through the engagement of chains and sprocket teeth. However, this rigid structure also results in a 'polygon effect,' causing speed fluctuations during chain movement, with vibrations and noise being particularly noticeable at high speeds. In contrast, synchronous belt drive uses the flexible engagement of belt teeth and sprocket teeth to achieve non-sliding synchronous transmission, combining the advantages of both belt and gear drives.
2. Performance Comparison
Indicator | Chain Drive | Synchronous Belt Drive |
Transmission Efficiency | 95% - 98% (low - speed working condition) | 92% - 98% (more stable at high speed) |
Linear Speed Range | ≤30m/s | ≤40m/s |
Load Capacity | Can withstand torque at the 10 - ton level | Usually suitable for power below 5kW |
Maintenance Cycle | Lubrication and maintenance every 500 hours | Maintenance - free for 3 - 5 years |
3. Selection Guide
▆ Situations where chain drive is preferred
◆ High load and torque, requiring impact resistance.
◆ Long transmission distance.
◆ Harsh working environment.
▆ Situations where synchronous belt drive is preferred
◆High-precision synchronous drive required.
◆ Low noise and maintenance-free operation required.
Knowledge Expansion

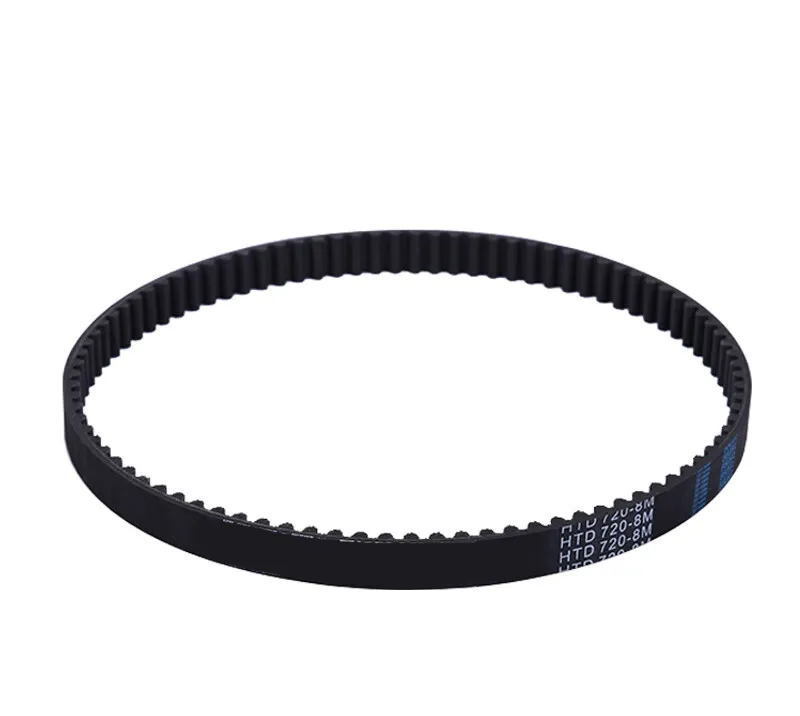

Compared with trapezoidal teeth, arc gear synchronous belt (such as HTD gear) has more stable engagement and more than 30% higher bearing capacity. It is widely used in servo systems.

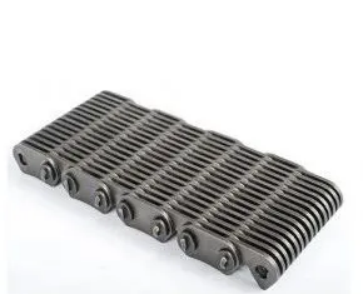

Silent chain operation is 10~15 dB lower than conventional chain noise, often used in automotive engine timing system.
