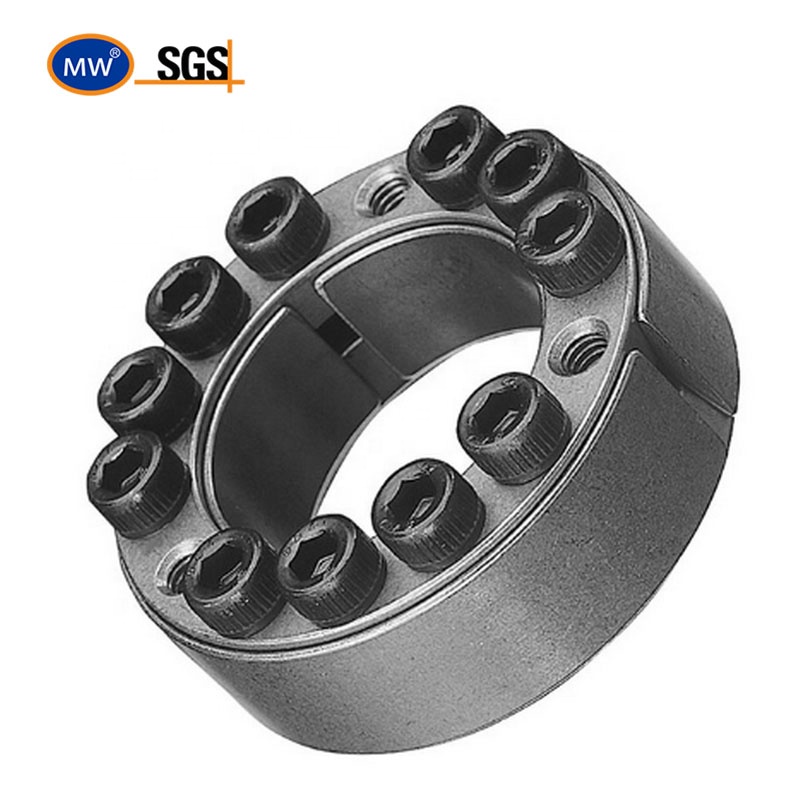

Keyless Locking Devices 22

Quantity:
  • MW

Product Description

Keyless Locking Devices 22LOCKS.pdf

Technical Data Sheet







THE DIMENSION TO FIX (SUGGESTION):


SHAFT: h8

HUB: H8

DIMENSIONS Axial force Torque Contact_Pressure Locking Screws DIN912-12.9
haft Hub Qty Size TihteningTorque
?d
mm
?D
mm
L1
mm
L2
mm
L3
mm
L
mm
D1 D2 H
mm
H1
mm
H2
mm
KN NM P
N/mm
P1
N/mm
Qty. Size Ts
Nm
17 50 50 16 44 56           16.8 142     4 M6X45 17
18 50 50 16 44 56           16.8 151     4 M6X45 17
19 50 50 16 44 56           16.8 159     4 M6X45 17
20 50 50 16 44 56           16.8 268     4 M6X45 17
24 55 60 18.5 54 66           25.2 302     6 M6X55 17
25 55 60 18.5 54 66           25.2 315     6 M6X55 17
28 60 60 18.5 54 66           25.2 352     6 M6X55 17
30 60 60 18.5 54 66           25.2 378     6 M6X55 17
32 63 60 18.5 54 66           25.2 403     6 M6X55 17
35 75 75 22 67 83           31.2 546     4 M8X70 42
38 75 75 22 67 83           31.2 592     4 M8X70 42
40 75 75 22 67 83           31.2 624     4 M8X70 42
42 78 75 22 67 83           31.2 982     4 M8X70 42
45 85 85 24.5 76 93           46.8 1053     6 M8X80 42
48 90 85 24.5 76 93           46.8 1123     6 M8X80 42
50 90 85 24.5 76 93           46.8 1170     6 M8X80 42
55 94 85 24.5 76 93           62.4 1710     8 M8X80 42
60 100 85 24.5 76 93           62.4 1870     8 M8X80 42
65 105 85 24.5 76 93           62.4 2020     8 M8X80 42
70 115 100 29 90 110           98.4 3440     8 M10X95 84




China Locking Assembly manufacturer, chinese Locking Assembly supplier, produce:power locks,Locking Assembly.We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: oceanindustry@vip.163.com
