Knowledge of Involute Splines: Strength Depends on Diameter, Not Modulus
Views: 0 Author: Site Editor Publish Time: 2026-01-04 Origin: Site

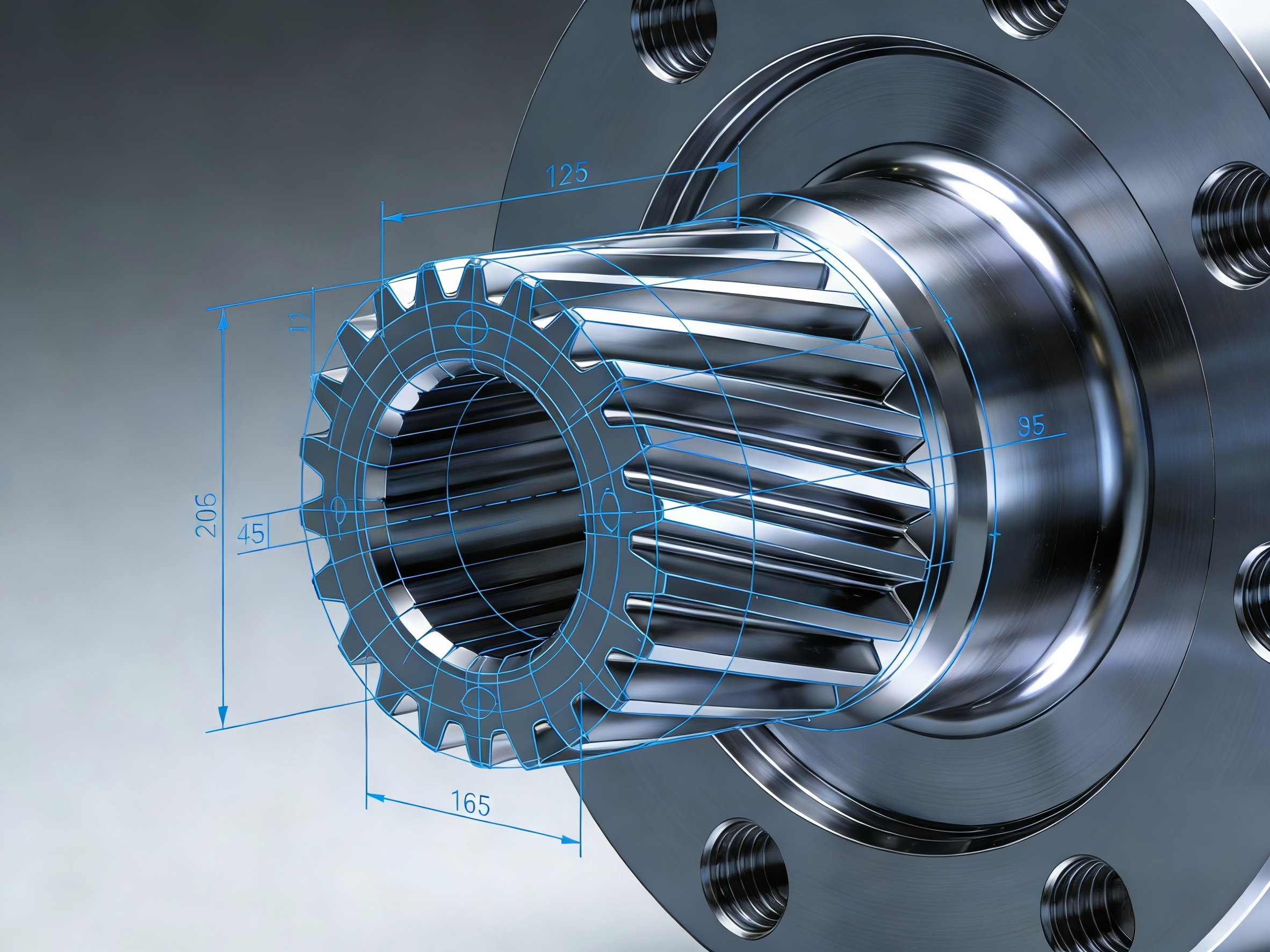

Involute splines are crucial power transmission components in mechanical drive systems, renowned for their excellent mechanical strength and smooth transmission characteristics. They find widespread application in aircraft, automobiles, heavy machinery, construction machinery, and other fields. A common confusion in spline selection and design is: for splines with the same reference diameter, should we choose a large modulus with fewer teeth or a small modulus with more teeth? The key insight lies in understanding the factors that determine spline strength.
Core Principle: Strength is Dominated by Diameter, Not Modulus
The primary goal of spline design and parameter selection is to ensure sufficient strength to prevent failure. For properly designed involute splines, the common failure modes in descending order of occurrence are: tooth surface crushing, fretting wear, shaft torsional deformation or fatigue fracture, tooth pitting, and tooth breakage.
1. Tooth Surface Crushing
The average contact stress (σc) for the 挤压 strength of spline tooth flanks is calculated by the formula:σc = F_total / A = 2T / (D・(h・L・z・ψ))Where:
D = Pitch circle diameter (also referred to as reference diameter)
h = Effective contact height of the tooth
L = Working length of the spline
z = Number of teeth
ψ = Load distribution coefficient (typically around 0.75)
T = Torque transmitted
Since the pitch circle diameter D = mz (m = modulus) and the effective contact height h is proportional to the modulus m, substituting z = D/m and h ∝ m into the formula yields:σc ∝ 2T / (D · (m · L · (D/m) · ψ)) = 2T / (D² · L · ψ)
This derivation shows that the tooth surface contact stress is independent of the modulus m. While increasing the modulus thickens individual teeth and enhances their load-bearing capacity, it also reduces the number of teeth for the same diameter. These two effects essentially offset each other in ideal conditions.
2. Shaft Torsional Deformation or Fatigue Fracture
Shaft torsional strength is proportional to the cube of the diameter (D³). This further confirms that the key factor influencing spline strength (especially for shaft-related failure modes) is the diameter, not the modulus—provided the spline length and precision are consistent.
Selection Guidelines: Large Modulus vs. Small Modulus
While splines with the same reference diameter have similar overall strength regardless of modulus and tooth count, the choice between large modulus (fewer teeth) and small modulus (more teeth) depends on practical conditions:
1. Choose Large Modulus with Fewer Teeth When:
Spline precision is poor, or structural design leads to eccentric loading, misalignment errors, or similar issues. These factors significantly reduce the load distribution coefficient ψ, resulting in only 2-3 teeth bearing most of the load. In such cases, the primary failure risk shifts from tooth surface crushing to tooth breakage.
The bending stress at the tooth root (σb) is calculated as:σb ≈ 6 · Fi · h / (S² · L)Where Fi = Circumferential force on a single tooth, and both tooth height h and tooth thickness S are proportional to the modulus m. Simplifying, σb ∝ Fi / (m · L).
For the same single-tooth force Fi, a larger modulus m reduces the bending stress σb. Large-modulus teeth offer greater single-tooth stiffness and cross-sectional strength, preventing sudden tooth breakage or severe plastic deformation when only a few teeth carry the load.
2. Choose Small Modulus with More Teeth When:
Spline machining accuracy and installation precision are satisfactory. Small-modulus, multi-tooth splines offer several advantages:
Superior centering performance, ensuring stable transmission.
Larger total contact area, distributing loads more evenly.
Larger root circle diameter, enhancing structural integrity.
Less material removal during manufacturing, making them ideal for compact, space-constrained applications (e.g., external spline rings where excessive material removal from large-modulus teeth could weaken the structure between the tooth root and outer circle).
In summary, the strength of involute splines is primarily determined by the pitch/reference diameter rather than the modulus. The selection of modulus and tooth count should be tailored to practical requirements such as precision, load distribution, and structural constraints to optimize reliability and performance.
