Product Description

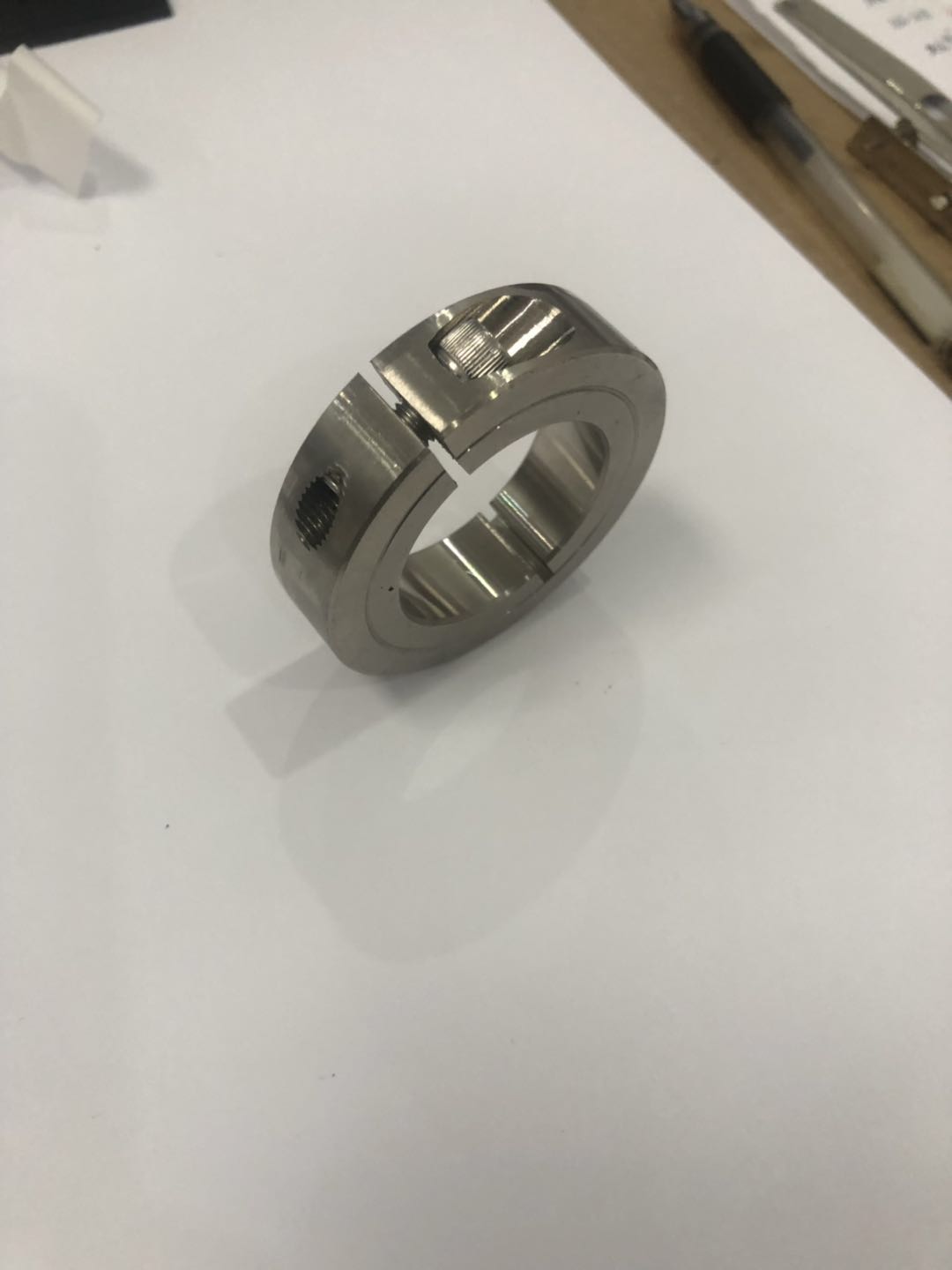

MCL:One-Piece Clamp Style Collar
Technical Data Sheet
| PART NUMBER STEEL | PART NUMBER ALUMINUM | PART NUMBER STAINLESS STEEL | BORE B (mm) | OUTER DIAM. OD (mm) | WIDTH W (mm) | FORGED SET SCREW |
| MCL-3-F | MCL-3-A | MCL-3-SS | 3 | 16 | 9 | M3X8 |
| MCL-4-F | MCL-4-A | MCL-4-SS | 4 | 16 | 9 | M3X8 |
| MCL-5-F | MCL-5-A | MCL-5-SS | 5 | 16 | 9 | M3X8 |
| MCL-6-F | MCL-6-A | MCL-6-SS | 6 | 16 | 9 | M3X8 |
| MCL-7-F | MCL-7-A | MCL-7-SS | 7 | 18 | 9 | M3X8 |
| MCL-8-F | MCL-8-A | MCL-8-SS | 8 | 18 | 9 | M3X8 |
| MCL-9-F | MCL-9-A | MCL-9-SS | 9 | 24 | 9 | M3X10 |
| MCL-10-F | MCL-10-A | MCL-10-SS | 10 | 24 | 9 | M3X10 |
| MCL-11-F | MCL-11-A | MCL-11-SS | 11 | 28 | 11 | M4X12 |
| MCL-12-F | MCL-12-A | MCL-12-SS | 12 | 28 | 11 | M4X12 |
| MCL-13-F | MCL-13-A | MCL-13-SS | 13 | 30 | 11 | M4X14 |
| MCL-14-F | MCL-14-A | MCL-14-SS | 14 | 30 | 11 | M4X14 |
| MCL-15-F | MCL-15-A | MCL-15-SS | 15 | 34 | 13 | M5X16 |
| MCL-16-F | MCL-16-A | MCL-16-SS | 16 | 34 | 13 | M5X16 |
| MCL-17-F | MCL-17-A | MCL-17-SS | 17 | 36 | 13 | M5X16 |
| MCL-18-F | MCL-18-A | MCL-18-SS | 18 | 36 | 13 | M5X16 |
| MCL-19-F | MCL-19-A | MCL-19-SS | 19 | 40 | 15 | M6X16 |
| MCL-20-F | MCL-20-A | MCL-20-SS | 20 | 40 | 15 | M6X16 |
| MCL-21-F | MCL-21-A | MCL-21-SS | 21 | 42 | 15 | M6X16 |
| MCL-22-F | MCL-22-A | MCL-22-SS | 22 | 42 | 15 | M6X16 |
| MCL-23-F | MCL-23-A | MCL-23-SS | 23 | 45 | 15 | M6X16 |
| MCL-24-F | MCL-24-A | MCL-24-SS | 24 | 45 | 15 | M6X16 |
| MCL-25-F | MCL-25-A | MCL-25-SS | 25 | 45 | 15 | M6X16 |
| MCL-26-F | MCL-26-A | MCL-26-SS | 26 | 48 | 15 | M6X16 |
| MCL-28-F | MCL-28-A | MCL-28-SS | 28 | 48 | 15 | M6X16 |
| MCL-30-F | MCL-30-A | MCL-30-SS | 30 | 54 | 15 | M6X18 |
| MCL-32-F | MCL-32-A | MCL-32-SS | 32 | 54 | 15 | M6X18 |
| MCL-34-F | MCL-34-A | MCL-34-SS | 34 | 57 | 15 | M6X18 |
| MCL-35-F | MCL-35-A | MCL-35-SS | 35 | 57 | 15 | M6X18 |
| MCL-36-F | MCL-36-A | MCL-36-SS | 36 | 57 | 15 | M6X18 |
| MCL-38-F | MCL-38-A | MCL-38-SS | 38 | 60 | 15 | M6X18 |
| MCL-40-F | MCL-40-A | MCL-40-SS | 40 | 60 | 15 | M6X18 |
| MCL-42-F | MCL-42-A | MCL-42-SS | 42 | 73 | 19 | M8X25 |
| MCL-45-F | MCL-45-A | MCL-45-SS | 45 | 73 | 19 | M8X25 |
| MCL-48-F | MCL-48-A | MCL-48-SS | 48 | 78 | 19 | M8X25 |
| MCL-50-F | MCL-50-A | MCL-50-SS | 50 | 78 | 19 | M8X25 |
| MCL-54-F | ¡¡ | MCL-54-SS | 54 | 82 | 19 | M8X25 |
| MCL-55-F | ¡¡ | MCL-55-SS | 55 | 82 | 19 | M8X25 |
| MCL-60-F | ¡¡ | MCL-60-SS | 60 | 88 | 19 | M8X25 |
| MCL-65-F | ¡¡ | MCL-65-SS | 65 | 93 | 19 | M8X25 |
| MCL-70-F | ¡¡ | MCL-70-SS | 70 | 98 | 19 | M8X25 |
| MCL-75-F | ¡¡ | MCL-75-SS | 75 | 103 | 19 | M8X25 |
| MCL-80-F | ¡¡ | MCL-80-SS | 80 | 108 | 19 | M8X25 |
China Shaft Collar manufacturer, Chinese Shaft Collar supplier, produce: Solid shaft Collars, Single and Double Split Collars, Threaded Bore Split Collars, Inch Series Shaft Collars, Metric Series Shaft Collars, Set Screw Style Collar. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: oceanindustry@vip.163.com
