Product Description

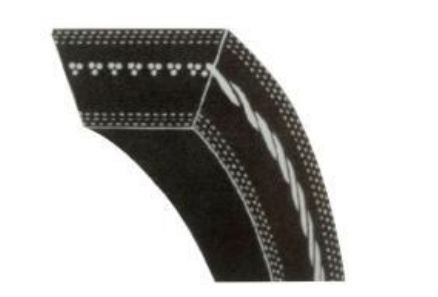

The top and the bottom are encased by the wrapper. Both sides are rubber .V belt of tooth shape groove isdesigned for the bottom to improve the flexural property
Technical Data Sheet
| 型号 Type | 顶宽(mm) Top width | 包边式 Wrapped Vbef | 普通切边带 Raw edge Vbelt | 高度Height(mm) 底胶夹布切边带 REF | 有齿切边式 REC | 楔角(°) Angle |
| AV-10/9.5 | 10 | 8 | 7.5 | 7.5 | 8 | 40 |
| AV-13/12.5 | 13 | 10 | 8.5 | 8.5 | 9 | 40 |
| AV-15 | 15 | 9 | - | - | - | 40 |
| AV-17 | 16.5 | 10.5 | 9.5 | 9.5 | 11 | 40 |
| AV-22 | 22 | 14 | - | - | 13 | 40 |
型号 Type | 上 宽 ( mm ) Top width | 带 高 ( m m ) Belt thickness | 角度(°) Angle |
| HM | 10.5 | 8 | 38 |
| AX | 13 | 8 | 38 |
| BX | 17 | 11 | 38 |
| CX | 22 | 14 | 38 |
| DX | 32 | 19 | 38 |
| EX | 38 | 23 | 38 |
| 型号 Type | 上 宽 ( m m ) | 带 高 ( m m ) | 角 度 ( ° ) |
| Top width | Belt thickness | Angle | |
| HM | 10.5 | 8 | 38 |
| AX | 13 | 8 | 38 |
| BX | 17 | 11 | 38 |
| CX | 22 | 14 | 38 |
| DX | 32 | 19 | 38 |
| EX | 38 | 23 | 38 |
China Belt manufacturer, chinese Belt supplier, produce: v belts, rubber timing belts (synchronous belts), auto timing belts, double-sided tooth synchronous belts,s step less speed change belts, multi-wedge belts, motorcycle V-belts, auto V-belts and various cutting V-belts, flat belts etc rubber drive belts and its auxiliary pulley series products.. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: oceanindustry@vip.163.com
