Three minefields to avoid when designing spraying production lines

In the design scheme of the spraying equipment production line, there are indeed some minefields that need to be avoided. If these minefields are not paid attention to, they may affect the efficiency of the production line, product quality and even the long-term competitiveness of the enterprise. The following are the three major minefields that need to be avoided in the design scheme of the spraying equipment production line:

01 Process time deviation of coating production line

While pursuing cost-effectiveness, many designers often ignore the reasonable setting of process time, which is a big mistake in the design of painting production line. The lack of process time is often at the expense of product quality. Specifically,:

01. Insufficient pretreatment transition time

It can lead to liquid series, not only contaminate subsequent processes, but also cause coating adhesion problems.

02. Insufficient curing time

If the heating is not sufficient, it will lead to poor curing of the coating, which will affect the hardness, wear resistance and weather resistance of the coating.

03. Insufficient time of the paint flow rate

It will lead to uneven coating thickness, affect the appearance and protection performance.

04. Insufficient curing and cooling time

Will cause overheating of the coating to crack or incomplete cure, reducing the overall coating quality.

Therefore, in the design stage, it is necessary to scientifically set the time parameters of each process according to the characteristics of the paint, the material of the product and the expected performance requirements, to ensure that each step achieves the best effect.

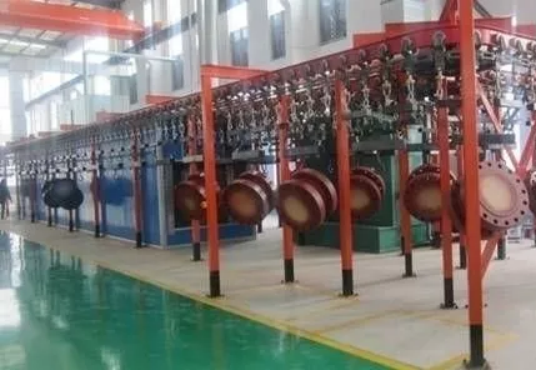

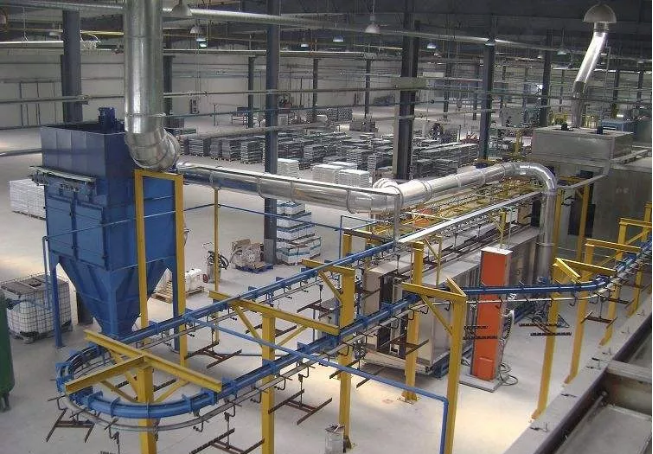

02Unreasonable design of the conveying equipment

The conveying equipment serves as the bridge connecting various process stages, and its design rationality directly affects the overall operational efficiency and stability of the production line. Common chain conveyor methods require precise calculations and rigorous testing of load capacity, traction capability, chain stability, and synchronization. If improperly designed, it may lead to reduced production efficiency or even safety incidents such as workpiece drop or chain breakage. Therefore, during the design phase of conveying equipment, the actual needs of the production line should be fully considered, suitable conveying methods chosen, and key components reinforced to ensure smooth and reliable operation of the equipment. Additionally, the ease of maintenance and upkeep should be considered to reduce long-term operating costs.

03 Improper selection of coating equipment

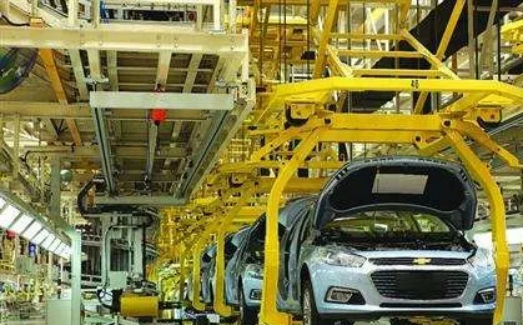

Different products have varying requirements for coating performance. For instance, car bodies need coatings with high weather resistance and high gloss, while home appliances focus more on the environmental friendliness and aesthetics of the coating. Therefore, when selecting painting equipment, it is essential to fully understand the performance characteristics and application scope of the equipment to ensure that the chosen equipment meets the specific needs of the product. Additionally, compatibility and scalability of the painting equipment should be considered. As products are updated and market demands change, production lines may require corresponding adjustments and upgrades. Thus, when selecting models, some room for future upgrades should be reserved to flexibly address various changes in the future.

In conclusion, avoiding these three major pitfalls is crucial for ensuring the efficient and stable operation of the spray equipment production line. During the design process, factors such as the rationality of process time, the stability and applicability of conveying equipment, and the selection and compatibility of coating equipment should be fully considered to ensure the overall performance of the production line and product quality.
