Product Description
Track hanger clamp
Product description
An installation bracket is a mounting component used to clamp the conveyor track during the installation of a conveyor line.
When the operating track passes through high-temperature areas such as baking, temperature expansion joints should be installed at both ends of the high-temperature section. One end of the temperature expansion joint should be welded to the track, and the other end should have a sliding sleeve that connects with another track. An appropriate gap should be maintained between the two tracks to allow for thermal expansion and deformation.
Product Specification

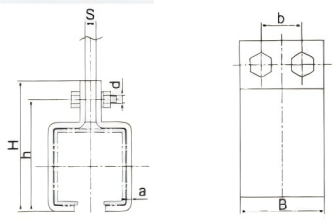

Type | H | h | d | B | d | a | S |
QXT-150 | 100 | 84 | 10 | 60 | 30 | 5 | 8 |
QXT-200、206 | 120 | 104 | 10 | 60 | 30 | 5 | 8 |
QXT-240、250 | 147 | 122 | 12 | 110 | 60 | 6 | 8 |
QXT-300 | 167 | 142 | 12 | 130 | 80 | 6 | 8 |

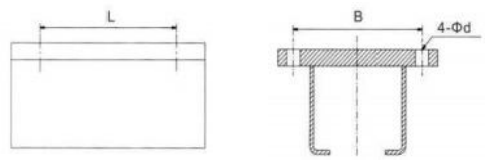

Type | QXT-150 | QXT-200 260 | QXT-240 250 | QXT-300 |
L | 100 | 120 | 160 | 160 |
B | 100 | 120 | 124 | 168 |
φd | 13 | 13 | 12 | 11 |
Performance characteristics:
Strong load-bearing capacity: Capable of withstanding the weight of QXT series enclosed rails and conveyed items. Ensures safe and stable operation. Reasonable design and manufacturing meet different working conditions.
Convenient installation: The hanger's design considers ease of installation. Can be adjusted and installed flexibly according to the environment. Easily installed indoors, outdoors, on building tops, sides or other supports.
High stability: With proper design and quality materials, it resists vibrations and impacts. Ensures rail position accuracy and smooth conveying.
Easy maintenance: Simple structure and easy disassembly for inspection, repair and component replacement.
Application
Industrial Production:
In industries like automotive manufacturing, mechanical processing, and electronic equipment production, the QXT series enclosed rail suspended conveyors are commonly used for part transportation and assembly. Hangers install enclosed rails in factory workshops and production lines for efficient material flow.
Logistics and Warehousing:
In logistics warehouses and distribution centers, these conveyors are used for sorting, handling, and storing goods. Hangers can be installed on warehouse tops or between shelves to improve logistics efficiency.
Commercial Places:
In shopping malls, supermarkets, and exhibition halls, the conveyors are used for displaying and selling goods. Hangers on ceilings or walls save floor space and make layouts more aesthetic.
Structural parameter
Material Selection
The hanger is typically made of high-strength metals such as carbon steel or alloy steel. Carbon steel is suitable for most general application scenarios due to its good strength and toughness as well as relatively low cost. Alloy steel, on the other hand, has higher strength and corrosion resistance and is applicable in environments with higher requirements for hanger performance.
Connection Bolt Specifications
Connection bolt specifications are of great importance. Bolts used to connect various parts of the hanger and between the hanger, support structure, and enclosed rail are usually high-strength ones with a diameter ranging from 12 to 20 millimeters and strength grades of 8.8 or 10.9 to ensure a firm connection.
Safety Factor
A certain safety factor is usually set to ensure the safety of the hanger during operation. Generally, the safety factor is between 1.5 and 3. A higher safety factor can enhance the reliability of the hanger, but it will also increase the cost and dead weight. When determining the safety factor, factors such as the use environment, working frequency, and material characteristics of the hanger need to be comprehensively considered.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is your delivery time and shipment?
1.Sample Lead-times: generally 15 workdays.
2.Production Lead-times: 30-60 workdays after getting your deposit.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q4: What is your advantages?
1. Manufacturer,the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.
Q5. If you can’t find the product on our website,what do you next?
Please send us inquiry with product pictures and drawings by email or other ways and we'll check.
