Who Is The Worthy"lightest And Strongest"material——Top10 Materials by Stiffness

Similar to specific stiffness(specific stiffness,elastic modulus/density)and specific strength(yield strength/density),it reflects the effective stiffness provided by a unit mass of a specific material,which is of great significance for reference in lightweight design of engineering structures.

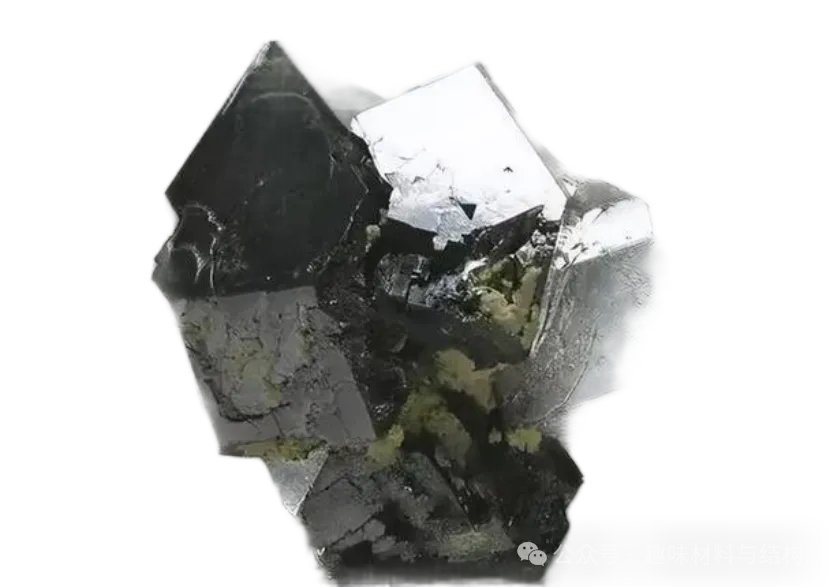

Key Factors Affecting Specific Stiffness 1.Elastic Modulus:Determined by atomic bond strength(e.g.,strong covalent bonds in beryllium).2.Density:Lighter atoms(Be,Mg,Al)are more advantageous.3.Microstructure:Alloy or composite material design can optimize performance.Below is the top 10 metals by specific stiffness and their reasons:1.Beryllium(B)-Specific stiffness:~287 GPa/(g/cm³)-Reason:Beryllium's elastic modulus(287 GPa)is close to steel(around 200 GPa),but its density(1.85 g/cm³)is extremely low(steel around 7.8 g/cm³),making it the metal with the highest specific stiffness known.-Applications:Aerospace,satellite structures.

2.Magnesium Alloys-Specific stiffness:~25–45 GPa/(g/cm³)-Reason:Magnesium has the lowest density(1.74 g/cm³)among engineering metals,but its low elastic modulus(45 GPa).Alloying(e.g.,AZ91)can improve performance.-Applications:Lightweight automotive components,electronic devices.

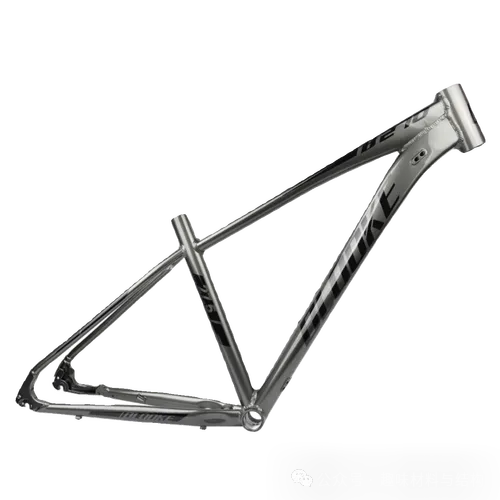

3.Aluminum alloy(Aluminum Alloys,e.g.,7075-T6)-Specific stiffness:~25-26 GPa/(g/cm³)-Reason:High strength aluminum alloy(e.g.,7075)has an elastic modulus of 70 GPa equivalent to steel,but a low density(2.8 g/cm³).-Application:Aircraft fuselage,bicycle frame.

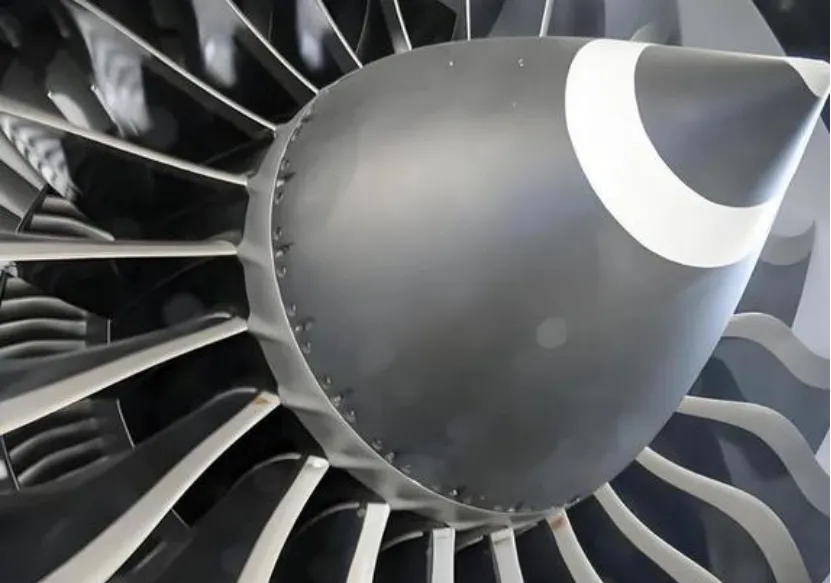

4.Titanium alloy(Titanium Alloys,e.g.,Ti-6Al-4V)-Specific stiffness:~24 GPa/(g/cm³)-Reason:Titanium has high elastic modulus(110 GPa),moderate density(4.43 g/cm³),and excellent corrosion resistance.-Application:Aero engines,medical implants.

5.Scandium-aluminum alloys(Scandium-Aluminum Alloys)-Specific stiffness:~23-24 GPa/(g/cm³)-Reason:The addition of scandium improves the elastic modulus of aluminum alloys while maintaining low density.-Application:High-end sports equipment,spacecraft.

6.High-entropy alloys(Alloys,e.g.,AlCoCrFeNi)-Specific stiffness:~20-22 GPa/(g/cm³)-Reason:Multi-component design can optimize the balance between stiffness and density.-Application:Extreme environment materials.

7.Aluminum-lithium alloy(Aluminum-Lithium Alloys,e.g.,AA 2099)-Specific stiffness:~20-21 GPa/(g/cm³)-Reason:Lithium reduces density(2.6 g/cm³)and increases elastic modulus(76 GPa).-Application:Modern aircraft structures.

8.Nickel-based superalloy(Nickel-Based Superalloys,e.g.,Inconel 718)-Specific stiffness:~18-19 GPa/(g/cm³)-Reason:High elastic modulus(200 GPa)but high density(8.2 g/cm³),excellent high-temperature performance.-Application:Turbine blades,rocket engines.

9.High-Strength Steel(Steel,e.g.Maraging Steel)-Specific stiffness:~18 GPa/(g/cm²)-Reason:While boasting the highest elastic modulus(210 GPa),its density(7.8 g/cm²)reduces specific stiffness.-Applications:Armor,high-strength structures.10.Metal Matrix Composites(Composites,e.g.Al/SiC)-Specific stiffness:~30–50 GPa/(g/cm²)(non-pure metals but frequently compared)-Reason:Ceramic reinforcement phases(e.g.,SiC)significantly enhance stiffness while density increases minimally.-Applications:Precision instruments,aerospace components.
