Product Description
The CSX type couplings primarily come in two sizes: inch sizes for the ANSI market (including CSH, CSP, and CSQ series) and metric sizes for the DIN market. The CSX couplings are part of HTKL, HRC, GF series, among others, which are extensively utilized in industrial applications. Specifically, the CSX couplings feature shaft holes compatible with Browning H, P1, and Q1 tapered bushings, which must be ordered separately by users.
Additionally, the CSX series encompasses other associated products, like soft starters, which cut operating costs with built-in bypass features and boast efficiencies of up to 99.5% without producing harmonics, making them ideal for constant-speed applications with variable loads.
In conclusion, the CSX Type Couplings are highly efficient and reliable, fitting diverse industrial scenarios and catering to various market demands.
NSPT CS Coupling图纸
NSPT CS-Coupling
| Catalog | Fundamental Dimensions | Bolt | Keyway | wt Lbs | ||||
| OD | B | L | C | Size | Qty | |||
| CS-04 | 12 | 1/4 | 3/4 | 3/16 | #6-32 x1/8 | 2 | - | 0.06 |
| CS-05 | 5/8 | 5/16 | 1 | 1/4 | #10-24 x3/16 | - | 0.06 | |
| CS-06 | 3/4 | 3/8 | 1 | 1/4 | #10-24 x3/16 | - | 0.1 | |
| CS-08 | 1 | 1/2 | 11/2 | 3/8 | 1/4-20 x1/4 | - | 0.2 | |
| CS-10 | 11/4 | 5/8 | 2 | 1/2 | 1/4-20 x1/4 | - | 0.5 | |
| CS-10K | 11/4 | 5/8 | 2 | 1/2 | 1/4-20 x3/16 | 3/16 x3/32 | 0.5 | |
| CS-12 | 11/2 | 3/4 | 2 | 1/2 | 5/16-18 x1/4 | - | 0.8 | |
| CS-12K | 11/2 | 3/4 | 2 | 1/2 | 5/16-18 x1/4 | 3/16 x3/32 | 0.8 | |
| CS-14 | 13/4 | 7/8 | 2 | 1/2 | 5/16-18 x1/4 | - | 1 | |
| CS-14K | 13/4 | 7/8 | 2 | 1/2 | 5/16-18 x1/4 | 3/16 x3/32 | 1 | |
| CS-16 | 2 | 1 | 3 | 3/4 | 3/8-16 x3/8 | - | 1.9 | |
| CS-16K | 2 | 1 | 3 | 3/4 | 3/8-16 x3/8 | 1/4 x1/8 | 1.9 | |
| CS-18 | 21/8 | 11/8 | 3 | 3/4 | 3/8 x16 x3/8 | 1/4 x1/8 | 2.1 | |
| CS-18K | 21/8 | 11/8 | 3 | 3/4 | 3/8 x16 x1/8 | 1/4 x1/8 | 2.1 | |
| CS-20 | 21/4 | 11/4 | 4 | 1 | 3/8 x16 x3/8 | - | 3.1 | |
| CS-20K | 21/4 | 11/4 | 4 | 1 | 3/8 x16 x3/8 | 1/4 x1/8 | 3.1 | |
| CS-22 | 21/2 | 13/8 | 41/2 | 1 | 3/8 x16 x3/8 | - | 4.3 | |
| CS-22K | 21/2 | 13/8 | 41/2 | 1 | 3/8 x16 x3/8 | 5/16 x5/32 | 4.3 | |

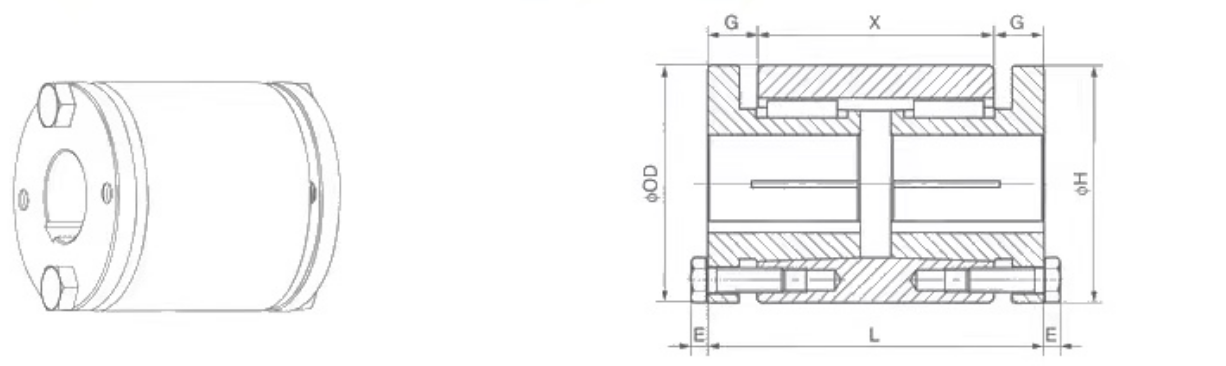

NSPT CSX-Coupling图纸
NSPT CSX-Coupling
| Catalog | Bushing | Fundamental Dimensions | Max. Torque (in.Lbs) | G (Lbs) | |||||||
| Size | Bore | OD | L | H | G | X | E | ||||
| Min | Max | ||||||||||
| CSH | H | 38 | 11/2 | 21/8 | 27/8 | 21/8 | 7/16 | 2 | 3/16 | 1700 | 1.6 |
| CSP | PI | 1/2 | 13/4 | 3 | 41/4 | 3 | 5/8 | 3 | 1/4 | 5660 | 3.4 |
| CSQ | Ql | 3/4 | 211/16 | 43/8 | 41/2 | 41/8 | 3/4 | 4 | 9/32 | 14600 | 9.6 |
