Product Description
The chain for wood-based panel equipment is used for processing plywood.particleboard, fiberboard and other wood-based panel production equipment, which meets the requirements of effcient and stable operation of equipment;
Through structural optimization design, high-quality materials and advanced processing technology, the products have the characteristics of high precision, high tensile strength, high fatigue strength, stable transportation, long service life and high reliability.
Parameter
| Chain No. | Pitch | Bush diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Tensile strength | Weight per meter |
| P | d1 max | b1 min | d2 max | L max | H max | T max | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| P40 | 40.0 | 20.0 | 25.0 | 14.0 | 73.0 | 53.0 | 5.0 | 90.0/20250 | 10.67 |

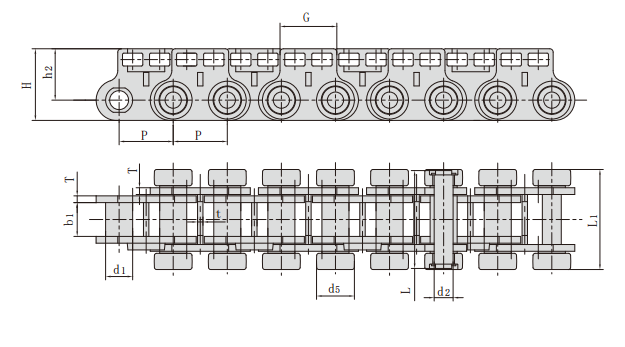

| Chain No. | P | G | L1 | h2 | d5 | t |
| mm | mm | mm | mm | mm | mm | |
| P40 | 40.0 | 42.0 | 75.0 | 38.0 | 28.0 | 4.0 |

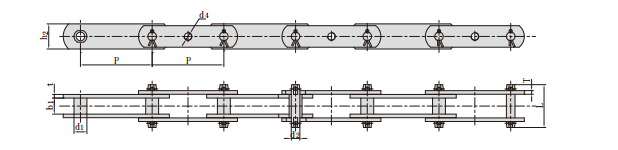

| Chain No. | Pitch | Bush diameter | Width between inner plates | Pin diameter | Pin length | Plate Size | Tensile strength | Weight per meter | ||
| P | d1 max | b1 min | d2 max | L max | h2 max | d4 | t/T | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| P100F270GK | 100.0 | 18.0 | 22.0 | 12.0 | 60.0 | 35.0 | M10 | 5.0 | 98.0/22030 | 4.60 |
| P100F178 | 100.0 | 18.0 | 22.0 | 12.0 | 54.0 | 30.0 | M10 | 5.0 | 98.0/22030 | 4.00 |
