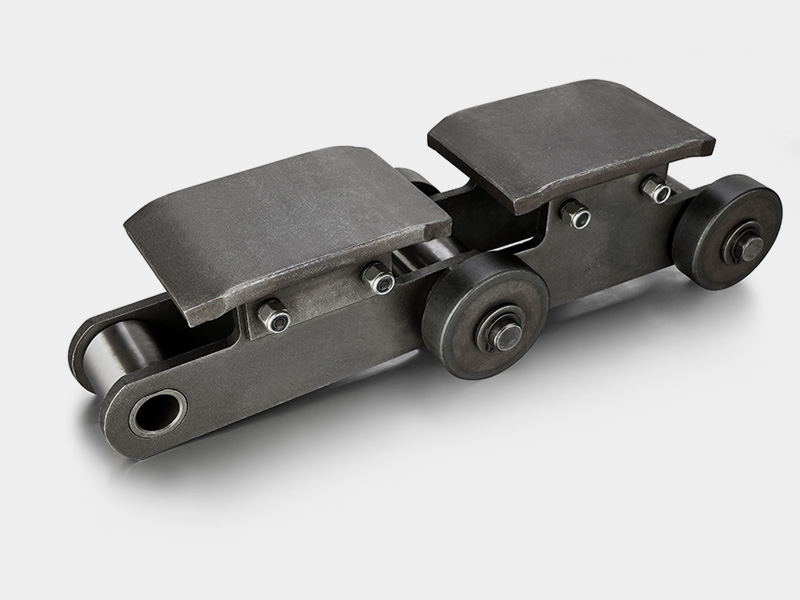

Product Description

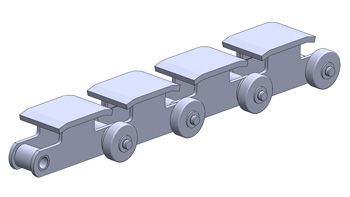

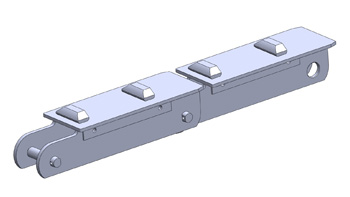

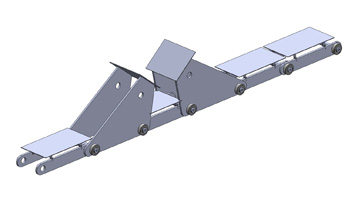

Conveyor chains in steel mills are used for production equipment in steel mills, mainly including chains for conveying ore and scrap steel on plate conveyors in steel mills,chains for steel rolling production lines, conveyor chains for producing steel pipes and bars, chain for drawing machines and various special chains.
With optimized structural design, high-quality materials and advanced technology, the products have the characteristics of high temperature resistance,impact resistance.wear resistance, high humidity resistance and high reliability, which are widely used in iron and steel smelting industry.
Parameter

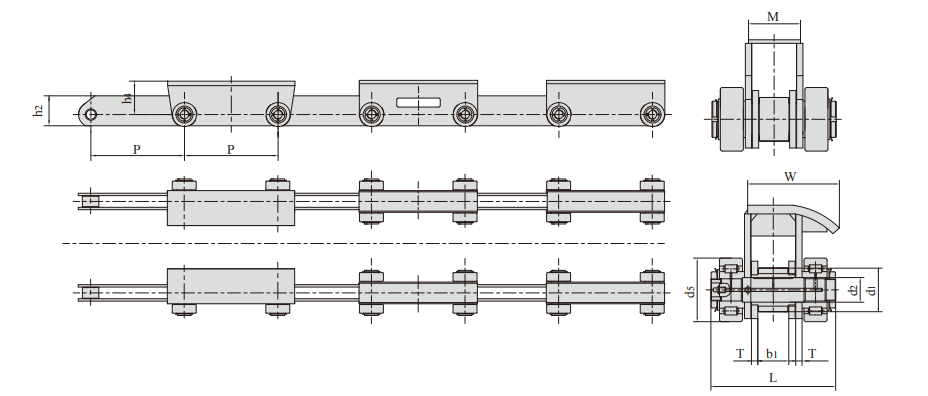

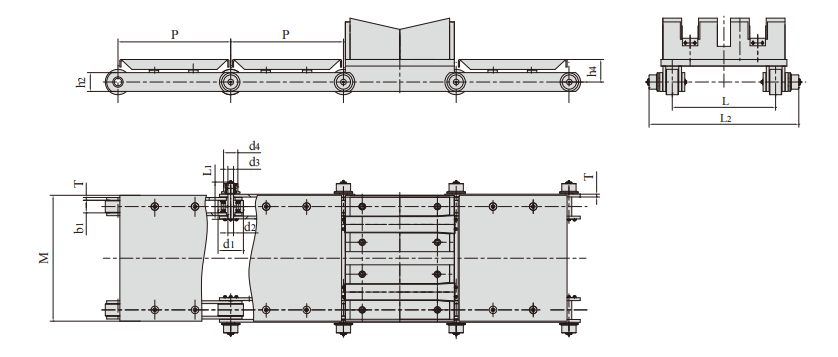

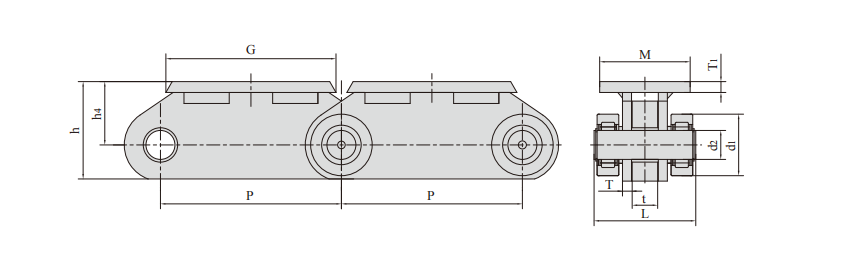

Chain No. | Pitch | Roller diameter | Pin diameter | Pin length | Plate thickness | Attachment dimensions | Tensile strength | ||||
P | d1 max | d2 max | L max | t/T max | G | M | h4 | h | T1 | Q min | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
P500 | 500.0 | 170.0 | 80.0 | 281.0 | 50.0/25.0 | 470.0 | 250.0 | 175.0 | 269.0 | 30.0 | 1900/427419 |
P500F23 | 500.0 | 170.0 | 80.0 | 261.0 | 60.0/20.0 | 470.0 | 250.0 | 155.0 | 240.0 | 30.0 | 1600/359680 |

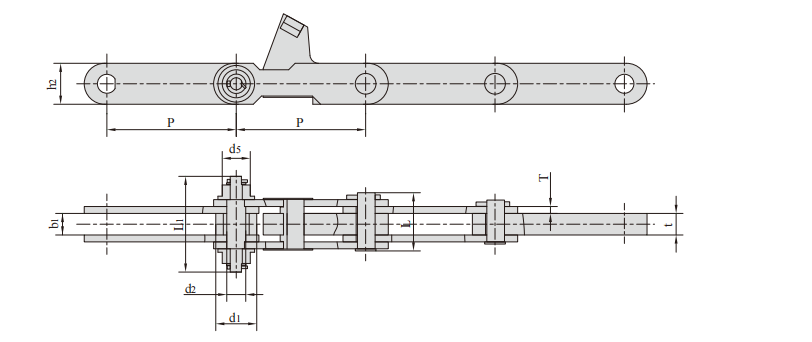

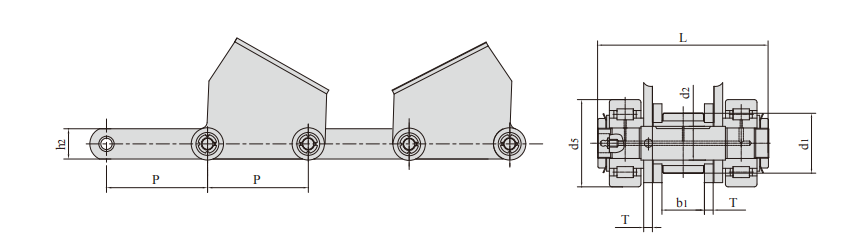

Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate thickness | Plate depth | Tensile strength | |
P | d1 max | d5 max | b1 min | d2 max | L max | T max | h2 | Q min | |
mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
P250F168 | 250.0 | 107.0 | 160.0 | 78.0 | 62.0 | 330.0 | 16.0 | 150.0 | 1000/224800 |
P500F1 | 500.0 | 107.0 | 160.0 | 78.0 | 62.0 | 325.0 | 20.0 | 150.0 | 800/179966 |
P500F2 | 500.0 | 107.0 | 160.0 | 76.0 | 62.0 | 310.0 | 16.0 | 150.0 | 700/157470 |
P500F18 | 500.0 | 107.0 | 160.0 | 78.0 | 62.0 | 310.0 | 16.0 | 150.0 | 1000/224800 |

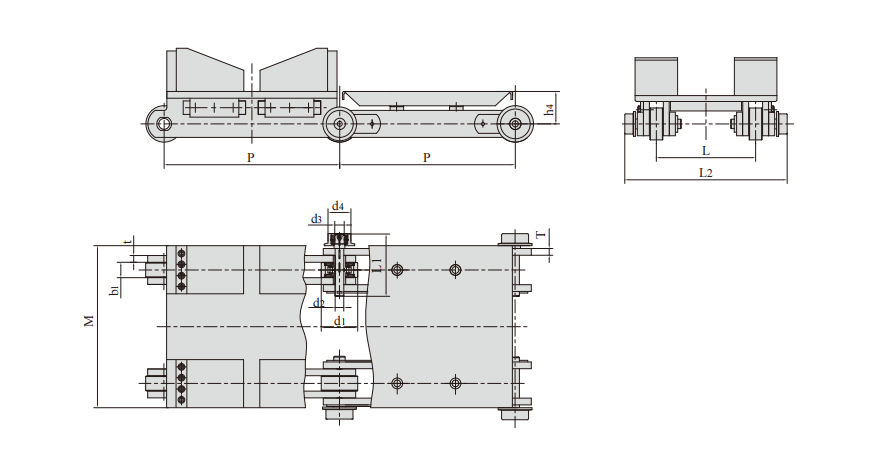

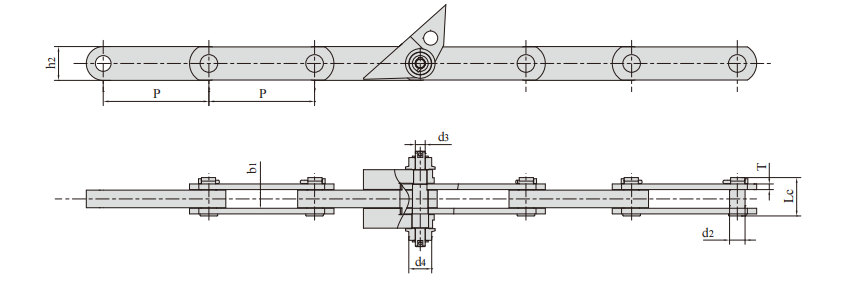

Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate thickness | Attachment dimension | Tensile strength | Weight per meter | |||||
P | d1 max | d4 max | b1 min | d2 max | d3 max | L1 max | t/T max | L | L2 | M | h4 | Q min | q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
P650 | 650.0 | 135.0 | 85.0 | 56.0 | 32.0 | 35.0 | 232.0 | 25.0 | 420.0 | 690.0 | 600.0 | 120.0 | 750/168718 | 214.5 |
P750 | 750.0 | 200.0 | 85.0 | 82.0 | 55.0 | 35.0 | 276.0 | 30.0/25.0 | 380.0 | 690.0 | 600.0 | 162.5 | 2050/460858 | - |

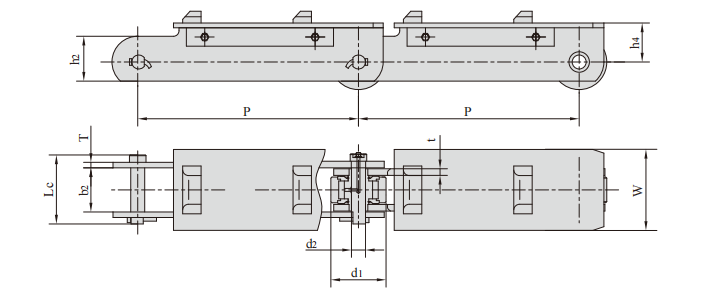

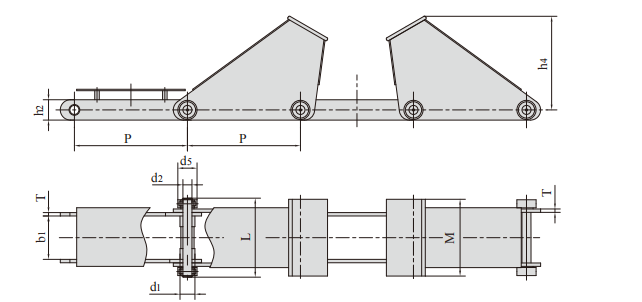

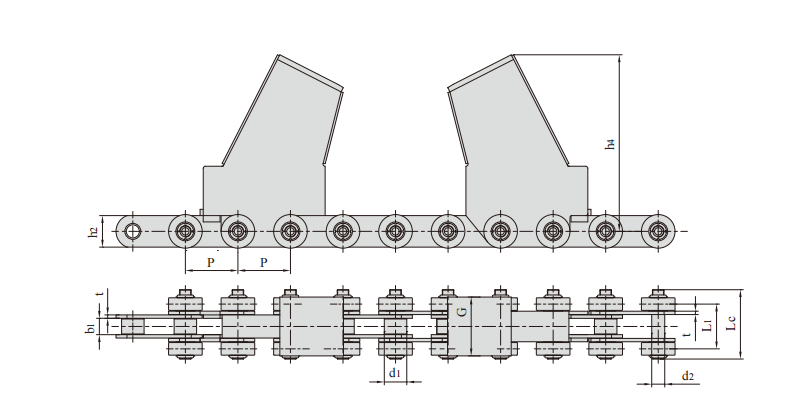

Chain No. | Pitch | Roller diameter | Width between outer plates | Pin diameter | Pin length | Plate depth | Plate thickness | Attachment dimension | Average tensile strength | |
P | d1 max | b2 min | d2 max | Lc max | h2 | t/T max | h4 | W | Q0 | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
P600F1 | 600.0 | 150.0 | 117.0 | 38.0 | 187.0 | 122.0 | 18/15 | 105.7 | 220.0 | 1470/330687 |
Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate thickness | Attachment dimension | Tensile strength | ||||
P | d1 max | d5 max | b1 | d2 max | L max | T max | W | M | h2 | h4 | Q min | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
P625 | 625.0 | 107.0 | 160.0 | 78.0 | 62.0 | 310.0 | 16.0 | 227.5 | 130.0 | 200.0 | 215.0 | 700/157470 |
Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Plate depth | Pin length | Plate thickness | Attachment dimension | Tensile strength | ||
P | d1 max | d5 max | b1 min | d2 max | h2 | L max | T max | h4 | M | Q min | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
P1000 | 1000.0 | 110.0 | 170.0 | 384.0 | 80.0 | 180.0 | 678.0 | 30.0 | 832.0 | 680.0 | 1800/404923 |
Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate thicknes | Inner Plate depth | Attachment dimension | Tensile strength | Weight per meter | ||
P | d1 max | b1 min | d2 max | Lc max | t | h2 max | h4 | L1 | G | Q min | q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
P250F168 | 250.0 | 107.0 | 78.0 | 62.0 | 330.0 | 16.0 | 150.0 | 840.4 | 213.0 | 280.0 | 1000/224800 | 270.5 |
Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner Plate depth | Plate thicknes | Tensile strength | Weight per meter |
P | d1 max | b1 min | d2 max | Lc max | h2 max | t/T | Q min | q | |
mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
P95.25F1 | 95.25 | 44.45 | 33.30 | 15.88 | 81.00 | 38.10 | 8.00 | 180.0/40464 | 13.63 |

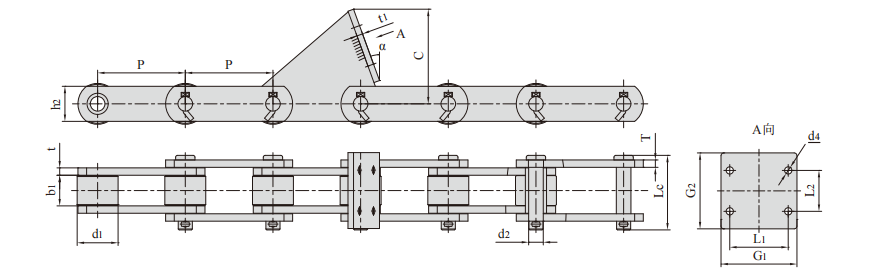

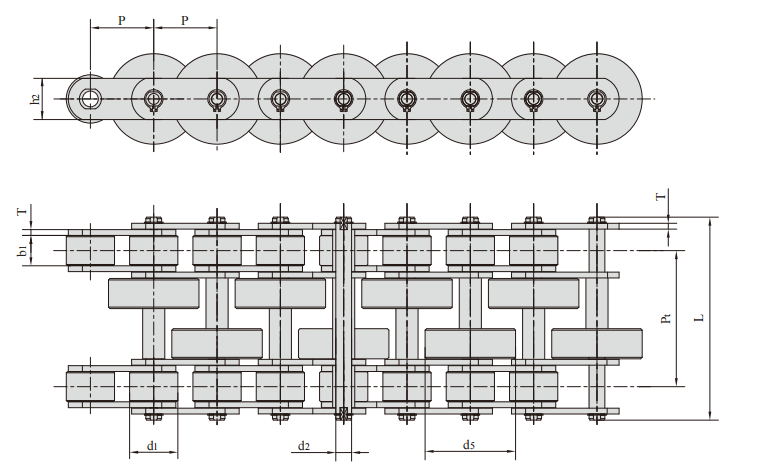

Chain No. | P | C | d4 | t1 | L1 | G1 | L2 | G2 | α |
mm | mm | mm | mm | mm | mm | mm | mm | mm | |
P95.25F1 | 95.25 | 102.85 | 7.90 | 6.40 | 63.50 | 82.50 | 44.45 | 82.50 | 20° |
Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate thickness | Tensile strength | ||
P | d1 max | d5 max | b1 min | d2 max | L max | L1 max | t/T max | Q min | |
mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
P300F5 | 300.0 | 95.0 | 65.0 | 50.0 | 44.0 | 135.0 | 222.0 | 50.0/16.0 | 500.0/112478.0 |
Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate thickness | Plate depth | Transverse pitch | Tensile strength | Weight per meter | |
P | d1 max | d5 max | b1 min | d2 max | L max | T max | h2 max | Pt | Q min | q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
P45F8 | 45.0 | 36.0 | 69.0 | 18.0 | 12.00 | 128.0 | 4 | 30.0 | 108.0 | 160/35968 | 25.70 |
P63F4 | 63.0 | 48.0 | 90.0 | 30.0 | 15.88 | 202.0 | 6 | 41.0 | 135.0 | 200/44991 | 36.57 |
P100F316-2 | 100.0 | 60.0 | 140.0 | 39.0 | 22.00 | 256.0 | 8 | 50.0 | 160.0 | 450/101160 | 84.10 |

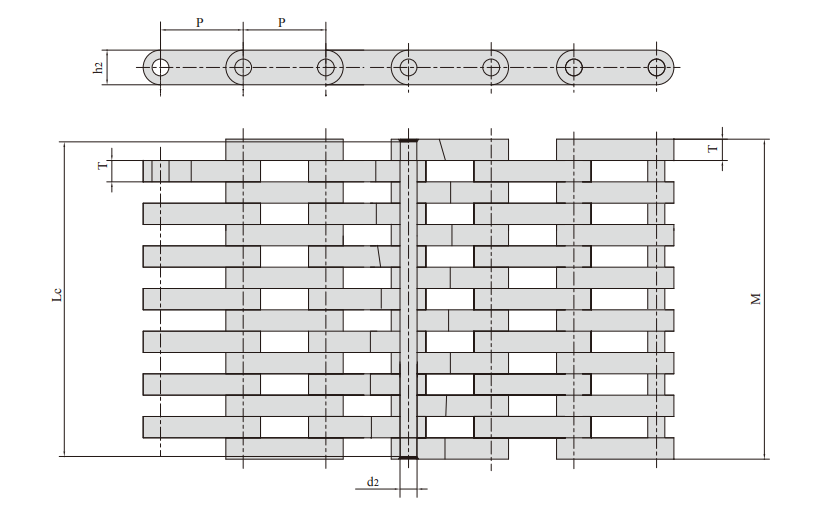

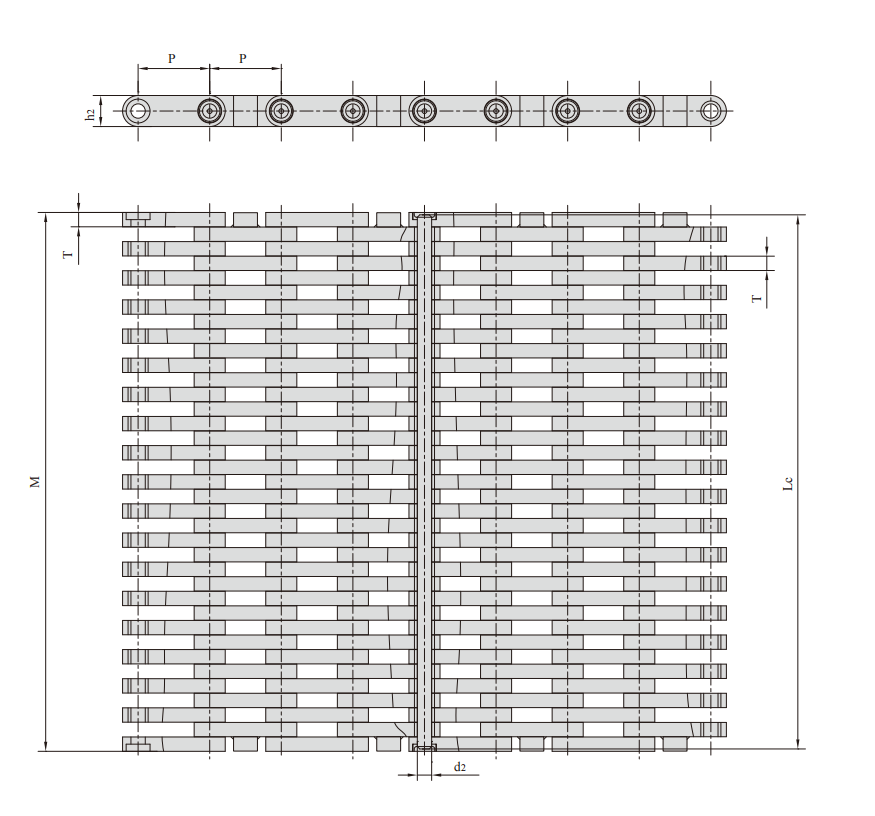

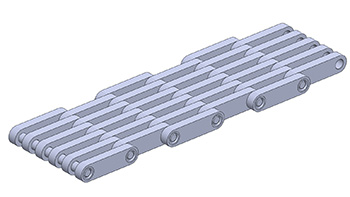

Chain No. | Pitch | Plate lacing | Pin diameter | Pin length | Plate thickness | Plate dimension | Tensile strength | Average tensile strength | Weight per meter | |
P | d2 max | Lc max | T max | h2 | M | Q min | Q0 | q | ||
mm | mm | mm | mm | mm | mm | kN/lbf | kN/lbf | kg/m | ||
LF152F1 | 152.0 | 6x5 | 26.92 | 279.4 | 25.4 | 50.8 | 283.2 | 2000/449600 | 2200/494560 | 70.0 |
LF155 | 155.0 | 7x8 | 31.50 | 595.0 | 40.0 | 65.0 | 605.0 | 3200/719864 | 3520/791851 | 202.2 |
Chain No. | Pitch | Plate lacing | Pin diameter | Pin length | Plate thickness | Plate dimension | Tensile strength | Average tensile strength | Weight per meter | |
P | d2 max | Lc max | T max | h2 | M | Q min | Q0 | q | ||
mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | ||
LF150F1 | 150.0 | 18×19 | 30.0 | 1117.0 | 30.0 | 65.0 | 1119.0 | 5200/1169000 | 5700.0 | 365.0 |

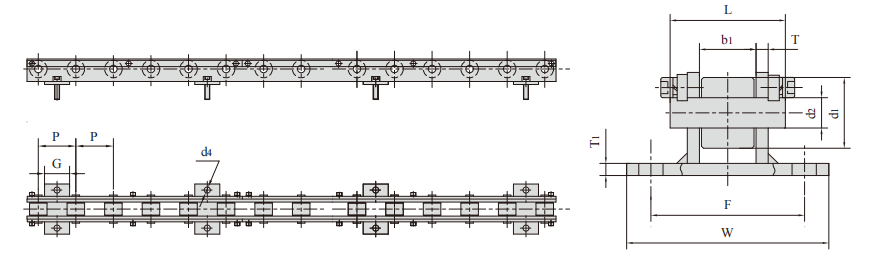

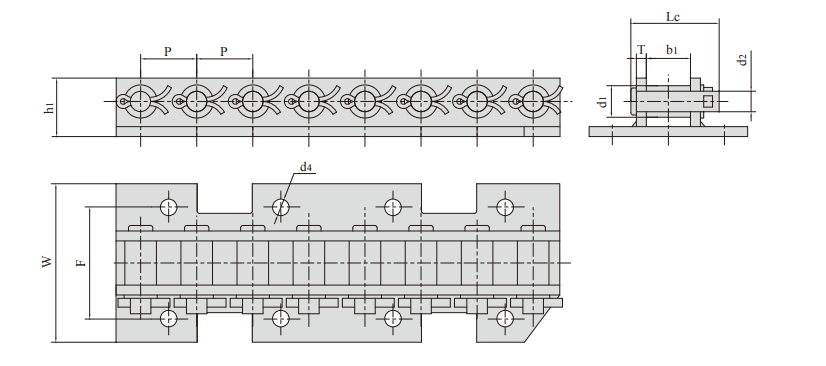

Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate thickness | Attachment dimension | Weight per meter | ||||
P | d1 max | b1 | d2 max | L max | T max | T1 | W | F | d4 | G | q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/m | |
P75F9 | 75.0 | 35.0 | 28.0 | 15.0 | 56.0 | 6.0 | 6.0 | 100.0 | 76.0 | 12.0 | 50.0 | 22.3 |
Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate thickness | Attachment dimension | Tensile strength | Weight per meter | |||
P | d1 max | b1 | d2 max | Lc max | T max | F | W | d4 | h1 | Q min | q | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
P50.8F10 | 50.8 | 28.6 | 40.0 | 18.5 | 80.0 | 9.0 | 101.6 | 143.6 | 15.0 | 53.0 | 193/43416 | 11.2 |
Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate dimension | Attachment dimension | Tensile strength | ||||||
P | d1 max | d4 | b1 min | d2 max | d3 max | Lc max | h2 | T max | L | L2 | M | h4 | Q min | |
mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
P600F3 | 600.0 | 135.0 | 76.0 | 68.0 | 30.0 | 30.0 | 200.3 | 100.0 | 15.0 | 550.0 | 794.0 | 670.0 | 120.0 | 1000.0/224809.0 |
Chain No. | Pitch | Roller diameter | Width between outer plates | Pin diameter | Pin length | Plate dimension | Tensile strength | ||
P | d4 max | b1 | d2 max | d3 max | Lc max | h2 | T max | Q min | |
mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
P300F7 | 300.0 | 65.0 | 53.0 | 44.0 | 28.0 | 108.9 | 96.0 | 16.0 | 500.0/112404.0 |
