Product Description

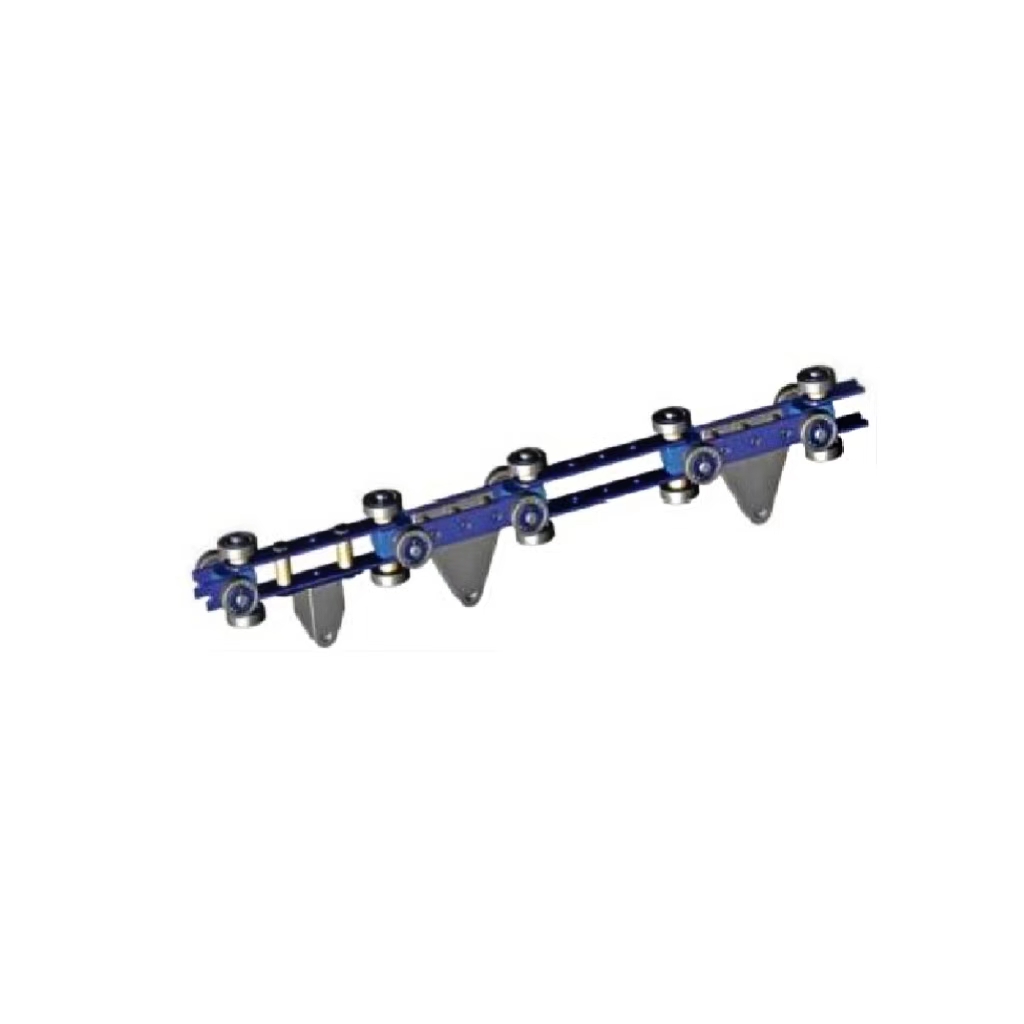

Cross conveyor chains
Product description
The chain is driven by the driving chain and runs continuously in the track. It plays the role of suspension and transmission in the conveyor. The conveyor chain is bidirectionally articulated, so in addition to linear motion, it can also follow the movement of the track. Curved shape, completing spatial curvilinear motion in horizontal and vertical planes.

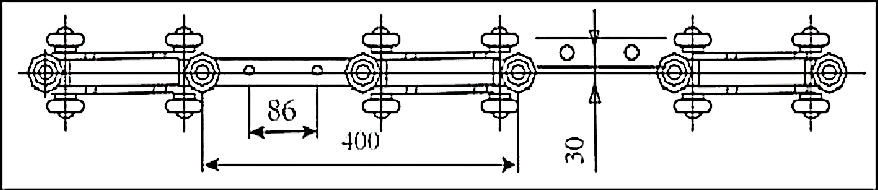

The figure below shows a simplified diagram of the conveyor chain of the XF series conveyor. Each section (T) has 4 running wheels, 4 guides and 2 cross sections. The running wheel and the guide wheel are connected by double chain plates through cross joints and pins. After the detachable hanging plate or fixed hanging plate is hung in the middle of the pin shaft, the workpiece can be transported. Their running wheels and guide wheels both adopt double-row ball structures, and their sizes are generally φ38 and φ45 bearings as guides and running wheels, and the track width is adjusted accordingly.
Product Specification
Type | Project | |||||
Workpiece temperature | Pitch | Breaking load | Allowable tension | Single point lifting | Conveying speed | |
WF-350 | -20~280℃ | 350mm | ≥50KN | 5KN | 50-100kg | ≥15m/min |
XWF-350 | -20~280℃ | 350mm | ≥50KN | 5KN | 50-150kg | ≥15m/min |
WF-381 | -20~280℃ | 381mm | ≥70KN | 7KN | 50-100kg | ≥15m/min |
XWF-381 | -20~280℃ | 381mm | ≥90KN | 8KN | 50-150kg | ≥15m/min |
WF-400 | -20~280℃ | 400mm | ≥90KN | 8KN | 50-100kg | ≥15m/min |
XWF-400 | -20~280℃ | 400mm | ≥90KN | 8KN | 50-150kg | ≥15m/min |
XWF-500 | -20~280℃ | 500mm | ≥100KN | 10KN | 150-250kg | ≥15m/min |
Application
Industrial production:
In manufacturing (e.g., auto, machinery, electronics), it transports parts and products.
In chemical industry, for chemical substances.
In food processing, for raw materials and products with hygienic materials.
In paper industry, for paper and pulp.
Mining and energy: Transports ores and coal in mines and fuels in power plants.
Construction: For building materials and in some construction equipment.
Logistics and warehousing: In warehouses and logistics centers for sorting.
Agriculture: For agricultural materials and in harvesting and processing.
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is your delivery time and shipment?
1.Sample Lead-times: generally 15 workdays.
2.Production Lead-times: 30-60 workdays after getting your deposit.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q4: What is your advantages?
1. Manufacturer,the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.
Q5. If you can’t find the product on our website,what do you next?
Please send us inquiry with product pictures and drawings by email or other ways and we'll check.
