Product Description

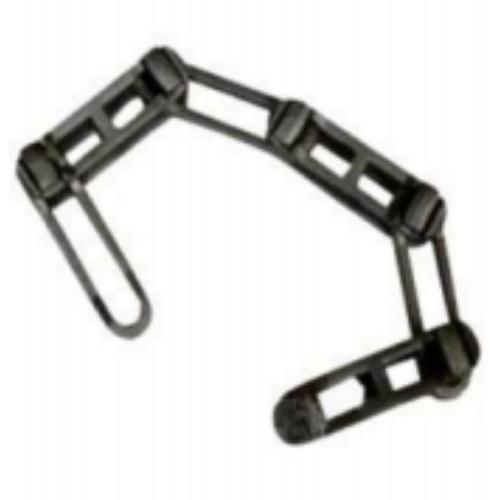

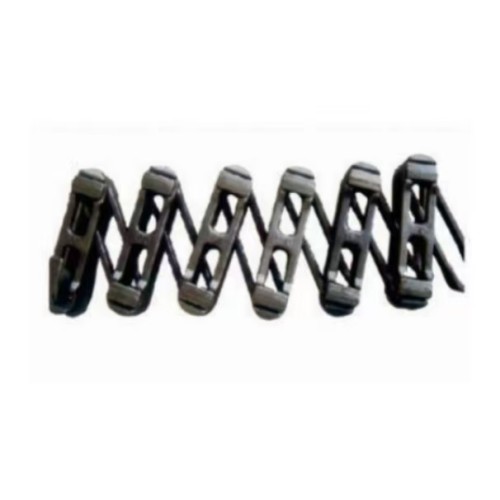

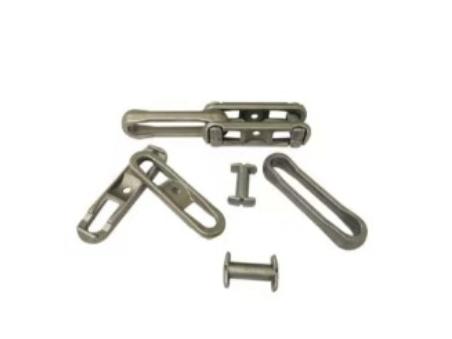

Drop forged conveyor chain
Product description
The chain is the traction component of the conveyor. There are two types of chains for XT80, XT100, it can rotate arbitrarily in the horizontal and vertical directions.
Product Specification

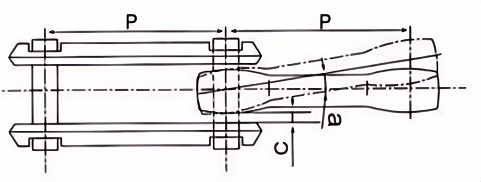

Project | P | C | α |
XT80 | 80(76.2) | 1.5-2.5 | ≥9°; |
XT100 | 100 | 1.5-2.5 | ≥9°; |
XT160 | 160 | 2-4 | ≥6°; |
Product Properties
XT80
Chain pitch: t=80176.2mm
Chain tensile load: 110KN
Allowable chain tension: 10KN
Maximum load of carriage: 300kg
Allowable load of carriage: 125Kg
Track: G10 or G12
Minimum horizontal turning radius: R305
Minimum vertical bending radius: R1500
XT100
Chain pitch: t=100mm
Chain tensile load: 220KN
Allowable chain tension: 15KN
Ultimate load of carriage: 500kg
Allowable load of carriage: 250Kg
Track: G12 or G14
Minimum horizontal turning radius: R317
Minimum vertical bending radius: R2000
Chain pitch: t=160mm
XT160
Chain tensile load: 400KN
Allowable chain tension: 30KN
Ultimate load of carriage: 800kg
Allowable load of carriage: 500Kg
Track: G14 or G16
Minimum horizontal turning radius: R404
Minimum vertical bending radius: R3150
Application
Industrial production lines:
In automobile, home appliance and machinery manufacturing, they are used for transporting parts and ensuring efficient production.
Material handling equipment:
Found in scraper conveyors, bucket elevators and overhead conveyors for transporting bulk materials and realizing efficient space utilization.
Special equipment:
Used in wet slag extractors in power plants and as crucial components of port cranes for heavy lifting.\
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is your delivery time and shipment?
1.Sample Lead-times: generally 15 workdays.
2.Production Lead-times: 30-60 workdays after getting your deposit.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q4: What is your advantages?
1. Manufacturer,the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.
Q5. If you can’t find the product on our website,what do you next?
Please send us inquiry with product pictures and drawings by email or other ways and we'll check.
