Product Description
Most of Ocean Guide Rack are exported to Europe since 2005. Most of Ocean OEM customers send drawings and Ocean produce as per their drawings, if you do not have drawing, Ocean can also produce as per your sample.

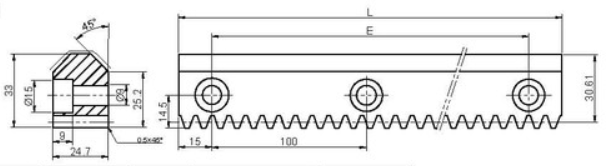

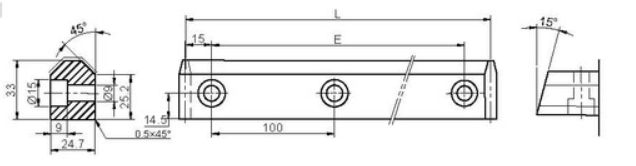

parameter
| Code | L | E | Bolt size | Material |
| OV2506 | 630 | 600 | M8*25 8.8 | S45C |
| OV2509 | 930.00 | 900 | M8*25 8.8 | S45C |
| OV2510 | 1230 | 1200 | M8*25 8.8 | S45C |
| Code | Module | L | E | Pitch | Precision grade | Material |
| OVGH250606 | 2.3873 | 630 | 600 | 7.5 | DIN6 | S45C |
| OVGH250906 | 2.3873 | 930.00 | 900 | 7.5 | DIN6 | S45C |
| OVGH251006 | 2.3873 | 1230 | 1200 | 7.5 | DIN6 | S45C |
| OVGH250609 | 2.3873 | 630 | 600 | 7.5 | DIN9 | S45C |
| OVGH250909 | 2.3873 | 930 | 900 | 7.5 | DIN9 | S45C |
| OVGH251009 | 2.3873 | 1230 | 1200 | 7.5 | DIN9 | S45C |
