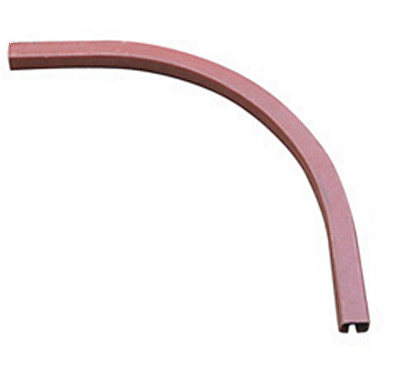

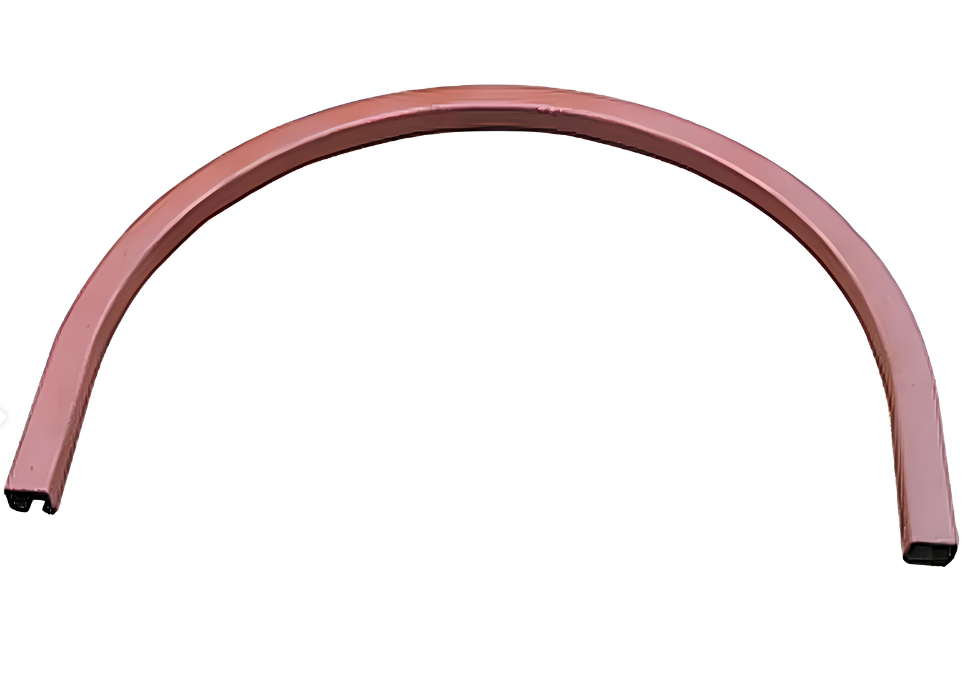

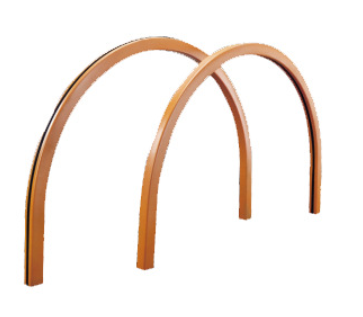

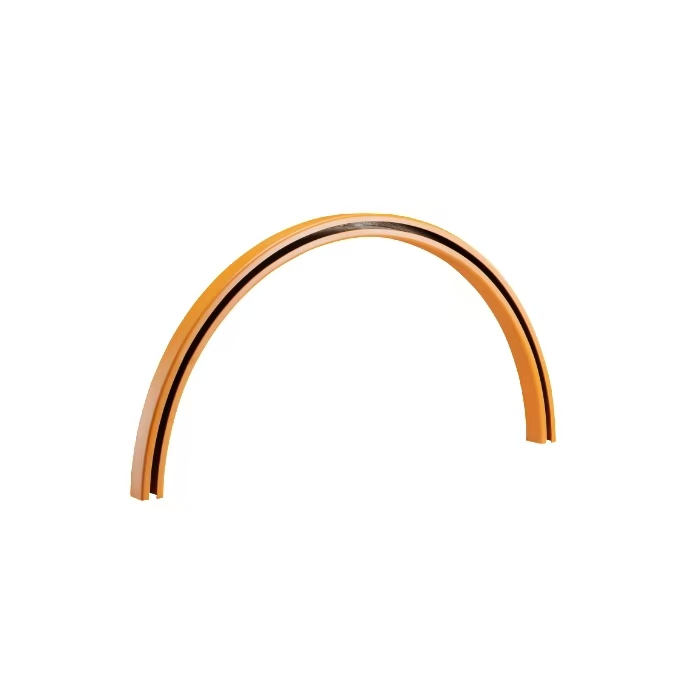

Industrial Horizontal Curve Rail

Industrial horizontal curve rail

Product description

It is used for horizontal turns when the conveyor chain travels. The standard radius is R305mm to R815mm with an angle of 180° . It can be cut to any degree according to the installation site conditions. Horizontal elbows can also be customized and processed according to customer needs.

Product Specification

Performance characteristics:

Smooth Curvature
The track has a carefully engineered curvature that allows for seamless transition and reduces friction. It enables smooth operation even at high speeds, minimizing vibrations and noise.

Durability and Strength
Constructed from high-quality materials, it is designed to withstand heavy loads and continuous use. Resistant to corrosion and wear, it can endure harsh environmental conditions.

Precision Engineering
Manufactured with precision, it ensures accurate alignment and consistent performance. Tight tolerances guarantee proper functioning and provide stable support.

Versatility
Can be integrated into various systems and applications. Compatible with different types of conveyors and handling equipment, it offers flexibility in design and layout.

Safety Features
May be equipped with safety features such as guardrails or anti-slip surfaces to enhance workplace safety and prevent accidents.

Application

1. Material Handling
Used in industrial material handling systems and integrated with conveyor belts and handling equipment for efficient product movement.

2. Logistics and Warehousing
Utilized in warehouses and distribution centers for sorting and routing packages, streamlining logistics and reducing handling time.

3. Manufacturing
Employed in manufacturing plants for assembly lines and production processes, guiding parts and facilitating seamless production.

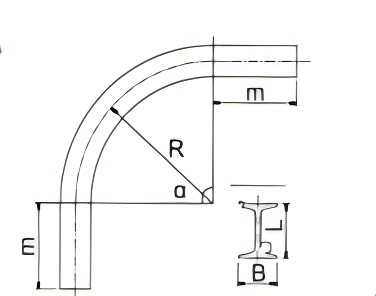

Structural parameter

1. Radius of Curvature
Determines the degree of bend. Selected based on application and space.

2. Track Width
Suitable for transported object size and weight. A wider track offers more stability.

3. Material Thickness
Affects strength and durability. Chosen according to expected load and environment.

4. Surface Finish
Impacts friction and wear. Smooth finish reduces friction. Options include polished, coated, or textured.

FAQ

Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is your delivery time and shipment?
1.Sample Lead-times: generally 15 workdays.
2.Production Lead-times: 30-60 workdays after getting your deposit.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q4: What is your advantages?
1. Manufacturer,the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.
Q5. If you can’t find the product on our website,what do you next?
Please send us inquiry with product pictures and drawings by email or other ways and we'll check
