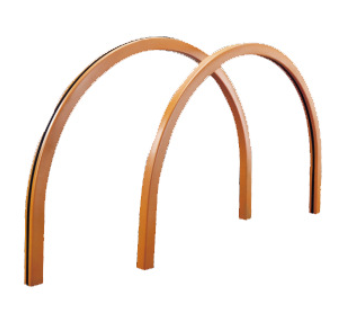

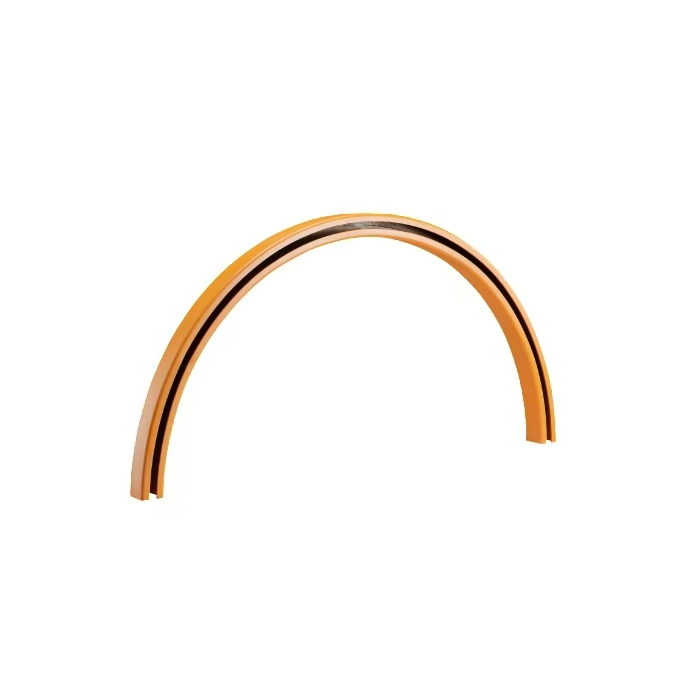

Five Tons Series Horizontal Curve Track

Five tons series horizontal curve track

Product description

This product is utilized at the horizontal turning point where the conveying chain operates. The standard diameter at 180° spans from 0.8 to 2 meters. It can be cut to any degree in accordance with the installation site conditions. Additionally, horizontal elbows can be customized and processed as per customer needs.

Performance characteristics:

1. High Load Capacity
Capable of handling loads up to five tons, making it suitable for heavy-duty applications.

2. Smooth Curvature
The track is designed with a smooth curve, ensuring seamless movement of materials and minimizing wear and tear on the conveyor system.

3. Durable Construction
Constructed from high-quality materials, it is built to withstand the rigors of industrial use and offer long service life.

4. Stable Operation
Provides stable operation, reducing the risk of accidents and ensuring efficient material handling.

5. Versatile Application
Can be used in a variety of industries and applications, such as manufacturing, warehousing, and logistics.

Application

1. Industrial Factories
Used in large-scale industrial factories for transporting heavy machinery and equipment. For instance, in automobile manufacturing plants, it helps move assembled car bodies smoothly along curved tracks.

2. Logistics Centers
In logistics centers with complex layouts, it enables the efficient transfer of heavy pallets and containers around corners and through different sections.

3. Construction Sites
At construction sites with limited space and the need for transporting building materials along a curved path, such as in high-rise building construction or areas with narrow passages.

4. Mining Operations
Employed in mining operations to transport extracted minerals and ores along curved tracks to the processing areas.

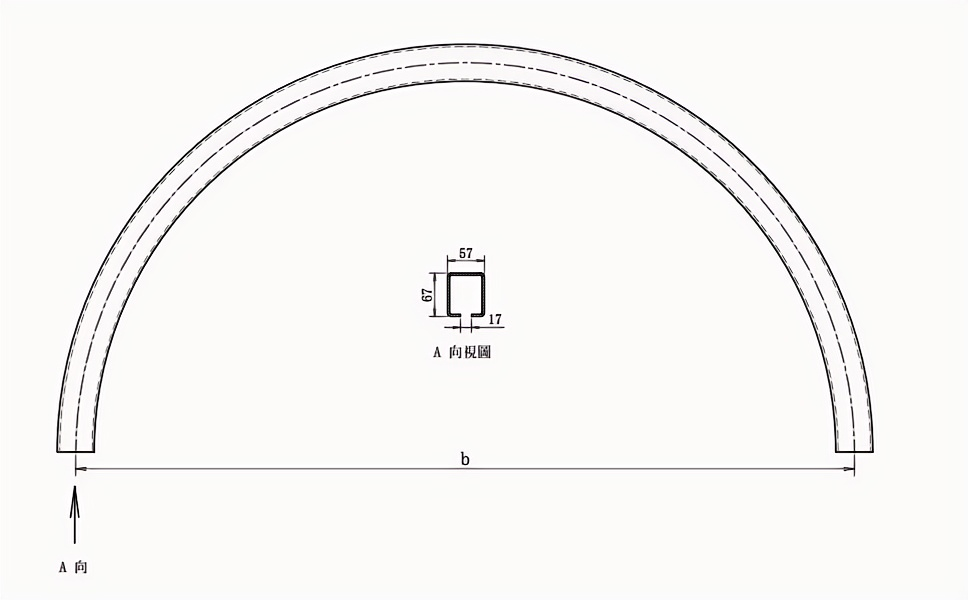

Structural parameter

Gauge: Distance between two tracks. A basic parameter for the five-ton series horizontal curve track. Determined by application scenario and equipment requirements to ensure stability and safety.

Track height: Affects bearing capacity and stability. Higher height offers better capacity but increases overall height and cost.

Track width: Determines wheel-track contact area. Wider width distributes pressure and reduces wear and deformation.

Bending radius: Key parameter. Determines curvature. For five-ton series, depends on equipment turning radius, speed, and weight. Smaller radius makes system compact but increases driving difficulty and wear. Larger radius improves safety and comfort but takes more space.

FAQ

Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is your delivery time and shipment?
1.Sample Lead-times: generally 15 workdays.
2.Production Lead-times: 30-60 workdays after getting your deposit.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q4: What is your advantages?
1. Manufacturer,the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.
Q5. If you can’t find the product on our website,what do you next?
Please send us inquiry with product pictures and drawings by email or other ways and we'll check.
