Light Wheel Return Idler Horizontal Curve

Light wheel return idler horizontal curve

Product description

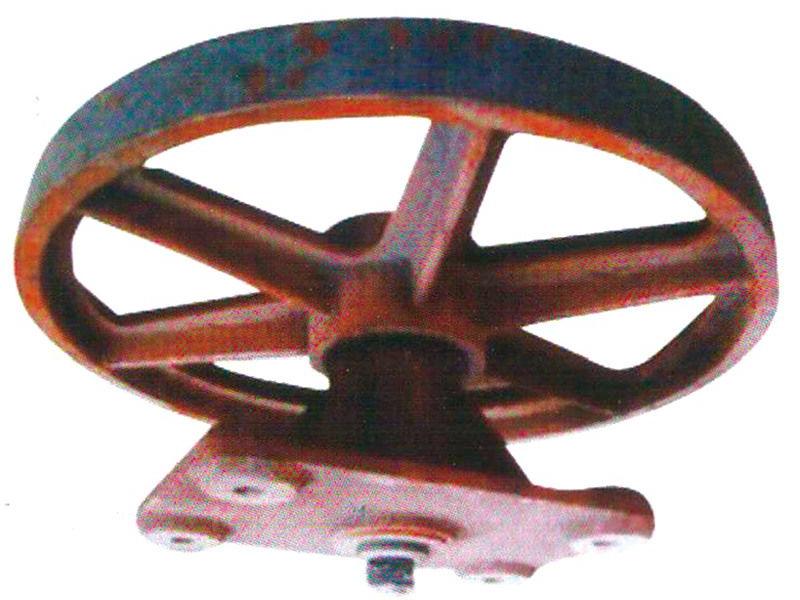

The rotating wheel of the light wheel turning device is a toothless light wheel, which is generally used in horizontal turning sections with a large radius.

Product Specification

Performance characteristics:

Structural Stability: Ensured by the design of the rotating track and bearings.

Load-bearing Capacity: Enhanced by tapered roller bearings.

Rotational Stability: Provided by the drive components like motors and gears.

Detachable Design: Allows for easy maintenance of the rotating bracket.

Guidance Mechanism: Stabilizes the rotation of the bracket.

Lubrication System: Maintains the smooth operation of the bearings.

Low Operating Resistance: Due to the frictionless design of the light wheel.

Suitable for Large Radius Turns: Ideal for wide-angle horizontal turns

Application

Pneumatic Conveying Systems: Control the flow and direction of materials for efficient material transportation.

Optical Applications: Used in the design of meta-lenses for 3D optical ranging.

Belt Conveyor Control Systems: Precisely control the speed and direction of conveyor belts to enhance transportation efficiency.

Structural parameter

Enhanced Structural Stability: Tapered roller bearings on the frame support the light wheel shaft, offering greater load capacity than traditional ball bearings and improving the device's overall stability.

Optimized Drive Components: The drive system, featuring a motor, worm gear, and worm wheel, enhances the stability of the light wheel shaft's rotation for smooth operation.

Detachable Rotating Bracket: The design allows for easy removal and maintenance of the rotating bracket, ensuring its structural integrity and stable installation of the rotating track.

Innovative Guidance Mechanism: Guide frames and slots on the bracket work with guide blocks to support and guide the bracket's rotation, enhancing installation stability.

FAQ

Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is your delivery time and shipment?
1.Sample Lead-times: generally 15 workdays.
2.Production Lead-times: 30-60 workdays after getting your deposit.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q4: What is your advantages?
1. Manufacturer,the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.
Q5. If you can’t find the product on our website,what do you next?
Please send us inquiry with product pictures and drawings by email or other ways and we'll check.
