Product Description
Meat production line conveyor chain is mainly used for slaughtering, cutting, deboning and other production lines of livestock and poultry meat processing, and the products mainly include P8o series, SJ double hinge series and other chains.
Using high-quality materials and advanced processing technology, the products have the characteristics of high strength and corrosion resistance: Double hinged chain can run reliably on horizontal, vertical and bi-directional curved conveying lines, and has the characteristics of stable conveying and convenient maintenance
Parameter

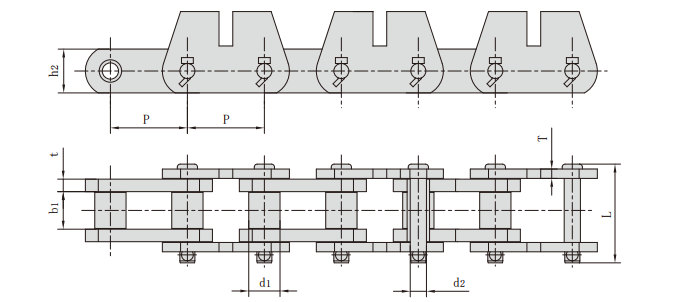

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter |
| P | d1 max | b1 min | d2 max | L max | h2 max | t/T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| P78.11F10 | 78.105 | 31.75 | 38.1 | 16.46 | 102.0 | 44.45 | 12.7/9.5 | 333.4/75000 | 350.0 | 16.73 |
| P101.6F28 | 101.600 | 38.10 | 50.8 | 17.48 | 122.0 | 44.45 | 12.7 | 266.7/60000 | 293.3 | 21.66 |
| P152F18 | 152.400 | 69.85 | 76.2 | 25.40 | 152.0 | 63.50 | 12.7 | 500.0/112480 | 650.0 | 43.23 |
| P152F24 | 152.400 | 69.85 | 76.2 | 25.40 | 152.0 | 63.50 | 12.7 | 565.0/127100 | 650.0 | 38.38 |
| P152F248 | 152.400 | 69.85 | 76.2 | 25.40 | 151.4 | 69.85 | 12.7 | 431.5/59001 | 474.7 | 44.70 |

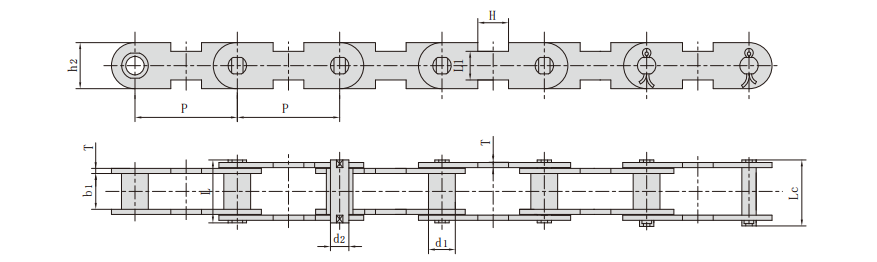

| Chain No. | Pitch | Bush diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Attachment dimension | Tensile strength | Weight per meter | ||
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | H | L1 | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| P100F49 | 100.0 | 20.0 | 25.0 | 14.0 | 51.5 | 55.0 | 35.0 | 5.0 | 30.0 | 28.0 | 90.0/20250 | 4.02 |
| P100F54 | 100.0 | 26.0 | 35.0 | 18.0 | 65.5 | 71.0 | 45.0 | 6.0 | 30.0 | 28.0 | 100.0/22500 | 6.90 |

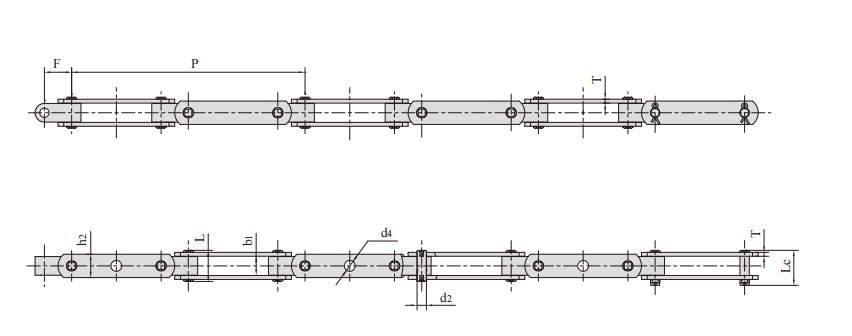

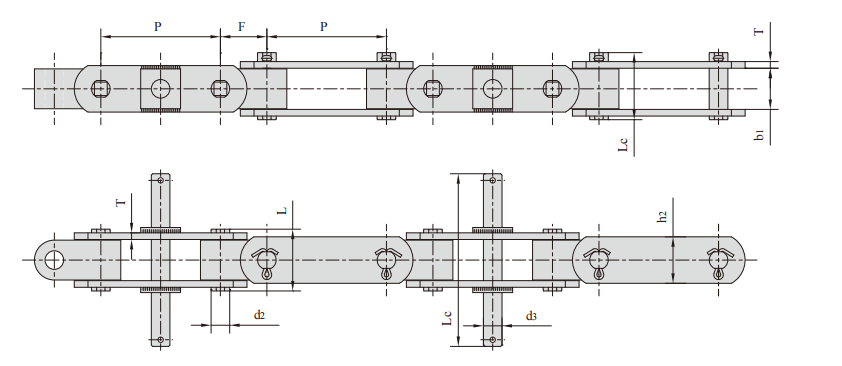

| Chain No | Pitch | Width between outer plates | Pin diameter | Pin lenght | plate depth | plate thickness | Attachment dimension | Tensile strength | Average tensile strength | Weight per meter | ||
| P | b1 min | d2 max | L max | Lc max | h2 max | T max | F | d4 | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| SJ250F3 | 250.00 | 24.6 | 12.0 | 40.0 | 45.0 | 30.0 | 5.0 | 35.0 | 14.0 | 90/20230 | 94.0 | 4.41 |
| SJ250F4 | 250.00 | 31.0 | 16.0 | 48.0 | 53.0 | 35.0 | 6.0 | 35.0 | 18.0 | 150/33720 | 160.0 | 6.90 |
| SJ266.66 | 266.66 | 25.0 | 12.0 | 40.0 | 45.0 | 30.0 | 5.0 | 35.0 | 14.0 | 100/22480 | 105.0 | 4.28 |
| SJ280 | 280.00 | 31.0 | 16.0 | - | 60.7 | 40.0 | 6.0 | 40.0 | 16.0 | 112/25177 | 117.6 | 7.00 |
| SJ300F3 | 300.00 | 24.6 | 12.0 | 40.0 | 45.0 | 30.0 | 5.0 | 35.0 | 14.0 | 90/20230 | 94.0 | 4.02 |
| SJ300F4 | 300.00 | 31.0 | 16.0 | 48.0 | 53.0 | 35.0 | 6.0 | 35.0 | 18.0 | 150/33720 | 160.0 | 6.22 |

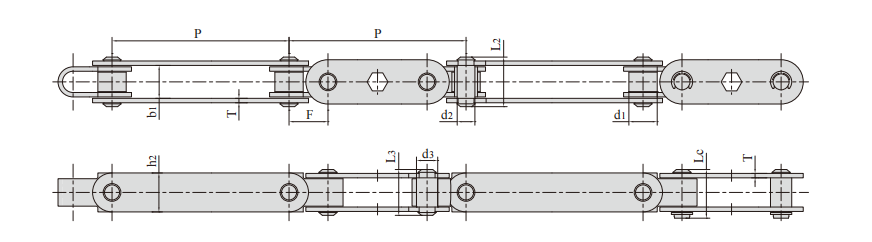

| Chain No. | Pitch | Roller diameter | Width between outer plates | Pin diameter | Pin lenght | plate dimension | Attachment dimension | Tensile strength | ||||
| P | d1 max | b1 min | d2 max | d3 max | L2 max | L3 max | Lc max | h2 max | T max | F | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| SJ240F1 | 120.0 | 16.0 | 18.6 | 10.0 | 12.0 | 28.0 | 25.9 | 27.5 | 22.0 | 2.5 | 22.0 | 30.0/6744 |
| Chain No. | Pitch | Width between outer plates | Pin diameter | Pin lenght | plate dimension | Attachment dimension | Tensile strength | ||||
| P | b1 min | d2 max | d3 max | L max | Lc max | L1 max | h2 max | T max | F | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| SJ250F6 | 90.0 | 31.0 | 14.0 | 14.0 | 46.5 | 50.5 | 130.0 | 35.0 | 5.0 | 35.0 | 100.0/22480 |
| SJ300F9 | 115.0 | 31.0 | 16.0 | 18.0 | 48.0 | 53.0 | 130.0 | 35.0 | 6.0 | 35.0 | 125.0/28100 |

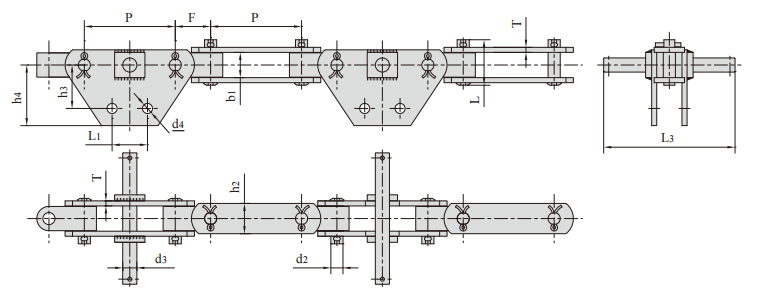

| Chain No. | Pitch | Width between outer plates | Pin diameter | Pin lenght | plate dimension | Attachment dimension | Tensile strength | |||||||
| P | b1 min | d2 max | d3 max | L max | L3 max | h2 max | T max | h3 | h4 | L1 | d4 | F | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| SJ250F9 | 90.0 | 25.0 | 12.0 | 14.0 | 45.0 | 130.0 | 30.0 | 5.0 | 55.0 | 72.0 | 35.0 | 10.0 | 35.0 | 90.0/20232 |
| SJ300F2 | 110.0 | 30.4 | 16.0 | 16.0 | 58.0 | 132.0 | 40.0 | 6.0 | 55.0 | 70.0 | 32.0 | 12.0 | 40.0 | 230.0/51704 |
| SJ300F13 | 115.0 | 31.0 | 16.0 | 18.0 | 53.0 | 155.0 | 35.0 | 6.0 | 33.0 | 52.5 | 30.0 | 13.0 | 35.0 | 150.0/33720 |

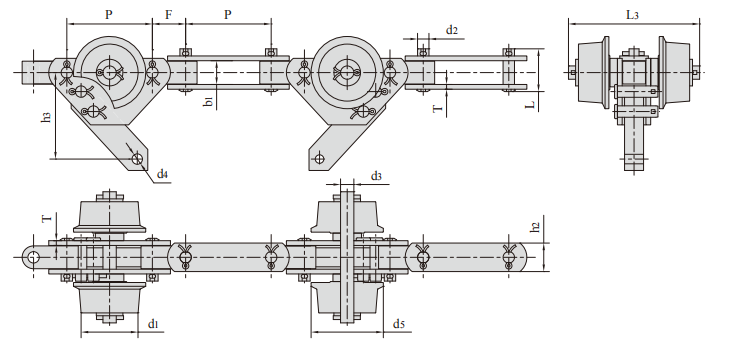

| Chain No. | Pitch | Pin diameter | Width between outer plates | Pin diameter | Pin lenght | plate dimension | Attachment dimension | Tensile strength | ||||||
| P | d1 max | d5 max | b1 min | d2 max | d3 max | L max | L3 max | h2 max | T max | h3 | d4 | F | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| SJ250F11 | 90.0 | 60.0 | 76.0 | 25.0 | 12.0 | 14.0 | 45.0 | 138.0 | 30.0 | 5.0 | 35.0 | 10.0 | 35.0 | 90.0/20232 |

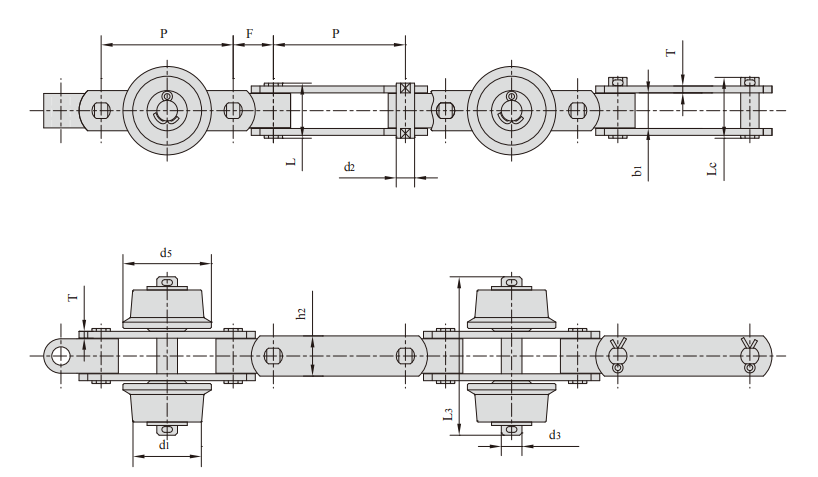

| Chain No. | Pitch | Pin diameter | Width between outer plates | Pin diameter | Pin lenght | plate dimension | Attachment dimension | Tensile strength | |||||
| P | d1 max | d5 max | b1 min | d2 max | d3 max | L max | Lc max | L3 max | h2 max | T max | F | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| SJ250F7 | 90.0 | 60.0 | 77.0 | 25.0 | 12.0 | 14.0 | - | 45.0 | 135.0 | 30.0 | 5.0 | 35.0 | 50.0/11240 |
| SJ300F8 | 115.0 | 60.0 | 77.0 | 31.0 | 16.0 | 18.0 | 48.0 | 53.0 | 138.0 | 35.0 | 6.0 | 35.0 | 150.0/33720 |
