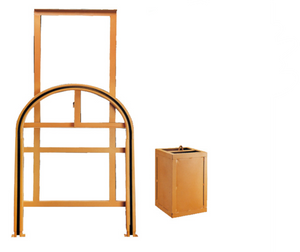

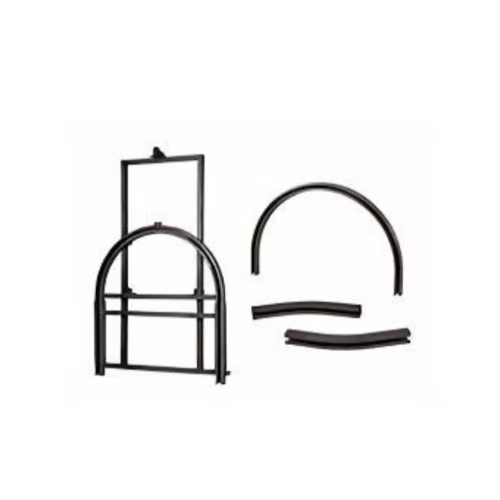

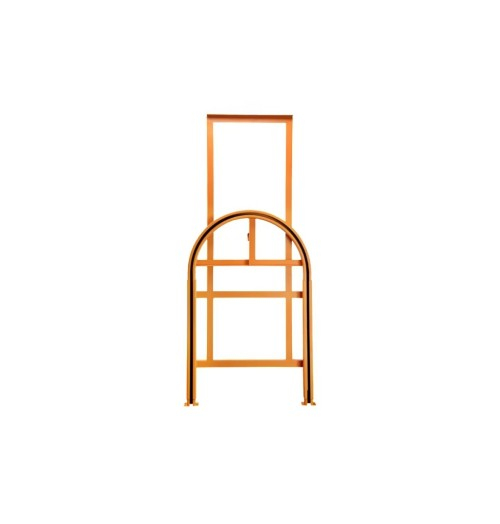

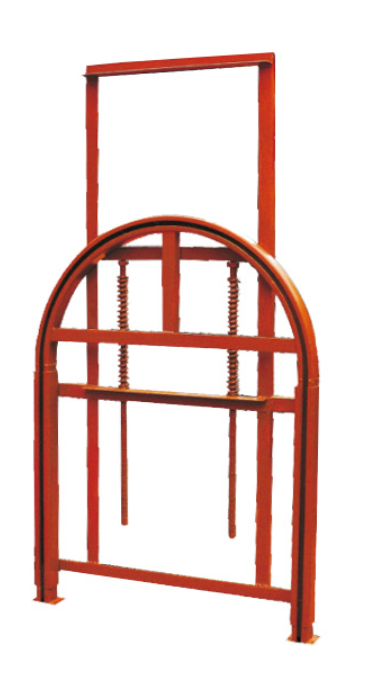

Spring Take-up Assembly

Spring take-up assembly

Product description

The tensioning device is to ensure that the chain is in the original tensioned state, compensate for the tensile deformation of the chain under the action of tension and the expansion and contraction deformation caused by temperature differences, and ensure that there is a moderate tension between the driving device and the tensioning device. Generally, it is placed behind the transmission device at the place with the smallest tension. After tensioning, there should be no large load drop slope section. The structure is relatively compact and easy to install. However, since its tension is limited by the spring coefficient, it is generally suitable for occasions with shorter lines and little temperature change.

Application

Industrial machinery field

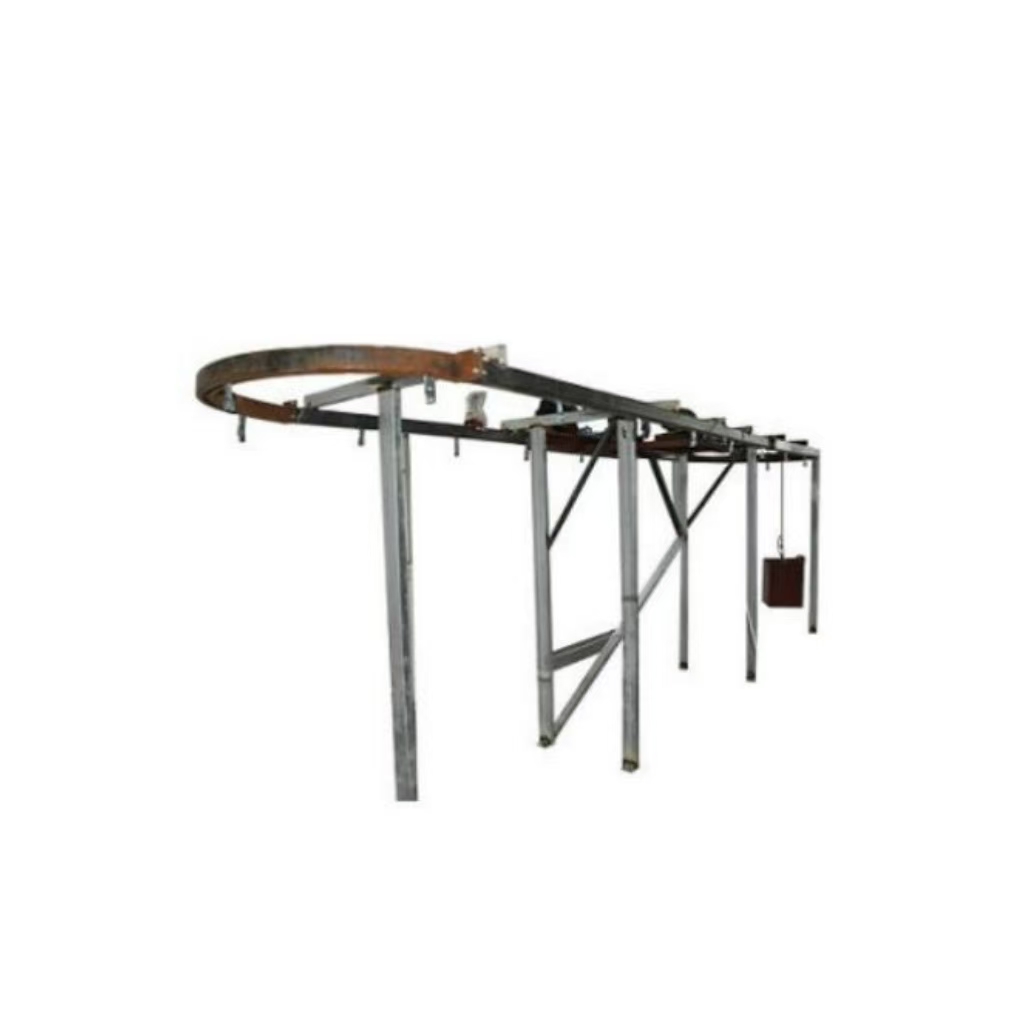

In industrial belt conveyors and chain driven equipment, spring tensioning devices maintain belt and chain tension, improving production efficiency and ensuring transmission accuracy. In logistics and warehousing equipment, they adapt to different loads and environments.

Automotive field
In engine timing systems, spring tensioning devices ensure precise operation. In transmission systems and accessory drives, they maintain tension and prevent failures.

Agricultural machinery field
In combine harvesters and tractors, spring tensioning devices maintain tension in transmission systems for smooth operations and stable power transmission, adapting to harsh working conditions.

Performance characteristics:
Automatic tension adjustment: The spring take-up assembly utilizes the elasticity of the spring to automatically adjust the tension in the system, ensuring smooth operation.

Compact structure: With a simple design, it is easy to install in systems with limited space and does not occupy excessive space.

High durability: Made of high-quality materials, it is resistant to wear and corrosion and is suitable for long-term working environments.

Low maintenance cost: Due to its automatic adjustment function, it reduces the need for frequent manual adjustments, thereby lowering maintenance costs.

Strong adaptability: Applicable to different types of mechanical equipment and can withstand tension changes under various working conditions.

Working principle:
Through the elastic force of the spring, a certain tension is applied to transmission components (such as belts, chains, etc.). When the length of the transmission component changes due to factors such as wear and temperature changes, the spring take-up assembly can automatically adjust the tension magnitude to maintain the stable operation of the system. For example, in a belt transmission system, as the belt is used, it will gradually elongate and become loose. The spring take-up assembly will automatically stretch the spring and increase the pressure on the belt to keep it at an appropriate tension.

FAQ

Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is your delivery time and shipment?
1.Sample Lead-times: generally 15 workdays.
2.Production Lead-times: 30-60 workdays after getting your deposit.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q4: What is your advantages?
1. Manufacturer,the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.
Q5. If you can’t find the product on our website,what do you next?
Please send us inquiry with product pictures and drawings by email or other ways and we'll check.
