Product Description

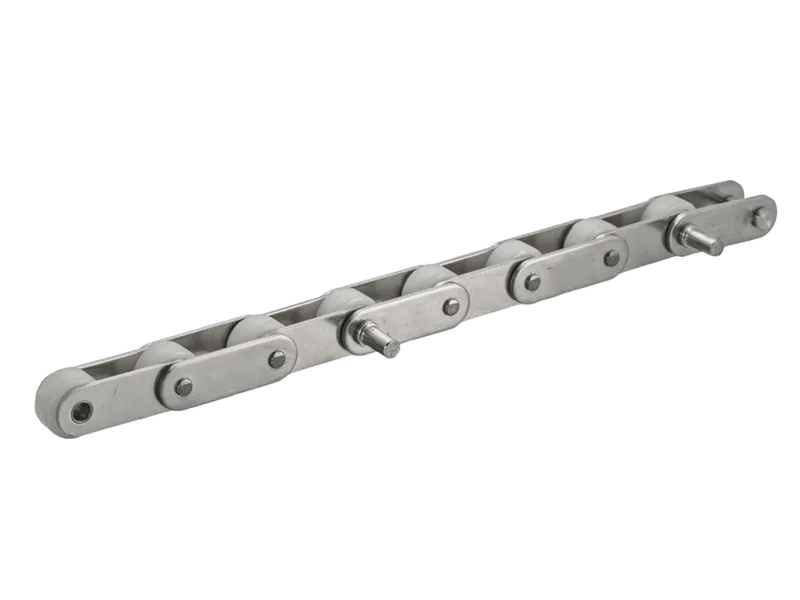

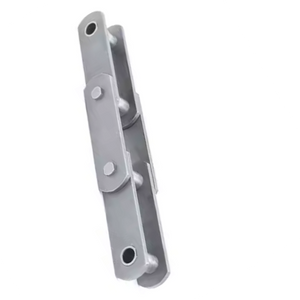

The structure and size of stainless steel roller chain meet ISO 606 and other standards, mainly including stainless steel short pitch roller chain, stainless steel short pitch straight edge chain plate roller chain, stainless steel double pitch roller chain,stainless steel extended pin chain, etc, and various corresponding accessories.
Using high-quality austenitic and martensitic stainless steel materials, advanced processing technology and efficient process equipment, the products have the characteristics of corrosion resistance, high and low temperature resistance, cleanness.etc. There are two kinds of products with tensile strength indexes for users to choose from.
Products are widely used in food processing, dairy products processing, health care.
chemical industry and other industries.
Parameter

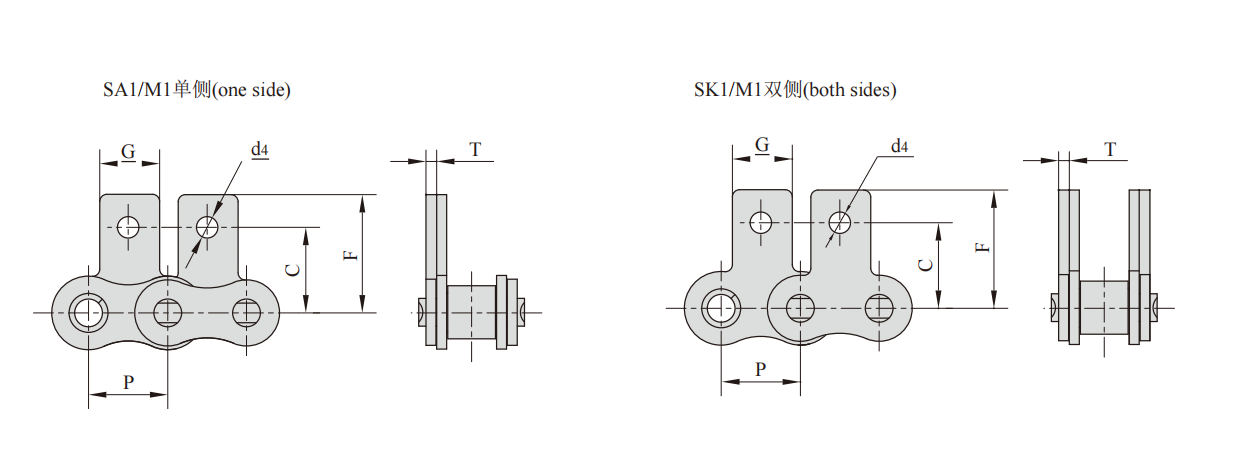

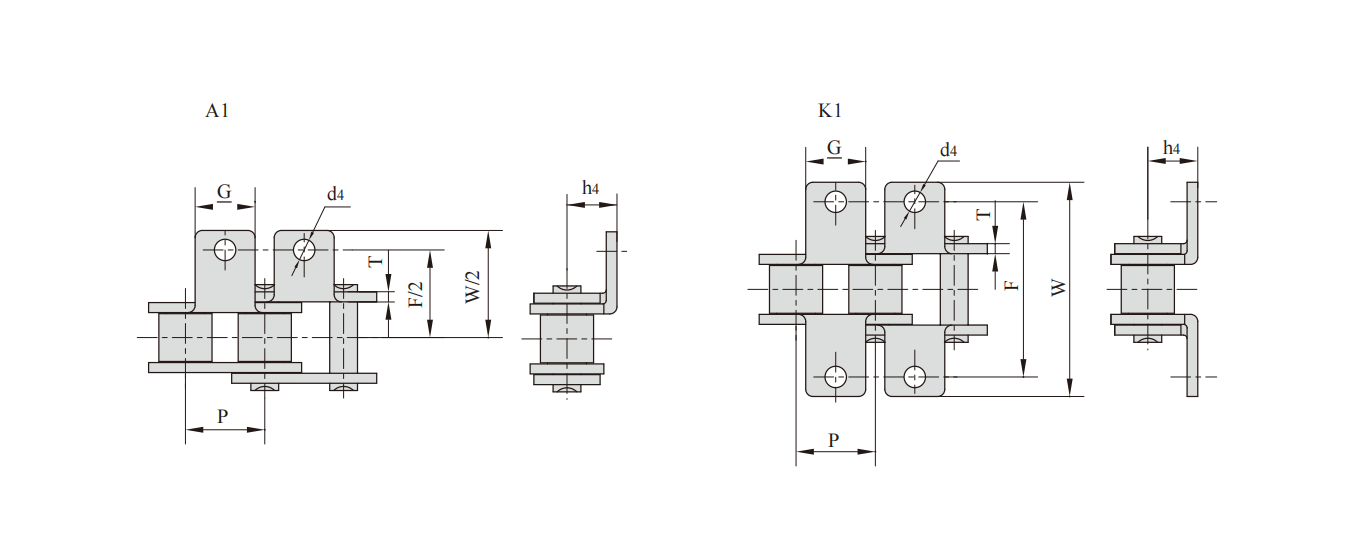

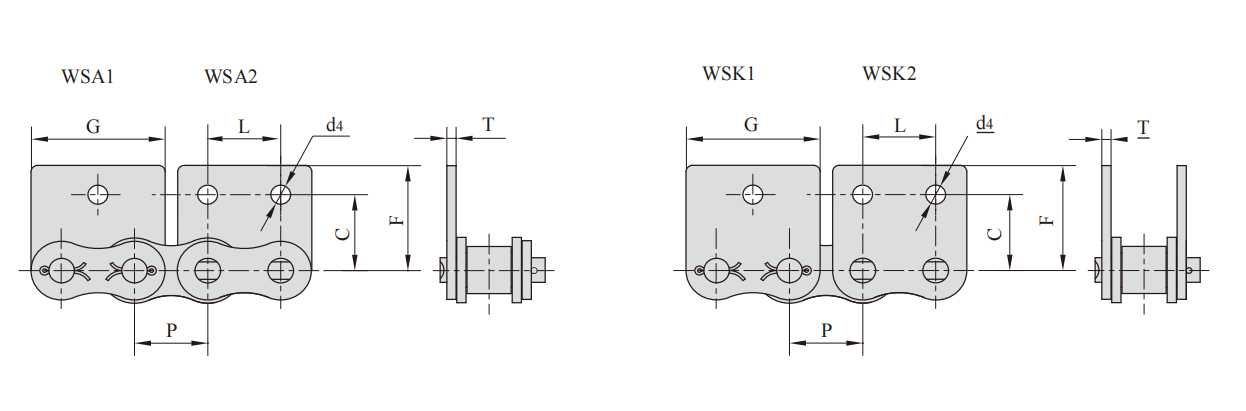

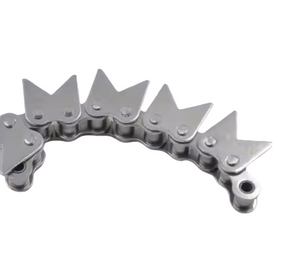

Stainless steel short pitch roller chain attachments
| Chain No. | P | G | F | W | T | h4 | d4 |
| mm | mm | mm | mm | mm | mm | mm | |
| 06CSS | 9.525 | 7.90 | 19.00 | 28.60 | 1.30 | 6.35 | 3.40 |
| 08ASS | 12.700 | 9.50 | 25.40 | 35.20 | 1.50 | 7.90 | 3.40 |
| 10ASS | 15.875 | 12.70 | 31.75 | 46.20 | 2.03 | 10.30 | 5.50 |
| 12ASS | 19.050 | 15.90 | 38.10 | 55.60 | 2.42 | 11.90 | 5.50 |
| 16ASS | 25.400 | 19.10 | 50.80 | 64.80 | 3.25 | 15.90 | 6.80 |
| 20ASS | 31.750 | 25.40 | 63.50 | 89.80 | 4.00 | 19.80 | 9.20 |
| 24ASS | 38.100 | 28.60 | 76.20 | 108.50 | 4.80 | 23.00 | 9.80 |
| 28ASS | 44.450 | 34.90 | 88.90 | 123.00 | 5.60 | 28.60 | 11.40 |
| 32ASS | 50.800 | 38.10 | 101.60 | 142.80 | 6.40 | 31.75 | 13.10 |
| #06BSS | 9.525 | 8.00 | 19.04 | 27.00 | 1.30 | 6.50 | 3.50 |
| 08BSS | 12.700 | 9.50 | 25.40 | 36.40 | 1.60 | 8.90 | 4.50 |
| 10BSS | 15.875 | 14.30 | 31.75 | 44.60 | 1.70 | 10.31 | 5.30 |
| 12BSS | 19.050 | 16.00 | 38.10 | 52.40 | 1.85 | 13.46 | 6.40 |
| 16BSS | 25.400 | 19.10 | 50.80 | 72.60 | 3.10 | 15.88 | 6.40 |
| 20BSS | 31.750 | 35.00 | 63.50 | 100.50 | 3.50 | 19.80 | 9.00 |
| 24BSS | 38.100 | 30.00 | 76.20 | 108.40 | 4.80 | 26.67 | 10.50 |
| 28BSS | 44.450 | 35.00 | 88.90 | 123.00 | 6.00 | 28.58 | 13.10 |
| 32BSS | 50.800 | 38.10 | 101.60 | 142.80 | 6.00 | 31.75 | 13.10 |
| Chain No. | P | G | C | F | T | d4 |
| mm | mm | mm | mm | mm | mm | |
| 06CSS | 9.525 | 7.90 | 9.50 | 14.55 | 1.30 | 3.40 |
| 08ASS | 12.700 | 9.50 | 12.70 | 19.05 | 1.50 | 3.40 |
| 10ASS | 15.875 | 12.70 | 15.90 | 25.25 | 2.03 | 5.50 |
| 12ASS | 19.050 | 15.90 | 18.30 | 29.33 | 2.42 | 5.50 |
| 16ASS | 25.400 | 19.10 | 24.60 | 34.70 | 3.25 | 6.80 |
| 20ASS | 31.750 | 25.40 | 31.80 | 43.30 | 4.00 | 9.20 |
| 24ASS | 38.100 | 28.60 | 36.50 | 51.60 | 4.80 | 9.80 |
| 28ASS | 44.450 | 34.90 | 44.50 | 62.00 | 5.60 | 11.40 |
| 32ASS | 50.800 | 38.10 | 50.80 | 69.85 | 6.40 | 13.10 |
| #06BSS | 9.525 | 8.00 | 9.52 | 13.50 | 1.30 | 3.50 |
| 08BSS | 12.700 | 9.50 | 13.35 | 18.90 | 1.60 | 4.50 |
| 10BSS | 15.875 | 14.30 | 16.50 | 22.95 | 1.70 | 5.30 |
| 12BSS | 19.050 | 16.00 | 21.45 | 28.60 | 1.85 | 6.40 |
| 16BSS | 25.400 | 19.10 | 23.15 | 34.00 | 3.10 | 6.40 |
| 20BSS | 31.750 | 35.00 | 30.50 | 45.70 | 3.50 | 9.00 |
| 24BSS | 38.100 | 30.00 | 36.00 | 61.50 | 4.80 | 10.50 |
| Chain No. | P | G | L | F | W | T | h4 | d4 |
| mm | mm | mm | mm | mm | mm | mm | mm | |
| 06CSS | 9.525 | 17.20 | 9.525 | 19.00 | 28.60 | 1.30 | 6.35 | 2.80 |
| 08ASS | 12.700 | 23.00 | 12.700 | 25.40 | 35.60 | 1.50 | 7.90 | 3.40 |
| 10ASS | 15.875 | 28.80 | 15.875 | 31.75 | 46.80 | 2.03 | 10.30 | 5.50 |
| 12ASS | 19.050 | 34.65 | 19.050 | 38.10 | 56.40 | 2.42 | 11.90 | 5.50 |
| 16ASS | 25.400 | 45.90 | 25.400 | 50.80 | 73.20 | 3.25 | 15.90 | 6.80 |
| 20ASS | 31.750 | 57.65 | 31.750 | 63.50 | 89.80 | 4.00 | 19.80 | 9.20 |
| 24ASS | 38.100 | 69.30 | 38.100 | 76.20 | 108.80 | 4.80 | 23.00 | 9.80 |
| 28ASS | 44.450 | 80.45 | 44.450 | 88.90 | 123.00 | 5.60 | 28.60 | 11.40 |
| 32ASS | 50.800 | 92.00 | 50.800 | 101.60 | 142.80 | 6.40 | 31.75 | 13.10 |
| #06BSS | 9.525 | 17.72 | 9.525 | 19.04 | 27.00 | 1.30 | 6.50 | 3.50 |
| 08BSS | 12.700 | 24.00 | 12.700 | 25.40 | 36.40 | 1.60 | 8.90 | 4.30 |
| 10BSS | 15.875 | 29.58 | 15.850 | 31.80 | 44.60 | 1.70 | 10.31 | 5.30 |
| 12BSS | 19.050 | 34.05 | 19.050 | 38.10 | 52.40 | 1.85 | 13.46 | 6.40 |
| 16BSS | 25.400 | 46.40 | 25.400 | 50.80 | 72.60 | 3.10 | 15.88 | 6.40 |
| 20BSS | 31.750 | 58.10 | 31.750 | 63.00 | 100.50 | 3.50 | 19.80 | 9.00 |
| 24BSS | 38.100 | 71.30 | 38.100 | 76.20 | 108.40 | 4.80 | 26.67 | 10.50 |
| 28BSS | 44.450 | 81.10 | 44.450 | 88.90 | 123.00 | 6.00 | 28.58 | 13.10 |
| 32BSS | 50.800 | 92.80 | 50.800 | 101.60 | 142.80 | 6.00 | 31.75 | 13.10 |
| Chain No. | P | G | L | C | F | T | d4 |
| mm | mm | mm | mm | mm | mm | mm | |
| 06CSS | 9.525 | 17.32 | 9.525 | 9.50 | 14.55 | 1.30 | 2.80 |
| 08ASS | 12.700 | 23.00 | 12.700 | 12.70 | 17.40 | 1.50 | 3.40 |
| 10ASS | 15.875 | 28.80 | 15.875 | 15.90 | 23.05 | 2.03 | 5.50 |
| 12ASS | 19.050 | 34.65 | 19.050 | 18.30 | 26.86 | 2.42 | 5.50 |
| 16ASS | 25.400 | 45.90 | 25.400 | 24.60 | 35.45 | 3.25 | 6.80 |
| 20ASS | 31.750 | 57.65 | 31.750 | 31.80 | 44.00 | 4.00 | 9.20 |
| 24ASS | 38.100 | 69.30 | 38.100 | 36.50 | 51.60 | 4.80 | 9.80 |
| 28ASS | 44.450 | 80.45 | 44.450 | 44.50 | 62.00 | 5.60 | 11.40 |
| 32ASS | 50.800 | 92.00 | 50.800 | 50.80 | 69.85 | 6.40 | 13.10 |
| #06BSS | 9.525 | 17.72 | 9.525 | 9.52 | 13.50 | 1.30 | 3.50 |
| 08BSS | 12.700 | 23.30 | 12.700 | 13.35 | 18.90 | 1.60 | 4.30 |
| 10BSS | 15.875 | 29.58 | 15.875 | 16.50 | 22.95 | 1.70 | 5.30 |
| 12BSS | 19.050 | 34.05 | 19.050 | 21.45 | 28.60 | 1.85 | 6.40 |
| 16BSS | 25.400 | 46.40 | 25.400 | 23.15 | 34.00 | 3.10 | 6.40 |
| 20BSS | 31.750 | 58.10 | 31.750 | 30.50 | 45.70 | 3.50 | 9.00 |
| 24BSS | 38.100 | 71.30 | 38.100 | 42.70 | 61.50 | 4.80 | 10.50 |

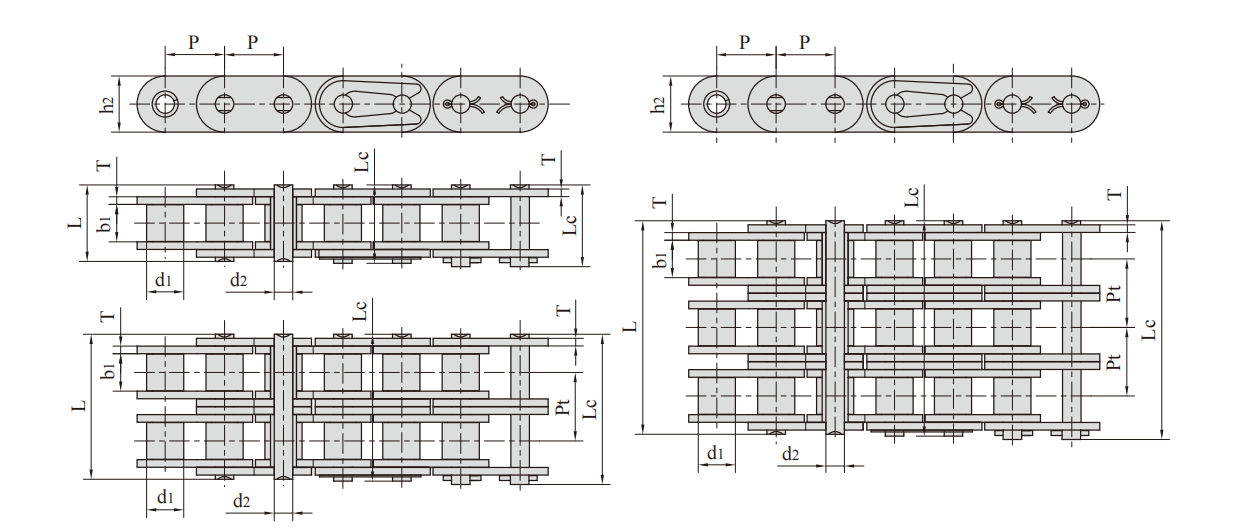

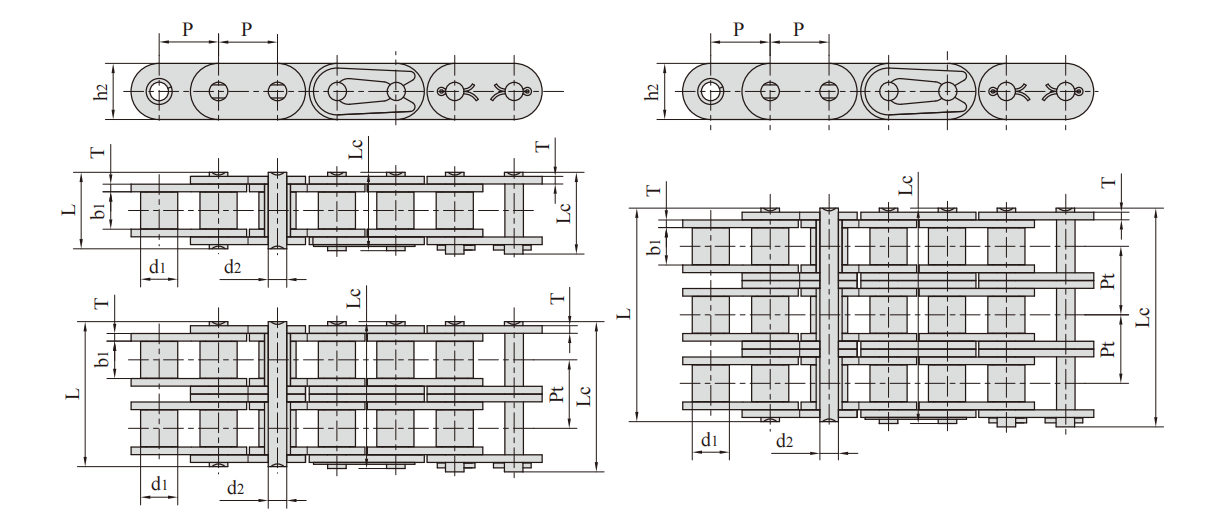

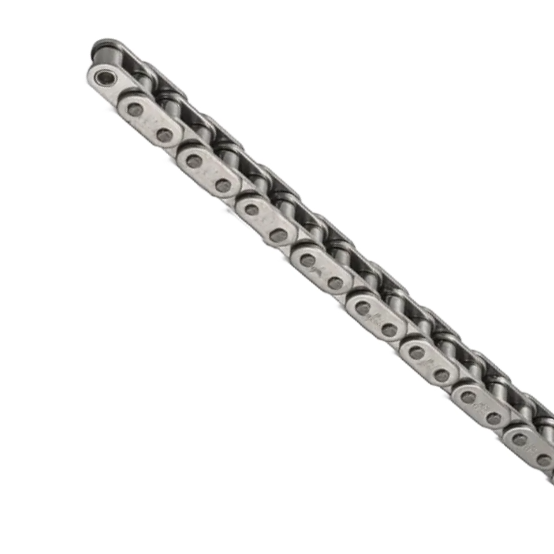

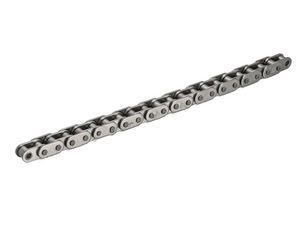

Stainless steel short pitch roller chain with straight side plate
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Breaking load | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Pt | Q | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| C08ASS-1 | 12.700 | 7.95 | 7.85 | 3.96 | 16.60 | 17.80 | 12.00 | 1.50 | - | 9.6/2158 | 0.75 |
| C10ASS-1 | 15.875 | 10.16 | 9.40 | 5.08 | 20.70 | 22.20 | 15.09 | 2.03 | - | 15.2/3417 | 1.21 |
| C12ASS-1 | 19.050 | 11.91 | 12.57 | 5.94 | 25.90 | 27.70 | 18.00 | 2.42 | - | 21.7/4878 | 1.79 |
| C16ASS-1 | 25.400 | 15.88 | 15.75 | 7.92 | 32.70 | 36.50 | 24.00 | 3.25 | - | 38.9/8745 | 3.09 |
| C20ASS-1 | 31.750 | 19.05 | 18.90 | 9.53 | 40.40 | 44.70 | 30.00 | 4.00 | - | 60.0/13489 | 4.55 |
| C24ASS-1 | 38.100 | 22.23 | 25.22 | 11.10 | 50.30 | 54.30 | 35.70 | 4.80 | - | 75.0/16861 | 6.86 |
| C28ASS-1 | 44.450 | 25.40 | 25.22 | 12.70 | 54.40 | 59.00 | 41.00 | 5.60 | - | 102.0/22931 | 8.49 |
| C32ASS-1 | 50.800 | 28.58 | 31.55 | 14.27 | 64.80 | 69.60 | 47.80 | 6.40 | - | 133.8/30079 | 11.50 |
| C08ASS-2 | 12.700 | 7.95 | 7.85 | 3.96 | 31.00 | 32.20 | 12.00 | 1.50 | 14.38 | 19.2/4316 | 1.50 |
| C10ASS-2 | 15.875 | 10.16 | 9.40 | 5.08 | 38.90 | 40.40 | 15.09 | 2.03 | 18.11 | 30.4/6834 | 2.40 |
| C12ASS-2 | 19.050 | 11.91 | 12.57 | 5.94 | 48.80 | 50.50 | 18.00 | 2.42 | 22.78 | 43.4/9757 | 3.62 |
| C16ASS-2 | 25.400 | 15.88 | 15.75 | 7.92 | 62.70 | 65.80 | 24.00 | 3.25 | 29.29 | 77.8/17490 | 6.12 |
| C20ASS-2 | 31.750 | 19.05 | 18.90 | 9.53 | 76.40 | 80.50 | 30.00 | 4.00 | 35.76 | 120.0/26977 | 9.10 |
| C24ASS-2 | 38.100 | 22.23 | 25.22 | 11.10 | 95.80 | 99.70 | 35.70 | 4.80 | 45.44 | 150.0/33721 | 13.60 |
| C28ASS-2 | 44.450 | 25.40 | 25.22 | 12.70 | 103.30 | 107.90 | 41.00 | 5.60 | 48.87 | 204.0/45861 | 16.86 |
| C32ASS-2 | 50.800 | 28.58 | 31.55 | 14.27 | 123.30 | 128.10 | 47.80 | 6.40 | 58.55 | 267.6/60159 | 22.90 |
| C08ASS-3 | 12.700 | 7.95 | 7.85 | 3.96 | 45.40 | 46.60 | 12.00 | 1.50 | 14.38 | 28.8/6474 | 2.30 |
| C10ASS-3 | 15.875 | 10.16 | 9.40 | 5.08 | 57.00 | 58.50 | 15.09 | 2.03 | 18.11 | 45.6/10251 | 3.30 |
| C12ASS-3 | 19.050 | 11.91 | 12.57 | 5.94 | 71.50 | 73.30 | 18.00 | 2.42 | 22.78 | 65.1/14635 | 5.40 |
| C16ASS-3 | 25.400 | 15.88 | 15.75 | 7.92 | 91.70 | 95.10 | 24.00 | 3.25 | 29.29 | 116.7/26235 | 9.10 |
| C20ASS-3 | 31.750 | 19.05 | 18.90 | 9.53 | 112.20 | 116.30 | 30.00 | 4.00 | 35.76 | 180.0/40466 | 13.56 |
| C24ASS-3 | 38.100 | 22.23 | 25.22 | 11.10 | 141.40 | 145.20 | 35.70 | 4.80 | 45.44 | 225.0/50580 | 20.43 |
| C28ASS-3 | 44.450 | 25.40 | 25.22 | 12.70 | 152.20 | 156.80 | 41.00 | 5.60 | 48.87 | 306.0/68789 | 25.23 |
| C32ASS-3 | 50.800 | 28.58 | 31.55 | 14.27 | 181.80 | 186.60 | 47.80 | 6.40 | 58.55 | 401.4/90238 | 34.12 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Breaking load | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Pt | Q | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| C08BSS-1 | 12.700 | 8.51 | 7.75 | 4.45 | 16.70 | 18.20 | 11.80 | 1.60 | - | 12.0/2698 | 0.80 |
| C10BSS-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.50 | 20.90 | 14.70 | 1.70 | - | 14.5/3260 | 1.07 |
| C12BSS-1 | 19.050 | 12.07 | 11.68 | 5.72 | 22.50 | 24.20 | 16.00 | 1.85 | - | 18.5/4159 | 1.32 |
| C16BSS-1 | 25.400 | 15.88 | 17.02 | 8.28 | 36.10 | 39.10 | 21.00 | 4.15/3.10 | - | 40.0/8992 | 2.92 |
| C20BSS-1 | 31.750 | 19.05 | 19.56 | 10.19 | 41.30 | 45.00 | 26.40 | 4.50/3.50 | - | 59.0/13264 | 4.41 |
| C24BSS-1 | 38.100 | 25.40 | 25.40 | 14.63 | 53.40 | 57.80 | 33.20 | 6.00/4.80 | - | 104.0/23380 | 7.47 |
| C28BSS-1 | 44.450 | 27.94 | 30.99 | 15.90 | 65.10 | 69.50 | 36.70 | 7.50/6.00 | - | 120.0/26976 | 9.90 |
| C32BSS-1 | 50.800 | 29.21 | 30.99 | 17.81 | 66.00 | 71.00 | 42.00 | 7.00/6.00 | - | 150.0/33720 | 10.45 |
| C08BSS-2 | 12.700 | 8.51 | 7.75 | 4.45 | 31.00 | 32.20 | 11.80 | 1.60 | 13.92 | 21.0/4721 | 1.58 |
| C10BSS-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.10 | 37.50 | 14.70 | 1.70 | 16.59 | 29.1/16542 | 2.49 |
| C12BSS-2 | 19.050 | 12.07 | 11.68 | 5.72 | 42.00 | 43.60 | 16.00 | 1.85 | 19.46 | 37.0/8318 | 2.62 |
| C16BSS-2 | 25.400 | 15.88 | 17.02 | 8.28 | 68.00 | 71.00 | 21.00 | 4.15/3.10 | 31.88 | 70.7/15894 | 5.76 |
| C20BSS-2 | 31.750 | 19.05 | 19.56 | 10.19 | 77.80 | 81.50 | 26.40 | 4.50/3.50 | 36.45 | 105.6/23740 | 8.72 |
| C24BSS-2 | 38.100 | 25.40 | 25.40 | 14.63 | 101.70 | 106.20 | 33.20 | 6.00/4.80 | 48.36 | 182.0/40915 | 14.98 |
| C28BSS-2 | 44.450 | 27.94 | 30.99 | 15.90 | 124.60 | 129.10 | 36.70 | 7.50/6.00 | 59.56 | 216.0/48557 | 19.82 |
| C32BSS-2 | 50.800 | 29.21 | 30.99 | 17.81 | 124.60 | 129.60 | 42.00 | 7.00/6.00 | 58.55 | 270.0/60696 | 20.94 |
| C08BSS-3 | 12.700 | 8.51 | 7.75 | 4.45 | 45.10 | 46.10 | 11.80 | 1.60 | 13.92 | 30.0/6744 | 2.36 |
| C10BSS-3 | 15.875 | 10.16 | 9.65 | 5.08 | 52.70 | 54.10 | 14.70 | 1.70 | 16.59 | 43.6/9802 | 2.92 |
| C12BSS-3 | 19.050 | 12.07 | 11.68 | 5.72 | 61.50 | 63.10 | 16.00 | 1.85 | 19.46 | 55.5/12477 | 3.89 |
| C16BSS-3 | 25.400 | 15.88 | 17.02 | 8.28 | 99.80 | 102.90 | 21.00 | 4.15/3.10 | 31.88 | 106.7/23830 | 8.62 |
| C20BSS-3 | 31.750 | 19.05 | 19.56 | 10.19 | 114.20 | 117.90 | 26.40 | 4.50/3.50 | 36.45 | 155.3/34913 | 13.03 |
| C24BSS-3 | 38.100 | 25.40 | 25.40 | 14.63 | 150.10 | 154.60 | 33.20 | 6.00/4.80 | 48.36 | 276.3/62115 | 22.10 |
| C28BSS-3 | 44.450 | 27.94 | 30.99 | 15.90 | 184.20 | 188.70 | 36.70 | 7.50/6.00 | 59.56 | 318.0/71486 | 29.64 |
| C32BSS-3 | 50.800 | 29.21 | 30.99 | 17.81 | 183.20 | 188.20 | 42.00 | 7.00/6.00 | 58.55 | 402.0/90370 | 31.27 |

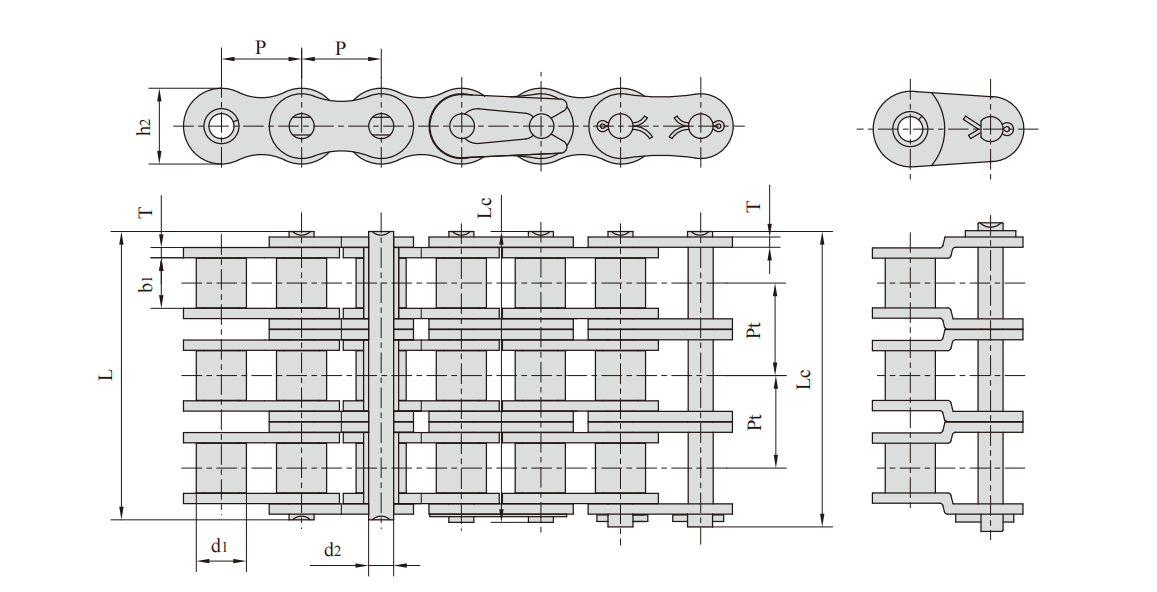

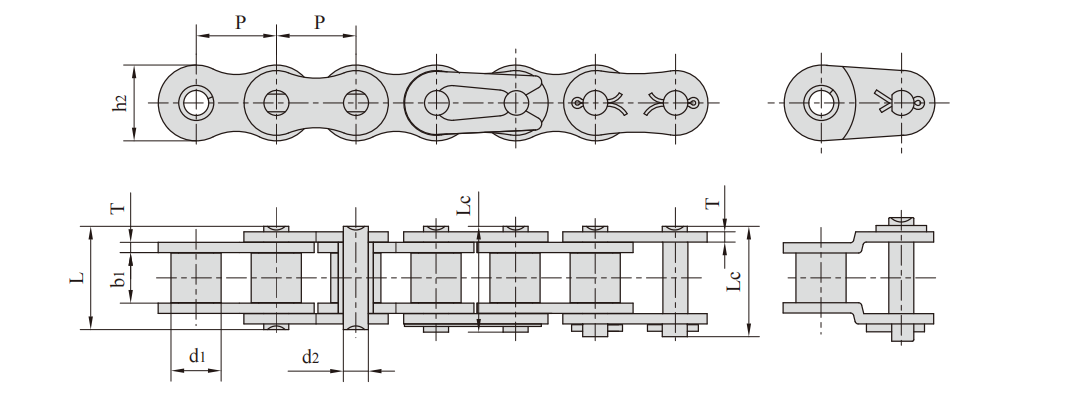

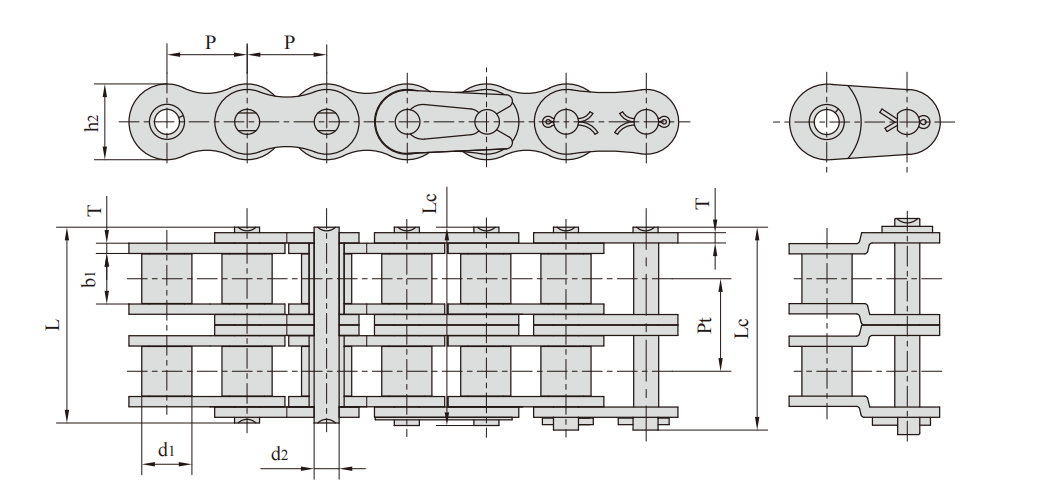

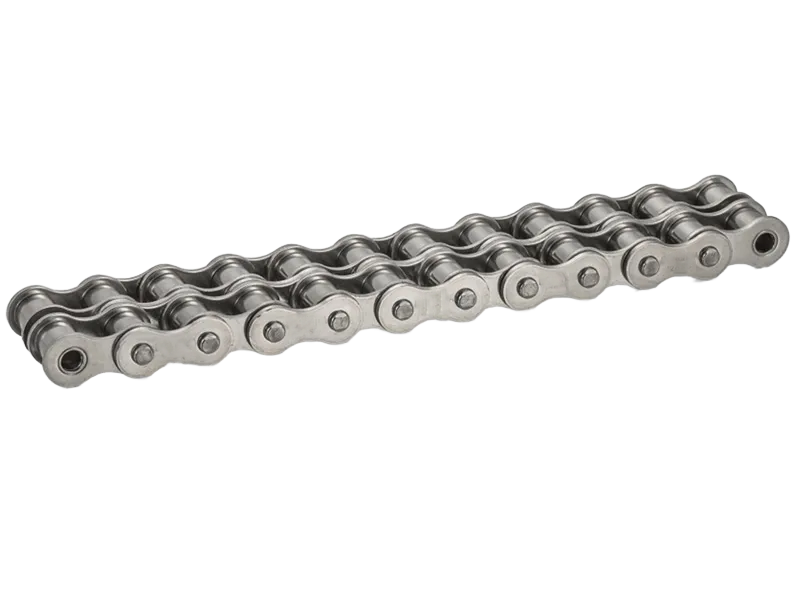

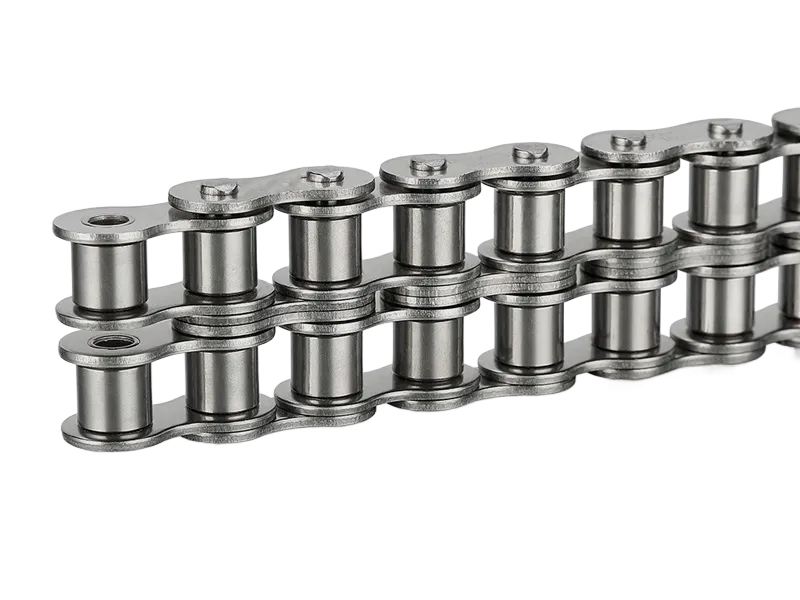

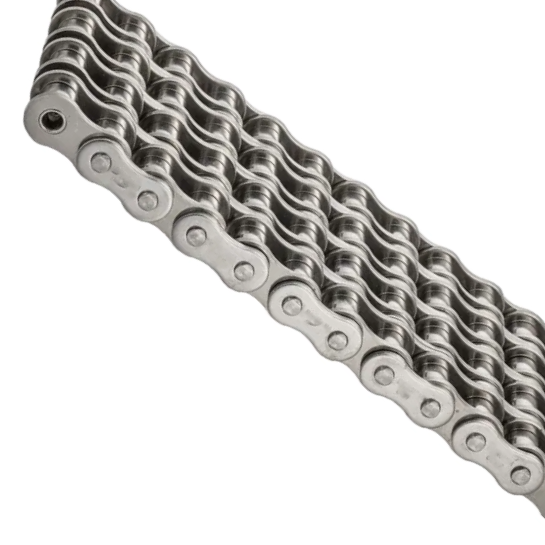

Stainless steel short pitch roller chains
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Breaking load | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| *04CSS-1 | 6.350 | 3.30 | 3.18 | 2.31 | 7.90 | 8.40 | 6.00 | 0.80 | 2.5/568 | 0.15 |
| *06CSS-1 | 9.525 | 5.08 | 4.77 | 3.58 | 12.40 | 13.17 | 9.00 | 1.30 | 5.5/1250 | 0.33 |
| 08ASS-1 | 12.700 | 7.95 | 7.85 | 3.96 | 16.60 | 17.80 | 12.00 | 1.50 | 9.6/2182 | 0.63 |
| 41SS-1 | 12.700 | 7.77 | 6.25 | 3.58 | 13.75 | 15.00 | 9.91 | 1.30 | 6.0/1360 | 0.46 |
| 10ASS-1 | 15.875 | 10.16 | 9.40 | 5.08 | 20.70 | 22.20 | 15.09 | 2.03 | 15.2/3455 | 1.03 |
| 12ASS-1 | 19.050 | 11.91 | 12.57 | 5.94 | 25.90 | 27.70 | 18.00 | 2.42 | 21.7/4932 | 1.51 |
| 16ASS-1 | 25.400 | 15.88 | 15.75 | 7.92 | 32.70 | 35.00 | 24.00 | 3.25 | 38.9/8841 | 2.62 |
| 20ASS-1 | 31.750 | 19.05 | 18.90 | 9.53 | 40.40 | 44.70 | 30.00 | 4.00 | 60.0/13636 | 3.94 |
| 24ASS-1 | 38.100 | 22.23 | 25.22 | 11.10 | 50.30 | 54.30 | 35.70 | 4.80 | 75.0/16861 | 5.72 |
| 28ASS-1 | 44.450 | 25.40 | 25.22 | 12.70 | 54.40 | 59.00 | 41.0 | 5.60 | 102.0/22931 | 7.70 |
| 32ASS-1 | 50.800 | 28.58 | 31.55 | 14.27 | 64.80 | 69.60 | 47.80 | 6.40 | 133.8/30079 | 10.20 |
| 04BSS-1 | 6.000 | 4.00 | 2.80 | 1.85 | 6.80 | 7.80 | 5.00 | 0.60 | 2.0/455 | 0.11 |
| 05BSS-1 | 8.000 | 5.00 | 3.00 | 2.31 | 8.20 | 8.90 | 7.10 | 0.80 | 3.5/795 | 0.20 |
| #06BSS-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.10 | 8.20 | 1.30 | 6.2/1409 | 0.41 |
| 08BSS-1 | 12.700 | 8.51 | 7.75 | 4.45 | 16.70 | 18.20 | 11.80 | 1.60 | 12.0/2727 | 0.70 |
| 10BSS-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.50 | 20.90 | 14.70 | 1.70 | 14.5/3295 | 0.94 |
| 12BSS-1 | 19.050 | 12.07 | 11.68 | 5.72 | 22.50 | 24.20 | 16.00 | 1.85 | 18.5/4205 | 1.16 |
| 16BSS-1 | 25.400 | 15.88 | 17.02 | 8.28 | 36.10 | 37.40 | 21.00 | 4.15/3.10 | 40.0/9091 | 2.73 |
| 20BSS-1 | 31.750 | 19.05 | 19.56 | 10.19 | 41.30 | 45.00 | 26.40 | 4.50/3.50 | 59.0/13409 | 3.73 |
| 24BSS-1 | 38.100 | 25.40 | 25.40 | 14.63 | 53.40 | 57.80 | 33.20 | 6.00/4.80 | 104.0/25454 | 7.20 |
| 28BSS-1 | 44.450 | 27.94 | 30.99 | 15.90 | 65.10 | 69.50 | 36.70 | 7.50/6.00 | 120.0/26977 | 9.21 |
| 32BSS-1 | 50.800 | 29.21 | 30.99 | 17.81 | 66.00 | 71.00 | 42.00 | 7.00/6.00 | 150.0/34090 | 10.22 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Breaking load | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Pt | Q | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| *04CSS-2 | 6.350 | 3.30 | 3.18 | 2.31 | 14.50 | 15.00 | 6.00 | 0.80 | 6.40 | 5.0/1124 | 0.28 |
| *06CSS-2 | 9.525 | 5.08 | 4.77 | 3.58 | 22.50 | 23.30 | 9.00 | 1.30 | 10.13 | 11.0/2473 | 0.70 |
| 08ASS-2 | 12.700 | 7.95 | 7.85 | 3.96 | 31.00 | 32.20 | 12.00 | 1.50 | 14.38 | 19.2/4316 | 1.30 |
| 41SS-2 | 12.700 | 7.77 | 6.25 | 3.53 | 25.70 | 26.90 | 9.91 | 1.30 | 11.95 | 12.0/2698 | 0.91 |
| 10ASS-2 | 15.875 | 10.16 | 9.40 | 5.08 | 38.90 | 40.40 | 15.09 | 2.03 | 18.11 | 30.4/6834 | 2.18 |
| 12ASS-2 | 19.050 | 11.91 | 12.57 | 5.94 | 48.80 | 50.50 | 18.00 | 2.42 | 22.78 | 43.4/9757 | 2.92 |
| 16ASS-2 | 25.400 | 15.88 | 15.75 | 7.92 | 62.70 | 64.30 | 24.00 | 3.25 | 29.29 | 77.8/17490 | 5.15 |
| 20ASS-2 | 31.750 | 19.05 | 18.90 | 9.53 | 76.40 | 80.50 | 30.00 | 4.00 | 35.76 | 120.0/26977 | 7.80 |
| 24ASS-2 | 38.100 | 22.23 | 25.22 | 11.10 | 95.80 | 99.70 | 35.70 | 4.80 | 45.44 | 150.0/33720 | 11.70 |
| 28ASS-2 | 44.450 | 25.40 | 25.22 | 12.70 | 103.30 | 107.90 | 41.00 | 5.60 | 48.87 | 204.0/45859 | 15.14 |
| 32ASS-2 | 50.800 | 28.58 | 31.55 | 14.27 | 123.30 | 128.10 | 47.80 | 6.40 | 58.55 | 267.6/60156 | 20.14 |
| 04BSS-2 | 6.000 | 4.00 | 2.80 | 1.85 | 12.30 | 13.30 | 5.00 | 0.60 | 5.50 | 4.0/899 | 0.22 |
| 05BSS-2 | 8.000 | 5.00 | 3.00 | 2.31 | 13.90 | 14.50 | 7.10 | 0.80 | 5.64 | 6.2/1394 | 0.37 |
| #06BSS-2 | 9.525 | 6.35 | 5.72 | 3.28 | 23.40 | 24.40 | 8.20 | 1.30 | 10.24 | 11.8/2653 | 0.87 |
| 08BSS-2 | 12.700 | 8.51 | 7.75 | 4.45 | 31.00 | 32.20 | 11.80 | 1.60 | 13.92 | 21.0/4721 | 1.40 |
| 10BSS-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.10 | 37.50 | 14.70 | 1.70 | 16.59 | 29.1/6542 | 1.96 |
| 12BSS-2 | 19.050 | 12.07 | 11.68 | 5.72 | 42.00 | 43.60 | 16.00 | 1.85 | 19.46 | 37.0/8318 | 2.46 |
| 16BSS-2 | 25.400 | 15.88 | 17.02 | 8.28 | 68.00 | 71.00 | 21.00 | 4.15/3.10 | 31.88 | 70.7/15894 | 5.42 |
| 20BSS-2 | 31.750 | 19.05 | 19.56 | 10.19 | 77.80 | 81.50 | 26.40 | 4.50/3.50 | 36.45 | 105.6/23740 | 7.87 |
| 24BSS-2 | 38.100 | 25.40 | 25.40 | 14.63 | 101.70 | 106.20 | 33.20 | 6.00/4.80 | 48.36 | 182.0/40915 | 12.43 |
| 28BSS-2 | 44.450 | 27.94 | 30.99 | 15.90 | 124.60 | 129.10 | 36.70 | 7.50/6.00 | 59.56 | 216.0/48557 | 16.60 |
| 32BSS-2 | 50.800 | 29.21 | 30.99 | 17.81 | 124.60 | 129.60 | 42.00 | 7.00/6.00 | 58.55 | 270.0/60698 | 20.34 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Breaking load | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Pt | Q | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| *04CSS-3 | 6.350 | 3.30 | 3.18 | 2.31 | 21.00 | 21.50 | 6.00 | 0.80 | 6.40 | 7.5/1686 | 0.44 |
| *06CSS-3 | 9.525 | 5.08 | 4.77 | 3.58 | 32.70 | 33.50 | 9.00 | 1.30 | 10.13 | 16.5/3709 | 1.04 |
| 08ASS-3 | 12.700 | 7.95 | 7.85 | 3.96 | 45.40 | 46.60 | 12.00 | 1.50 | 14.38 | 28.8/6474 | 1.97 |
| 10ASS-3 | 15.875 | 10.16 | 9.40 | 5.08 | 57.00 | 58.50 | 15.09 | 2.03 | 18.11 | 45.6/1025 | 3.24 |
| 12ASS-3 | 19.050 | 11.91 | 12.57 | 5.94 | 71.50 | 73.30 | 18.00 | 2.42 | 22.78 | 65.1/14635 | 4.54 |
| 16ASS-3 | 25.400 | 15.88 | 15.75 | 7.92 | 91.70 | 95.10 | 24.00 | 3.25 | 29.29 | 116.7/26235 | 7.89 |
| 20ASS-3 | 31.750 | 19.05 | 18.90 | 9.53 | 112.20 | 116.30 | 30.00 | 4.00 | 35.76 | 180.0/40466 | 11.76 |
| 24ASS-3 | 38.100 | 22.23 | 25.22 | 11.10 | 141.40 | 145.20 | 35.70 | 4.80 | 45.44 | 225.0/50580 | 17.53 |
| 28ASS-3 | 44.450 | 25.40 | 25.22 | 12.70 | 152.20 | 156.80 | 41.00 | 5.60 | 48.87 | 306.0/68789 | 22.20 |
| 32ASS-3 | 50.800 | 28.58 | 31.55 | 14.27 | 181.80 | 186.60 | 47.80 | 6.40 | 58.55 | 401.4/90238 | 30.02 |
| 05BSS-3 | 8.000 | 5.00 | 3.00 | 2.31 | 19.50 | 20.20 | 7.10 | 0.80 | 5.64 | 8.8/1978 | 0.57 |
| #06BSS-3 | 9.525 | 6.35 | 5.72 | 3.28 | 33.50 | 34.60 | 8.20 | 1.30 | 10.24 | 17.3/3889 | 1.09 |
| 08BSS-3 | 12.700 | 8.51 | 7.75 | 4.45 | 45.10 | 46.10 | 11.80 | 1.60 | 13.92 | 30.0/6744 | 2.08 |
| 10BSS-3 | 15.875 | 10.16 | 9.65 | 5.08 | 52.70 | 54.10 | 14.70 | 1.70 | 16.59 | 43.6/9802 | 2.92 |
| 12BSS-3 | 19.050 | 12.07 | 11.68 | 5.72 | 61.50 | 63.10 | 16.00 | 1.85 | 19.46 | 55.5/12477 | 3.71 |
| 16BSS-3 | 25.400 | 15.88 | 17.02 | 8.28 | 99.80 | 102.90 | 21.00 | 4.15/3.10 | 31.88 | 106.7/23830 | 8.13 |
| 20BSS-3 | 31.750 | 19.05 | 19.56 | 10.19 | 114.20 | 117.90 | 26.40 | 4.50/3.50 | 36.45 | 155.3/34913 | 11.80 |
| 24BSS-3 | 38.100 | 25.40 | 25.40 | 14.63 | 150.10 | 154.60 | 33.20 | 6.00/4.80 | 48.36 | 276.3/62115 | 20.10 |
| 28BSS-3 | 44.450 | 27.94 | 30.99 | 15.90 | 184.20 | 188.70 | 36.70 | 7.50/6.00 | 59.56 | 318.0/71486 | 26.90 |
| 32BSS-3 | 50.800 | 29.21 | 30.99 | 17.81 | 183.20 | 188.20 | 42.00 | 7.00/6.00 | 58.55 | 402.0/90370 | 31.56 |
