Product Description
Paper roll conveying chain is a special conveying chain for paper processing industry.which can pro wide various top plates with surface protection treatment according to working conditions; The main products are P63 series and P63.5 series.
Using high-quality materials and advanced processing technology, the product has the characteristics of high strength, stable operation and low noise.
Parameter

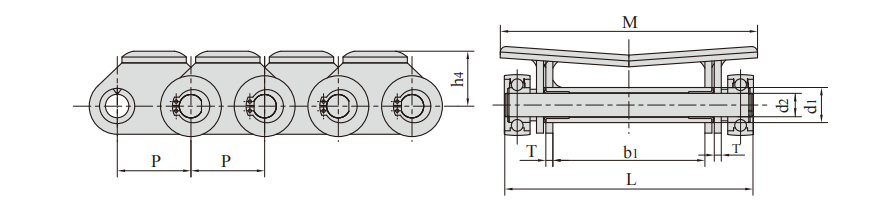

| Chain No | Pitch | Bush diameter | Width between inner plates | Pin diameter | Pin length | Plate thickness | Attachment dimension | Tensile strength | Ayerage tensile strength | |
| P | d1 max | b1 min | d2 max | L max | T max | M | h4 | Q min | Q0 min | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | |
| 63PF2 | 63.0 | 30.0 | 130.0 | 20.0 | 213 | 6.0 | 220.0 | 50.0 | 160.0/35968 | 176.0 |
| 63PF4 | 63.0 | 30.0 | 160.0 | 20.0 | 243 | 6.0 | 250.0 | 50.0 | 160.0/35968 | 176.0 |
| 63PF5 | 63.0 | 30.0 | 110.0 | 20.0 | 193 | 6.0 | 200.0 | 50.0 | 160.0/35968 | 176.0 |
| 63PF11 | 63.0 | 30.0 | 230.0 | 20.0 | 313 | 6.0 | 320.0 | 50.0 | 160.0/35968 | 176.0 |

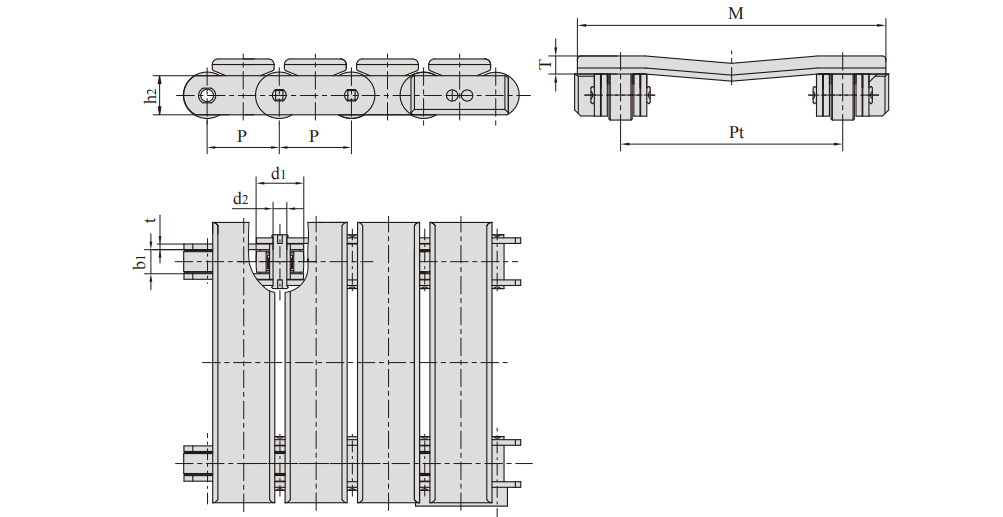

| Chain No. | Pitch | Width between inner plates | Pin diameter | Roller diameter | Plate depth | Plate thickness | Attachment dimension | Tensile strength | ||
| P | b1 min | d2 max | d1 max | h2 max | t max | Pt | T | M | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/bf | |
| P63F16 | 63.0 | 21.5 | 12.0 | 42.0 | 35.0 | 5.0 | 180.0 | 15.0 | 250.0 | 120.0/26994 |
| P63F25 | 63.0 | 24.0 | 14.0 | 42.0 | 35.0 | 5.0 | 180.0 | 15.0 | 250.0 | 100.0/22495 |
| *P63.5F23 | 63.5 | 19.0 | 11.5 | 40.0 | 35.0 | 5.0 | 236.0 | 15.0 | 300.0 | 100.0/22495 |
| *Means no bearing inside roller | ||||||||||

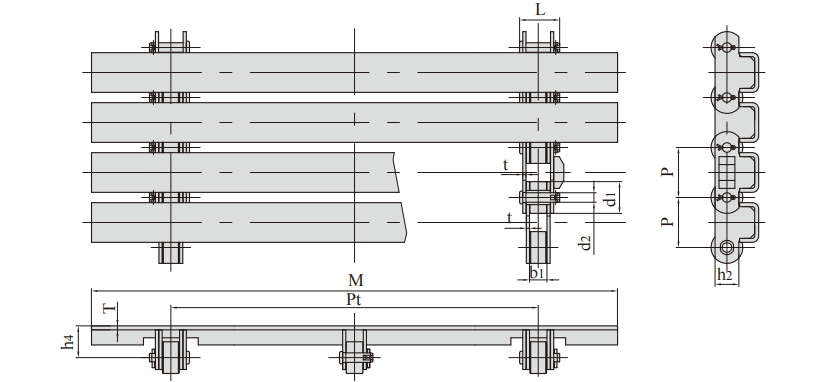

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Attachment dimension | Tensile strength | |||
| P | d1 max | b1 min | d2 max | L max | h2 max | t max | Pt | M | h4 | T | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| P63F40 | 63.0 | 40.0 | 22.0 | 12.0 | 51.0 | 30.0 | 4.0 | 600 | 800 | 40 | 5 | 63.0/14162 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate thickness | Attachment dimension | Tensile strength | |||||
| P | d1 max | b1 min | d2 max | L max | Lc max | t max | F | K | Pt | M | h4 | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| P100F361 | 100 | 52.0 | 29.0 | 19.0 | 63.0 | 69.0 | 6.0 | 50 | 30 | 572 | 804 | 68 | 200.0/44960 |

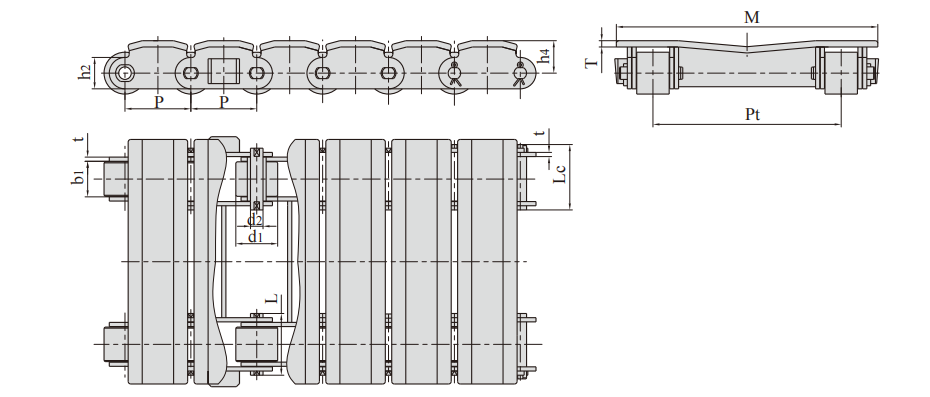

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Attachment dimension | Tensile strength | ||||
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t max | Pt | M | h4 | T | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| FV63F18-P-63 | 63.0 | 40.0 | 22.0 | 12.0 | 45.6 | 50.0 | 30.0 | 4.0 | 180 | 240 | 31 | 6 | 86.7/19490 |

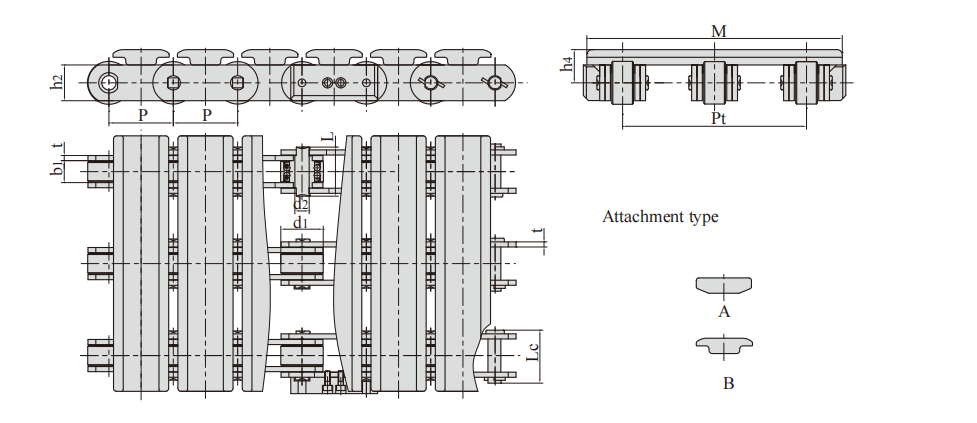

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Attachment dimension | Tensile strength | Attachment type | |||
| P | d1 max | b1 | d2 max | L max | Lc max | h2 max | t max | Pt | M | h4 | Q min | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/bf | ||
| P63F33 | 63 | 42.0 | 24.0 | 14.0 | 51.0 | 56.0 | 35.0 | 5.0 | 1130 | 1200 | 32.5 | 100.0/22480 | A |
| P63F45 | B | ||||||||||||

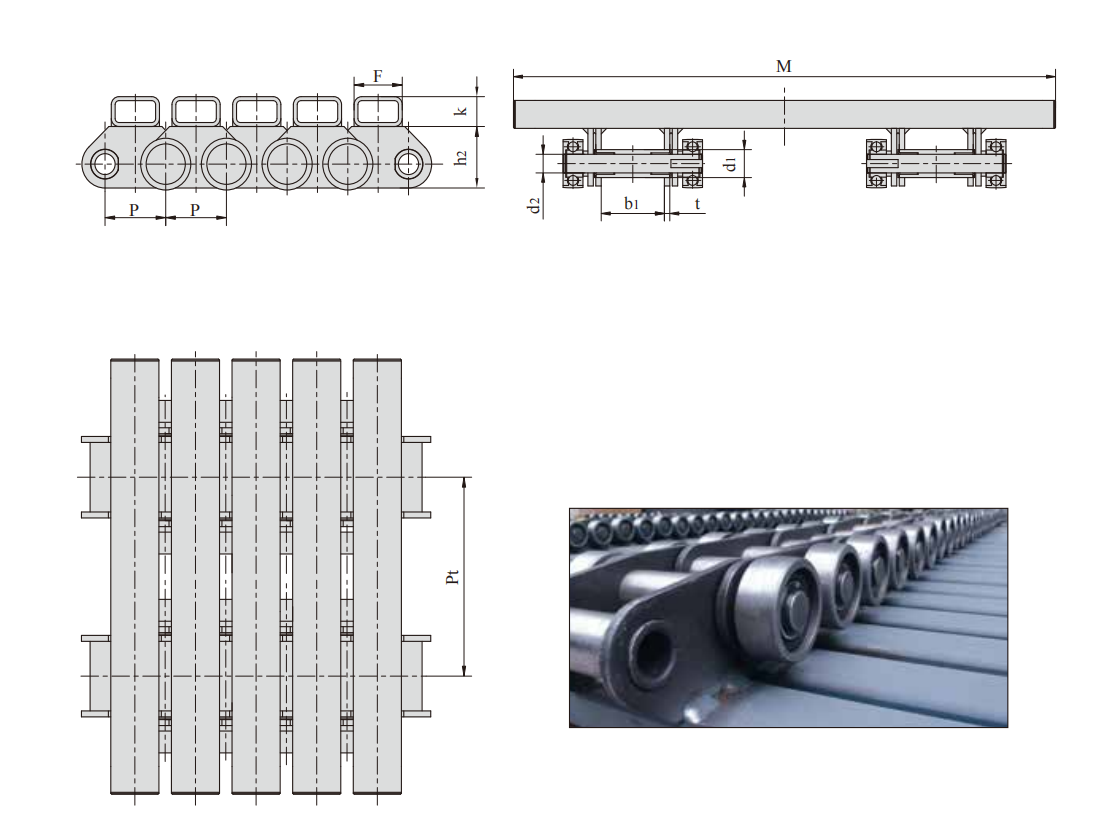

| Chain No. | Pitch | Width between inner plates | Pin diameter | Bush diameter | Plate depth | Plate thickness | Attachment dimension | Tensile strength | |||
| P | b1 min | d2 max | d1 max | h2 max | t max | F | K | Pt | M | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| P63F23 | 63.0 | 70.0 | 20.0 | 30.0 | 61.8 | 6.0 | 50.0 | 30.0 | 688.0 | 1200.0 | 160.0/35993 |
