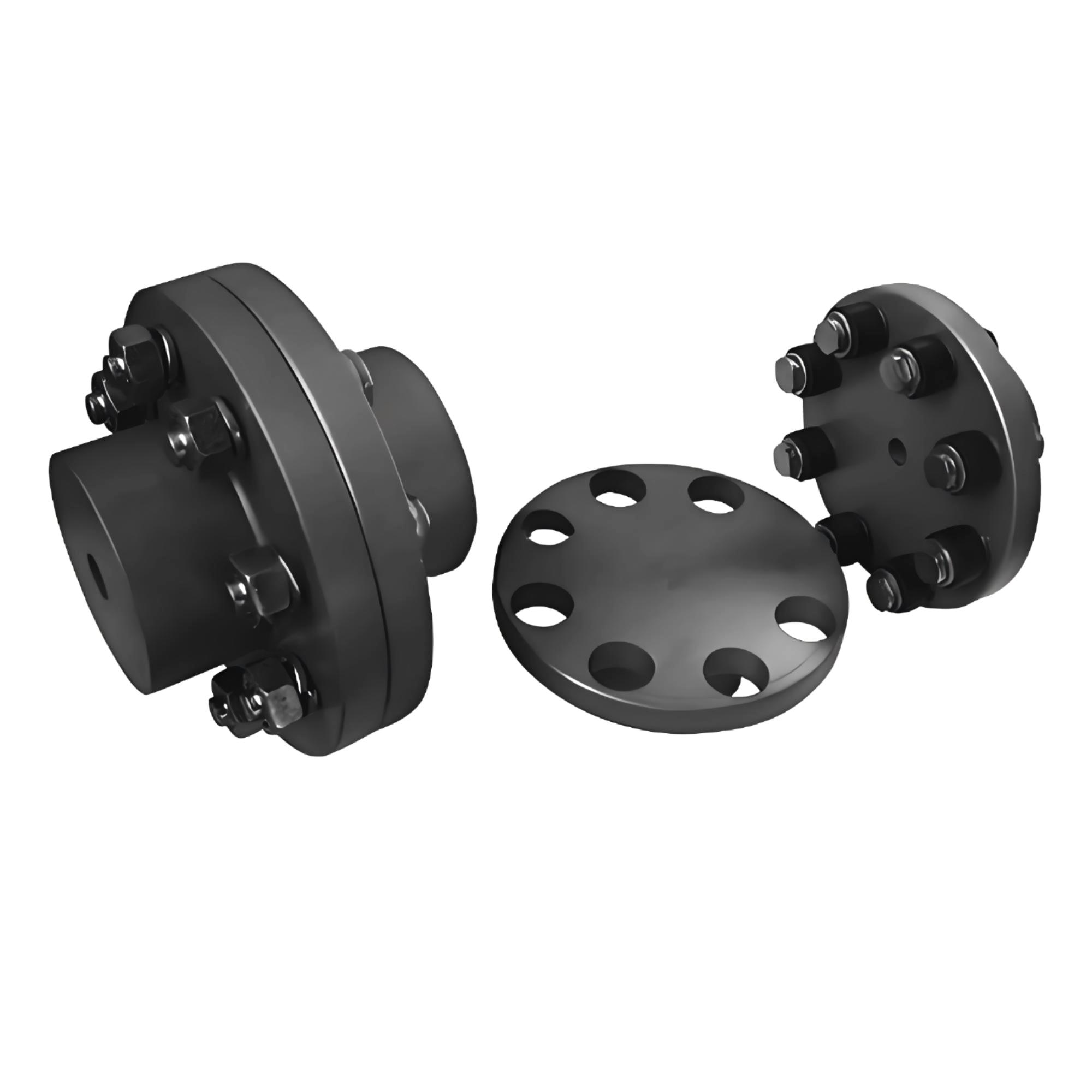

ELELS Type Coupling

Availability:

Quantity:



Inquire Add to Basket

Product Description

The EL/ELS type coupling is a highly flexible connector designed for machines with uneven torque characteristics or significant axial misalignments. These couplings are ideally suited for applications demanding high levels of torsional stiffness and damping. Product Features: The ELS series couplings boast exceptional torsional flexibility, effectively eliminating the torsional rebound phenomenon; Thanks to their low torsional stiffness and damping capacity, ELS couplings are optimal for machines with uneven torque distribution; Offering shaft-to-shaft or flange-to-shaft connections, we can also customize other connection types to meet specific customer requirements, making them suitable for a range of industrial settings including water conservancy, hydropower, new energy, metallurgy, and environmental protection.

DIN

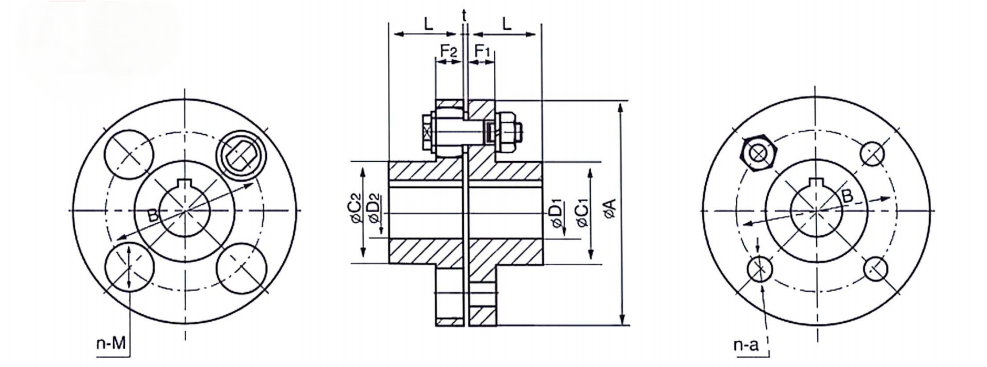

NSPT EL-Coupling

Catalog	Fundamental Dimensions										Bore		Max Torque (In-Lb)	Max Revolution (r/Pm)	Number of Bolts (n)	Wt Lbs
	A	L	B	a	M		C		F		Pilot Bore	Max Bore
	A	L	B	a	M		C1	C2	F1	F2	Pilot Bore	Max Bore
EL-35	39/16	11/8	23/8	5/16	3/4	0.118	17/16		9/16		-	3/4	133	4000	4	2.8
EL-40	4	17/16	25/8	3/8	7/8	0.118	111/16		5/8		-	1	257	4000	4	4.1
EL-44	43/8	19/16	215/16	3/8	7/8	0.118	2		5/8		-	11/8	292	4000	4	5.4
EL-50	5	13/4	33/8	9/16	11/4	0.118	23/16	2	11/16		-	11/8	646	4000	4	7.4
EL-55	51/2	2	4	9/16	11/4	0.118	213/16	21/2	11/16		-	13/8	1151	4000	6	10.0
EL-63	63/8	23/16	41/2	9/16	11/4	0.118	31/8		11/16		-	13/4	1770	4000	8	13.8
EL-71	71/8	21/2	53/16	9/16	11/4	0.118	31/2		11/16		-	2	2036	3500	8	18.5
EL-79	77/8	213/16	511/16	3/4	15/8	0.157	4		7/8		11/16	23/16	3894	3200	8	28.7
EL-88	87/8	31/8	65/8	3/4	15/8	0.157	43/8		7/8		11/16	21/2	4514	2850	8	37.3
EL-100	10	31/2	71/16	1	2	0.157	5		11/8		3/4	213/16	7524	2550	8	54.8
EL-110	11	4	71/8	11/8	21/4	0.157	51/2		11/8	19/16	13/16	31/8	13275	2300	8	77.1
EL-124	123/8	43/8	93/8	11/8	21/4	0.157	61/4		11/8	19/16	11/4	31/2	19470	2050	10	104
EL-140	14	5	101/4	17/16	27/8	0.197	71/16		17/16	23/16	11/4	4	30975	1800	8	163
EL-158	153/4	5	117/8	17/16	27/8	0.197	77/8		17/16	23/16	2	45/16	44250	1600	10	206
EL-180	173/4	51/2	14	17/16	27/8	0.197	87/8		17/16	23/16	23/8	5	62835	1400	12	272
EL-220	22	61/4	173/4	17/16	27/8	0.197	10		17/16	23/16	31/8	51/2	88500	1150	14	426
EL-250	247/8	71/16	207/8	17/16	27/8	0.197	11		17/16	23/16	31/2	63/8	141600	1000	18	559
EL-280	28	813/16	235/8	17/16	27/8	0.197	123/8		23/16		45/16	71/16	221250	900	24	876
EL-281	28	97/8	227/8	13/4	37/16	0.276	14		31/8		411/16	77/8	300900	900	20	1212
EL-315	311/2	107/16	263/8	13/4	37/16	0.276	143/4		31/8		51/8	81/4	398250	800	22	1536

NSPT ESL-Coupling

Catalog

Fundamental Dimensions

Bore

Max Torque (In-Lb)

Max Revolution (rpm)

Bolts (n)

Wt Lbs

A

L

B

a

M

t

C

F

Pilot

Max

C1

C2

F1

F2

ELS-44

43/8

19/16

215/16

3/8

7/8

0.118

2

5/8

1/2

13/16

292

6000

4

5.7

ELS-50

5

13/4

33/8

9/16

11/4

0.118

23/16

2

11/16

1/2

13/8

646

6000

4

7.8

ELS-55

51/2

2

4

9/16

11/4

0.118

213/16

21/2

11/16

1/2

11/2

1151

6000

6

10.4

ELS-63

63/8

23/16

41/2

9/16

11/4

0.118

31/8

11/16

9/16

17/8

1770

6000

8

14.4

ELS-71

71/8

21/2

53/16

9/16

11/4

0.118

31/2

11/16

9/16

21/8

2036

5250

8

19.0

ELS-79

77/8

213/16

511/16

3/4

15/8

0.157

4

7/8

11/16

23/8

3894

4800

8

29.7

ELS-88

87/8

31/8

65/8

3/4

15/8

0.157

43/8

7/8

11/16

23/4

4514

4300

8

37.9

ELS-100

10

31/2

71/16

1

2

0.157

5

11/8

3/4

215/16

7523

3800

8

57.3

ELS-110

11

4

77/8

11/8

21/4

0.157

51/2

11/8

19/16

13/16

35/16

13275

3450

8

80.2

ELS-124

123/8

43/8

93/8

11/8

21/4

0.157

61/4

11/8

19/16

11/4

4

19470

3050

10

106

ELS-140

14

5

101/4

17/16

27/8

0.197

71/16

17/16

23/16

11/4

45/16

30975

2700

8

168

ELS-158

153/4

5

117/8

17/16

27/8

0.197

77/8

17/16

23/16

2

5

44250

2400

10

210

ELS-180

173/4

51/2

14

17/16

27/8

0.197

87/8

17/16

23/16

23/8

51/2

62835

2150

12

278

ELS-220

22

61/4

173/4

17/16

27/8

0.197

10

17/16

23/16

31/8

57/8

88500

1700

14

445

ELS-250

247/8

71/16

207/8

17/16

27/8

0.197

11

17/16

23/16

31/2

65/8

141600

1500

18

585

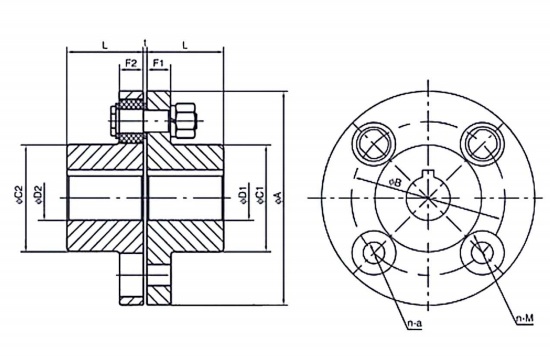

DIN图纸

Catalog	fundamental dimensions										Bore		Bolts		Max Torque (Nm)	Max Revolution n(rpm)	Moment of inertia (kg.㎠)	G (kg)
Catalog	A	B	C1	C2	M	a	L	t	F1	F2	Pilot	Max	Sizes	Qty	Max Torque (Nm)	Max Revolution n(rpm)	Moment of inertia (kg.㎠)	G (kg)
EL-90 EL-100 EL-112 EL-125 EL-140	90 100 112 125 140	60 67 75 85 100	35.5 42.5 50 56 71	35.5 42.5 50 50 63	19 23 23 32 32	8 10 10 14 14	28 35.5 40 45 50	3 3 3 3 3	14 16 16 18 18		- - - - -	20 25 28 32 38	M8	4	15	4000	13	1.37
												M10	4	29	4000	24	2.00
												M10	4	33	4000	38	2.64
												M12	4	73	4000	65	3.59
												M12	6	130	4000	110	4.88
EL-160 EL-180 EL-200 EL-224 EL-250	160 180 200 224 250	115 132 145 170 180	80 90 100 112 125		32 32 41 41 51	14 14 20 20 25	56 63 71 80 90	3 3 4 4 4	18 18 22.4 22.4 28		- - 18 18 20	45 50 56 63 71	M12	8	200	4000	190	6.70
											M12	8	230	3500	300	8.98
											M20	8	440	3200	600	13.90
											M20	8	510	2850	960	18.10
											M24	8	850	2550	1800	26.60
EL-280 EL-315 EL-355 EL-400 EL-450	280 315 355 400 450	200 236 260 300 355	140 160 180 200 224		57 57 72 72 72	28 28 35.5 35.5 35.5	100 112 125 125 140	4 4 5 5 5	28 28 35.5 35.5 35.5	40 40 56 56 56	30 32 32 50 60	80 90 100 110 125	M24	8	1500	2300	3200	37.40
												M24	10	2200	2050	5300	50.30
												M30	8	3500	1800	11000	79.20
												M30	10	5000	1600	18000	100.00
												M30	12	7100	1400	29000	132.00
EL-560 EL-630 EL-710 EL-711 EL-800	560 630 710 710 800	450 530 600 580 670	250 280 315 355 375		72 72 72 87 87	35.5 35.5 35.5 45 45	160 180 224 250 265	5 5 5 7 7	35.5 35.5	56 56	80 90 110 120 130	140 160 180 200 210	M30 M30 M30 M42 M42	14 18 24 20 22	10000 16000 25000 34000 45000	1150 1000 900 900 800	68000 110000 220000 320000 510000	207.00 271.00 425.00 588.00 745.00
EL-560 EL-630 EL-710 EL-711 EL-800	560 630 710 710 800	450 530 600 580 670	250 280 315 355 375		72 72 72 87 87	35.5 35.5 35.5 45 45	160 180 224 250 265	56 80 80			80 90 110 120 130	140 160 180 200 210	M30 M30 M30 M42 M42	14 18 24 20 22	10000 16000 25000 34000 45000	1150 1000 900 900 800
