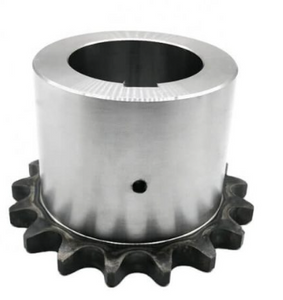

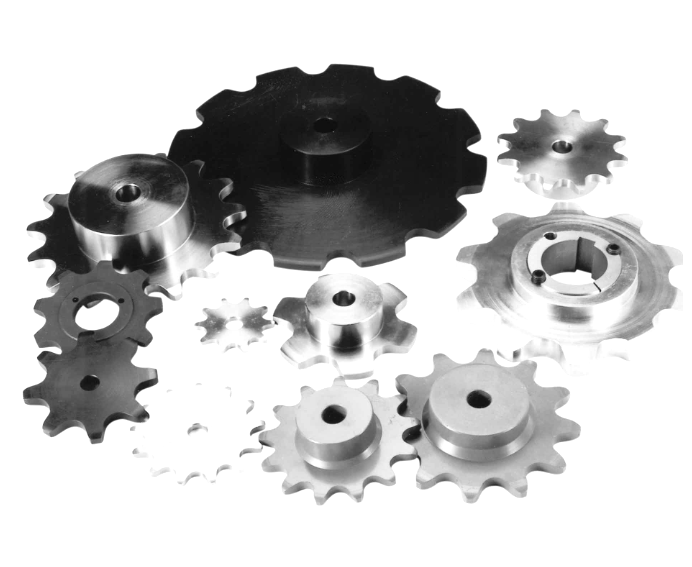

Flame Cut Sprockets

Availability:

Quantity:



Inquire Add to Basket

Product Description

Flame Cut Sprockets are sprockets manufactured through flame cutting technology, with multiple advantages and applications. The use of flame cutting technology ensures accurate pitch and long lifespan of the sprocket. These sprockets have undergone high-frequency hardening treatment, with a hardness of up to HRC4050, demonstrating good hardness, wear resistance, and long service life.

According to customer requirements, Flame Cut Sprockets can provide various types such as no hub, hub, finished hole, or tapered hole. In addition, customization can be made according to specific application requirements.

These sprockets range in thickness from 5/8 inches to 4 inches and are designed with a split structure for easy installation and maintenance. Some models also offer detachable sprockets for easy maintenance and replacement.

These sprockets are suitable for various application scenarios such as agricultural roller chains, steel detachable chains, and pivot chains. They are widely used in transmission systems and conveying components, and are important transmission components. Flame Cut Sprockets have been widely used in the field of industrial transmission due to their high precision, long lifespan, and wide applicability. Whether it is standard specifications or customized requirements, it can meet the diverse needs of different customers.

Parameter

1654 PITCH-1.654''

Catalog No.	Z	P.D	Stock Bore	Max Bore	Hub Diameter	A1	wt Lbs.	Catalog No.	Stock Bore	wt Lbs
1654C12	12	6.39	15/16	23/4	41/4	31/8	15.8	1654A12	15/16	6.8
1654C13	13	6.91	15/16	31/4	43/4	31/2	19.4	1654A13	15/16	8.0
1654C14	14	7.43	15/16	31/4	43/4	31/2	20.6	1654A14	15/16	9.2
1654C15	15	7.96	15/16	31/4	43/4	31/2	22.0	1654A15	15/16	10.5
1654C17	17	9.00	15/16	31/4	43/4	31/2	24.0	1654A17	15/16	12.0
1654C19	19	10.05	15/16	31/4	43/4	31/2	28.0	1654A19	15/16	16.8
1654C20	20	10.57	15/16	31/4	43/4	31/2	30.0	1654A20	15/16	18.6
1654C24	24	12.67	11/4	33/4	51/2	43/5	49.0	1654A24	11/4	26.0
1654C26	26	13.72	11/4	33/4	51/2	43/8	53.0	1654A26	11/4	30.0
1654C30	30	15.82	11/4	33/4	51/2	43/8	65.0	1654A30	11/4	42.0
1654C36	36	18.98	11/4	33/4	51/2	43/8	82.0	1654A36	11/4	59.0
1654C54	54	28.45	11/4	33/4	51/2	43/8	125.0	1654A54	11/4	135.0
1654C60	60	31.60	11/4	33/4	51/2	43/8	138.0	1654A60	11/4	169

2069,PITCH-2.60''

Catalog No.	Z	P.D	Stock Bore	Max Bore	Hub Diameter	A1	wt Lbs.	Catalog No.	Stock Bore	wt Lbs
2609C08	8	6.82	15/16	31/4	43/4	31/8	21	2609A08	15/16	9.0
2609C09	9	7.63	11/4	37/16	51/4	37/8	29	2609A09	11/4	11.3
2609C10	10	8.44	11/4	37/16	51/4	37/8	31	2609A10	11/4	13.9
2609C11	11	9.26	11/4	37/16	51/4	37/8	34	2609A11	11/4	16.7
2609C12	12	10.08	11/4	37/16	51/4	37/8	37	2609A12	11/4	19.8
2609C13	13	10.90	11/4	33/4	51/2	41/2	46	2609A13	11/4	23.0
2609C14	14	11.72	11/4	33/4	51/2	41/2	49	2609A14	11/4	27.0
2609C15	15	12.55	11/2	33/4	51/2	41/2	53	2609A15	11/2	30.0
2609C17	17	14.20	11/2	33/4	51/2	41/2	62	2609A17	11/2	39.0
2609C19	19	15.85	11/2	41/2	61/2	53/8	90	2609A19	11/2	50.0
2609C21	21	17.51	11/2	41/2	61/2	53/8	101	2609A21	11/2	61.0
2609C24	24	19.99	11/2	41/2	61/2	53/8	119	2609A24	11/2	79.0
2609C25	25	20.82	11/2	41/2	61/2	53/8	124	2609A25	11/2	84.0
2609C28	28	23.31	11/2	41/2	61/2	53/8	132	2609A28	11/2	105.0
2609C30	30	24.96	11/2	41/2	61/2	53/8	150	2609A30	11/2	123.0
2609C35	35	29.11	11/2	41/2	61/2	53/8	170	2609A35	11/2	166
2609C40	40	33.25	11/2	415/16	71/4	63/4	226	2609A40	11/2	216.0
2609C42	42	34.91	11/2	415/16	71/4	63/4	240	2609A42	11/2	240.0
2609C46	46	38.31	11/2	415/16	71/4	63/4	258	2609A46	11/2	286.0
2609C54	54	44.87	11/2	415/16	71/4	63/4	368	2609A54	11/2	302.0
2609C60	60	49.85	11/2	415/16	71/4	63/4	388	2609A60	11/2	322.0

3067 PITCH-3.067''

Catalog No.	Z	P.D	Stock Bore	Max Hub	Hub Diameter	A1	wtLbs	Catalog No.	Stock Bore	wt Lbs
3067C10	10	9.92	11/2	33/4	51/2	41/4	46	3067A10	11/2	28
3067C12	12	11.85	11/2	33/4	51/2	41/4	58	3067A12	11/2	40
3067C14	14	13.78	11/2	33/4	51/2	41/4	73	3067A14	11/2	53
3067C30	30	29.34	11/2	41/2	61/2	53/4	217	3067A30	11/2	240
3067C36	36	35.19	11/2	53/8	71/2	57/8	257	3067A36	11/2	290
3067C42	42	41.04	11/2	51/2	8	61/8	407	3067A42	11/2	340
3067C48	48	46.89	11/2	51/2	8	61/8	448	3067A48	11/2	381

3075,PITCH-3.07''

Catalog No.	Z	P.D	Stock Bore	Max Bore	Hub Diameter	A1	wt Lbs.	Catalog No.	Stock Bore	wt Lbs
B3075C07	7	7.09	13/16	215/16	41/2	37/8	24	B3075A07	13/16	12.6
B3075C08	8	8.04	11/4	33/4	51/4	41/8	34	B3075A08	11/4	16
B3075C09	9	8.99	11/4	33/4	51/4	41/8	38	B3075A09	11/4	20
B3075C10	10	9.95	11/4	33/4	51/4	41/8	43	B3075A10	11/4	25
B3075C11	11	10.91	11/4	315/16	53/4	43/8	54	B3075A11	11/4	30
B3075C12	12	11.88	11/4	315/16	53/4	43/8	60	B3075A12	11/4	36
B3075C13	13	12.85	11/4	315/16	53/4	43/8	66	B3075A13	11/4	42
B3075C14	14	13.82	11/4	315/16	53/4	43/8	72	B3075A14	11/4	48
B3075C15	15	14.79	11/2	41/2	61/2	55/8	94	B3075A15	11/2	54
B3075C16	16	15.76	11/2	41/2	61/2	55/8	102	B3075A16	11/2	62
B3075C17	17	16.73	11/2	41/2	61/2	55/8	110	B3075A17	11/2	70
B3075C18	18	17.71	11/2	41/2	61/2	55/8	119	B3075A18	11/2	79

3500 PITCH-3.50''

Catalog No.	Z	P.D	Stock Bore	Max Bore	Hub Diameter	A1	wt Lbs.	Catalog No.	Stock Bore	wt Lbs
3500C10	10	11.33	11/2	33/4	51/2	41/4	54	3500A10	11/2	35
3500C12	12	13.52	11/2	33/4	51/2	41/4	70	3500A12	11/2	51
3500C14	14	15.73	11/2	33/4	51/2	41/4	88	3500A14	11/2	60
3500C30	30	33.48	11/2	4	6	51/8	312	3500A30	11/2	253
3500C36	36	40.16	11/2	4	6	51/8	345	3500A36	11/2	270
3500C42	42	46.84	11/2	51/2	8	61/8	446	3500A42	11/2	379
3500C48	48	53.52	11/2	51/2	8	61/8	517	3500A48	11/2	450

4000,PITCH-4.00''

Catalog No.	Z	P.D	Stock Bore	Max Bore	Hub Diameter	A1	wt Lbs.	Catalog No.	Stock Bore	wt Lbs
4000C06	6	8.00	15/16	31/4	43/4	45/8	36	4000A06	15/16	21
4000C07	7	9.22	1	315/16	53/4	43/4	52	4000A07	1	28
4000C08	8	10.45	1	315/16	53/4	43/4	61	4000A08	1	37
4000C09	9	11.70	1	315/16	53/4	43/4	70	4000A09	1	46
4000C10	10	12.94	1	315/16	53/4	43/4	79	4000A10	1	55
4000C11	11	14.20	11/2	41/4	61/4	43/4	95	4000A11	11/2	68
4000C12	12	15.45	11/2	41/4	61/4	43/4	107	4000A12	11/2	80
4000C13	13	16.72	11/2	41/4	61/4	43/4	120	4000A13	11/2	93
4000C14	14	17.98	11/2	41/4	61/4	43/4	135	4000A14	11/2	108
4000C15	15	19.24	11/2	43/8	63/4	6	168	4000A15	11/2	124
4000C16	16	20.50	11/2	43/8	63/4	6	185	4000A16	11/2	141

4063 PITCH-4.063''

Catalog No.	Z	P.D	Stock Bore	Max Bore	Hub Diameter	A1	wt Lbs.	Catalog No.	Stock Bore	wt Lbs
4063C06	6	8.13	15/16	21/2	4	4	34	4063A06	15/16	26
4063C07	7	9.36	11/4	33/4	51/4	43/4	51	4063A07	11/4	34
4063C08	8	10.62	11/2	41/2	61/2	5	78	4063A08	11/2	44
4063C09	9	11.88	11/2	41/2	61/2	5	89	4063A09	11/2	55
4063C10	10	13.15	11/2	41/2	61/2	5	101	4063A10	11/2	67
4063C11	11	14.42	11/2	41/2	61/2	5	115	4063A11	11/2	81
4063C12	12	15.70	11/2	51/4	7	6	140	4063A12	11/2	96
4063C13	13	16.98	11/2	51/4	7	6	155	4063A13	11/2	111
4063C14	14	18.26	11/2	51/4	7	6	174	4063A14	11/2	130
4063C15	15	19.54	11/2	51/4	7	6	192	4063A15	11/2	148
4063C16	16	20.83	11/2	51/2	8	61/4	230	4063A16	11/2	168
4063C18	18	23.40	11/2	51/2	8	61/4	275	4063A18	11/2	213
4063C20	20	25.97	11/2	51/2	8	61/4	300	4063A20	11/2	263
4063C21	21	27.26	11/2	51/2	8	61/4	319	4063A21	11/2	289
4063C24	24	31.12	11/2	51/2	8	61/4	387	4063A24	11/2	377
4063C25	25	33.42	11/2	6	9	61/4	426	4063A25	11/2	409
4063C28	28	36.29	11/2	6	9	61/4	494	4063A28	11/2	479
4063C30	30	38.87	11/2	7	10	63/4	583	4063A30	11/2	498
4063C35	35	45.33	11/2	7	10	63/4	729	4063A35	11/2	620
4063C40	40	51.78	11/2	71/2	11	73/4	932	4063A40	11/2	721
4063C48	48	62.12	11/2	71/2	11	73/4	1078	4063A48	11/2	867

4500 PITCH-4.50''

Catalog No.	Z	P.D	Stock Bore	Max Bore	Hub Diameter	A1	wt Lbs.	Catalog No.	Stock Bore	wt Lbs
4500C 10	10	14.56	11/2	4	61/2	5	111	4500A10	11/2	87
4500C 12	12	17.39	11/2	4	61/2	5	148	4500A12	11/2	119
4500C 14	14	20.22	11/2	4	61/2	5	188	4500A14	11/2	159
4500C 30	30	43.05	11/2	53/8	71/2	57/8	592	4500A30	11/2	542
4500C 36	36	51.63	11/2	53/8	71/2	57/8	764	4500A36	11/2	715
4500C 42	42	60.22	11/2	61/2	91/2	71/4	884	4500A42	11/2	776
4500C 48	48	68.81	11/2	71/2	11	73/4	1174	4500A48	11/2	963

5000 PITCH-5.00''

Catalog No.	Z	P.D	Stock Bore	Max Bore	Hub Diameter	A1	wt Lbs.	Catalog No.	Stock Bore	wt Lbs
5000C10	10	16.18	11/2	41/2	61/2	51/2	160	5000A10	11/2	131
5000C12	12	19.32	11/2	41/2	61/2	51/2	215	5000A12	11/2	187
5000C14	14	22.47	11/2	53/8	71/2	57/8	298	5000A14	11/2	254
5000C30	30	47.84	11/2	6	9	63/4	809	5000A30	11/2	730
5000C36	36	57.37	11/2	7	10	81/2	1161	5000A36	11/2	1025
5000C42	42	66.91	11/2	7	10	81/2	1245	5000A42	11/2	1109
5000C48	48	76.45	11/2	71/2	11	101/4	2005	5000A48	11/2	1794

6050,PITCH-6.50''

Catalog No.	Z	P.D	Stock Bore	Max Bore	Hub Diameter	A1	wt Lbs.	Catalog No.	Stock Bore	wt Lbs
6050C06	6	12.10	11/2	41/2	61/2	6	119	6050A06	11/2	90
6050C07	7	13.95	11/2	41/2	61/2	6	149	6050A07	11/2	120
6050C08	8	15.81	11/2	41/2	61/2	6	182	6050A08	11/2	153
6050C09	9	17.69	11/2	53/8	61/2	63/8	236	6050A09	11/2	192
6050C10	10	19.58	11/2	53/8	61/2	63/8	278	6050A10	11/2	235
6050C11	11	21.47	11/2	53/8	61/2	63/8	326	6050A11	11/2	283
6050C12	12	23.38	11/2	53/8	61/2	63/8	378	6050A12	11/2	334

A3075 PITCH-3.07''

Catalog No.	Z	P.D	Stock Bore	Max Bore	Hub Diameter	A1	wt Lbs.	Catalog No.	Stock Bore	wt Lbs
A3075C08	8	8.05	11/4	31/4	5	37/8	31	A3075A08	11/4	17.9
A3075C09	9	8.99	11/4	31/4	5	37/8	36	A3075A09	11/4	22.4
A3075C10	10	9.95	11/4	31/4	5	37/8	40	A3075A10	11/4	28
A3075C11	11	10.91	11/2	33/4	51/2	41/4	51	A3075A11	11/2	33
A3075C12	12	11.88	11/2	33/4	51/2	41/4	57	A3075A12	11/2	39
A3075C13	13	12.85	11/2	33/4	51/2	41/4	64	A3075A13	11/2	46
A3075C15	15	14.79	11/2	4	6	51/8	91	A3075A15	11/2	60
A3075C17	17	16.73	11/2	4	6	51/8	109	A3075A17	11/2	78
A3075C19	19	18.68	11/2	41/2	61/2	53/4	137	A3075A19	11/2	97
A3075C21	21	20.63	11/2	41/2	61/2	53/4	158	A3075A21	11/2	118
A3075C24	24	23.56	11/2	41/2	61/2	53/4	176	A3075A24	11/2	154
A3075C25	25	24.53	11/2	53/8	71/2	57/8	206	A3075A25	11/2	167
A3075C28	28	27.46	11/2	53/8	71/2	57/8	236	A3075A28	11/2	210
A3075C30	30	29.42	11/2	53/8	71/2	57/8	254	A3075A30	11/2	240
A3075C35	35	34.30	11/2	51/2	8	61/8	313	A3075A35	11/2	287
A3075C40	40	39.19	11/2	51/2	8	61/8	360	A3075A40	11/2	327
A3075C42	42	41.15	11/2	51/2	8	61/8	410	A3075A42	11/2	343
A3075C48	48	47.03	11/2	61/2	91/2	63/4	501	A3075A48	11/2	384
A3075C54	54	52.89	11/2	61/2	91/2	63/4	549	A3075A54	11/2	432
A3075C60	60	58.75	11/2	7	10	71/2	642	A3075A60	11/2	506
