Product Description

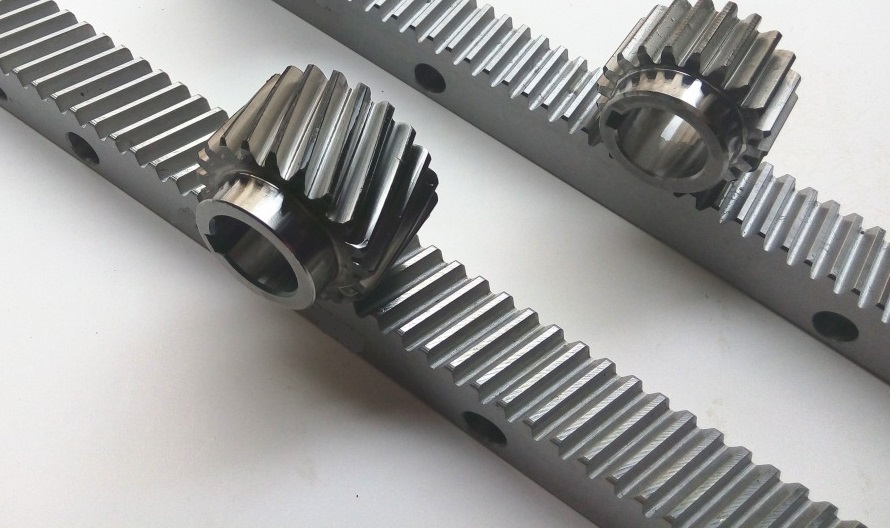

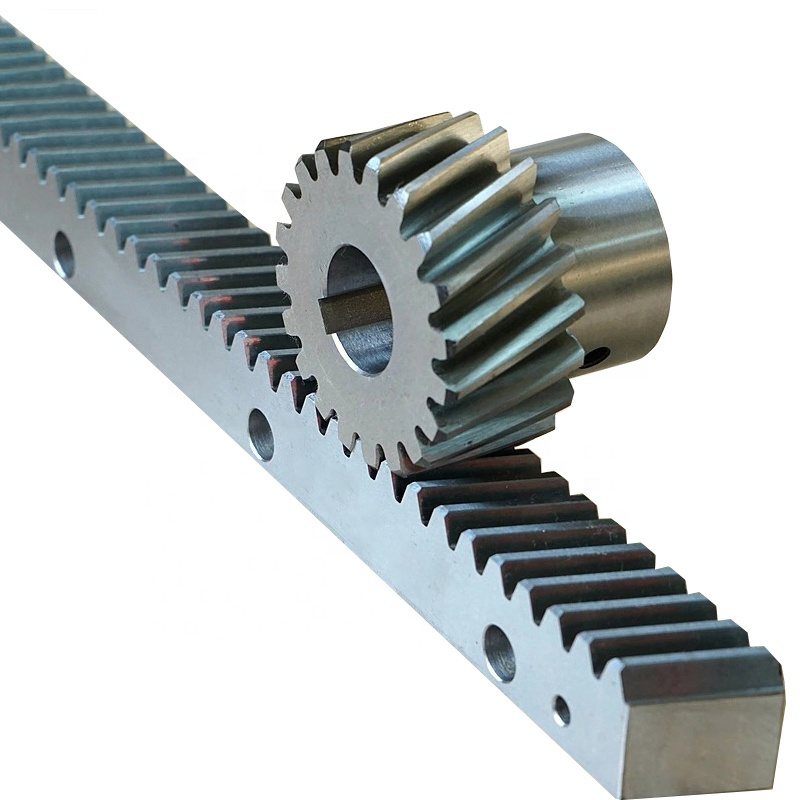

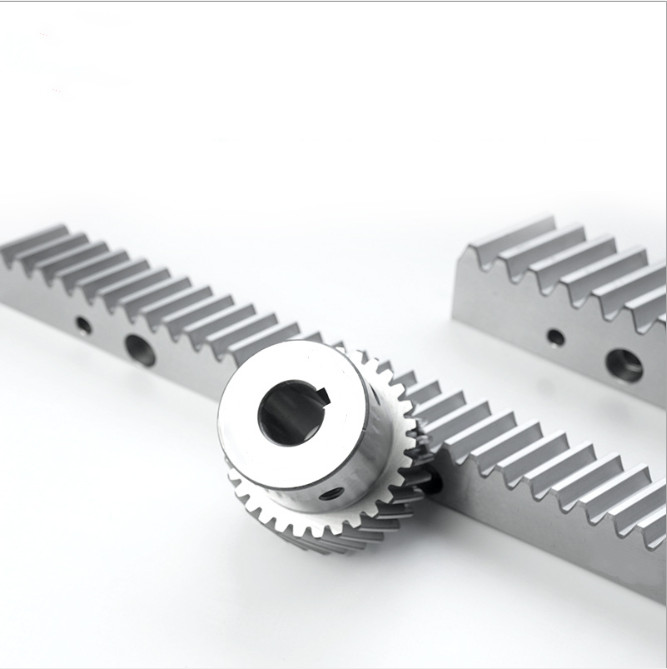

Most of Ocean Helical Gear Rack are exported to Europe since 2005. Most of Ocean OEM customers send drawings and Ocean produce as per their drawings, if you do not have drawing, Ocean can also produce as per your sample.
Addendum coefficient: ha=1
Tooth profile: helical teeth
Right angle: 19°3V42'
Accuracy grade: DIN6 GB 5
Hardness treatment: tooth surface high frequency quenching HRC50-55
Production process: four side grinding, tooth surface grinding
parameter

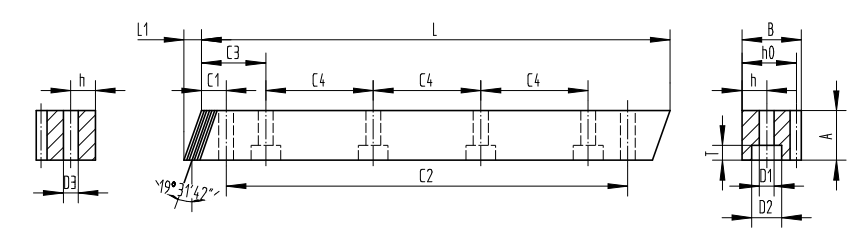

| Code | Module | Teeth pitch | L | L1 | No. of Teeth | A | B | h0 | C1 | C2 | C3 | C4 | No.of Holes | h | D1 | D2 | T | D3 | Kg |
| M1 15X15X500 | 1 | 3.3333 | 500 | 5.32 | 150 | 15 | 15 | 14 | 31.7 | 436.6 | 62.5 | 25 | 4 | 6 | 5 | 8 | 5 | 5.7 | 0.8 |
| M1 15X15X1000 | 1 | 3.3333 | 1000 | 5.32 | 300 | 15 | 15 | 14 | 31.7 | 936.6 | 62.5 | 25 | 8 | 6 | 5 | 8 | 5 | 5.7 | 1.6 |
| M2 25X24X500 | 2 | 6.6667 | 500 | 8.36 | 75 | 25 | 24 | 22 | 31.7 | 436.6 | 62.5 | 125 | 4 | 8 | 7 | 11 | 7 | 5.7 | 2.1 |
| M2 25X24X1000 | 2 | 6.6667 | 1000 | 8.86 | 150 | 25 | 24 | 22 | 31.7 | 936.6 | 62.5 | 125 | 8 | 8 | 7 | 11 | 7 | 5.7 | 4.3 |
| M2 25X24X2000 | 2 | 6.6667 | 2000 | 8.86 | 300 | 25 | 24 | 2 | 31.7 | 936.6 | 62.5 | 125 | 16 | 8 | 7 | 11 | 7 | 5.7 | 8.6 |
| M3 30X29X500 | 3 | 10.0000 | 500 | 10.64 | 50 | 30 | 29 | 26 | 35 | 430 | 62.5 | 125 | 4 | 9 | 0 | 15 | 9 | 7.7 | 3.1 |
| M3 30X29X1000 | 3 | 10.0000 | 1000 | 10.64 | 100 | 30 | 29 | 26 | 35 | 930 | 62.5 | 125 | 8 | 9 | 0 | 15 | 9 | 7.7 | 6.2 |
| M4 30X29X2000 | 4 | 10.0000 | 2000 | 10.64 | 200 | 30 | 29 | 26 | 35 | 1930 | 62.5 | 125 | 16 | 9 | 10 | 15 | 9 | 7.7 | 12.5 |
| M4 40X39X507 | 4 | 13.3333 | 506.6 | 14.18 | 38 | 40 | 39 | 35 | 33.3 | 440 | 65.8 | 125 | 4 | 12 | 10 | 15 | 9 | 7.7 | 5.5 |
| M4 40X39X1000 | 4 | 13.3333 | 1000 | 14.18 | 75 | 40 | 39 | 35 | 33.3 | 933.4 | 62.5 | 125 | 8 | 12 | 10 | 15 | 9 | 7.7 | 10.9 |
| M4 40X39X2000 | 4 | 13.3333 | 2000 | 14.18 | 150 | 40 | 39 | 35 | 33.3 | 1933.4 | 62.5 | 125 | 16 | 12 | 10 | 15 | 9 | 7.7 | 21.8 |
| M5 50X39X1000 | 5 | 16.6667 | 1000 | 17.73 | 60 | 50 | 39 | 34 | 37.5 | 925 | 62.5 | 125 | 8 | 12 | 14 | 20 | 13 | 11.7 | 13 |
| M5 50X39X2000 | 5 | 16.6667 | 2000 | 17.73 | 120 | 50 | 39 | 34 | 37.5 | 1925 | 62.5 | 125 | 16 | 12 | 14 | 20 | 13 | 11.7 | 26 |
| M6 60X49X1000 | 6 | 20.0000 | 1000 | 21.28 | 50 | 60 | 49 | 43 | 37.5 | 925 | 62.5 | 125 | 8 | 16 | 18 | 26 | 17 | 15.7 | 19.8 |
| M6 60X49X2000 | 6 | 20.0000 | 2000 | 21.28 | 100 | 60 | 49 | 43 | 37.5 | 1925 | 62.5 | 125 | 16 | 16 | 18 | 26 | 17 | 15.7 | 39.6 |
| M8 80X79X960 | 8 | 26.6667 | 960 | 28.37 | 36 | 80 | 79 | 71 | 120 | 720 | 60 | 120 | 8 | 25 | 18 | 33 | 21 | 19.7 | 42.5 |
| M8 80X79X1920 | 8 | 26.6667 | 1920 | 28.37 | 72 | 80 | 79 | 71 | 120 | 1680 | 60 | 120 | 16 | 25 | 18 | 33 | 21 | 19.7 | 85 |
| M10 100X99X1000 | 10 | 33.3334 | 1000 | 35.46 | 30 | 100 | 99 | 89 | 125 | 750 | 62.5 | 125 | 8 | 32 | 33 | 48 | 32 | 19.7 | 68.7 |
| M10 100X99X2000 | 10 | 33.3334 | 2000 | 35.46 | 60 | 100 | 99 | 89 | 125 | 1750 | 62.5 | 125 | 16 | 32 | 33 | 48 | 32 | 19.7 | 137.4 |
| M12 120X120X1000 | 12 | 40 | 1000 | 42.56 | 25 | 120 | 120 | 108 | 125 | 750 | 62.5 | 125 | 8 | 40 | 39 | 58 | 38 | 19.7 | 120 |
| M12 120X120X2000 | 12 | 40 | 2000 | 42.56 | 50 | 120 | 120 | 108 | 125 | 1750 | 62.5 | 125 | 16 | 60 | 39 | 58 | 38 | 19.7 | 240 |
