Product Description

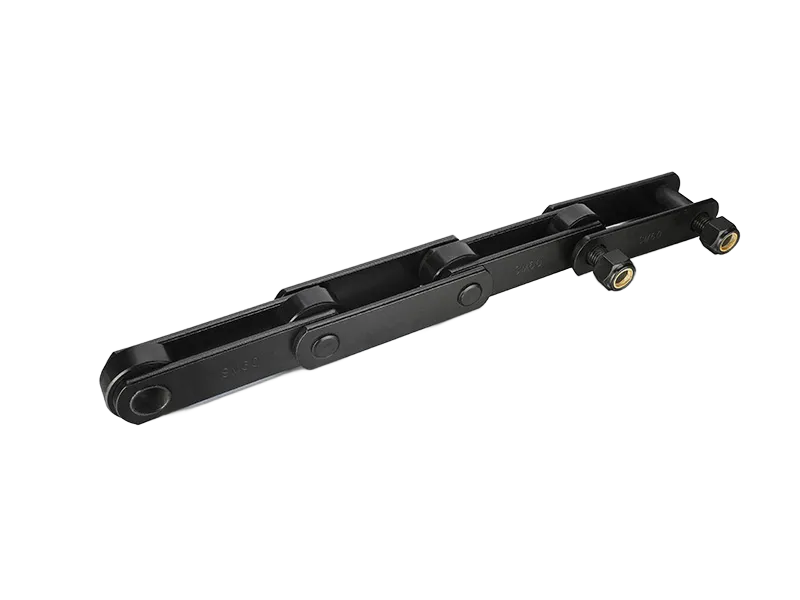

Palm oil chain refers to the chain used in palm oil production equipment from palm fruit to finished palm oil, and the products cover every link of palm oil production.
Optimized design of reinforced chain plate, surface hardening treatment of pin shaft,sleeve and roller, special grease, high chain strength and good wear resistance.
Parameter

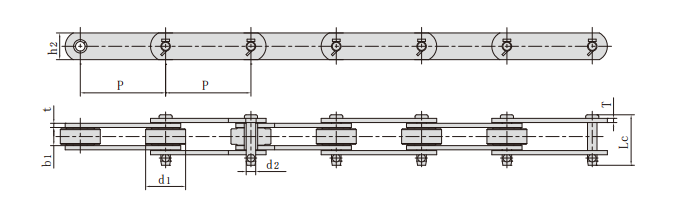

| Chain No. | Pitch | Roller diameter | Width between inner plates | Plate depth | Pin diameter | Pin length | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | h2 max | d2 max | L max | Lc max | t/T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| P101.6F2 | 101.60 | 47.60 | 18.20 | 38.10 | 19.10 | 48.00 | 65.0 | 5.0 | 97.80/22000 | 107.58 | 6.75 |
| PO101.6F12 | 101.60 | 47.50 | 19.00 | 40.00 | 19.10 | 45.80 | 52.5 | 5.0/4.0 | 130.00/29224 | 143.00 | 6.84 |
| PO101.6F15 | 101.60 | 66.70 | 26.00 | 50.00 | 26.90 | 65.80 | 87.0 | 7.1 | 200.00/45454 | 200.00 | 15.10 |
| P152F5 | 152.40 | 66.70 | 25.40 | 50.00 | 26.90 | 61.20 | 80.0 | 7.1 | 134.00/30123 | 147.40 | 12.16 |
| P152F14 | 152.40 | 47.60 | 18.20 | 38.10 | 19.10 | 48.00 | 52.0/50.5 | 5.0 | 89.00/20000 | 97.90 | 5.66 |
| P152F17 | 152.40 | 66.70 | 25.40 | 50.80 | 27.00 | 67.50 | 95.0 | 8.0 | 163.30/36710 | 179.60 | 12.83 |
| P152F29 | 152.40 | 66.70 | 25.40 | 50.80 | 27.00 | 69.50 | 111.5 | 9.0/8.0 | 200.00/45454 | 220.00 | 13.54 |
| PO152F1 | 152.40 | 88.90 | 38.10 | 70.00 | 32.00 | 93.80 | 101.5 | 12.0/9.5 | 444.53/99930 | 488.98 | 30.28 |
| PO152F3 | 152.40 | 66.70 | 25.40 | 50.80 | 27.00 | - | 110.0 | 8.0 | 163.30/36710 | 180.00 | 13.50 |
| PO152F4 | 152.40 | 69.85 | 38.10 | 57.15 | 21.84 | 101.00 | 110.0 | 12.7 | 440.00/98912 | 484.00 | 22.77 |
| PO152F7 | 152.40 | 88.90 | 38.00 | 61.00 | 31.80 | 83.50 | 92.0 | 10.0/8.0 | 380.00/85242 | 418.00 | 23.50 |
| PO152F17 | 152.40 | 66.70 | 25.40 | 50.80 | 27.00 | 67.50 | 78.0 | 8.0 | 163.30/36710 | 179.63 | 12.83 |
| PO152F22 | 152.40 | 66.70 | 26.00 | 50.00 | 27.00 | 59.30 | 69.8 | 7.0/5.0 | 200.00/45454 | 220.00 | 10.90 |
| PO152F23 | 152.40 | 66.70 | 26.00 | 50.00 | 26.90 | 61.80 | 69.1 | 7.1/5.1 | 200.00/45454 | 220.00 | 10.90 |
| PO152F24 | 152.40 | 88.90 | 38.00 | 60.00 | 32.00 | 85.40 | 96.0 | 10.0/8.0 | 380.00/85242 | 418.00 | 23.00 |
| PO152F25 | 152.40 | 88.90 | 38.00 | 60.00 | 32.00 | 89.40 | 120.3 | 10.0 | 380.00/85242 | 418.00 | 24.20 |
| PO152F26 | 152.40 | 66.70 | 26.00 | 50.00 | 26.90 | 65.80 | 87.0 | 7.1 | 200.00/45454 | 220.00 | 11.90 |
| PO152F27 | 152.40 | 66.70 | 25.40 | 50.80 | 27.00 | 71.50 | 99.0 | 9.0 | 267.00/60022 | 293.70 | 14.00 |

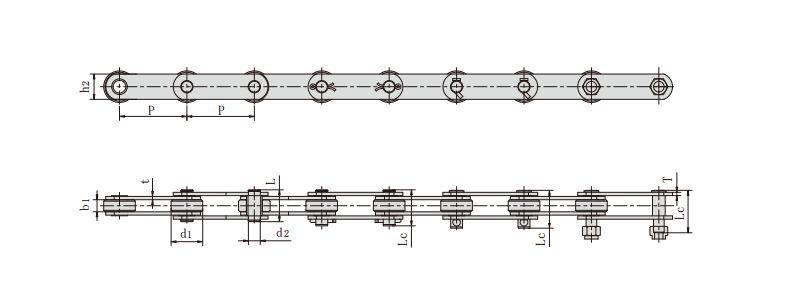

| Chain No. | Pitch | Roller diameter | Width between inner plates | Plate depth | Pin diameter | Pin length | Plate thickness | Tensile strength | Average tensile strength | Weight per meter |
| P | d1 max | b1 min | h2 max | d2 max | Lc max | t/T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| P76.7 | 76.20 | 29.00 | 30.00 | 38.10 | 14.50 | 73.00 | 6.3 | 100.00/25000 | 110.00 | 8.25 |
| 90R-S | 101.60 | 47.60 | 21.40 | 31.80 | 11.32 | 55.70 | 4.8 | 80.36/18065 | 88.40 | 5.90 |
| P101.6F2(e) | 101.60 | 47.60 | 18.20 | 38.10 | 19.10 | 57.00 | 5.0 | 97.80/21985 | 107.58 | 6.94 |
| P101.6F64 | 101.60 | 50.80 | 30.00 | 38.10 | 14.50 | 69.00 | 6.3 | 132.70/29831 | 146.00 | 7.30 |
| P152F5(b) | 152.40 | 66.70 | 25.40 | 50.00 | 26.90 | 68.50 | 7.1/5.1 | 134.00/30123 | 147.40 | 11.50 |
| P152F31 | 152.40 | 88.90 | 38.10 | 61.00 | 31.80 | 98.50 | 10.0 | 266.72/60000 | 293.00 | 26.60 |
| P160F16 | 160.00 | 69.85 | 38.10 | 50.80 | 27.00 | 101.00 | 9.0/8.0 | 267.00/60022 | 293.70 | 16.60 |
| P160F27 | 160.00 | 69.85 | 38.10 | 50.80 | 17.53 | 81.00 | 6.3 | 244.00/54851 | 268.40 | 13.68 |

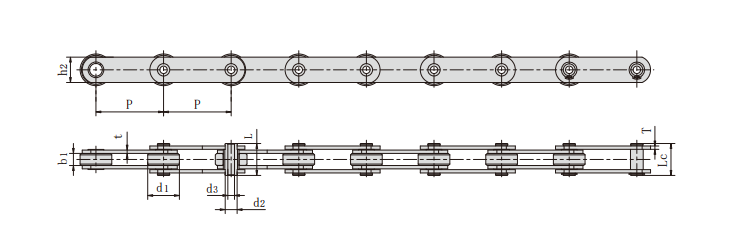

| Chain No. | Pitch | Roller diameter | Width between inner plates | Plate depth | Pin diameter | Pin length | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | ||
| P | d1 max | b1 min | h2 max | d2 max | d3 min | L max | Lc max | t/T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| P101.6F2-HP | 101.60 | 47.60 | 18.20 | 38.10 | 19.10 | 13.20 | 44.8 | 46.5 | 5.0 | 66.68/14990 | 73.35 | 6.18 |
| P152F3(New) | 152.40 | 66.70 | 25.40 | 50.80 | 27.00 | 20.10 | 65.5 | 67.0 | 8.0 | 163.30/36710 | 179.60 | 11.73 |
| P152F29-HP | 152.40 | 66.70 | 25.40 | 50.80 | 27.00 | 20.10 | 68.5 | 70.0 | 9.0/8.0 | 222.30/49973 | 244.53 | 12.40 |
| P0152F6-HP | 152.40 | 66.70 | 26.00 | 55.00 | 27.50 | 19.43 | 60.0 | 62.5 | 7.5/5.5 | 220.00/49456 | 242.00 | 11.10 |

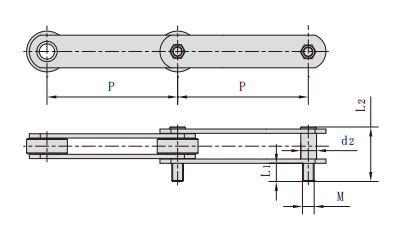

| Chain No. | Pitch | Pin diameter | Diameter of thread | Extended part size of the extended pin | Pin length | Assembly method of the extended pin |
| P | d2 max | M | L1 | L2 max | ||
| mm | mm | mm | mm | mm | ||
| P101.6F2 | 101.60 | 19.10 | M16 | 36.00 | 80.00 | every link every 4 link every 6 link every 8 link etc |
| P152F5 | 152.40 | 26.90 | M20 | 24.00 | 80.00 | |
| P152F17 | 152.40 | 27.00 | M24 | 50.00 | 115.00 | |
| PO152F1 | 152.40 | 32.00 | M30 | 64.00 | 154.00 | |
| PO152F3 | 152.40 | 27.00 | M20 | 45.00 | 110.00 | |
| PO152F4 | 152.40 | 21.84 | 0.75-UNC-2 | 88.10 | 134.10 | |
| PO152F25 | 152.40 | 32.00 | M24 | 50.00 | 136.00 |

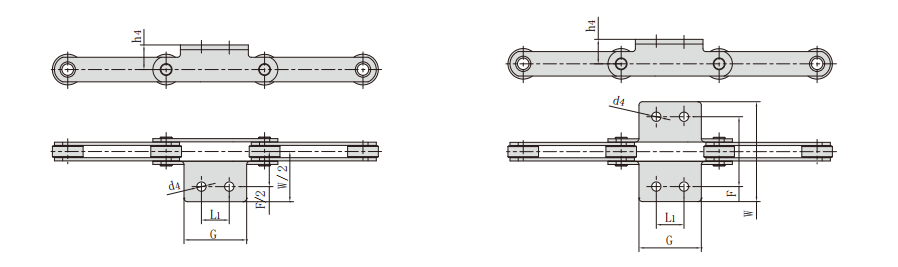

| Chain No. | P | L1 | G | F | W | d4 | h4 |
| mm | mm | mm | mm | mm | mm | mm | |
| 90R-S | 101.60 | 31.80 | 63.50 | 89.00 | 124.00 | 15.90 | 10.70 |
| P101.6F2 | 101.60 | 31.80 | 71.60 | 88.80 | 123.40 | 31.80 | 10.70 |
| P101.6F2K2(d) | 101.60 | 40.00 | 70.00 | 78.00 | 105.00 | 32.00 | 11.50 |
| P152F17 | 152.40 | 57.20 | 106.70 | 116.00 | 154.00 | 38.10 | 12.30 |
| P152F29 | 152.40 | 57.20 | 106.70 | 118.00 | 156.00 | 38.10 | 12.30 |
| P76.7 | 76.70 | - | 47.00 | 111.10 | 145.00 | 25.40 | 12.00 |
