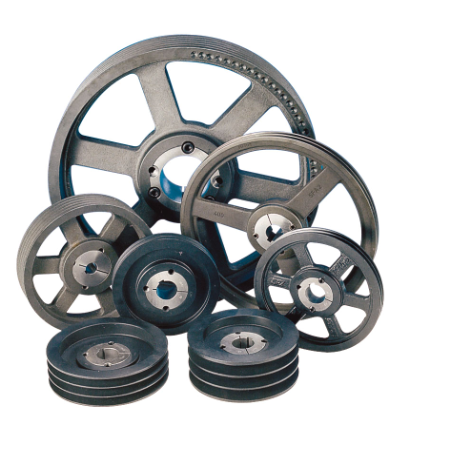

SPA BTL V-pulleys

Availability:

Quantity:



Inquire Add to Basket

Product Description

We can produce the whole series of taper bore v-pulleys: SPA,SPB,SPC and SPZ.They are made of high grade GG25 cast iron, with a delicate finish and assembled precisely.They can also be matched with BTL.

Bushings with easy on and easy off capabilities and practical utility.They are suitable for all kinds of power transmission installation.

parameter

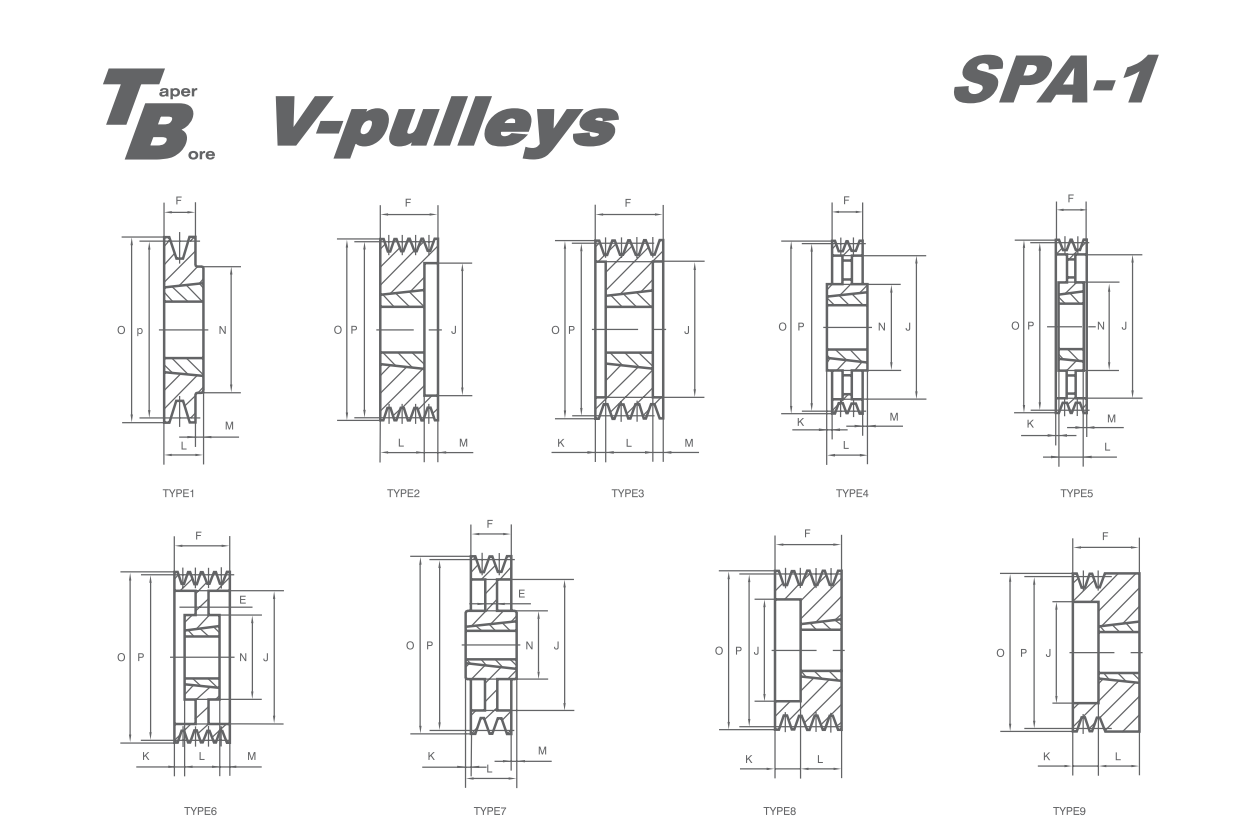

SPA-1 (2)

Part No.	No.Of grooves	P.D	O.D	Type	Bush No.	Max Bore	E	F	J	K	L	M	N
SPA 63-01 SPA 67-01 SPA 71-01 SPA 75-01 SPA 80-01	1 1 1 1 1	63.0 67.0 71.0 75.0 80.0	68.5 72.5 76.5 80.5 85.5	1 1 1 1 1	1008 1108 1108 1108 1210	28 28 28 28 32	- - - - -	20 20 20 20 20	- - - - -	- - - - -	22 22 22 22 25	2 2 2 2 5	56 62 62 62 75




SPA 85-01 SPA 90-01 SPA 95-01 SPA100-01 SPA106-01	1 1 1 1 1	85.0 90.0 95.0 100.0 106.0	90.5 95.5 100.5 105.5 111.5	1 1 1 1 1	1210 1210 1210 1610 1610	32 32 32 42 42	- - - - -	20 20 20 20 20	- - - - -	- - - - -	25 25 25 25 25	5 5 5 5 5	75 75 75 80 80




SPA112-01 SPA118-01 SPA125-01 SPA132-01 SPA140-01	1 1 1 1 1	112.0 118.0 125.0 132.0 140.0	117.5 123.5 130.5 137.5 145,5	1 1 1 1 1	1610 1610 1610 1610 1610	42 42 42 42 42	- - - - -	20 20 20 20 20	- - - - -	- - - - -	25 25 25 25 25	5 5 5 5 5	80 80 80 80 80




SPA150-01 SPA160-01 SPA170-01 SPA180-01 SPA190-01	1 1 1 1 1	150.0 160 170.0 180 190.0	155.5 165.5 175.5 185.5 195.5	1 1 1 1 1	1610 1610 1610 1610 1610	42 42 42 42 42	- - - - -	20 20 20 20 20	- - - - -	- - - - -	25 25 25 25 25	5 5 5 5 5	80 80 80 80 80




SPA200-01 SPA224-01 SPA250-01 SPA280-01 SPA315-01	1 1 1 1 1	200.0 224.0 250.0 280.0 315.0	205.5 229.5 255.5 285.5 320.5	7 7 7 7 4	2012 2012 2012 2012 2012	50 50 50 50 50	10 10 10 10 -	20 20 20 20 20	165 189 215 245 280	- - 6 - -	32 32 32 32 32	12 12 6 12 12	100 100 100 100 100




SPA355-01 SPA400-01 SPA450-01 SPA500-01 SPA630-01	1 1 1 1 1	355.0 400.0 450.0 500.0 630.0	360.5 405.5 455.5 505.5 635.5	4 4 4 4 4	2012 2012 2012 2517 2517	50 50 50 60 60	- - - - -	20 20 20 20 20	320 365 415 465 595	- - - - -	32 32 32 45 45	12 12 12 25 25	100 100 100 120 120

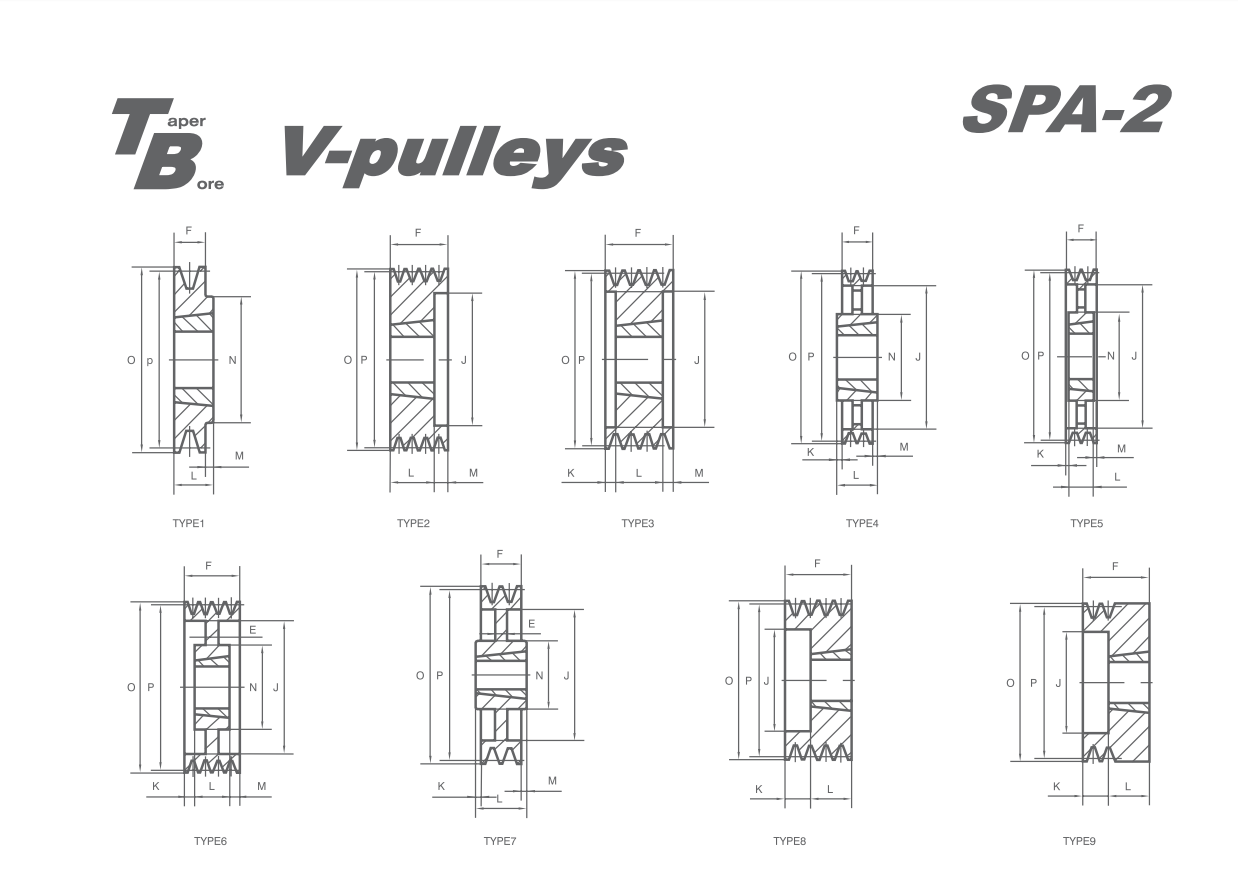

SPA-2 BTL产品图纸

Part No.	No.Of grooves	P.D	O.D	Type	Bush No.	Max Bore	E	F	J	K	L	M	N
SPA 63-02 SPA 67-02 SPA 71-02 SPA 75-02 SPA 80-02	2 2 2 2 2	63.0 67.0 71.0 75.0 80.0	68.5 72.5 76.5 80.5 85.5	8 8 8 8 8	1008 1108 1108 1108 1210	28 28 28 28 32	- - - - -	35 35 35 35 35	36 37 40 44 47	13 13 13 13 10	22 22 22 22 25	- - - - -	- - - - -




SPA 85-02 SPA 90-02 SPA 95-02 SPA100-02 SPA106-02	2 2 2 2 2	85.0 90.0 95.0 100.0 106.0	90.5 95.5 100.5 105.5 111.5	8 8 8 8 8	1210 1610 1610 1610 1610	32 42 42 42 42	- - - - -	35 35 35 35 35	50 60 64 70 76	10 10 10 10 10	25 25 25 25 25	- - - - -	- - - - -




SPA112-02 SPA118-02 SPA125-02 SPA132-02 SPA140-02	2 2 2 2 2	112.0 118.0 125.0 132.0 140.0	117,5 123.5 130.5 137.5 145.5	8 8 8 8 8	1610 1610 1610 2012 2012	42 42 42 50 50	- - - - -	35 35 35 35 35	80 86 90 98 106	10 10 10 3 3	25 25 25 32 32	- - - - -	- - - - -




SPA150-02 SPA160-02 SPA170-02 SPA180-02 SPA190-02	2 2 2 2 2	150.0 160.0 170.0 180.0 190.0	155.5 165.5 175.5 185.5 195.5	8 8 8 6 6	2012 2012 2012 2012 2012	50 50 50 50 50	- 15 15 15 15	35 35 35 35 35	116 125 135 148 158	3 3 3 1.5 1.5	32 32 32 32 32	- - - 1.5 1.5	- - - 100 100




SPA200-02 SPA224-02 SPA250-02 SPA280-02 SPA315-02	2 2 2 2 2	200.0 224.0 250.0 280.0 315.0	205.5 229.5 255.5 285.5 320.5	7 7 7 7 4	2517 2517 2517 2517 2517	60 60 60 60 60	15 15 20 20 -	35 35 35 35 35	165 189 215 245 280	5 - 5 - -	45 45 45 45 45	5 10 5 10 10	120 120 120 120 120




SPA355-02 SPA400-02 SPA500-02 SPA560-02 SPA630-02	2 2 2 2 2	355.0 400.0 500.0 560.0 630.0	360.5 405.5 505.5 565.5 635.5	4 4 4 4 4	2517 2517 2517 3020 3020	60 60 60 75 75	- - - - -	35 35 35 35 35	320 365 465 525 595	- - - - -	45 45 45 51 51	10 10 10 16 16	120 120 120 150 150

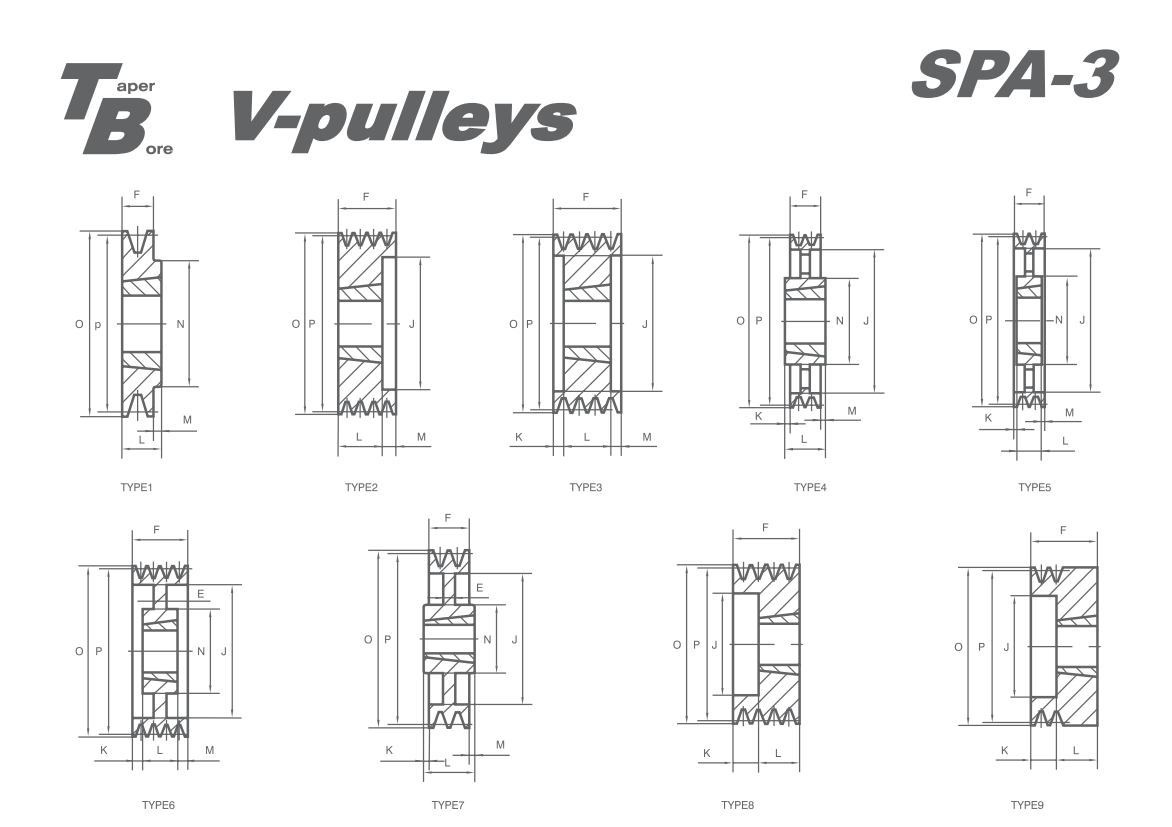

SPA-3 BTL产品图纸

Part No.	No.Of grooves	P.D	O.D	Type	Bush No.	Max Bore	E	F	J	K	L	M
SPA 71-03 SPA 75-03 SPA 80-03 SPA 85-03 SPA 90-03	3 3 3 3 3	71.0 75.0 80.0 85.0 90.0	76.5 80.5 85.5 90.5 95.5	8 8 8 8 8	1108 1108 1210 1210 1610	28 32 32 32 42	- - - - -	50 50 50 50 50	40 44 47 50 60	28 28 25 25 25	22 22 25 25 25	- - - - -	- - - - -




SPA 95-03 SPA100-03 SPA106-03 SPA112-03 SPA118-03	3 3 3 3 3	95.0 100.0 106.0 112.0 118.0	100.5 105.5 111.5 117.5 123.5	8 2 2 8 2	1610 1610 1610 2012 2012	42 42 42 50 50	- - - - -	50 50 50 50 50	64 70 76 83 86	25 - - - 18	25 25 25 32 32	- 25 25 - 18	- - - - -




SPA125-03 SPA132-03 SPA140-03 SPA150-03 SPA160-03	3 3 3 3 3	125.0 132.0 140.0 150.0 160.0	128.5 137.5 145.5 155.5 165.5	2 2 8 8 8	2012 2012 2517 2517 2517	50 50 60 60 60	- - - - -	50 50 50 50 50	92 98 106 116 126	- - 5 5 5	32 32 45 45 45	18 18 - - -	- - - - -




SPA170-03 SPA180-03 SPA190-03 SPA200-03 SPA224-03	3 3 3 3 3	170.0 180.0 190.0 200.0 224.0	175.5 185.5 195.5 205.5 229.5	8 8 8 6 6	2517 2517 2517 2517 2517	60 60 60 60 60	- - - 20 20	50 50 50 50 50	138 146 158 165 189	5 5 5 2.5 2.5	45 45 45 45 45	- - - 2.5 2.5	- - - 120 120




SPA250-03 SPA280-03 SPA315-03 SPA355-03 SPA400-03	3 3 3 3 3	250.0 280.0 315.0 355.0 400.0	255.5 285.5 320.5 360.5 405.5	6 6 7 4 4	2517 2517 3020 3020 3020	60 60 75 75 75	20 20 25 - -	50 50 50 50 50	215 245 280 320 365	2.5 2.5 0.5 0.5 0.5	45 45 51 51 51	2.5 2.5 0.5 0.5 0.5	120 120 150 160 150




SPA450-03 SPA500-03 SPA560-03 SPA630-03 SPA800-03	3 3 3 3 3	450.0 500.0 560.0 630.0 800.0	455.5 505.5 565.5 635.5 805.5	4 4 4 4 4	3020 3020 3020 3020 3535	75 75 75 75 90	- - - - -	50 50 50 50 50	415 465 525 595 765	0.5 0.5 0.5 0.5 19.5	51 51 51 51 89	0.5 0.5 0.5 0.5 19.5	150 150 150 150 170




SPA1000-03	3	1000.0	1005.5	4	3535	90	-	50	965	195	89	19.5	178

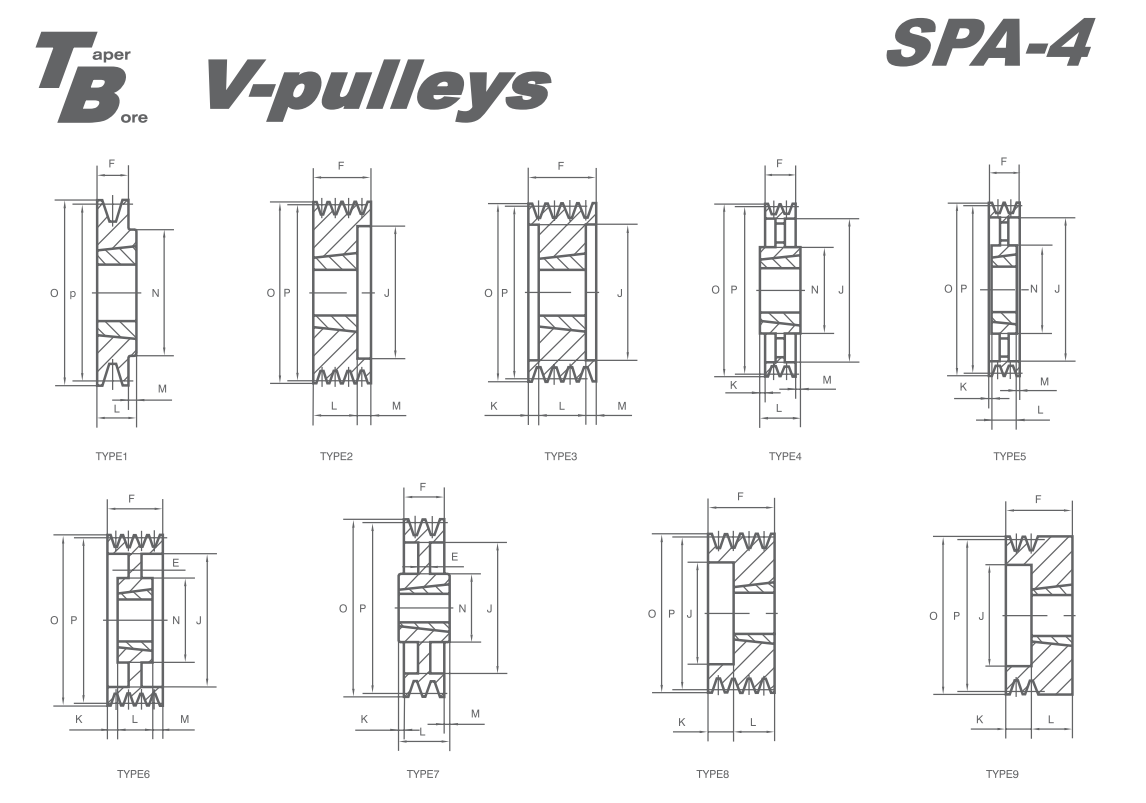

SPA-4 BTL产品图纸

Part No.	No.Of grooves	P.D	O.D	Type	Bush No.	Max Bore	E	F	J	K	L	M	N
SPA 90-04 SPA 95-04 SPA100-04 SPA106-04 SPA112-04	4 4 4 4 4	90.0 95.0 100.0 106.0 112.0	95.5 100.5 105.5 111.5 117.5	3 3 2 8 8	1615 1615 1615 2012 2012	42 42 42 50 50	- - - - -	65 65 65 65 65	64 64 70 76 80	13.5 13.5 - 33 33	38 38 38 32 32	13.5 13.5 27 - -	- - - - -




SPA118-04 SPA125-04 SPA132-04 SPA140-04 SPA150-04	4 4 4 4 4	118.0 125.0 132.0 140.0 150.0	123.5 130.5 137.5 145.5 155.5	2 2 2 2 2	2012 2012 2517 2517 2517	50 50 60 60 60	- - - - -	65 65 65 65 65	86 92 98 106 116	- - - - -	32 32 45 45 45	33 33 20 20 20	- - - - -




SPA160-04 SPA170-04 SPA180-04 SPA190-04 SPA200-04	4 4 4 4 4	160.0 170.0 180.0 190.0 200.0	165.5 175.5 185.5 195.5 205.5	2 2 2 2 2	2517 2517 2517 2517 3020	60 60 60 60 75	- - - - -	65 65 65 65 65	126 138 146 158 165	- - - - -	45 45 45 45 51	20 20 20 20 14	- - - - -




SPA224-04 SPA250-04 SPA280-04 SPA315-04 SPA355-04	4 4 4 4 4	224.0 250.0 280.0 315.0 355.0	229.5 255.5 285.5 320.5 360.5	2 6 6 6 5	3020 3020 3020 3020 3020	75 75 75 75 75	- 10 10 10 -	65 65 65 65 65	189 215 245 280 320	- 7 7 7 7	51 51 51 51 51	14 7 7 7 7	150 150 150 150




SPA400-04 SPA450-04 SPA500-04 SPA560-04 SPA630-04	4 4 4 4 4	400.0 450.0 500.0 560.0 630.0	405.5 455.5 505.5 565.5 635.5	5 5 5 4 4	3020 3020 3020 3535 3535	75 75 75 90 90	- - - - -	65 65 65 65 65	365 415 465 525 595	7 7 7 12 12	51 51 51 89 89	7 7 7 12 12	150 150 150 170 170




SPA800-04 SPA1000-04	4 4	800.0 1000.0	805.5 1005.5	4 4	3535 4040	90 100	- -	65 65	765 965	12 18.5	89 102	12 18.5	170 216

SPA-5 BTL产品图纸

Part No.	No.Of grooves	P.D	O.D	Type	Bush No.	Max Bore	E	F	J	K	L	M	N
SPA100-05 SPA106-05 SPA112-05 SPA118-05 SPA125-05	5 5 5 5 5	100.0 106.0 112.0 118.0 125.0	105.5 111.5 117.5 123.5 130.5	2 8 8 2 3	1615 2012 2012 2012 2012	42 50 50 50 50	- - - - -	80 80 80 80 80	70 76 80 86 92	- 48 48 - 24	38 32 32 32 32	42 - - 48 24	- - - - -




SPA132-05 SPA140-05 SPA150-05 SPA160-05 SPA180-05	5 5 5 5 5	132.0 140.0 150.0 160.0 180.0	137.5 145.5 155.5 165.5 185.5	3 3 3 3 3	2517 2517 2517 2517 3020	60 60 60 60 75	- - - - -	80 80 80 80 80	98 106 116 126 146	17.5 17.5 17.5 17.5 14.5	45 45 45 45 51	17.5 17.5 17.5 17.5 14.5	- - - - -




SPA200-05 SPA224-05 SPA250-05 SPA280-05 SPA315-05	5 5 5 5 5	200.0 224.0 250.0 280.0 315.0	205.5 229.5 255.5 285.5 320.5	3 2 6 7 7	3020 3020 3020 3535 3535	75 75 75 90 90	- - 10 10 12	80 80 80 80 80	165 189 215 245 280	14.5 - 14.5 4.5 4.5	51 51 51 89 89	14.5 29.0 14.5 4.5 4.5	- - 150 170 170




SPA355-05 SPA400-05 SPA450-05 SPA500-05 SPA560-05	5 5 5 5 5	355.0 400.0 450.0 500.0 560.0	360.5 405.5 455.5 505.5 565.5	4 4 4 4 4	3535 3535 3535 3535 3535	90 90 90 90 90	- - - - -	80 80 80 80 80	320 365 415 465 525	4.5 4.5 4.5 4.5 4.5	89 89 89 89 89	4.5 4.5 4.5 4.5 4.5	170 170 170 170 170




SPA630-05 SPA800-05 SPA1000-05	5 5 5	630.0 800.0 1000.0	635.5 805.5 1005.5	4 4 4	3535 4040 4545	90 100 110	- - -	80 80 80	595 765 965	4.5 11 17	89 102 114	4.5 11 17	170 216 225

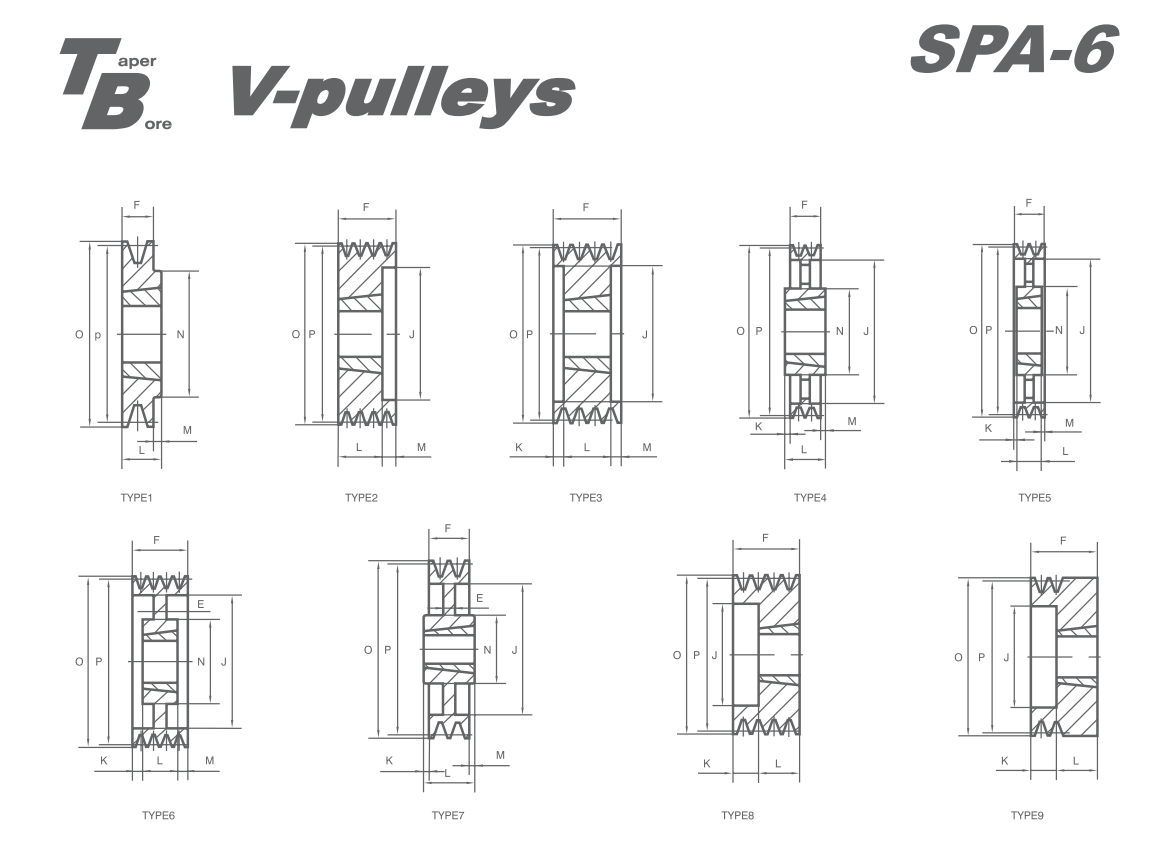

SPA-6 BTL产品图纸
