Product Description
Automobile chain is mainly used in engine timing system, oil pump system.
balance shaft system and automobile transfer/ transmission chain.
The product has the characteristics of high strength, high precision, long life.low noise, lightweight and high reliability.The pin shaft adopts special hardening treatment to meet the wear resistance requirements under high speed and heavy load conditions;The chain plate adopts isothermal heat treatment process to meet the requirements of high fatigue strength under the condition of large load and impact force.
Typical products:Timing system for automobile engine.Automobile transfer case/transmission chain.

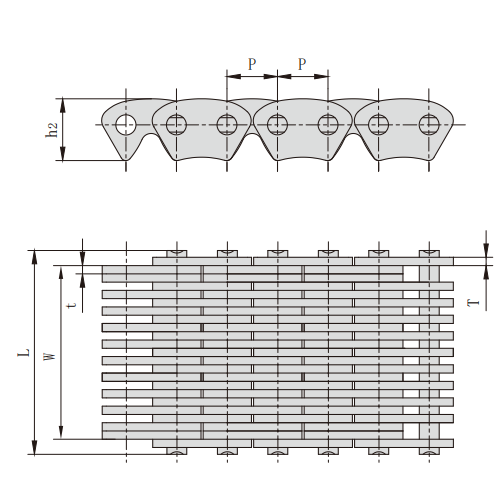

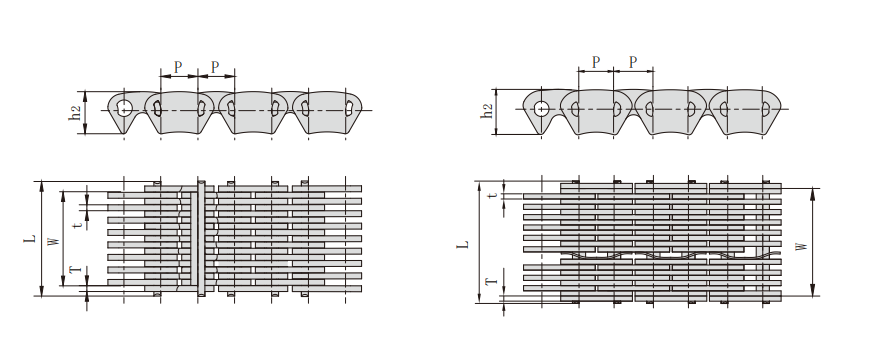

Parameter
| Chain No | Pitch | Width Between Guides | Pin length | Plate depth | Plate thickness | Guide type | Number of plate | Tensile strength | Weight per meter | |
| P | W | L max | h2 max | t | T | n | Q min | q | ||
| mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |||
| HV3F3 | 9.525 | 18.24 | 22.20 | 10.90 | 1.54 | 1.54 | Outside | 13(6×7 | 36.0/8093 | 1.16 |
| 9.525 | 31.70 | 36.50 | 10.90 | 1.54 | 1.54 | Outside | 21(10×11) | 45.0/10116 | 1.79 | |
| HV3F4 | 9.525 | 20.30 | 25.90 | 10.90 | 1.54 | 1.54 | Outside | 15(7×8) | 31.0/6969 | 1.29 |
| 9.525 | 24.58 | 29.80 | 11.90 | 1.54 | 1.54 | Outside | 17(8×9) | 48.0/10790 | 1.60 | |
| HV3.5 | 11.113 | 24.80 | 30.00 | 14.27 | 1.54 | 1.20 | Outside | 17(8×9 | 58.0/13038 | 2.13 |
| 11.113 | 28.00 | 32.70 | 14.27 | 1.54 | 1.20 | Outside | 19(9×10) | 65.0/14612 | 2.38 | |
| 11.113 | 31.20 | 36.00 | 14.27 | 1.54 | 1.20 | Outside | 21(10×11) | 72.0/16186 | 2.53 | |
| SC180 | 11.113 | 31.40 | 36.33 | 13.52 | 1.55 | 1.55 | Outside | 21(9×12 | 72.0/16186 | 2.37 |
| 11.113 | 37.80 | 42.72 | 13.52 | 1.55 | 1.55 | Outside | 25(11×14) | 88.0/19782 | 2.88 | |
| 11.113 | 40.90 | 46.60 | 13.52 | 1.55 | 1.55 | Outside | 27(12×15) | 96.0/21581 | 1.09 | |
| HV4F1-10X11W | 12.700 | 32.90 | 38.20 | 14.50 | 1.54 | 1.54 | Outside | 21(10×11) | 47.3/10633 | 2.20 |
| HV4F1-16X17N | 12.700 | 52.40 | 57.00 | 14.50 | 1.54 | 2.00 | Inside | 33(16×17) | 86.0/19333 | 3.50 |
| HV6 | 19.050 | 72.30 | 81.30 | 20.89 | 2.00 | 2.00 | Outside | 35(17×18) | 174.0/39115 | 7.40 |
| 19.050 | 101.90 | 108.90 | 20.89 | 2.00 | 2.00 | Inside | 49(24×25) | 174.0/39115 | 10.12 | |
| HV6D | 19.050 | 38.5 | 50.30 | 27.00 | 2.00 | 2.00 | Outside | 21(10×11) | 104.0/23379 | 4.52 |
| HV8 | 25.400 | 140.30 | 158.80 | 27.74 | 3.10 | 3.10 | Outside | 47(23×24) | 534.0/120043 | 20.46 |
| HV8D | 25.400 | 102.00 | 110.0 | 36.00 | 3.00 | 3.00 | Inside | 34(16×18) | 385.0/86548 | 14.40 |
| Chain No. | Pitch | Chain width | Pin length | Plate depth | Plate thickness | Guide form | Number of plate | Tensile strength | Weight per meter | |
| P mm | b1 min mm | L max mm | h2 max mm | t max mm | T max mm | n | Q min kN/lbf | q kg/ m | ||
| CL06 | 9.525 | 17.00 | 22.7 | 11.57 | 1.54 | 1.55 | Outside | 13(6X7) | 37/8318 | 1.28 |
| CL06D | 9.525 9.525 | 32.80 42.50 | 38.20 38.20 | 11.57 11.57 | 1.55 1.55 | 1.55 1.55 | Outside Outside | 23(12X11) 29(14X15) | 73/16410 86/19333 | 2.23 2.90 |
| BC1252 | 12.780 12.780 | 29.60 30.50 | 35.10 36.00 | 15.50 15.50 | 1.54 1.54 | 1.54 1.54 | Outside Outside | 21(10X11) 21(11X10) | 80/17984 80/17984 | 2.66 2.76 |
| SC1252 | 12.780 12.780 12.780 | 31.20 37.50 43.90 | 36.70 43.20 49.70 | 15.50 15.50 15.50 | 1.54/1.76 1.54/1.76 1.54/1.76 | 1.54 1.54 1.54 | Outside Outside Outside | 21(11X10) 25(13X12) 29(15X14) | 80/17984 96/21581 112/25178 | 2.82 3.33 3.85 |
