Product Description

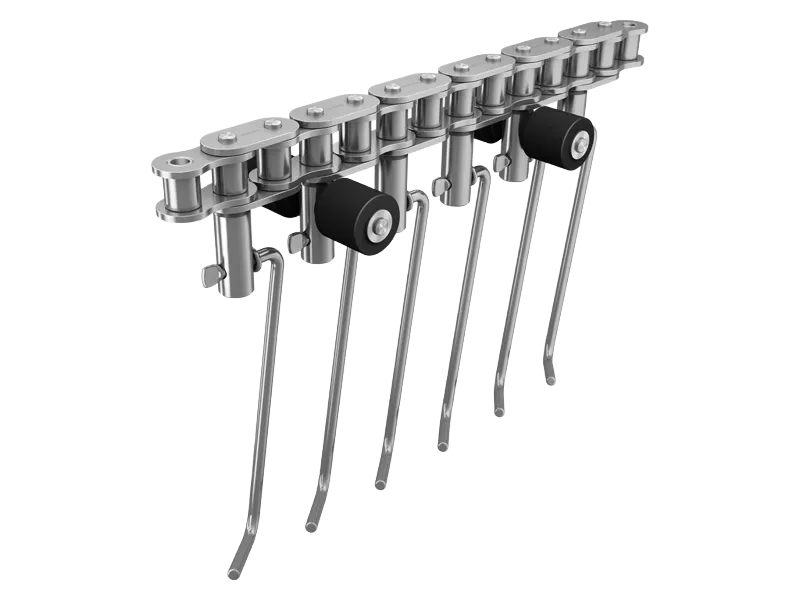

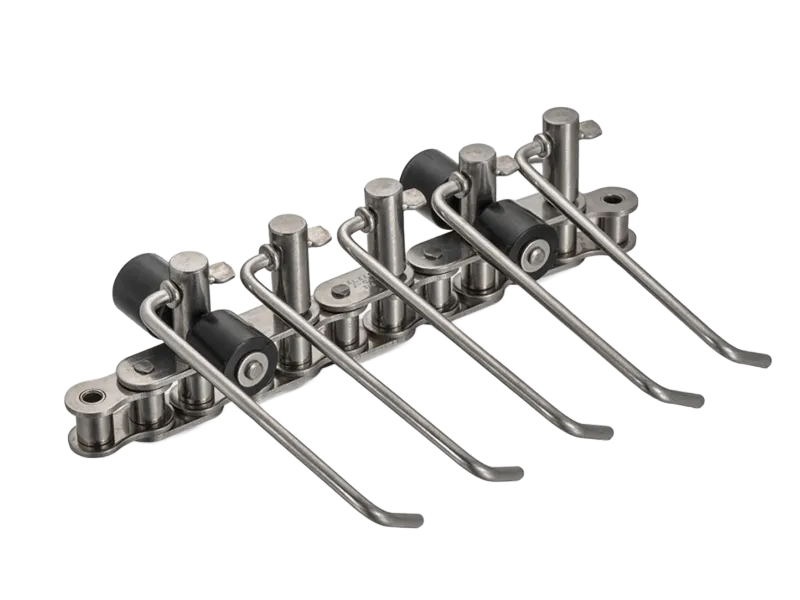

The conveying chain of stainless steel sausage production line can complete the automatic conveying and baking of sausage.
Using high-quality 316 stainless steel material and advanced processing technology.the product has the characteristics of corrosion resistance, high temperature resistance and high chain length precision, which is suitable for long-distance and stable transportation.
Parameter

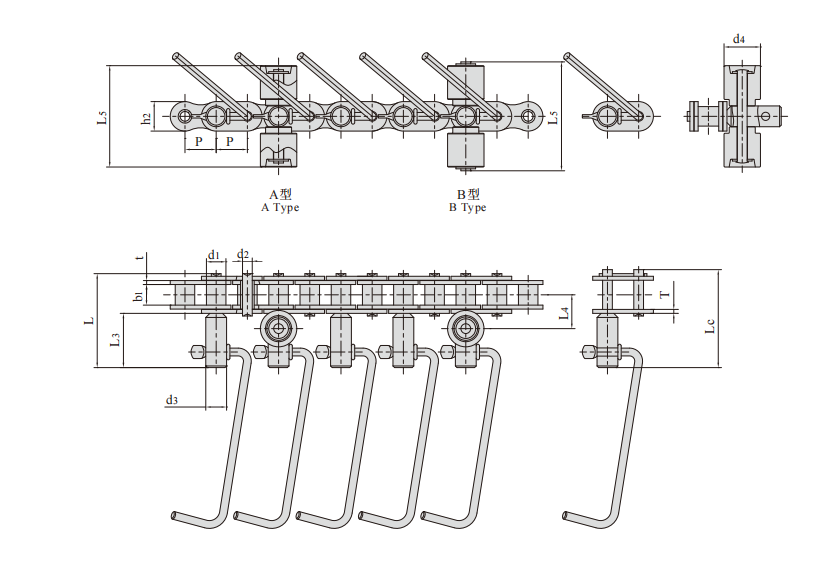

| Chain No. | Pitch |  Rollerdiameter | Width between inner plates | Pin diameter | Pin length | Plate dimension | Attachment dimension | Tensile strength | Type | ||||||
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | d3 | d4 | L3 | L4 | L5 | Q min | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | ||
| C60SBSS316-D1F73 | 19.05 | 11.91 | 12.57 | 5.94 | 57.5 | 59.9 | 18.0 | 2.42 | 12.7 | 22.23 | 33.2 | 20.65 | 63.5 | 18.8/4226 | A |
| C60SBSS316-D1F74 | 19.05 | 11.91 | 12.57 | 5.94 | 57.5 | 59.9 | 18.0 | 2.42 | 12.7 | 22.23 | 33.2 | 20.65 | 68.6 | 18.8/4226 | B |

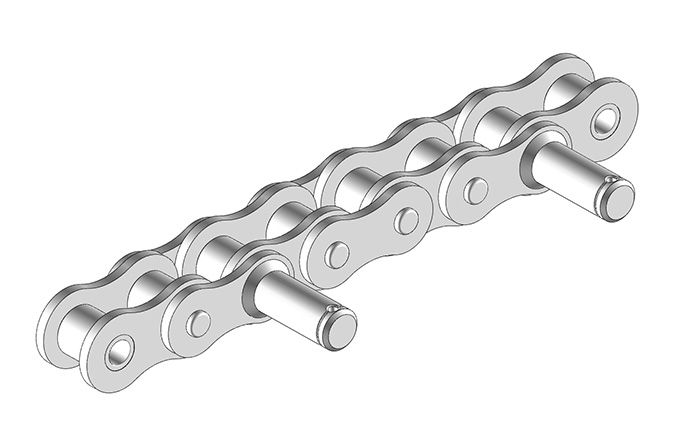

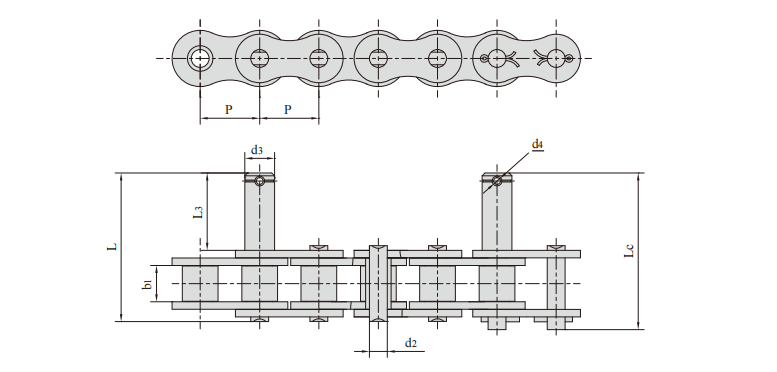

| Chain No. | P | b1 | d2 | d3 | L3 | L | Lc | d4 |
| mm | mm | mm | mm | mm | mm | mm | mm | |
| 20ASS316-D1F9 | 31.75 | 27.46 | 9.53 | 15.87 | 41.30 | 79.40 | 83.60 | 3.60 |

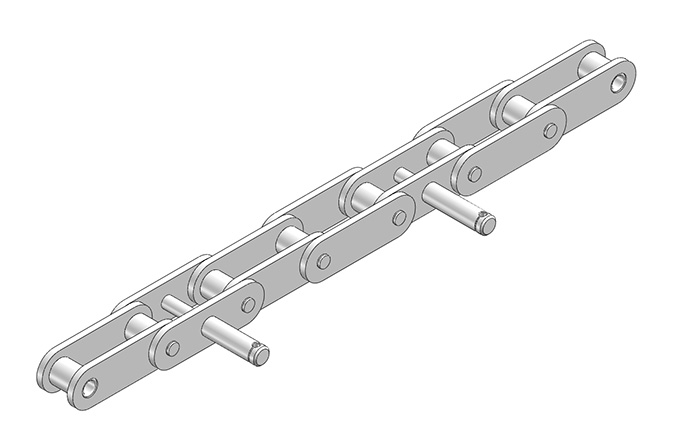

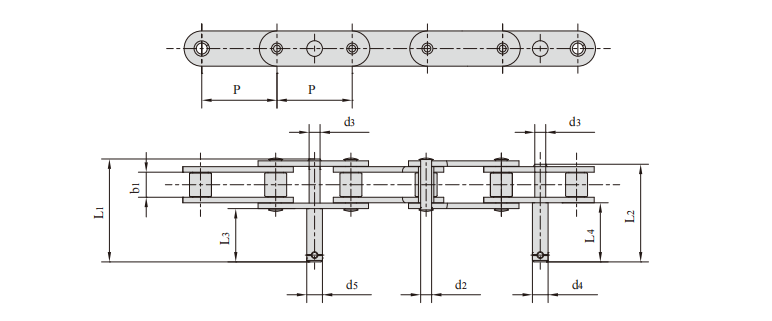

| Chain No. | P | b1 | d2 | d3 | d4 | d5 | L1 | L2 | L3 | L4 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| C2120HSSF14GK | 76.20 | 25.22 | 11.10 | 11.10 | 15.88 | 15.88 | 106.30 | 100.40 | 54.00 | 60.00 |
