Product Description
Rubber glove chain is a chain used in medical rubber glove production line, which can provide products with various structures and different series, and meet the needs of users for efficient production of various production lines
Rubber glove chain has the following characteristics:
1.The chain runs smoothly and has high strength
2.Special weight reduction design, suitable for long-distance transportation of high effciency production line;
3.Bearings with special structure can prolong the service life of products.
Parameter

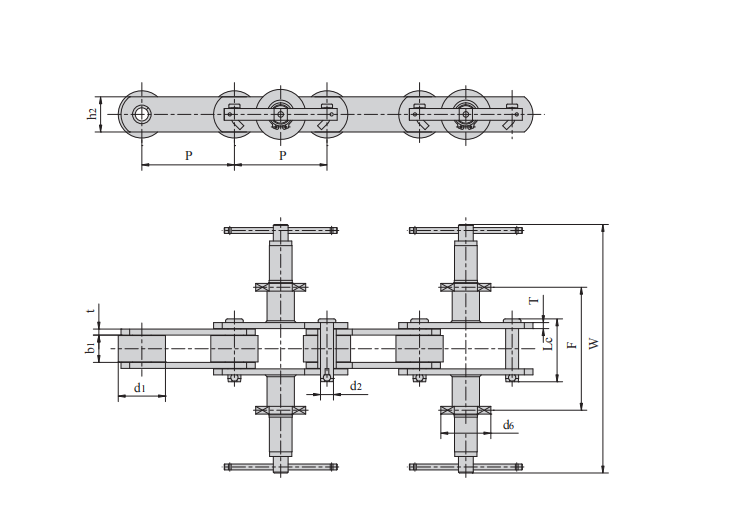

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Attachment dimension | Tensile strength | ||
| P | d1 max | b1 min | d2 max | Lc max | h2 max | t/T max | F | W | d6 | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| P90F1 | 90.0 | 60.0 | 29.5 | 14.2 | 74.5 | 38.5 | 6.0/7.0 | 121.5 | 236.6 | 62.0 | 112.0/25178 |
| P100F189 | 100.0 | 60.0 | 28.8 | 14.0 | 70.0 | 38.0 | 6.5 | 122.0 | 278.0 | 62.0 | 200.0/44960 |
| P100F218 | 100.0 | 60.0 | 29.0 | 15.0 | 76.4 | 38.0 | 8.0 | 138.0 | 244.0 | 62.0 | 230.0/51704 |

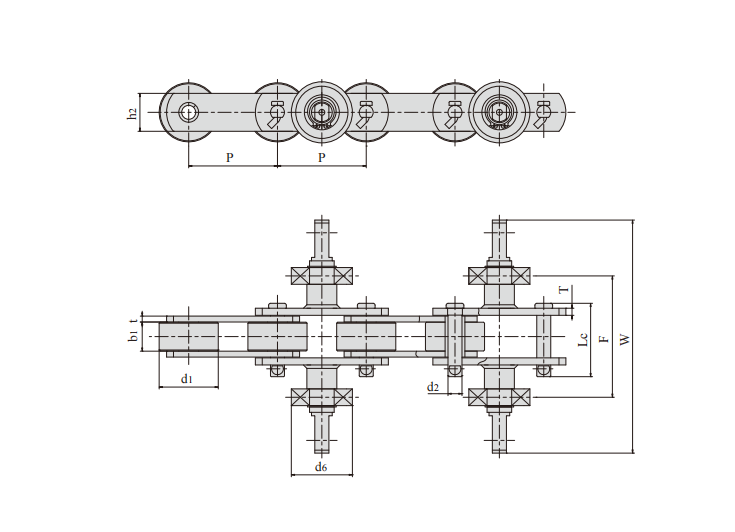

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Attachment dimension | Tensile strength | ||
| P | d1 max | b1 min | d2 max | Lc max | h2 max | t/T max | F | W | d6 | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| P100F154 | 100.0 | 51.0 | 29.5 | 14.0 | 72.0 | 38.0 | 6.5 | 210.0 | 482.0 | 62.0 | 200.0/44960 |
| P100F170 | 100.0 | 60.0 | 29.5 | 16.0 | 72.0 | 45.0 | 6.5 | 207.0 | 480.0 | 62.0 | 260.0/58448 |
| P100F204 | 100.0 | 60.0 | 28.5 | 14.0 | 71.0 | 38.0 | 6.5 | 207.0 | 478.0 | 62.0 | 200.0/44960 |
| P100F310 | 100.0 | 60.0 | 28.0 | 16.0 | 72.0 | 40.0 | 7.0 | 199.0 | 478.0 | 62.0 | 200.0/44960 |
| P100F312 | 100.0 | 58.0 | 28.5 | 16.0 | 77.0 | 40.0 | 8.0 | 207.0 | 478.0 | 62.0 | 260.0/58448 |
| P100F335 | 100.0 | 60.0 | 28.5 | 16.0 | 77.0 | 40.0 | 8.0 | 207.0 | 478.0 | 62.0 | 260.0/58449 |

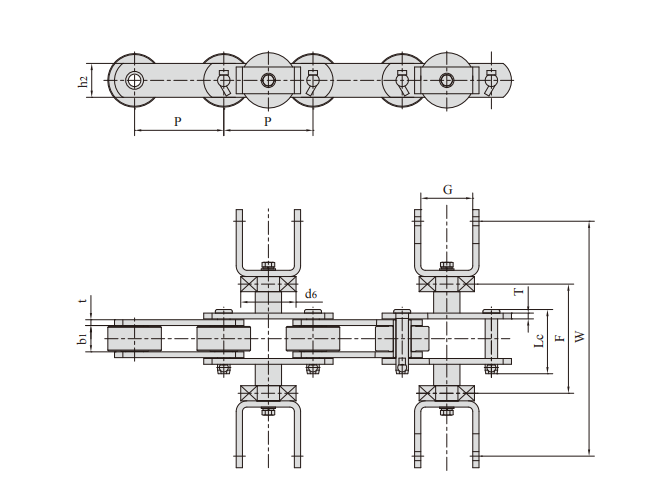

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Attachment dimension | Tensile strength | |||
| P | d1 max | b1 min | d2 max | Lc max | h2 max | t/T max | F | W | d6 | G | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| P100F155 | 100 | 60 | 29.5 | 14 | 72 | 38 | 6.5 | 122 | 262 | 62 | 59.5 | 200.0/44960 |
| P100F190* | 100 | 60 | 28.5 | 14 | 71 | 38 | 6.5 | 121 | 262 | 62 | 58.5 | 200.0/44960 |
| P100F205 | 100 | 60 | 29.5 | 14 | 71 | 38 | 6.5 | 121 | 263 | 62 | 58.2 | 200.0/44960 |
| P100F328* | 100 | 60 | 28.5 | 14 | 71 | 38 | 6.5 | 121 | 222 | 62 | 58.5 | 200.0/44960 |
| *U Type attachment with reinforce rib | ||||||||||||

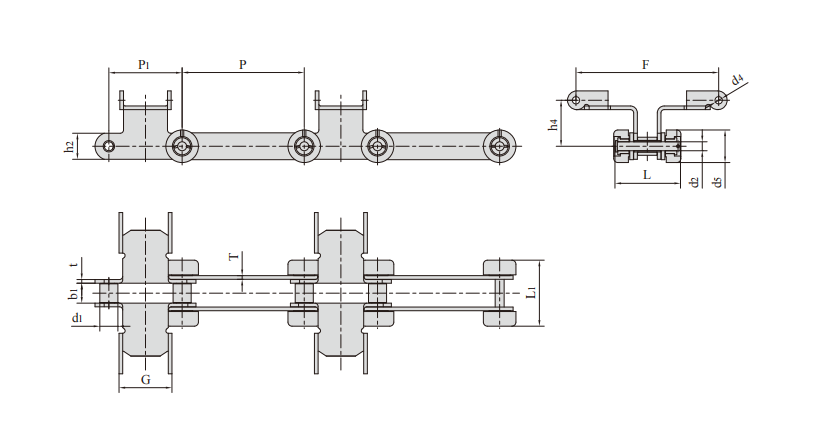

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Tensile strength | Weight per meter | |
| P | P1 | d1 max | b1 min | d2 max | L max | h2 max | t/T max | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| P100F13 | 100.0 | 100.0 | 22.23 | 22.5 | 10.8 | 76.5 | 32.0 | 6.0/4.5 | 60/13488 | 9.32 |
| P100F139 | 100.0 | 100.0 | 22.00 | 24.0 | 12.0 | 75.0 | 32.0 | 6.0 | 60/13488 | 11.87 |
| P150/90 | 150.0 | 90.0 | 22.20 | 24.3 | 10.8 | 81.5 | 32.0 | 4.5 | 60/13488 | 8.10 |
| Chain No. | G | L1 | F | h4 | d4 | d5 |
| mm | mm | mm | mm | mm | mm | |
| P100F13 | 74.6 | 79.5 | 175.0 | 56.5 | 9.2 | 40.0 |
| P100F139 | 74.6 | 83.5 | 176.5 | 56.5 | 9.1 | 40.0 |
| P150/90 | 65.0 | 82.0 | 175.0 | 57.0 | 9.2 | 40.0 |
