Product Description
It is used in water treatment facilities such as transit water treatment and sludge ponds, and is mainly used in municipal sewage treatment in large and medium-sizedcities and wastewater treatment in various heavy industries and hazardous chemical industries.
Special alloy steel, special stainless steel and other materials are selected to meet the requirements of high strength, wear resistance and corrosion resistance through special strengthening and surface treatment.
Parameter

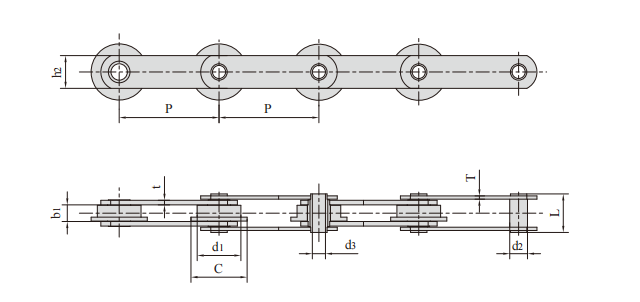

| Chain No. | Pitch | Width between inner plates | Roller diameter | Pin diameter | Pin length | Plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | |||
| P | b1 min | d1 max | C max | d2 max | d3 min | L max | h2 max | T max | t max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| W152 | 152.4 | 25.40 | 66.7 | 85.7 | 27.1 | 20.0 | 58.8 | 50.0 | 5.0 | 7.0 | 110.0/25000 | 122.1 | 10.78 |

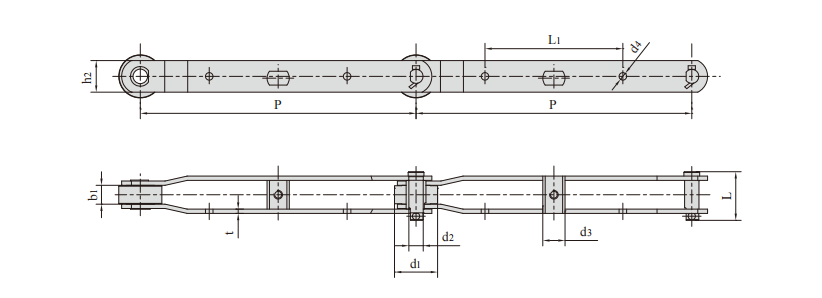

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin dimension | Plate dimension | Tensile strength | Weight per meter | |||||
| P | d1 max | b1 min | d2 max | d3 max | L max | h2 | t | L1 | d4 | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| P609.6F1 | 609.60 | 95.25 | 41.65 | 31.75 | 49.20 | 107.80 | 69.85 | 9.50 | 304.80 | 16.66 | 230.0/51704 | 16.77 |

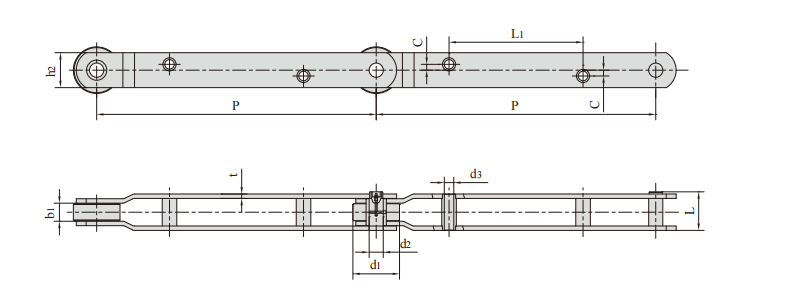

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin dimension | Plate dimension | Tensile strength | Weight per meter | |||||
| P | d1 max | b1 min | d2 max | d3 max | L max | h2 | t | C | L1 | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| P609.6F2 | 609.60 | 101.60 | 39.69 | 30.73 | 30.64 | 84.30 | 76.20 | 9.50 | 12.70 | 292.10 | 80.0/17984 | 17.35 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin dimension | Plate dimension | Tensile strength | Weight per meter | |||||
| P | d1 max | b1 min | d2 max | d3 max | L max | h2 | t | C | L1 | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| P609.6F2 | 609.60 | 101.60 | 39.69 | 30.73 | 30.64 | 84.30 | 76.20 | 9.50 | 12.70 | 292.10 | 80.0/17984 | 17.35 |

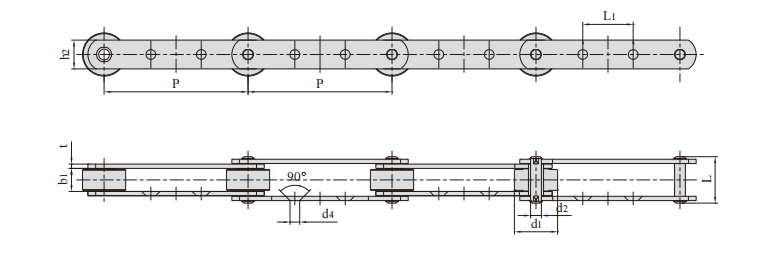

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin dimension | Plate dimension | Tensile strength | Weight per meter | ||||
| P | d1 max | b1 min | d2 max | L max | h2 | t | L1 | d4 | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| M112GA2F2-PA6-200 | 200.00 | 60.00 | 32.00 | 15.00 | 64.50 | 40.00 | 6.00 | 70.00 | 13.50 | 112.0/25178 | 5.30 |
