Product Description
Double hinged conveying chain is the main traction component of light closed track suspension conveyor, which has two sets of hinges perpendicular to each other, and can run smoothly along curved closed track in space to realize suspension conveying.
There are many structures of double hinged conveyor chain. Typical structures in JB/T8546 standard include A-type structure (double-chain plate with double sprockets and single guide sprocket), S-type structure (double-chain plate with double sprockets and double guide sprocket) and Q-type structure (light double-chain plate with double sprockets and double guide sprocket), which can realize correct positioning in the track and reduce running resistance.
Parameter

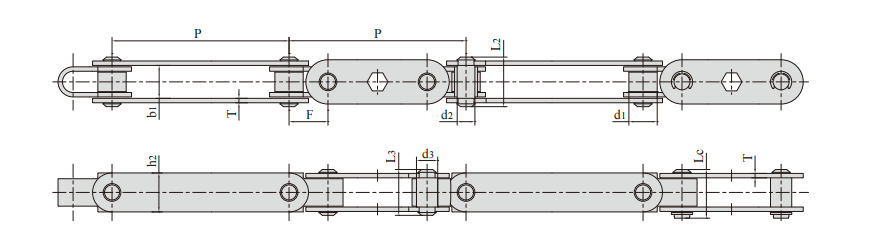

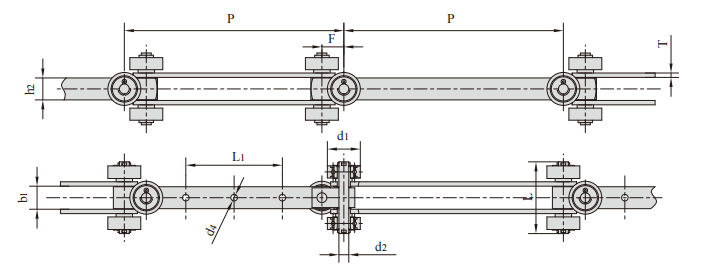

| Chain No. | Pitch | Roller diameter | Width between outer plates | Pin diameter | Pin lenght | plate dimension | Attachment dimension | Tensile strength | |||
| P | d1 max | b1 min | d2 max | L max | h2 max | T max | L1 | d4 | F | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| P210 | 204.0 | 35.0 | 27.5 | 10.0 | 90.0 | 25.0 | 4.0 | 100.0 | 8.5 | 8.0 | 50.0/11364 |
| SJ406S-50 | 203.2 | 35.0 | 27.5 | 10.0 | 90.0 | 25.0 | 4.0 | 100.0 | 8.5 | 11.0 | 50.0/11364 |

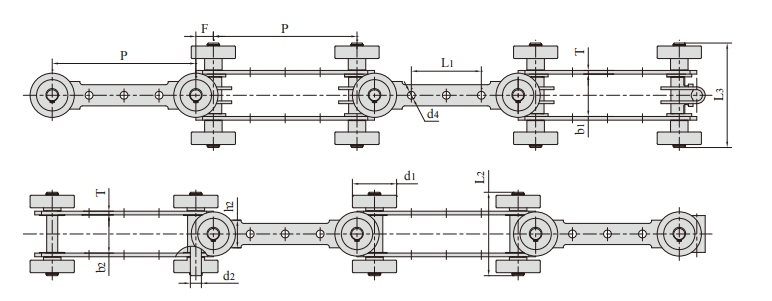

Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin lenght | Plate dimension | Attachment dimension | Tensile strength | |||||
| P | d1 max | d4 max | b1 min | d2 | d3 | L max | L1 max | L2 max | h2 max | T max | F | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| P100F11 | 100.0 | 12.0 | 32.0 | 8.6 | 6.0 | 8.5 | 22.0 | 53.0 | 22.0 | 16.0 | 2.5 | 20.0 | 20.0/4545 |

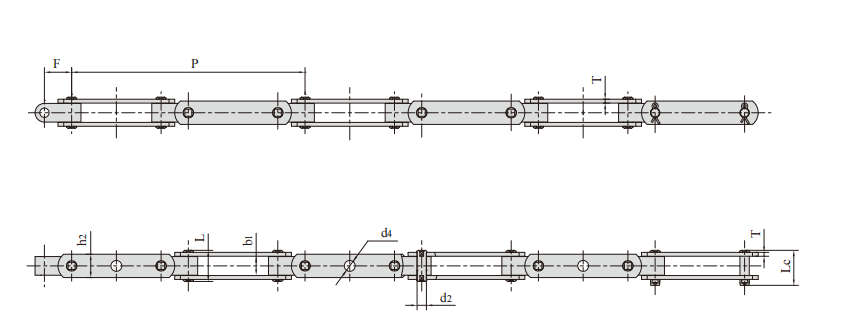

| Chain No. | Pitch | Roller diameter | Width between outer plates | Pin diameter | Pin lenght | plate dimension | Attachment dimension | Tensile strength | |||
| P | d1 max | b1 min | d2 max | L max | h2 max | T max | L1 | d4 | F | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| SJ400-40 | 200.0 | 30.0 | 20.0 | 9.0 | 65.0 | 20.0 | 3.0 | 88.0 | 6.44 | 20.0 | 15.0/3374 |
| SJ400-60 | 200.0 | 35.0 | 21.0 | 10.0 | 64.5 | 20.0 | 4.0 | 88.0 | 6.50 | 20.0 | 60.0/13497 |
| SJ400-100 | 200.0 | 40.0 | 26.0 | 14.0 | 75.0 | 30.0 | 4.0 | 88.0 | 10.00 | 25.0 | 100.0/22495 |
| SJ400F1-120 | 200.0 | 45.0 | 32.0 | 14.0 | 102.0 | 30.0 | 6.0 | 85.0 | 10.50 | 20.0 | 100.0/22495 |
| SJ400F3-120 | 200.0 | 45.0 | 31.0 | 14.0 | 102.0 | 30.0 | 6.0 | 85.0 | 10.50 | 20.0 | 100.0/22495 |
| SJ405S-60 | 203.2 | 47.0 | 30.0 | 14.0 | 95.0 | 30.0 | 4.0 | 76.2 | 8.40 | 16.5 | 50.0/11247 |
| SJ405SF1-60 | 203.2 | 47.0 | 36.0 | 14.0 | 95.0 | 30.0 | 4.0 | 76.2 | 8.40 | 16.5 | 60.0/13497 |

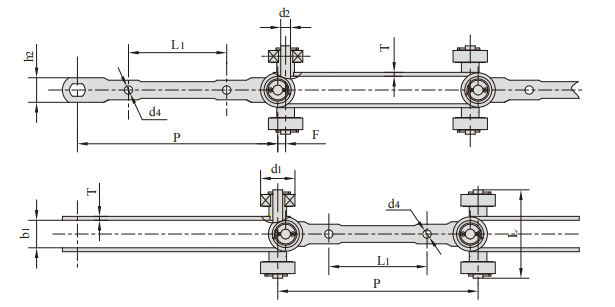

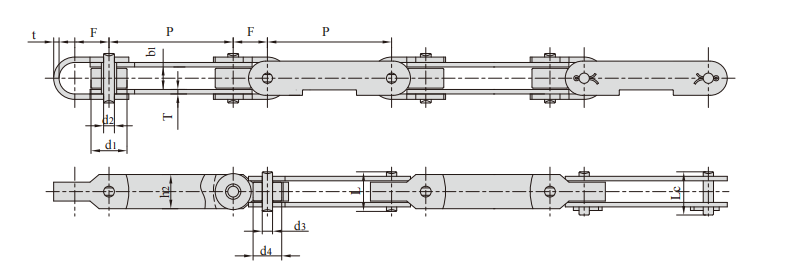

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin lenght | plate dimension | Attachment dimension | Tensile strength | |||||
| P | d1 max | d4 max | b1 min | d2 | d3 | L max | Lc max | h2 max | T max | F | t | min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| P69F2 | 69.0 | 20.0 | 15.9 | 8.6 | 6.0 | 5.72 | 22.0 | 24.0 | 19.0 | 2.5 | 19.0 | 3.0 | 20.0/4545 |

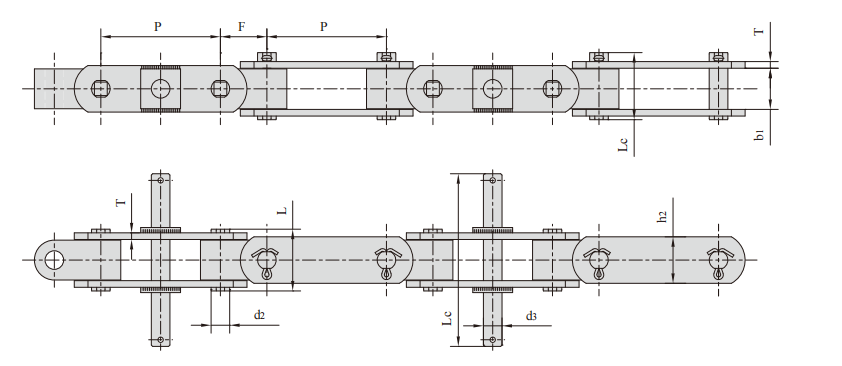

| Chain No | Pitch | Width between outer plates | Pin diameter | Pin lenght | plate depth | plate thickness | Attachment dimension | Tensile strength | Average tensile strength | Weight per meter | ||
| P | b1 min | d2 max | L max | Lc max | h2 max | T max | F | d4 | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| SJ250F3 | 250.00 | 24.6 | 12.0 | 40.0 | 45.0 | 30.0 | 5.0 | 35.0 | 14.0 | 90/20230 | 94.0 | 4.41 |
| SJ250F4 | 250.00 | 31.0 | 16.0 | 48.0 | 53.0 | 35.0 | 6.0 | 35.0 | 18.0 | 150/33720 | 160.0 | 6.90 |
| SJ266.66 | 266.66 | 25.0 | 12.0 | 40.0 | 45.0 | 30.0 | 5.0 | 35.0 | 14.0 | 100/22480 | 105.0 | 4.28 |
| SJ280 | 280.00 | 31.0 | 16.0 | - | 60.7 | 40.0 | 6.0 | 40.0 | 16.0 | 112/25177 | 117.6 | 7.00 |
| SJ300F3 | 300.00 | 24.6 | 12.0 | 40.0 | 45.0 | 30.0 | 5.0 | 35.0 | 14.0 | 90/20230 | 94.0 | 4.02 |
| SJ300F4 | 300.00 | 31.0 | 16.0 | 48.0 | 53.0 | 35.0 | 6.0 | 35.0 | 18.0 | 150/33720 | 160.0 | 6.22 |
| Chain No. | Pitch | Roller diameter | Width between outer plates | Pin diameter | Pin lenght | plate dimension | Attachment dimension | Tensile strength | ||||
| P | d1 max | b1 min | d2 max | d3 max | L2 max | L3 max | Lc max | h2 max | T max | F | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| SJ240F1 | 120.0 | 16.0 | 18.6 | 10.0 | 12.0 | 28.0 | 25.9 | 27.5 | 22.0 | 2.5 | 22.0 | 30.0/6744 |
| Chain No. | Pitch | Width between outer plates | Pin diameter | Pin lenght | plate dimension | Attachment dimension | Tensile strength | ||||
| P | b1 min | d2 max | d3 max | L max | Lc max | L1 max | h2 max | T max | F | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| SJ250F6 | 90.0 | 31.0 | 14.0 | 14.0 | 46.5 | 50.5 | 130.0 | 35.0 | 5.0 | 35.0 | 100.0/22480 |
| SJ300F9 | 115.0 | 31.0 | 16.0 | 18.0 | 48.0 | 53.0 | 130.0 | 35.0 | 6.0 | 35.0 | 125.0/28100 |

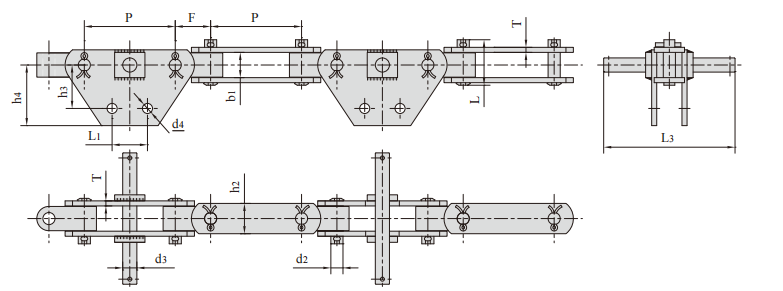

| Chain No. | Pitch | Width between outer plates | Pin diameter | Pin lenght | plate dimension | Attachment dimension | Tensile strength | |||||||
| P | b1 min | d2 max | d3 max | L max | L3 max | h2 max | T max | h3 | h4 | L1 | d4 | F | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| SJ250F9 | 90.0 | 25.0 | 12.0 | 14.0 | 45.0 | 130.0 | 30.0 | 5.0 | 55.0 | 72.0 | 35.0 | 10.0 | 35.0 | 90.0/20232 |
| SJ300F2 | 110.0 | 30.4 | 16.0 | 16.0 | 58.0 | 132.0 | 40.0 | 6.0 | 55.0 | 70.0 | 32.0 | 12.0 | 40.0 | 230.0/51704 |
| SJ300F13 | 115.0 | 31.0 | 16.0 | 18.0 | 53.0 | 155.0 | 35.0 | 6.0 | 33.0 | 52.5 | 30.0 | 13.0 | 35.0 | 150.0/33720 |

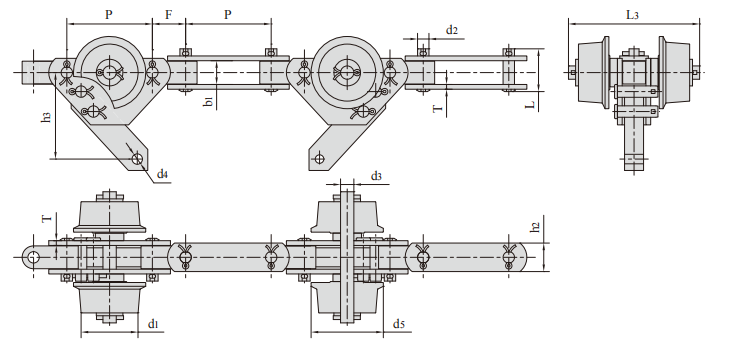

| Chain No. | Pitch | Pin diameter | Width between outer plates | Pin diameter | Pin lenght | plate dimension | Attachment dimension | Tensile strength | ||||||
| P | d1 max | d5 max | b1 min | d2 max | d3 max | L max | L3 max | h2 max | T max | h3 | d4 | F | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| SJ250F11 | 90.0 | 60.0 | 76.0 | 25.0 | 12.0 | 14.0 | 45.0 | 138.0 | 30.0 | 5.0 | 35.0 | 10.0 | 35.0 | 90.0/20232 |

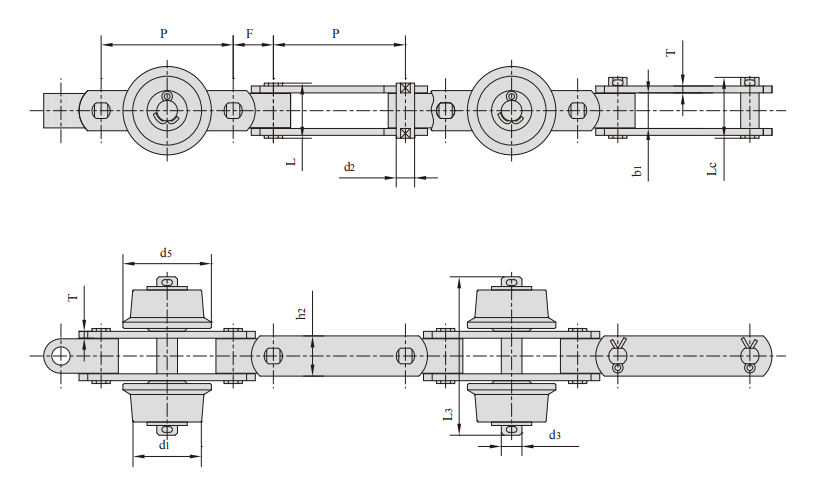

| Chain No. | Pitch | Pin diameter | Width between outer plates | Pin diameter | Pin lenght | plate dimension | Attachment dimension | Tensile strength | |||||
| P | d1 max | d5 max | b1 min | d2 max | d3 max | L max | Lc max | L3 max | h2 max | T max | F | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| SJ250F7 | 90.0 | 60.0 | 77.0 | 25.0 | 12.0 | 14.0 | - | 45.0 | 135.0 | 30.0 | 5.0 | 35.0 | 50.0/11240 |
| SJ300F8 | 115.0 | 60.0 | 77.0 | 31.0 | 16.0 | 18.0 | 48.0 | 53.0 | 138.0 | 35.0 | 6.0 | 35.0 | 150.0/33720 |

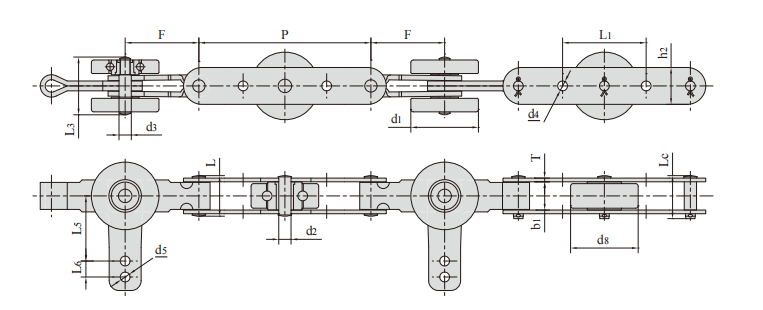

| Chain No. | Pitch | Pin diameter | Width between outer plates | Pin diameter | Pin lenght | plate dimension | Attachment dimension | Tensile strength | ||||||||||
| P | d1 max | d8 max | b1 min | d2 max | d3 max | L max | Lc max | L3 max | h2 max | T max | L1 | L5 | L6 | d4 | d5 | F | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| SJ184F1 | 111.3 | 55.0 | 46.0 | 23.0 | 10.0 | 10.0 | 38.0 | - | 45.5 | 25.6 | 4.0 | 68.8 | 53.7 | 12.2 | 7.9 | 7.7 | 36.35 | 20.0/4496 |
| SJ200F5 | 130.0 | 55.0 | 48.0 | 23.0 | 10.0 | 10.0 | 36.0 | 37.0 | 45.0 | 25.0 | 4.0 | 70.0 | 53.0 | 13.0 | 8.0 | 8.0 | 35.00 | 35.0/7868 |
| SJ300F14 | 180.0 | 55.0 | 55.0 | 23.0 | 10.0 | 10.0 | 33.0 | 35.0 | 43.0 | 30.0 | 3.0 | 68.0 | 53.0 | 13.0 | 8.0 | 8.0 | 60.00 | 20.0/4496 |
| Chain No. | Pitch | Pin diameter | Width between outer plates | Pin diameter | Pin lenght | plate dimension | Attachment dimension | Tensile strength | |||||
| P | d1 max | b1 min | b2 min | d2 max | L2 max | L3 max | h2 max | T max | L1 | d4 | F | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| SJ350 | 156.0 | 48.0 | 46.0 | 43.0 | 12.0 | 91.0 | 112.5 | 30.0 | 4.0 | 76.0 | 8.5 | 19.0 | 40.0/8992 |
