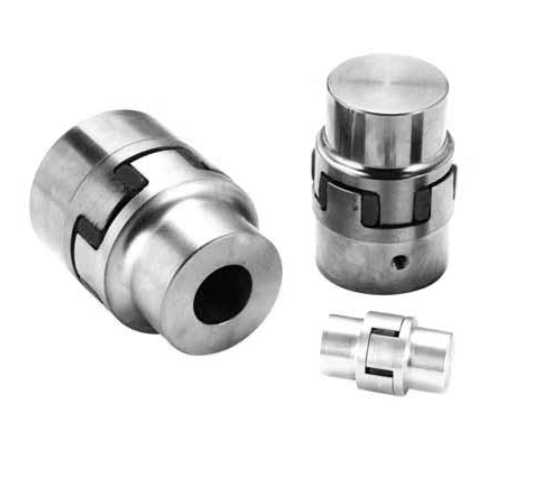

Product Description
The GEH type coupling is a flexible coupling used in mechanical transmission systems, and it is widely designed and applied.In terms of product range, the GEH coupling follows the DIN standard, with a size range of GEH19 to GEH90.In addition, the classification of GEH type couplings also includes different models such as GEH-A, GET, GEZ, and GEM, which correspond to different application scenarios and requirements.For example, the GEH-A type coupling is a metric size product designed specifically for the DIN market, and the GEH type coupling is mainly used in mechanical transmission systems that require high precision and reliability.
In summary, the GEH type coupling is a flexible coupling that meets DIN standards, with a wide range of sizes and multiple models to choose from, suitable for various industrial mechanical transmission systems.
parameter

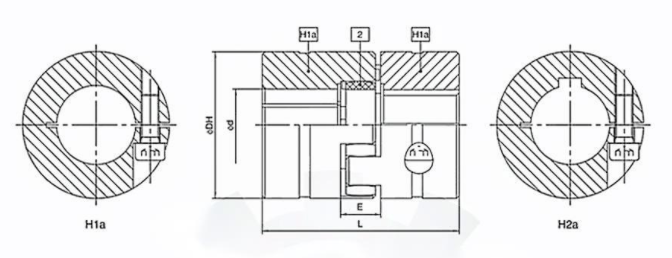

DIN GEH Type Couplings图纸
DIN GEH Type Couplings
| Catalog | part | Basic dimensions | Shaft hole diameter | Rated torque of hexagon socket screw(N.m) | Maximum speed (rpm) | Moment of inertia (kg.cm²） | weight (kg) | ||||||
| L | DH | E | min | max | specifications | TA(N.m) | SHA92 | SHA96 | |||||
| GEH-19 | H1a | 66 | 40 | 16 | 8 | 20 | M6 | 14 | 10 | 17 | 11600 | 0.53 | 0.25 |
| H2a | |||||||||||||
| GEH-24 | H1a | 78 | 55 | 18 | 10 | 28 | M6 | 14 | 35 | 60 | 8500 | 2.23 | 0.55 |
| H2a | |||||||||||||
| GEH-28 | H1a | 90 | 65 | 20 | 14 | 38 | M8 | 35 | 95 | 160 | 7100 | 4.99 | 0.88 |
| H2a | |||||||||||||
| GEH-38 | H1a | 114 | 80 | 24 | 15 | 42 | M8 | 35 | 190 | 325 | 5900 | 12.7 | 1.17 |
| H2a | |||||||||||||
| GEH-42 | H1a | 126 | 95 | 26 | 20 | 50 | M10 | 69 | 265 | 450 | 5000 | 30 | 1.88 |
| H2a | |||||||||||||
| GEH-48 | H1a | 140 | 105 | 28 | 20 | 55 | M12 | 120 | 310 | 525 | 4500 | 49.56 | 2.55 |
| H2a | |||||||||||||
| GEH-55 | H1a | 160 | 120 | 30 | 32 | 65 | M12 | 120 | 410 | 685 | 3900 | 94.56 | 5.2 |
| H2a | |||||||||||||
| GEH-65 | H1a | 185 | 135 | 35 | 35 | 70 | M12 | 120 | 625 | 940 | 3500 | 190 | 5.85 |
| H2a | |||||||||||||
| GEH-75 | H1a | 210 | 160 | 40 | 42 | 80 | M16 | 295 | 1280 | 1920 | 2980 | 400 | 9.06 |
| H2a | |||||||||||||
| GEH-90 | H1a | 245 | 200 | 45 | 42 | 90 | M20 | 580 | 2400 | 3600 | 2380 | 1170 | 17 |
| H2a | |||||||||||||
| Note: The shaft hole and keyway can be selected according to DIN6885, JIS B1310, UNI6604, GB1095 standards. | |||||||||||||
