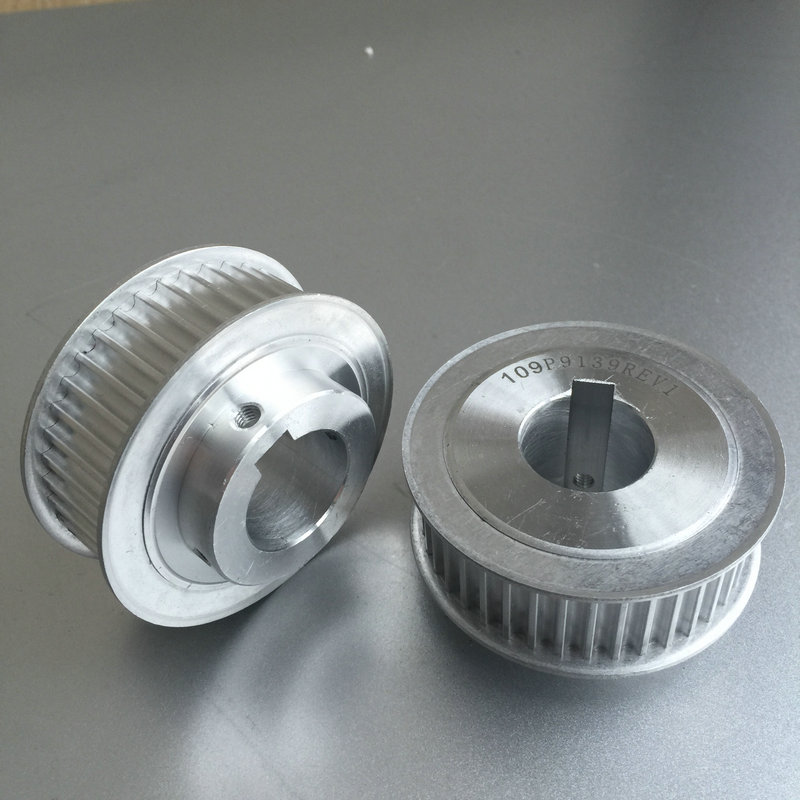

HTD(STD) Pulley 20M

Quantity:

Product Description

Pulleys.pdf

HTD(STD)  Pulley 20M(according to your drawing)

Technical Data Sheet



20M  115mm
ITEM TEETH STRUCTURE Dp  O.D.(De) W L K X Dm  d E  Flange I.D. Flange Type
34-20M 34 B/W 216.45 212.13 135 168 125 - 165 32 - 240 165 F-40240165
36-20M 36 B/W 229.18 224.87 135 168 125 - 178 32 - 250 178 F-40250178
38-20M 38 B/W 241.92 237.6 135 168 125 - 181 32 - 265 190 F-40265190
40-20M 40 B/W 254.56 250.33 135 168 125 - 203 32 - 275 203 F-40275203
44-20M 44 B/W 280.11 275.79 135 168 125 - 210 32 - 300 228 F-40300228
48-20M 48 B/W 305.88 301.26 135 168 125 - 228 32 - 325 254 F-40325254
52-20M 52 B/W 331.04 326.72 135 168 125 - 228 32 - 350 279 F-40350279
56-20M 56 B/W 356.51 352.19 135 168 125 - 228 32 - 375 305 F-40375305
60-20M 60 W 381.97 377.65 135 168 125 30 228 38 318 405 330 F-40405330
64-20M 64 W 407.44 403.12 135 168 125 30 228 38 343 430 356 F-40430356
68-20M 68 W 432.9 428.58 135 168 125 30 228 38 366 455 382 F-40455382
72-20M 72 W 458.37 454.05 135 168 125 30 228 38 392 480 407 F-40480407
80-20M 80 W 509.3 504.98 135 168 125 30 280 38 445 530 457 F-40530457
90-20M 90 W 572.96 568.64 135 168 125 30 280 38 508 595 521 F-40595521



20M  70mm
规格 齿数 形状 节径 外径 W L 1K X 轮毂直径 内孔 透孔外径 档边外径 档边内径 档边型号
34-20M 34 B/W 216.45 212.13 192 223 180 - 165 32 - 240 165 F-40240165
36-20M 36 B/W 229.18 224.87 192 223 180 - 178 32 - 250 178 F-40250178
38-20M 38 B/W 241.92 237.6 192 223 180 - 181 32 - 265 190 F-40265190
40-20M 40 B/W 254.56 250.33 192 223 180 - 203 32 - 275 203 F-40275203
44-20M 44 B/W 280.11 275.79 192 223 180 - 210 32 - 300 228 F-40300228
48-20M 48 B/W 305.88 301.26 192 223 180 - 228 32 - 325 254 F-40325254
52-20M 52 B/W 331.04 326.72 192 223 180 - 228 32 - 350 279 F-40350279
56-20M 56 B/W 356.51 352.19 192 223 180 - 228 32 - 375 305 F-40375305
60-20M 60 W 381.97 377.65 192 223 180 30 228 38 318 405 330 F-40405330
64-20M 64 W 407.44 403.12 192 223 180 30 228 38 343 430 356 F-40430356
68-20M 68 W 432.9 428.58 192 223 180 30 228 38 366 455 382 F-40455382
72-20M 72 W 458.37 454.05 192 223 180 30 228 38 392 480 407 F-40480407
80-20M 80 W 509.3 504.98 192 223 180 30 280 38 445 530 457 F-40530457
90-20M 90 W 572.96 568.64 192 223 180 30 280 38 508 595 521 F-40595521





20M   230mm
ITEM TEETH STRUCTURE Dp  O.D.(De) W L K X Dm  d E  Flange I.D. Flange Type
34-20M 34 B/W 216.45 212.13 250 283 240 - 165 32 - 240 165 F-40240165
36-20M 36 B/W 229.18 224.87 250 283 240 - 178 32 - 250 178 F-40250178
38-20M 38 B/W 241.92 237.6 250 283 240 - 181 32 - 265 190 F-40265190
40-20M 40 B/W 254.56 250.33 250 283 240 - 203 32 - 275 203 F-40275203
44-20M 44 B/W 280.11 275.79 250 283 240 - 210 32 - 300 228 F-40300228
48-20M 48 B/W 305.88 301.26 250 283 240 - 228 32 - 325 254 F-40325254
52-20M 52 B/W 331.04 326.72 250 283 240 - 228 32 - 350 279 F-40350279
56-20M 56 B/W 356.51 352.19 250 283 240 - 228 32 - 375 305 F-40375305
60-20M 60 W 381.97 377.65 250 283 240 40 228 38 318 405 330 F-40405330
64-20M 64 W 407.44 403.12 250 283 240 40 228 38 343 430 356 F-40430356
68-20M 68 W 432.9 428.58 250 283 240 40 228 38 366 455 382 F-40455382
72-20M 72 W 458.37 454.05 250 283 240 40 228 38 392 480 407 F-40480407
80-20M 80 W 509.3 504.98 250 283 240 40 280 38 445 530 457 F-40530457
90-20M 90 W 572.96 568.64 250 283 240 40 280 38 508 595 521 F-40595521



20M  290mm
ITEM TEETH STRUCTURE Dp  O.D.(De) W L K X Dm  d E  Flange I.D. Flange Type
34-20M 34 B/W 216.45 212.13 305 343 295 - 165 32 - 240 165 F-40240165
36-20M 36 B/W 229.18 224.87 305 343 295 - 178 32 - 250 178 F-40250178
38-20M 38 B/W 241.92 237.6 305 343 295 - 181 32 - 265 190 F-40265190
40-20M 40 B/W 254.56 250.33 305 343 295 - 203 32 - 275 203 F-40275203
44-20M 44 B/W 280.11 275.79 305 343 295 - 210 32 - 300 228 F-40300228
48-20M 48 B/W 305.88 301.26 305 343 295 - 228 32 - 325 254 F-40325254
52-20M 52 B/W 331.04 326.72 305 343 295 - 228 32 - 350 279 F-40350279
56-20M 56 B/W 356.51 352.19 305 343 295 - 228 32 - 375 305 F-40375305
60-20M 60 W 381.97 377.65 305 343 295 42 228 38 318 405 330 F-40405330
64-20M 64 W 407.44 403.12 305 343 295 42 228 38 343 430 356 F-40430356
68-20M 68 W 432.9 428.58 305 343 295 42 228 38 366 455 382 F-40455382
72-20M 72 W 458.37 454.05 305 343 295 42 228 38 392 480 407 F-40480407
80-20M 80 W 509.3 504.98 305 343 295 42 280 38 445 530 457 F-40530457
90-20M 90 W 572.96 568.64 305 343 295 42 280 38 508 595 521 F-40595521
