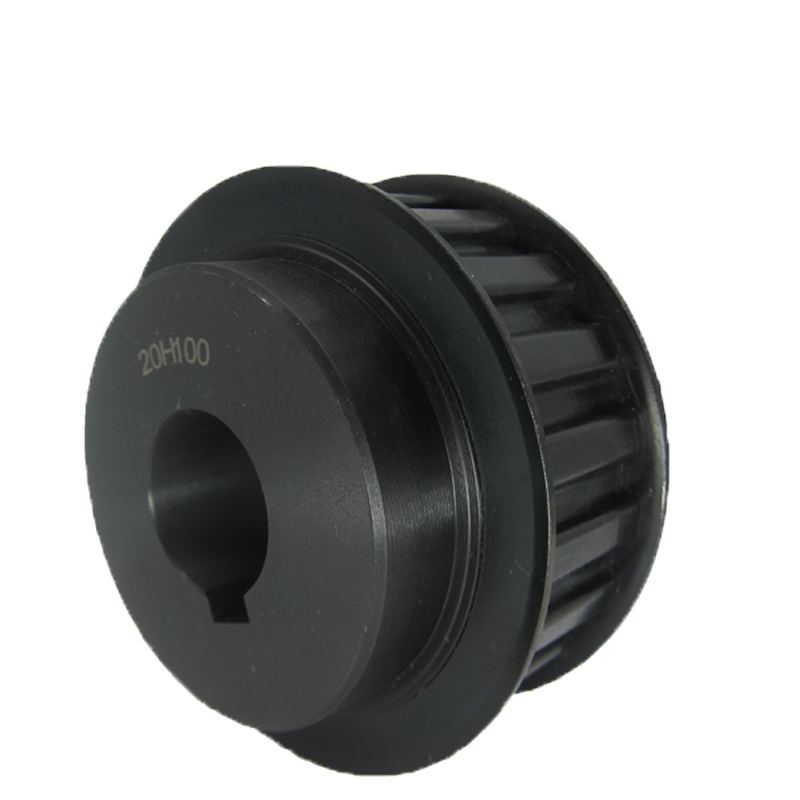

Trapezoidal Tooth MXL

Quantity:

Product Description

Pulleys.pdf

Trapezoidal Tooth MXL

Technical Data Sheet



TEETH Dp O.D.(De)  ITEM  L
10 6.47 5.96 10MXL100 100
11 7.11 6.61 11MXL100
12 7.76 7.25 12MXL100
13 8.41 7.9 13MXL100
14 9.06 8.55 14MXL100
15 9.7 9.19 15MXL100
16 10.35 9.84 16MXL100
17 11 10.49 17MXL100
18 11.64 11.14 18MXL100
19 12.29 11.78 19MXL100
20 12.94 12.43 20MXL100
21 13.58 13.08 21MXL100
22 14.23 13.72 22MXL100
23 14.88 14.37 23MXL100
24 15.52 15.02 24MXL100
25 16.17 15.66 25MXL100
26 16.82 16.31 26MXL100
27 17.46 16.96 27MXL100
28 18.11 17.6 28MXL100
30 19.4 18.9 30MXL100
32 20.7 20.19 32MXL100
36 23.29 22.78 36MXL100
40 25.87 25.36 40MXL100
44 28.46 27.95 44MXL100
48 31.05 30.54 48MXL100
50 32.34 31.83 50MXL100
60 38.81 38.3 60MXL100
70 45.28 44.77 70MXL100
72 46.57 46.06 72MXL100
80 51.74 51.24 80MXL100
84 54.33 53.82 84MXL100
96 62.09 61.59 96MXL100
100 64.68 64.17 100MXL100
120 77.62 77.11 120MXL100



ITEM TEETH STRUCTURE Dp  O.D.(De) W L K X Dm  d  Flange I.D. Flange Type
20MXL 20 C/A 12.94 12.43 11 16 7 - 9 6 18 11 F-101811
21MXL 21 C/A 13.58 13.08 11 16 7 - 9 6 18 11 F-101811
22MXL 22 C/A 14.23 13.72 11 16 7 - 9 6 18 11 F-101811
23MXL 23 C/A 14.88 14.37 11 16 7 - 10 6 20 12 F-102012
24MXL 24 C/A 15.52 15.02 11 16 7 - 10 6 20 12 F-102012
25MXL 25 C/A 16.17 15.66 11 16 7 - 10 6 23 12 F-102312
26MXL 26 C/A 16.82 16.31 11 16 7 - 10 6 23 12 F-102312
27MXL 27 C/A 17.46 16.96 11 16 7 - 11 7 23 13 F-102313
28MXL 28 C/A 18.11 17.6 11 16 7 - 11 7 23 13 F-102313
30MXL 30 A/B 19.4 18.9 11 16 7 - 11 7 23 13 F-102313
32MXL 32 A/B 20.7 20.19 11 16 7 - 13 8 26 16 F-102516
36MXL 36 A/B 23.29 22.78 11 16 7 - 15 10 28 18 F-102818
40MXL 40 A/B 25.87 25.36 11 18 7 - 17 10 31 20 F-103120
48MXL 48 A/B 31.05 30.54 11 18 7 - 18 10 35 22 F-103522
60MXL 60 A/B 38.81 38.3 11 18 7 - 28 20 44 32 F-104432
72MXL 72 A/B 46.57 46.06 11 18 7 - 30 20 51 36 F-105136
84MXL 84 A/B 54.33 53.82 11 18 7 - 35 23 61 41 F-106141
96MXL 96 A/B 62.09 61.59 11 18 7 - 42 28 69 50 F-106950
120MXL 120 A/B 77.62 77.11 11 18 7 - 56 37 86 66 F-108666
