Product Description

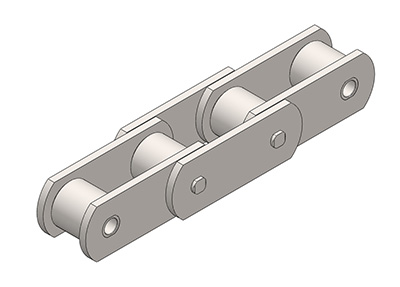

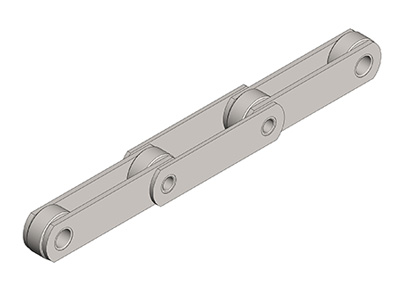

Metric (M series) conveyor chain conforms to ISO and DlN standards, mainly including M type conveyor chain, MT type conveyor chain and MC type hollow pin shaft conveyor chain:
Metric conveyor chain refers to roller chain or sleeve chain whose chain pitch is metric integer (various pitches ranging from 40 mm to 1000 mm). The rollers have various structural forms, and various accessories are arranged according to the service conditions

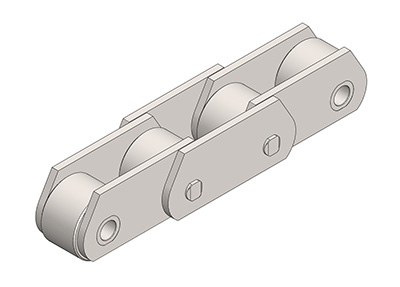

M-type is solid pin conveyor chain, MC-type is hollow pin conveyor chain, MT-type is large roller heightening chain plate conveyor chain, and MC-type and MT-type chain shave two kinds of products with tensile strength indexes for users to choose from.
Products are widely used in mechanical conveying and loading and unloading equipment in metallurgy, mining, sugar making, wine making, ceramics, paper making and other industries.
Free-flowing chain refers to a chain whose moving tempo can be controlled according to the requirements of users under the condition that the moving speed of the chain is constant during operation. Under the condition that the running speed of the chain is constant. the speed of conveying articles can be adjusted according to the specific use requirements.It mainly includes: double speed chain, conveyor chain with big roller.conveyor chain with side roller, conveyor chain with special roller, conveyor chain with top roller with short pitch, conveyor chain with top roller with double pitch. etc.
Using high-quality materials and advanced processing technology, the product has the characteristics of anti-static, low noise, stable and reliable transportation, etc.
Schematic diagram of double speed calculation model of typical double speed chain Since the roller diameter D can be multiplied by the roller diameter D, the speed-increasing effect of the double-speed chain can be multiplied. The specific calculation formula is as follows.
Parameter

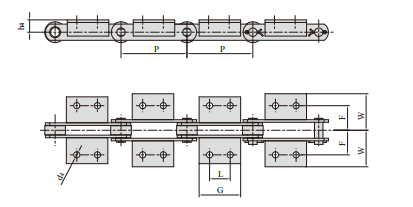

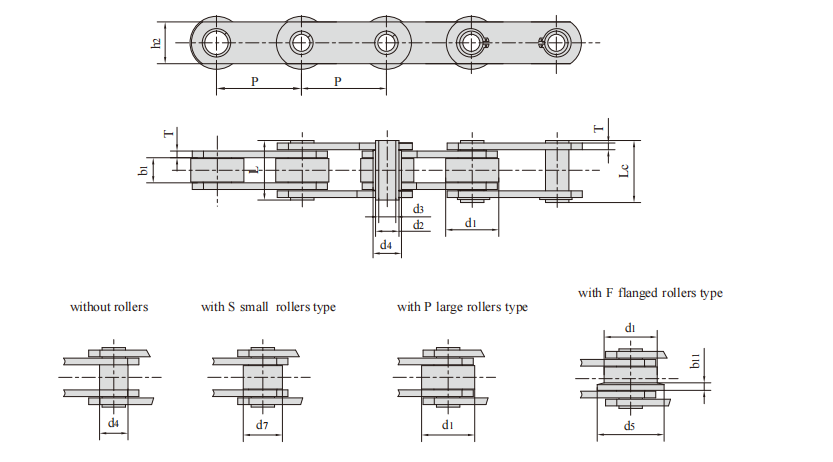

| ISO Chain No. | P | L | G | d4 | F | W | h4 |
| mm | mm | mm | mm | mm | mm | mm | |
| M20 | 40.0 | △ | 14.0 | 6.6 | 27.0 | 40.0 | 16.0 |
| 50.0 | △ | 14.0 | |||||
| 63.0 | 20.0 | 35.0 | |||||
| 80.0 | 35.0 | 50.0 | |||||
| M28 | 50.0 | △ | 20.0 | 9.0 | 32.0 | 47.0 | 20.0 |
| 63.0 | △ | 20.0 | |||||
| 80.0 | 25.0 | 45.0 | |||||
| 100.0 | 40.0 | 60.0 | |||||
| M40 | 63.0 | △ | 31.0 | 9.0 | 35.0 | 50.0 | 25.0 |
| 80.0 | 20.0 | 45.0 | |||||
| 100.0 | 40.0 | 60.0 | |||||
| 125.0 | 65.0 | 85.0 | |||||
| M56 | 63.0 | △ | 22.0 | 11.0 | 44.0 | 61.0 | 30.0 |
| 80.0 | △ | 30.0 | |||||
| 100.0 | 25.0 | 50.0 | |||||
| 125.0 | 50.0 | 75.0 | |||||
| 160.0 | 85.0 | 110.0 | |||||
| M80 | 80.0 | △ | 30.0 | 11.0 | 48.0 | 65.0 | 35.0 |
| 100.0 | 25.0 | 50.0 | |||||
| 125.0 | 50.0 | 75.0 | |||||
| 160.0 | 85.0 | 110.0 | |||||
| 200.0 | 125.0 | 150.0 | |||||
| △Attachments with one hole | |||||||
| ISO Chain No. | P | L | G | d4 | F | W | h4 |
| mm | mm | mm | mm | mm | mm | mm | |
| M112 | 80.0 | △ | 28.0 | 14.0 | 55.0 | 80.0 | 40.0 |
| 100.0 | △ | 40.0 | |||||
| 125.0 | 35.0 | 65.0 | |||||
| 160.0 | 65.0 | 95.0 | |||||
| 200.0 | 100.0 | 130.0 | |||||
| M160 | 100.0 | △ | 30.0 | 14.0 | 62.0 | 85.0 | 45.0 |
| 125.0 | 25.0 | 50.0 | |||||
| 160.0 | 50.0 | 80.0 | |||||
| 200.0 | 85.0 | 115.0 | |||||
| 250.0 | 145.0 | 175.0 | |||||
| M224 | 125.0 | △ | 35.0 | 18.0 | 70.0 | 110.0 | 55.0 |
| 160.0 | △ | 60.0 | |||||
| 200.0 | 65.0 | 100.0 | |||||
| 250.0 | 125.0 | 160.0 | |||||
| 315.0 | 190.0 | 230.0 | |||||
| M315 | 160.0 | △ | 35.0 | 18.0 | 80.0 | 115.0 | 65.0 |
| 200.0 | 50.0 | 85.0 | |||||
| 250.0 | 100.0 | 140.0 | |||||
| 315.0 | 155.0 | 190.0 | |||||
| 400.0 | 155.0 | 205.0 | |||||
| △Attachments with 1 hole | |||||||
| DIN Chain No | Pitch | Roller dimesion | Bush diameter | Plate depth | ||||||||
| P | d1 max | d7 max | d5 max | b11 | d4 max | h2 max | ||||||
| mm | mm | mm | mm | mm | mm | mm | ||||||
| MC28 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | - | 36.0 | 25.0 | 45.0 | 4.5 | 17.5 | 25.0 |
| MC56 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 50.0 | 30.0 | 60.0 | 5.0 | 21.0 | 35.0 |
| MC112 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 315.0 | 70.0 | 42.0 | 85.0 | 7.0 | 29.0 | 50.0 |
| MC224 | 160.0 | 200.0 | 250.0 | 315.0 | 400.0 | 500.0 | 100.0 | 60.0 | 120.0 | 10.0 | 41.0 | 70.0 |
| DIN Chain No | Width between inner plates | Pin diameter | Pin length | Plate thickness | Tensile strength | |||
| b1 min | d2 max | d3 min | L max | Lc max | T max | Q min | *Q min | |
| mm | mm | mm | mm | mm | mm | kN/lbf | kN/lbf | |
| MC28 | 20.0 | 13.0 | 8.2 | 36.0 | 38.5 | 3.5 | 28.0/6364 | 40.0/9091 |
| MC56 | 24.0 | 15.5 | 10.2 | 45.0 | 47.5 | 4.0 | 56.0/12727 | 90.0/20454 |
| MC112 | 32.0 | 22.0 | 14.3 | 62.5 | 64.3 | 6.0 | 112.0/25454 | 180.0/40908 |
| MC224 | 43.0 | 31.0 | 20.3 | 83.0 | 85.5 | 8.0 | 224.0/50909 | 350.0/79544 |
| *Q denotes the tensile strength after hardened | ||||||||

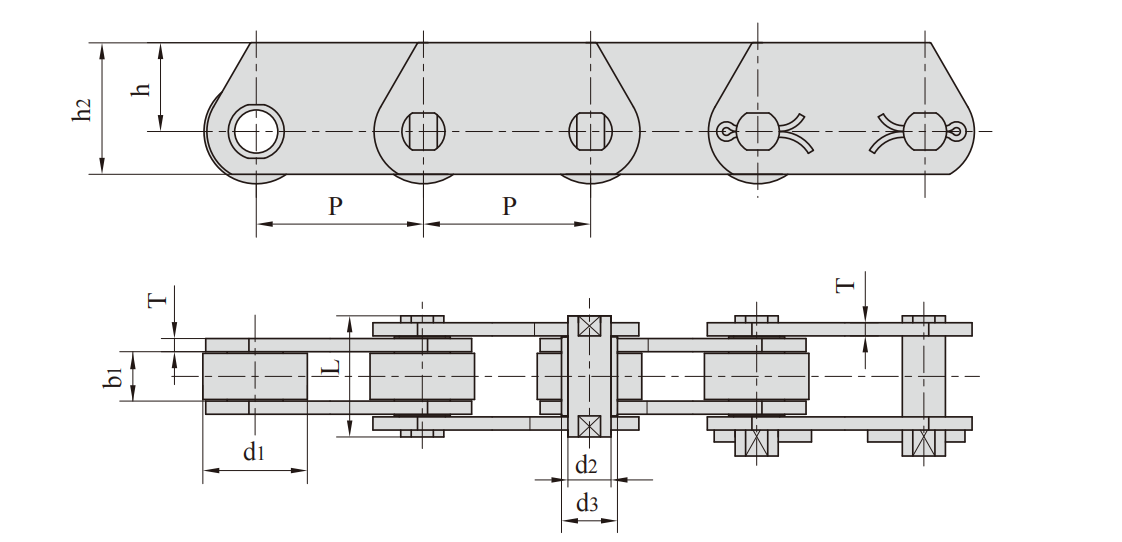

| DIN Chain No | Pitch | Roller diameter | Pin diameter | Bush diameter | Plate thickness | ||||
| P | d1 max | d2 max | d3 max | T max | |||||
| mm | mm | mm | mm | mm | |||||
| MT20 | 40.0 | 50.0 | 63.0 | 80.0 | 100.0 | 25.0 | 6.0 | 9.0 | 2.5 |
| MT28 | 50.0 | 63.0 | 80.0 | 100.0 | 125.0 | 30.0 | 7.0 | 10.0 | 3.0 |
| MT40 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 36.0 | 8.5 | 12.5 | 3.5 |
| MT56 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 42.0 | 10.0 | 15.0 | 4.0 |
| MT80 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 50.0 | 12.0 | 18.0 | 5.0 |
| MT112 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 60.0 | 15.0 | 21.0 | 6.0 |
| MT160 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 70.0 | 18.0 | 25.0 | 7.0 |
| MT224 | 125.0 | 160.0 | 200.0 | 250.0 | 315.0 | 85.0 | 21.0 | 30.0 | 8.0 |
| MT315 | 160.0 | 200.0 | 250.0 | 315.0 | 400.0 | 100.0 | 25.0 | 36.0 | 10.0 |
| MT450 | 200.0 | 250.0 | 315.0 | 400.0 | 500.0 | 120.0 | 30.0 | 42.0 | 12.0 |
| DIN Chain No | Width between inner plates | Pin length | Plate depth | Tensile strength | ||
| b1 min | L max | h2 max | h max | Q min | *Q min | |
| mm | mm | mm | mm | kN/lbf | kN/lbf | |
| MT20 | 16.0 | 35.0 | 25.0 | 16.0 | 20.0/4545 | 32.0/7270 |
| MT28 | 18.0 | 40.0 | 30.0 | 20.0 | 28.0/6364 | 42.0/9545 |
| MT40 | 20.0 | 45.0 | 35.0 | 22.5 | 40.0/9091 | 60.0/13635 |
| MT56 | 24.0 | 52.0 | 45.0 | 30.0 | 56.0/12727 | 85.0/19318 |
| MT80 | 28.0 | 62.0 | 50.0 | 32.5 | 80.0/18182 | 125.0/28408 |
| MT112 | 32.0 | 73.0 | 60.0 | 40.0 | 112.0/25454 | 175.0/39768 |
| MT160 | 37.0 | 85.0 | 70.0 | 45.0 | 160.0/36364 | 260.0/59090 |
| MT224 | 43.0 | 98.0 | 90.0 | 60.0 | 224.0/50909 | 340.0/77272 |
| MT315 | 48.0 | 112.0 | 100.0 | 65.0 | 315.0/71591 | 520.0/118180 |
| MT450 | 56.0 | 135.0 | 120.0 | 80.0 | 450.0/102272 | 700.0/159089 |
| *Q denotes the tensile strength after hardened | ||||||
| Chain No. | L1 | G | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | mm | |
| M80K2F6-P-100 | 40.00 | 80.00 | 90.00 | 115.00 | 35.00 | 12.00 |
| M112K2F4-P-200 | 120.00 | 180.00 | 110.00 | 142.00 | 46.00 | 14.00 |

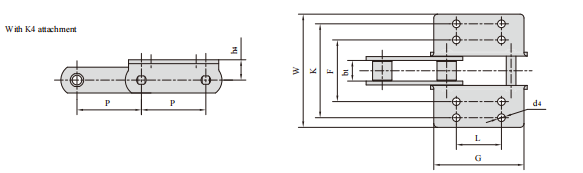

| Chain No. | P | b1 | h4 | F | K | W | L | G | d4 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| M112K4-S-100 | 100.00 | 32.00 | 31.50 | 96.00 | 146.00 | 176.00 | 70.00 | 140.00 | 12.00 |

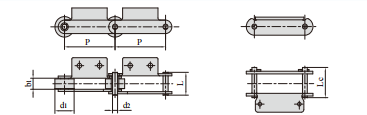

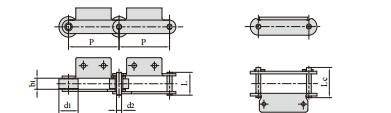

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| M18F1A1-P-50 | 50.0 | 25.0 | 11.5 | 5.72 | 26.0 | 28.2 | 18.0/4050 | 20.0 | 2.46 |
| M18F2A1.02-P-50 | 50.0 | 25.0 | 11.5 | 5.72 | 28.0 | 30.2 | 18.0/4050 | 20.0 | 2.18 |
| M18F2A1F1.32-P-50 | 50.0 | 25.0 | 11.5 | 5.70 | 28.0 | 30.2 | 18.0/4050 | 20.0 | 2 |
| M18F4A1.02-S-50 | 50.0 | 15.0 | 12.0 | 6.00 | 24.0 | 26.5 | 18.0/4050 | 20.0 | 1.20 |
| M18F8K1.03-P-50 | 50.0 | 25.0 | 11.5 | 5.72 | 26.0 | 28.2 | 18.0/4050 | 20.0 | 2.47 |
| M20K1F2.02-S-50 | 50.0 | 12.5 | 16.0 | 6.00 | 31.0 | 33.5 | 20.0/4545 | 25.0 | 3.60 |
| M20A2F1-S-50 | 50.0 | 12.5 | 16.0 | 6.00 | 31.0 | 33.5 | 20.0/4545 | 25.0 | 1.53 |
| M28F1A2-P-80 | 80.0 | 29.4 | 18.0 | 7.00 | 35.4 | 38.7 | 28.0/6300 | 31.0 | 2.60 |
| M28F3A2-P-63 | 63.0 | 30.0 | 17.0 | 7.00 | 37.3 | 40.3 | 35.0/7874 | 39.0 | 3.48 |
| M28F3A2-F-100 | 100.0 | 30.0 | 17.0 | 7.00 | 37.3 | 40.3 | 35.0/7874 | 39.0 | 3.46 |
| M32A1.02-P-50 | 50.0 | 31.0 | 15.0 | 10.00 | 33.0 | 35.5 | 32.0/7200 | 35.2 | 4.09 |
| M32A1F1-P-50 | 50.0 | 31.0 | 15.0 | 10.00 | 33.0 | 35.5 | 32.0/7200 | 35.2 | 3.96 |
| M32A1F2.02-PF1-50 | 50.0 | 36.0 | 14.8 | 10.00 | 32.6 | 35.5 | 35.0/7874 | 39.0 | 4.40 |
| M35F4A1.01-C-69 | 69.0 | 25.0 | 12.0 | 7.00 | 27.5 | 30.0 | 35.0/7874 | 39.0 | 2.26 |
| M40FA1.02-P-50 | 50.0 | 31.0 | 15.0 | 10.00 | 36.6 | 39.0 | 75.0/16872 | 82.5 | 4.52 |
| M40FK2F1-P-50 | 50.0 | 31.0 | 15.0 | 10.00 | 36.6 | 39.0 | 40.0/8992 | 44.0 | 4.94 |
| M40FA2-P-50 | 50.0 | 31.0 | 15.0 | 10.00 | 36.6 | 39.0 | 40.0/8992 | 44.0 | 4.54 |
| M40FA1F1.02-P-50 | 50.0 | 31.0 | 15.0 | 10.00 | 36.6 | 39.0 | 40.0/8992 | 44.0 | 4.31 |
| M40FA2F1.08-P-50 | 50.0 | 31.0 | 15.0 | 10.00 | 36.6 | 39.0 | 40.0/8992 | 44.0 | 4.08 |
| M40F17A2-P-50.8 | 50.8 | 31.0 | 15.2 | 13.40 | 38.0 | 42.8 | 53.9/12127 | 59.2 | 4.90 |
| M40F31A2.02-P-50.8 | 50.8 | 31.8 | 15.0 | 14.00 | 37.0 | 40.5 | 40.0/8992 | 44.0 | 4.60 |
| M40F17K1.10-P-50.8 | 50.8 | 31.0 | 15.2 | 13.35 | 38.0 | 42.8 | 53.9/12127 | 59.2 | 4.60 |
| M40F5A2-S-65 | 65.0 | 24.0 | 15.0 | 12.00 | 38.0 | 41.0 | 40.0/8992 | 44.0 | 4.74 |
| M40F10-F-76.2 | 76.2 | 31.5 | 15.0 | 14.00 | 38.0 | 42.0 | 40.0/8992 | 44.0 | 4.16 |
| M40A2F2-F-80 | 80.0 | 36.0 | 20.0 | 8.50 | 40.5 | 45.0 | 40.0/8992 | 44.0 | 4.98 |
| M40F1-P-125 | 125.0 | 36.0 | 38.0 | 14.27 | 75.6 | - | 40.0/8992 | 44.0 | 10.18 |
| M56F1-P-100 | 100.0 | 38.0 | 20.5 | 10.00 | 42.3 | 46.1 | 56.0/12727 | 61.0 | 4.63 |
| M56F2-P-100 | 100.0 | 42.0 | 22.5 | 10.00 | 44.6 | 48.5 | 56.0/12727 | 61.0 | 5.67 |
| M56F2-F-100 | 100.0 | 42.0 | 22.5 | 10.00 | 44.6 | 48.5 | 56.0/12727 | 61.0 | 5.88 |
| M56F3-P-100 | 100.0 | 38.0 | 20.5 | 10.00 | 42.3 | 46.1 | 56.0/12727 | 61.0 | 4.72 |
| M56F3-F.06-100 | 100.0 | 38.0 | 20.5 | 10.00 | 42.3 | 46.1 | 56.0/12727 | 61.0 | 4.70 |
| M56F8-P-100 | 100.0 | 38.0 | 17.0 | 10.00 | 38.8 | 42.6 | 56.0/12727 | 61.0 | 3.79 |
| M56F9-F1-100 | 100.0 | 38.0 | 20.5 | 10.00 | 46.3 | 50.1 | 88.2/19845 | 97.0 | 5.80 |
| M56F23-F-100 | 100.0 | 42.0 | 24.0 | 10.00 | 44.6 | 49.5 | 56.0/12727 | 61.0 | 5.52 |
| M56F38A2-P-100 | 100.0 | 36.0 | 15.2 | 10.00 | 37.0 | 40.8 | 56.0/12727 | 61.0 | 3.64 |
| M56F6A2.02-PF1-100 | 100.0 | 38.0 | 17.0 | 10.00 | 38.8 | 42.6 | 56.0/12727 | 61.0 | 4.10 |
| M56A2-P-125 | 125.0 | 42.0 | 24.0 | 10.00 | 46.0 | 49.5 | 56.0/12727 | 61.0 | 5.24 |
| M56F26A2.02-F-125 | 125.0 | 42.0 | 24.0 | 10.00 | 46.0 | 49.5 | 56.0/12727 | 61.0 | 4.82 |
| M75-P100 | 100.0 | 38.0 | 18.9 | 9.53 | 40.4 | 44.7 | 75.0/17045 | 83.0 | 4.85 |

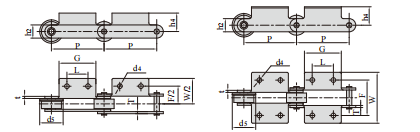

| Chain No. | P | L | G | F | W | h4 | h2 | d4 | t/T | d5 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| M18F1A1-P-50 | 50.0 | △ | 46.0 | 44.0 | 72.0 | 24.0 | 18.0 | 6.5 | 2.50 | - |
| M18F2A1.02-P-50 | 50.0 | △ | 41.0 | 48.0 | 68.0 | 25.0 | 15.0 | 6.5 | 3.00 | - |
| M18F2A1F1.32-P-50 | 50.0 | △ | 42.0 | 44.6 | 64.6 | 22.5 | 15.0 | 6.0 | 3.00 | - |
| M18F4A1.02-S-50 | 50.0 | △ | 30.0 | 50.0 | 83.0 | 20.0 | 15.0 | 8.0 | 2.03 | - |
| M18F8K1.03-P-50 | 50.0 | △ | 46.0 | 44.0 | 66.6 | 24.0 | 18.0 | 8.5 | 2.50 | - |
| M20K1F2.02-S-50 | 50.0 | △ | 20.0 | 54.0 | 75.0 | 16.0 | 18.0 | 6.6 | 2.50 | - |
| M20A2F1-S-50 | 50.0 | 20.0 | 35.0 | 52.0 | 80.0 | 13.0 | 18.0 | 8.1 | 2.50 | - |
| M28F1A2-P-80 | 80.0 | 25.0 | 45.8 | 66.0 | 91.6 | 11.8 | 20.5 | 8.8 | 3.25 | - |
| M28F3A2-P-63 | 63.0 | 20.0 | 50.0 | 64.0 | 92.0 | 20.0 | 20.0 | 9.0 | 4.00 | - |
| M28F3A2-F-100 | 100.0 | 40.0 | 76.0 | 64.0 | 100.0 | 20.0 | 20.0 | 9.0 | 4.00 | 40.0 |
| M32A1.02-P-50 | 50.0 | △ | 60.0 | 62.0 | 97.0 | 35.0 | 23.0 | 10.0 | 3.00 | - |
| M32A1F1-P-50 | 50.0 | △ | 30.0 | 62.0 | 92.0 | 28.0 | 23.0 | 10.0 | 3.00 | - |
| M32A1F2.02-PF1-50 | 50.0 | △ | 60.0 | 62.0 | 97.0 | 16.5 | 23.0 | 10.0 | 3.00 | - |
| M35F4A1.01-C-69 | 69.0 | △ | 60.0 | 50.0 | 74.0 | 25.5 | 19.0 | 7.0 | 2.50 | - |
| M40FA1.02-P-50 | 50.0 | △ | 60.0 | 70.0 | 98.0 | 17.5 | 25.0 | 10.0 | 4.00 | - |
| M40FK2F1-P-50 | 50.0 | 30.0 | 60.0 | 67.5 | 100.0 | 17.0 | 25.0 | 9.0 | 4.00 | - |
| M40FA2-P-50 | 50.0 | 30.0 | 45.0 | 93.0 | 136.0 | 14.5 | 25.0 | 6.5 | 4.00 | - |
| M40FA1F1.02-P-50 | 50.0 | △ | 35.0 | 54.0 | 104.0 | 20.5 | 25.0 | 10.5 | 4.00 | - |
| M40FA2F1.08-P-50 | 50.0 | 25.0 | 45.0 | 90.0 | 122 | 22.0 | 25.0 | 8.5 | 4.00 | - |
| M40F17A2-P-50.8 | 50.8 | 30.0 | 55.0 | 66.0 | 92.0 | 18.0 | 25.0 | 10.2 | 5.00/4.00 | - |
| M40F31A2.02-P-50.8 | 50.8 | 19.0 | 40.0 | 64.0 | 100.0 | 19.0 | 26.3 | 8.0 | 4.00 | - |
| M40F17K1.10-P-50.8 | 50.8 | △ | 55.0 | 66.0 | 92.0 | 18.0 | 25.0 | 10.2 | 5.00/4.00 | - |
| M40F5A2-S-65 | 65.0 | 25.0 | 45.0 | 90.0 | 122.0 | 24.5 | 30.0 | 8.5 | 4.00 | - |
| M40F10-F-76.2 | 76.2 | 22.2 | 38.3 | 76.2 | 106.5 | 19.0 | 26.0 | 9.4 | 4.00 | 40.0 |
| M40A2F2-F-80 | 80.0 | 20.0 | 50.0 | 70.0 | 112.0 | 35.0 | 25.0 | 9.0 | 3.50 | 45.0 |
| M40F1-P-125 | 125.0 | 50.0 | 90.0 | 100.0 | 140.0 | 36.0 | 50.0 | 13.0 | 6.00 | - |
| M56F1-P-100 | 100.0 | 40.0 | 70.0 | 67.5 | 96.6 | 35.0 | 25.0 | 9.0 | 4.00 | - |
| M56F2-P-100 | 100.0 | 29.7 | 50.0 | 124.0 | 148.0 | 21.5 | 32.0 | 7.0 | 4.00 | - |
| M56F2-F-100 | 100.0 | 29.7 | 50.0 | 124.0 | 148.0 | 21.5 | 32.0 | 7.0 | 4.00 | 50.0 |
| M56F3-P-100 | 100.0 | 50.0 | 70.0 | 71.0 | 101.0 | 35.0 | 25.0 | 9.0 | 4.00 | - |
| M56F3-F.06-100 | 100.0 | 50.0 | 70.0 | 71.0 | 101.0 | 35.0 | 25.0 | 9.0 | 4.00 | 44.5 |
| M56F8-P-100 | 100.0 | △ | 70.0 | 63.8 | 95.0 | 25.0 | 25.0 | 8.2 | 4.00 | - |
| M56F9-F1-100 | 100.0 | 40.0 | 70.0 | 68.0 | 96.6 | 25.0 | 32.0 | 9.0 | 5.00 | 45.0 |
| M56F23-F-100 | 100.0 | 40.0 | 70.0 | 71.4 | 100.6 | 35.0 | 25.0 | 9.0 | 4.00 | 50.0 |
| M56F38A2-P-100 | 100.0 | 40.0 | 60.0 | 70.0 | 100.0 | 20.0 | 25.0 | 9.0 | 4.00 | - |
| M56F6A2.02-PF1-100 | 100.0 | 40.0 | 70.0 | 71.5 | 92.0 | 55.0 | 25.0 | 6.5 | 4.00 | - |
| M56A2-P-125 | 125.0 | 50.0 | 75.0 | 88.0 | 128.0 | 30.0 | 30.0 | 11.0 | 4.00 | - |
| M56F26A2.02-F-125 | 125.0 | 50.0 | 75.0 | 88.0 | 128.0 | 30.0 | 30.0 | 9.0 | 4.00 | 50.0 |
| M75-P100 | 100.0 | 40.0 | 70.0 | 64.0 | 112.0 | 24.9 | 26.0 | 9.0 | 4.00 | - |
| Chain No | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| M75-P100F1 | 100 | 38.0 | 18.9 | 9.53 | 38.4 | 42.7 | 75.0/17045 | 83.0 | 4.01 |
| M75-P100F3 | 100.0 | 28.5 | 23.9 | 11.10 | 46.3 | 50.3 | 75.0/17045 | 83.0 | 4.53 |
| M75F4-P-100 | 100.0 | 38.0 | 18.9 | 9.53 | 40.4 | 44.7 | 75.0/17045 | 83.0 | 4.62 |
| M75-PF1-100 | 100.0 | 19.1 | 18.9 | 9.53 | 40.4 | 44.7 | 75.0/17045 | 75.0 | 3.43 |
| M80K1F1-P-100 | 100.0 | 50.0 | 28.0 | 12.00 | 55.0 | 58.5 | 80.0/18000 | 88.0 | 9.10 |
| *M80K2F1-B-100 | 100.0 | 18.0 | 28.0 | 12.00 | 55.0 | 58.5 | 80.0/18000 | 88.0 | 5.94 |
| *M80F5K1-B-100 | 100.0 | 18 | 28.0 | 12.00 | 55.0 | 58.5 | 80.0/18000 | 88.0 | 5.45 |
| M80A2F1-F-160 | 160.0 | 50.0 | 29.0 | 12.00 | 65.0 | - | 80.0/18000 | 88.0 | 7.45 |
| M80F43K2-P-200 | 200.0 | 50.0 | 28.0 | 12.00 | 55.0 | 59.0 | 80.0/18000 | 88.0 | 7.90 |
| M112F5K2-P-100 | 100.0 | 36.0 | 37.0 | 16.00 | 69.0 | 74.0 | 112.0/25200 | 123.2 | 8.28 |
| M112A2F18.04-P-100 | 100.0 | 60.0 | 31.0 | 15.00 | 64.0 | 73.0 | 112.0/25200 | 123.2 | 11.80 |
| *M112K2F2-B-100 | 100.0 | 21.0 | 32.0 | 15.00 | 64.5 | 69.0 | 112.0/25200 | 123.2 | 7.53 |
| M112F38A2.04-P-100 | 100.0 | 60.0 | 32.0 | 15.00 | 64.5 | 69.0 | 112.0/25200 | 123.2 | 12.74 |
| M112F16K1-P-125 | 125.0 | 60.0 | 32.0 | 15.00 | 68.5 | 73.0 | 112.0/25200 | 123.2 | 13.00 |
| M112K2F1-S-125 | 125.0 | 30.0 | 32.0 | 16.00 | 64.5 | 69.0 | 112.0/25200 | 123.2 | 7.35 |
| M112F9A2-F-180 | 180.0 | 50.0 | 32.0 | 15.00 | 64.5 | 69.0 | 160.0/35993 | 176.0 | 10.30 |
| M112F3-F-200 | 200.0 | 60.0 | 37.0 | 16.00 | 69.0 | 74.0 | 112.0/25200 | 123.2 | 11.00 |
| M112A2F21-F-315 | 315.0 | 60.0 | 32.0 | 15.00 | 65.0 | 70.0 | 112.0/25200 | 123.2 | 8.50 |
| M160F1K2-P-100 | 100.0 | 36.0 | 36.0 | 18.00 | 76.0 | 80.0 | 160.0/35993 | 176.0 | 10.80 |
| *M160F1K2.03-B-100 | 100.0 | 18.0 | 36.0 | 18.00 | 76.0 | 80.0 | 160.0/35993 | 176.0 | 9.73 |
| M160F12K2-S-100 | 100.0 | 36.0 | 38.0 | 14.00 | 76.0 | - | 100.0/22496 | 110.0 | 9.33 |
| *M160F2-B-100 | 100.0 | 25.0 | 37.0 | 18.00 | 73.3 | 83.0 | 222.0/49940 | 244.2 | 11.36 |
| M160F25K2.04-B-100 | 100.0 | 25.0 | 37.0 | 18.00 | 73.3 | 79.5 | 160.0/36364 | 176.0 | 10.83 |
| *M160F41K2-B-100 | 100.0 | 36.0 | 37.0 | 18.00 | 73.3 | 79.5 | 160.0/35993 | 176.0 | 14.75 |
| *M160F55K2-B-100 | 100.0 | 25.0 | 37.0 | 18.00 | - | 86.0 | 160.0/35993 | 176.0 | 15.04 |
| M160F3K1F1-P-101.6 | 101.6 | 66.7 | 26.0 | 26.90 | 58.0 | 78.5 | 156.0/35093 | 171.6 | 17.37 |
| M160A2F1.02-P-152.4 | 152.4 | 66.7 | 25.4 | 26.90 | 58.0 | 68.0 | 160.0/35993 | 176.0 | 12.55 |
| M160A2F7-F-200 | 200.0 | 70.0 | 37.0 | 18.00 | 85.0 | - | 181.8/40905 | 200.0 | 15.20 |
| M160A2F8-F-200 | 200.0 | 70.0 | 37.0 | 18.00 | 85.0 | - | 181.8/40905 | 200.0 | 15.23 |
| M160K2F2-S-200 | 200.0 | 36.0 | 36.0 | 18.00 | 76.0 | 80.0 | 160.0/36364 | 176.0 | 11.40 |
| M160A2F8-F-200 | 200.0 | 70.0 | 37.0 | 18.00 | 85.0 | - | 181.8/40905 | 200.0 | 15.20 |
| M224F6A2-P-160 | 160.0 | 85.0 | 42.0 | 21.00 | 87.5 | 92.5 | 224.0/50909 | 246.5 | 27.56 |
| M224F29A2-F-200 | 200.0 | 85.0 | 43.0 | 21.00 | 85.0 | 91.0 | 224.0/50909 | 246.0 | 21.60 |
| M224F1K2-P-200 | 200.0 | 85.0 | 42.0 | 21.00 | 95.0 | - | 224.0/50909 | 246.0 | 21.20 |
| M224F42K2-S-200 | 200.0 | 42.0 | 44.0 | 21.00 | - | 99.0 | 224.0/50909 | 246.0 | 17.20 |
| M315F22A2-F-400 | 400.0 | 100.0 | 56.0 | 25.00 | 109.8 | 115.3 | 315.0/70815 | 346.5 | 26.60 |
| M315K2F1-P-250 | 250.0 | 50.0 | 47.0 | 25.00 | 98.9 | 105.0 | 315.0/70815 | 346.5 | 20.60 |
| M450F26A2-F-400 | 400.0 | 100.0 | 56.0 | 30.00 | 111.0 | 118.0 | 315.0/70815 | 346.5 | 27.60 |
| *Bush chain:d1 in the table indicates the external diameter of the bush. | |||||||||

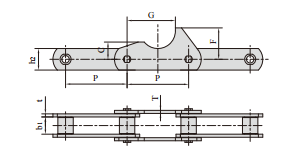

| Chain No. | P | b1 | h2 | t/T | C | F | G |
| mm | mm | mm | mm | mm | mm | mm | |
| M80F29-S-100 | 100.00 | 28.00 | 35.00 | 5.00 | 28.00 | 51.00 | 78.50 |
| Chain No. | P | h1 | h2 | t/T | C | F | G |
| mm | mm | mm | mm | mm | mm | mm | |
| M80F41-P-100 | 100.00 | 28.00 | 35.00 | 5.00 | 40.00 | 75.00 | 29.00 |
| Chain No. | P | d1 | b1 | h2 | C | E | F | W | d4 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| M112F52SD-B-100 | 100.00 | 21.00 | 32.00 | 40.00 | 70.00 | 80.00 | 120.00 | 172.00 | 12.00 |

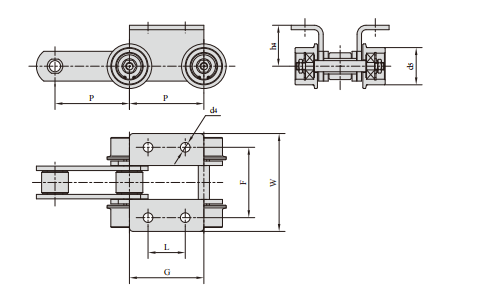

| Chain No. | P | L | G | F | W | h4 | d4 | d5 |
| mm | mm | mm | mm | mm | mm | mm | mm | |
| M112F34-P-100 | 100.00 | 50.00 | 100.00 | 95.00 | 130.00 | 55.00 | 13.00 | 50.00 |

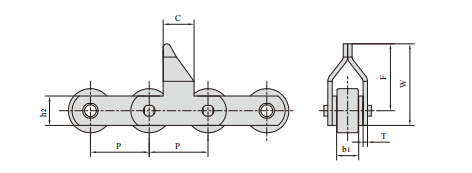

| Chain No. | P | b1 | h2 | T | C | F | W |
| mm | mm | mm | mm | mm | mm | mm | |
| M112F39-P-80 | 80.00 | 32.00 | 40.00 | 6.00 | 42.00 | 91.00 | 111.00 |

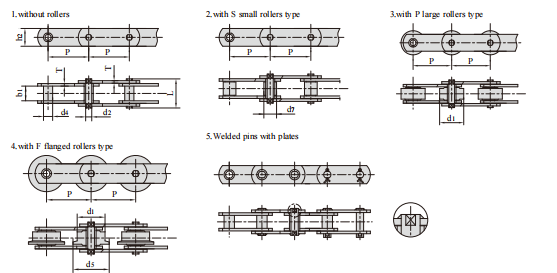

| ISO Chain No | Pitch | Roller diameter | Bush diameter | |||||||||
| P | d1 max | d7 max | d5 max | d4 max | ||||||||
| mm | mm | mm | mm | mm | ||||||||
| M20 | *40.0 | 50.0 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 25.0 | 12.5 | 32.0 | 9.0 | |
| M28 | *50.0 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 30.0 | 15.0 | 36.0 | 10.0 | |
| M40 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 36.0 | 18.0 | 42.0 | 12.5 | |
| M56 | *63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 42.0 | 21.0 | 50.0 | 15.0 | |
| M80 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 315.0 | 50.0 | 25.0 | 60.0 | 18.0 | |
| M112 | *80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 315.0 | 400.0 | 60.0 | 30.0 | 70.0 | 21.0 |
| M160 | *100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 315.0 | 400.0 | 500.0 | 70.0 | 36.0 | 85.0 | 25.0 |
| M224 | *125.0 | 160.0 | 200.0 | 250.0 | 315.0 | 400.0 | 500.0 | 630.0 | 85.0 | 42.0 | 100.0 | 30.0 |
| M315 | *160.0 | 200.0 | 250.0 | 315.0 | 400.0 | 500.0 | 630.0 | 100.0 | 50.0 | 120.0 | 36.0 | |
| M450 | 200.0 | 250.0 | 315.0 | 400.0 | 500.0 | 630.0 | 800.0 | 120.0 | 60.0 | 140.0 | 42.0 | |
| ISO Chain No | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Tensile strength | Average tensile strength |
| b1 min | d2 max | L max | h2 max | T max | Q min | Qo | |
| mm | mm | mm | mm | mm | kN/lbf | kN | |
| M20 | 16.0 | 6.0 | 35.0 | 19.0 | 2.5 | 20.0/4545 | 25.0 |
| M28 | 18.0 | 7.0 | 40.0 | 21.0 | 3.0 | 28.0/6364 | 35.0 |
| M40 | 20.0 | 8.5 | 45.0 | 26.0 | 3.5 | 40.0/9091 | 50.0 |
| M56 | 24.0 | 10.0 | 52.0 | 31.0 | 4.0 | 56.0/12727 | 70.0 |
| M80 | 28.0 | 12.0 | 62.0 | 36.0 | 5.0 | 80.0/18182 | 100.0 |
| M112 | 32.0 | 15.0 | 73.0 | 41.0 | 6.0 | 112.0/2545 | 140.0 |
| M160 | 37.0 | 18.0 | 85.0 | 51.0 | 7.0 | 160.0/36364 | 200.0 |
| M224 | 43.0 | 21.0 | 98.0 | 62.0 | 8.0 | 224.0/50909 | 280.0 |
| M315 | 48.0 | 25.0 | 112.0 | 72.0 | 10.0 | 315.0/71591 | 393.7 |
| M450 | 56.0 | 30.0 | 135.0 | 82.0 | 12.0 | 450.0/102272 | 562.5 |
| *Chain has bush and small roller only | |||||||

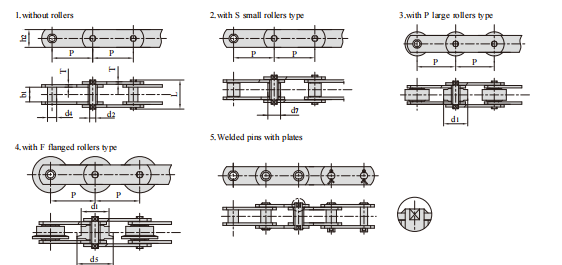

| DIN Chain No. | Pitch | Roller diameter | Bush diameter | |||||||||
| P | d1 max | d7 max | d5 max | d4 max | ||||||||
| mm | mm | mm | mm | mm | ||||||||
| M20 | 40.0 | 50.0 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 25.0 | 12.50 | 30.00 | 9.0 | |
| M28 | 50.0 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 30.0 | 15.00 | 36.00 | 10.0 | |
| M40 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 36.0 | 18.00 | 42.00 | 12.5 | |
| M56 | 63.0 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 42.0 | 21.00 | 50.00 | 15.0 | |
| M80 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 315.0 | 50.0 | 25.00 | 60.00 | 18.0 | |
| M112 | 80.0 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 315.0 | 60.0 | 30.00 | 70.00 | 21.0 | |
| M160 | 100.0 | 125.0 | 160.0 | 200.0 | 250.0 | 315.0 | 400.0 | 70.0 | 36.00 | 85.00 | 25.0 | |
| M224 | 125.0 | 160.0 | 200.0 | 250.0 | 315.0 | 400.0 | 500.0 | 85.0 | 42.00 | 100.00 | 30.0 | |
| M315 | 160.0 | 200.0 | 250.0 | 315.0 | 400.0 | 500.0 | 630.0 | 100.0 | 50.00 | 120.00 | 36.0 | |
| M450 | 200.0 | 250.0 | 315.0 | 400.0 | 500.0 | 630.0 | 800.0 | 120.0 | 60.00 | 140.00 | 42.0 | |
| DIN Chain No. | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Tensile strength | Average tensile strength |
| b1 min | d2 max | L max | h2 max | T max | Q min | Q0 | |
| mm | mm | mm | mm | mm | kN/lbf | kN | |
| M20 | 16.0 | 6.0 | 35.0 | 18.0 | 2.5 | 20.0/4545 | 25.0 |
| M28 | 18.0 | 7.0 | 40.0 | 20.0 | 3.0 | 28.0/6364 | 35.0 |
| M40 | 20.0 | 8.5 | 45.0 | 25.0 | 3.5 | 40.0/9091 | 50.0 |
| M56 | 24.0 | 10.0 | 52.0 | 30.0 | 4.0 | 56.0/12727 | 70.0 |
| M80 | 28.0 | 12.0 | 62.0 | 35.0 | 5.0 | 80.0/18182 | 100.0 |
| M112 | 32.0 | 15.0 | 73.0 | 40.0 | 6.0 | 112.0/25454 | 140.0 |
| M160 | 37.0 | 18.0 | 85.0 | 50.0 | 7.0 | 160.0/36364 | 200.0 |
| M224 | 43.0 | 21.0 | 98.0 | 60.0 | 8.0 | 224.0/50909 | 280.0 |
| M315 | 48.0 | 25.0 | 112.0 | 70.0 | 10.0 | 315.0/71591 | 393.7 |
| M450 | 56.0 | 30.0 | 135.0 | 80.0 | 12.0 | 450.0/102272 | 562.5 |

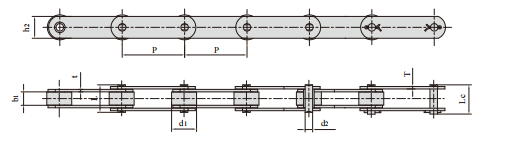

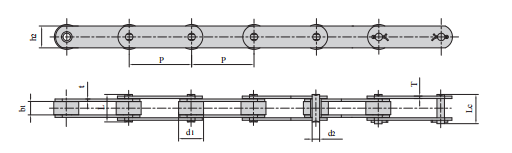

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| M18F1-P-50 | 50.0 | 25.00 | 11.50 | 5.72 | 26.0 | 28.2 | 18.0 | 2.5 | 18.0/4050 | 20.0 | 1.81 |
| M20-PF1-50 | 50.0 | 30.00 | 16.00 | 6.00 | 31.0 | 33.5 | 18.0 | 2.5 | 20.0/4500 | 22.0 | 2.60 |
| M22-P-50 | 50.0 | 25.00 | 11.50 | 8.00 | 28.0 | 30.9 | 20.0 | 3.0 | 22.0/4950 | 24.2 | 2.64 |
| M22F1-P-50 | 50.0 | 25.00 | 12.00 | 10.00 | 29.4 | 32.6 | 20.0 | 3.0 | 22.0/4950 | 24.2 | 2.30 |
| M28F4-S-50 | 50 | 15.00 | 17.00 | 7.00 | 33.0 | 36.5 | 20.0 | 3.0 | 28.0/6300 | 35.0 | 1.88 |
| M28F5-P-63 | 63.0 | 30.00 | 18.00 | 7.00 | 42.0 | 45.5 | 25.0 | 5.0 | 40.0/9000 | 50.0 | 4.23 |
| M28F8-P-80 | 80.0 | 25.00 | 16.00 | 7.00 | 33.0 | 36.2 | 20.0 | 3.0 | 28.0/6294 | 31.0 | 1.89 |
| M35F2-S-35 | 35.0 | 14.00 | 14.00 | 7.00 | 31.0 | 34.0 | 18.0 | 3.5/2.5 | 35.0/7874 | 39.0 | 1.82 |
| M35F2-P-35 | 35.0 | 22.00 | 14.00 | 7.00 | 31.0 | 34.0 | 18.0 | 3.5/2.5 | 35.0/7874 | 39.0 | 2.47 |
| *M35F3-B-35 | 35.0 | 14.00 | 14.00 | 6.00 | 30.2 | 33.0 | 18.0 | 3.0 | 35.0/7874 | 39.0 | 1.73 |
| M35F4-C-69 | 69.0 | 25.00 | 12.00 | 7.00 | 27.5 | 30.0 | 19.0 | 2.5 | 35.0/7874 | 39.0 | 1.60 |
| M35F5-P-50.8 | 50.8 | 25.00 | 16.00 | 7.00 | 33.0 | 36.0 | 20.0 | 3.0 | 35.0/7874 | 39.0 | 2.48 |
| M35F9-P-50 | 50.0 | 25.00 | 16.00 | 6.00 | 30.4 | 32.7 | 18.0 | 2.5 | 33.0/7425 | 36.0 | 2.23 |
| M35F10-P-50 | 50.0 | 20.00 | 16.00 | 7.00 | 33.0 | 36.0 | 25.0 | 3.0 | 35.0/7874 | 39.0 | 2.53 |
| M35F11-P-35 | 35.0 | 20.00 | 16.00 | 7.00 | 31.0 | 34.0 | 18.0 | 2.5 | 35.0/7874 | 39.0 | 2.22 |
| M40-PF1-100 | 100.0 | 36.00 | 20.00 | 8.50 | 40.5 | 44.5 | 25.0 | 3.5 | 40.0/9000 | 44.0 | 3.28 |
| M40F4-P-50 | 50.0 | 31.75 | 15.00 | 10.00 | 36.6 | 39.0 | 25.0 | 4.0 | 40.0/9000 | 44.0 | 4.00 |
| M40F5-S-65 | 65.0 | 24.00 | 15.00 | 10.00 | 36.6 | 39.0 | 30.0 | 4.0 | 40.0/9000 | 44.0 | 4.86 |
| M40F6-P-80 | 80.0 | 36.00 | 20.00 | 8.50 | 41.0 | 44.2 | 25.0 | 4.0 | 40.0/9000 | 44.0 | 3.68 |
| M40F17-P-50.8 | 50.8 | 31.00 | 15.20 | 13.35 | 38.0 | 42.8 | 25.0 | 5.0/4.0 | 53.9/12127 | 59.2 | 4.45 |
| M40F22-P-100 | 100.0 | 40.00 | 32.00 | 14.00 | 63.7 | 69.0 | 50.0 | 6.0 | 195.0/43838 | 214.5 | 10.30 |
| M56-SF1-63 | 63.0 | 25.00 | 24.00 | 10.00 | 46.0 | 49.5 | 30.0 | 4.0 | 56.0/12600 | 61.6 | 2.31 |
| M56-PF1-80 | 80.0 | 25.00 | 24.00 | 10.00 | 46.0 | 49.5 | 30.0 | 4.0 | 56.0/12600 | 61.6 | 3.61 |
| M56-SF1-80 | 80.0 | 50.00 | 24.00 | 10.00 | 46.0 | 49.5 | 30.0 | 4.0 | 56.0/12600 | 61.6 | 6.96 |
| M56F14-S-63 | 63.0 | 21.00 | 24.00 | 10.00 | 46.0 | 49.5 | 30.0 | 4.0 | 56.0/12600 | 61.6 | 3.81 |
| M56F14-S-80 | 80.0 | 21.00 | 24.00 | 10.00 | 46.0 | 49.5 | 30.0 | 4.0 | 56.0/12600 | 61.6 | 3.27 |
| M56F14-P-100 | 100.0 | 42.00 | 24.00 | 10.00 | 46.0 | 49.5 | 30.0 | 4.0 | 56.0/12600 | 61.6 | 5.00 |
| M56F21-P-100 | 100.0 | 42.00 | 24.00 | 12.00 | 54.7 | 59.5 | 30.0 | 6.0 | 56.0/12600 | 61.6 | 6.30 |
| M56F28-P-100 | 1000 | 31.00 | 15.00 | 10.00 | 38.2 | 43.0 | 30.0 | 4.0 | 56.0/12600 | 61.6 | 3.20 |
| *Bush chain:d1 in the table indicates the external diameter of the bush. | |||||||||||

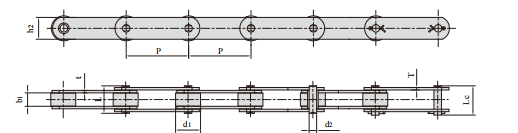

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| M75-P-75 | 75.0 | 40.00 | 22.00 | 12.00 | 44.0 | 47.0 | 35.0 | 4.0 | 75.0/16870 | 75.0 | 5.88 |
| M80F3-P-125 | 125.0 | 50.00 | 28.00 | 11.00 | 55.0 | 58.5 | 35.0 | 5.0 | 80.0/18000 | 88.0 | 6.72 |
| *M80F4-BF1-125 | 125.0 | 25.00 | 28.00 | 12.00 | 55.0 | 58.5 | 35.0 | 5.0 | 80.0/18000 | 88.0 | 4.27 |
| M80F4-A-100 | 100.0 | 25.00 | 28.00 | 12.00 | 55.0 | 58.5 | 35.0 | 5.0 | 80.0/18000 | 88.0 | 4.63 |
| *M80F4-B-100 | 100.0 | 18.00 | 28.00 | 12.00 | 55.0 | 58.5 | 35.0 | 5.0 | 80.0/18000 | 88.0 | 4.13 |
| *M80F4-B-125 | 125.0 | 18.00 | 28.00 | 12.00 | 55.0 | 58.5 | 35.0 | 5.0 | 80.0/18000 | 88.0 | 3.85 |
| M80F6-P-75 | 75.0 | 35.00 | 14.00 | 12.00 | 40.5 | 45.0 | 30.0 | 5.0 | 80.0/18000 | 88.0 | 4.80 |
| M80F8-S-80 | 80.0 | 25.00 | 28.00 | 12.00 | 55.0 | 58.5 | 35.0 | 5.0 | 80.0/18000 | 88.0 | 5.11 |
| *M80F8-B-80 | 80.0 | 18.00 | 28.00 | 12.00 | 55.0 | 58.5 | 35.0 | 5.0 | 80.0/18000 | 88.0 | 4.48 |
| *M80F8-B-100 | 100.0 | 18.00 | 28.00 | 12.00 | 55.0 | 58.5 | 35.0 | 5.0 | 80.0/18000 | 88.0 | 4.14 |
| *M80F8-B-125 | 125.0 | 18.00 | 28.00 | 12.00 | 55.0 | 58.5 | 35.0 | 5.0 | 80.0/18000 | 88.0 | 3.85 |
| M80F9-S-80 | 80.0 | 25.00 | 28.00 | 12.00 | 54.5 | 59.0 | 35.0 | 5.0 | 80.0/18000 | 88.0 | 5.07 |
| M80F12-P-100 | 100.0 | 50.00 | 28.00 | 12.00 | 55.0 | 58.5 | 35.0 | 5.0 | 80.0/18000 | 88.0 | 7.80 |
| M80F30-S-100 | 100.0 | 25.00 | 28.00 | 12.00 | 55.0 | 58.5 | 40.0 | 5.0 | 80.0/18000 | 88.0 | 7.51 |
| *M80F31-B-100 | 100.0 | 18.00 | 28.00 | 12.00 | 61.0 | 67.0 | 35.0 | 5.0/8.0 | 80.0/18000 | 88.0 | 10.40 |
| M100-P-80 | 80.0 | 47.50 | 31.40 | 15.90 | 71.2 | 76.0 | 40.0 | 8.0 | 100.0/22727 | 110.0 | 12.36 |
| *M112F61-B-80 | 80.0 | 21.00 | 32.00 | 15.00 | 64.5 | 69.0 | 40.0 | 6.0 | 112.0/25200 | 123.2 | 6.50 |
| M112F2-P-125 | 125.0 | 55.00 | 50.00 | 16.00 | 87.1 | 91.6 | 40.0 | 7.2 | 112.0/25200 | 123.2 | 13.35 |
| M224F3-P-160 | 160.0 | 80.00 | 30.00 | 21.00 | 81.0 | - | 60.0 | 8.0 | 224.0/50909 | 246.0 | 17.34 |
| *M112F6-B-100 | 100.0 | 21.00 | 32.00 | 15.00 | 64.0 | 68.3 | 40.0 | 6.0 | 112.0/25200 | 123.2 | 6.14 |
| *M112F6-B-125 | 125.0 | 21.00 | 5.46 | ||||||||
| M112F6-P-125 | 125.0 | 60.00 | 10.33 | ||||||||
| M112F7-P-125 | 125.0 | 30.00 | 32.00 | 15.00 | 64.0 | 68.3 | 40.0 | 6.0 | 112.0/25200 | 123.2 | 6.39 |
| M112F8-S-100 | 100.0 | 30.00 | 31.00 | 15.00 | 63.5 | 68.0 | 40.0 | 6.0 | 112.0/25200 | 123.2 | 7.14 |
| *M112F14 | 160.0 | 21.00 | 31.00 | 14.00 | 64.4 | 69.0 | 40.0 | 6.0 | 112.0/25200 | 123.2 | 5.03 |
| *M112F15-B-100 | 100.0 | 21.00 | 31.00 | 15.00 | 64.5 | 69.0 | 40.0 | 6.0 | 112.0/25200 | 123.2 | 5.90 |
| M112F18-S-100 | 100.0 | 30.00 | 31.00 | 15.00 | 64.0 | 68.6 | 36.0 | 6.0 | 112.0/25200 | 123.2 | 6.20 |
| M112F33-P-100 | 100.0 | 60.00 | 32.00 | 15.00 | 72.5 | 77.0 | 40.0 | 8.0 | 112.0/25200 | 123.2 | 14.10 |
| *M112F49-B-100 | 100.0 | 21.00 | 32.00 | 15.00 | 73.0 | 77.5 | 40.0 | 6.0/10.0 | 112.0/25200 | 123.2 | 8.20 |
| *M112F18-B-125 | 125.0 | 21.00 | 31.00 | 15.00 | - | 68.6 | 36.0 | 6.0 | 112.0/25200 | 123.2 | 5.25 |
| *M112F60-B-125 | 125.0 | 21.00 | 32.00 | 15.00 | 64.5 | 69.0 | 40.0 | 6.0 | 112.0/25200 | 123.2 | 5.60 |
| *Bush chain:d1 in the table indicates the extermal diameter of the bush. | |||||||||||
| Chain No | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| M112-S-150 | 150.0 | 30.0 | 32.0 | 15.0 | - | 69.0 | 40.0 | 6.0 | 160.0/36364 | 176.0 | 6.05 |
| M112F21-P-160 | 160.0 | 40.0 | 25.0 | 15.0 | 57.5 | 62.0 | 40.0 | 6.0 | 112.0/25200 | 123.2 | 6.86 |
| M112F24-S-100 | 100.0 | 30.0 | 32.0 | 15.0 | - | 73.2 | 36.0 | 6.0 | 112.0/25200 | 123.2 | 6.82 |
| M112-PF1-80 | 80.0 | 40.0 | 32.0 | 15.0 | 64.5 | 69.0 | 40.0 | 6.0 | 112.0/25200 | 123.2 | 10.97 |
| *M112F27-B-160 | 160.0 | 21.0 | 31.0 | 14.0 | 69.4 | 74.0 | 40.0 | 6.0/8.0 | 112.0/25200 | 123.2 | 5.80 |
| *M112F47-B-160 | 160.0 | 21.0 | 32.0 | 15.0 | 72.5 | 77.0 | 40.0 | 8.0 | 160.0/36364 | 176.0 | 7.00 |
| M160F1-P-100 | 100.0 | 36.0 | 36.0 | 18.0 | 76.0 | 80.0 | 40.0 | 7.0 | 160.0/36364 | 176.0 | 9.42 |
| *M160F14-B-100 | 100.0 | 25.0 | 37.0 | 18.0 | 77.3 | 83.5 | 50.0 | 8.0 | 160.0/36364 | 176.0 | 10.44 |
| *M160F15-B-100 | 100.0 | 25.0 | 37.0 | 18.0 | 85.3 | 91.5 | 50.0 | 10.0 | 160.0/36364 | 176.0 | 12.51 |
| *M160F41-B-100 | 100.0 | 25.0 | 37.5 | 18.0 | 73.3 | 79.5 | 50.0 | 7.0 | 160.0/36364 | 176.0 | 9.34 |
| M160F23-S-160 | 160.0 | 36.0 | 37.0 | 18.0 | 73.3 | 79.5 | 50.0 | 7.0 | 160.0/36364 | 176.0 | 11.95 |
| *M160F36-B-160 | 160.0 | 25.0 | 37.0 | 18.0 | 73.3 | 79.5 | 50.0 | 7.0 | 160.0/36364 | 176.0 | 7.86 |
| M160F40-P-200 | 200.0 | 70.0 | 37.0 | 20.0 | 83.0 | 89.5 | 51.0 | 9.0 | 180.0/40492 | 198.0 | 14.50 |
| *M224F30-B-125 | 125.0 | 30.0 | 42.0 | 21.0 | - | 92.5 | 56.0 | 8.0 | 224.0/50909 | 246.0 | 12.49 |
| *M224F40-B-160 | 160.0 | 30.0 | 43.0 | 21.0 | 85.0 | 91.0 | 60.0 | 8.0 | 224.0/50909 | 246.0 | 11.20 |
| *M224F52-B-160 | 160.0 | 30.0 | 43.0 | 21.0 | 93.0 | 99.0 | 60.0 | 10.0 | 224.0/50909 | 246.0 | 16.20 |
| *M224F31-B-200 | 200.0 | 30.0 | 43.0 | 21.0 | 84.0 | 91.0 | 60.0 | 8.0 | 224.0/50909 | 246.0 | 10.05 |
| M300F6-P-152.4 | 152.4 | 88.9 | 38.5 | 32.0 | 84.0 | 92.0 | 60.0 | 10.0/8.0 | 400.0/89990 | 500.0 | 23.10 |
| *M315F1-B-125 | 125.0 | 36.0 | 37.0 | 25.0 | 90.0 | - | 70.0 | 10.0 | 315.0/70862 | 346.0 | 19.15 |
| M315-S-170 | 170.0 | 50.0 | 47.0 | 25.0 | 98.9 | 105.0 | 70.0 | 10.0 | 315.0/70862 | 346.5 | 19.83 |
| *M315F6-B-160 | 160.0 | 42.0 | 80.0 | 25.0 | 140.0 | 140.0 | 80.0 | 12.0 | 315.0/70862 | 346.5 | 27.30 |
| M315F10-S-250 | 250.0 | 50.0 | 55.0 | 26.0 | 106.9 | 113.0 | 70.0 | 10.0 | 315.0/70862 | 393.7 | 17.60 |
| M315F12-S-200 | 200.0 | 45.0 | 48.0 | 25.0 | 119.0 | 126.5 | 70.0 | 15.0 | 600.0/135000 | 648.0 | 24.20 |
| M315F16-S-250 | 250.0 | 60.0 | 48.0 | 25.0 | 109.5 | 117.0 | 70.0 | 12.0 | 600.0/135000 | 648.0 | 21.60 |
| *M315F17-B-160 | 160.0 | 36.0 | 66.7 | 25.0 | 93.5 | 100.5 | 70.0 | 8.0 | 315.0/70862 | 346.5 | 15.04 |
| M315F52-S-250 | 250.0 | 60.0 | 48.0 | 25.0 | 108.0 | 115.0 | 70.0 | 12.0 | 315.0/70862 | 346.5 | 21.30 |
| M450F28-S-200 | 200.0 | 60.0 | 56.0 | 30.0 | 131.0 | 142.0 | 80.0 | 15.0 | 450.0/102272 | 562.5 | 36.50 |
| *M630-B-250 | 250.0 | 50.0 | 65.0 | 36.0 | 140.0 | 150.0 | 103.0 | 14.0 | 630.0/14172 | 693.0 | 36.30 |
| *Bush chain:d1 in the table indicates the extermal diameter of the bush. | |||||||||||
Catalogue
