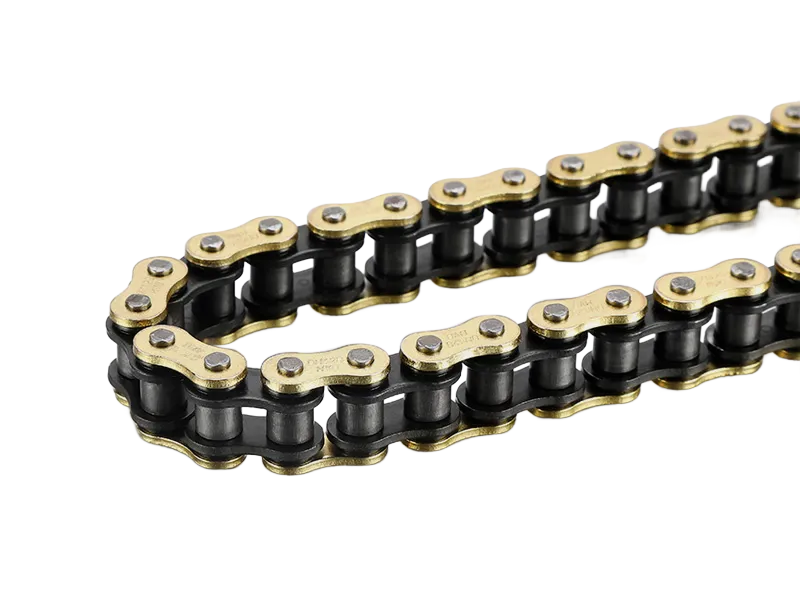

Product Description
Motorcycle chains mainly include motorcycle engine chain and motorcycle drive chain (including 0-ring motorcycle chain and X-ring motorcycle chain);The chain of motorcycle engine is optimized, and the chain plate adopts ISO thermal heat treatment and special hardening treatment on the surface of pin shaft. The product has the characteristics of high fatigue strength and high wear resistance.
The motorcycle sealing ring chain is made of high-quality materials, lubricating grease and advanced processing technology, The products have the characteristics of high fatigue strength, high wear resistance and so on, so as to meet the use requirements of motorcycles with different displacements and different uses, and are widely used in various motorcycle races and motorcycles used on highways.
Technical Data Sheet

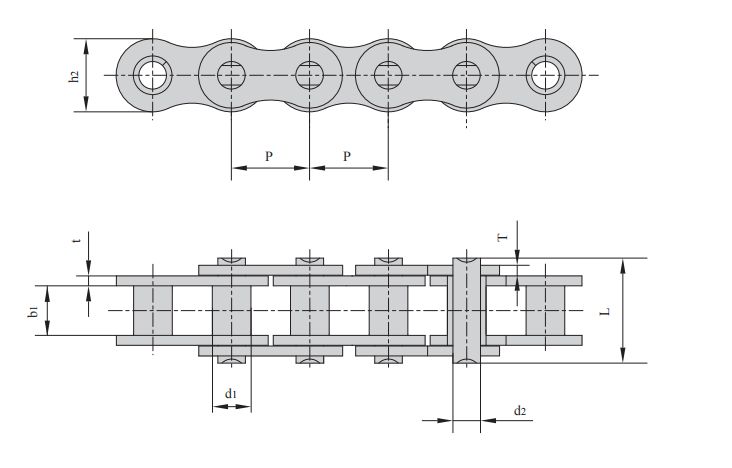

ISO Chain No. | Chain No. | Pitch | Bush diameter | Width betweer inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter |
P | d1 max | b1 min | d2 max | L max | h2 max | t/T max | Q min | Q0 | q | ||
mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | ||
- | 25 | 6.350 | 3.30 | 3.18 | 2.31 | 7.90 | 6.00 | 0.80 | 3.5/795 | 4.6 | 0.15 |
25H | 25H | 6.350 | 3.30 | 3.18 | 2.31 | 8.90 | 6.00 | 1.04 | 4.8/1091 | 5.5 | 0.17 |
- | 25H(E) | 6.350 | 3.30 | 3.18 | 2.31 | 8.90 | 6.00 | 1.04 | 5.8/1304 | 6.4 | 0.18 |
- | 25HF2 | 6.350 | 3.30 | 3.18 | 2.31 | 9.10 | 5.80 | 1.20/1.10 | 5.8/1304 | 6.4 | 0.19 |
- | 25SHF1 | 6.350 | 3.30 | 3.18 | 2.01 | 8.95 | 5.90 | 1.04 | 4.8/1091 | 5.5 | 0.19 |
219H | 219H | 7.774 | 4.59 | 5.00 | 3.01 | 11.90 | 7.40 | 1.20/1.04 | 7.3/1641 | 8.0 | 0.28 |
- | *C219H | 7.774 | 4.59 | 5.00 | 3.01 | 11.90 | 7.40 | 1.20/1.04 | 7.3/1641 | 8.0 | 0.33 |
- | 219HT | 7.774 | 4.59 | 4.60 | 3.01 | 12.15 | 7.55 | 1.40/1.30 | 6.6/1483 | 7.2 | 0.33 |
- | 219HF2 | 7.774 | 4.59 | 4.50 | 3.01 | 11.90 | 7.40 | 1.40/1.30 | 6.6/1483 | 7.2 | 0.31 |
- | 219HF1 | 7.785 | 4.60 | 4.50 | 3.28 | 13.00 | 7.00 | 2.00/1.40 | 9.0/2024 | 9.8 | 0.37 |
270H | 270H | 8.500 | 5.00 | 4.75 | 3.28 | 13.15 | 8.45 | 1.80/1.40 | 10.8/2428 | 11.9 | 0.43 |
*Straight side plates |

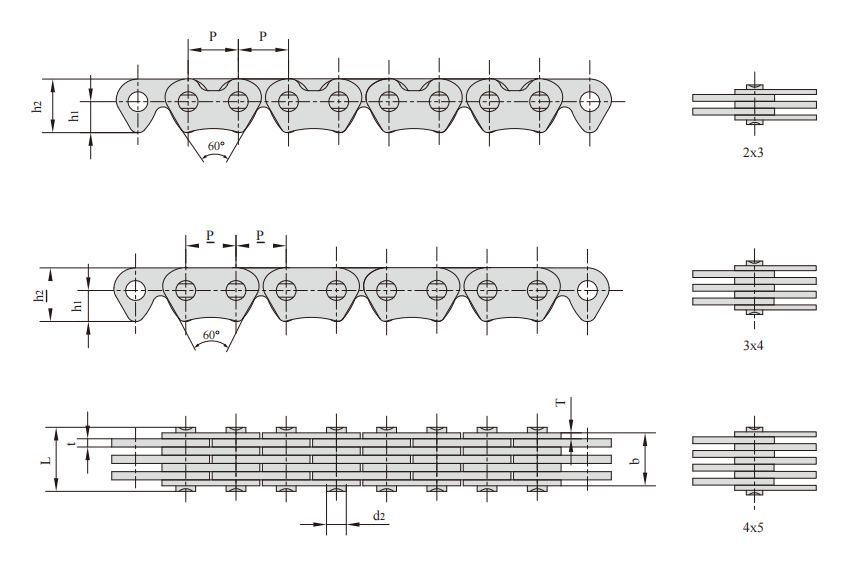

Chain No. | Pitch | Chain width | Pin diameter | Pin length | Distance from hole center to tooth | Plate depth | Plate thickness | Guide type | Number of plates | Tensile strength | Average tensile strength | Weight per meter |
P | b max | d2 min | L max | h1 | h2 max | t/T max | n | Q min | Q0 | q | ||
mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |||
CL04-2×3 | 6.35 | 4.35 | 2.50 | 6.05 | 3.94 | 6.80 | 1.04/0.75 | 外Outside | 5(2×3) | 5.19/1179 | 5.4 | 0.22 |
CL04-3×4 | 6.35 | 6.35 | 2.50 | 8.20 | 3.90 | 6.72 | 1.04/0.75 | 外Outside | 7(3×4) | 8.82/2004 | 9.2 | 0.28 |
CL04-4×5 | 6.35 | 9.40 | 2.50 | 10.90 | 3.90 | 6.72 | 1.04 | 外Outside | 9(4×5) | 11.76/2672 | 12.3 | 0.35 |

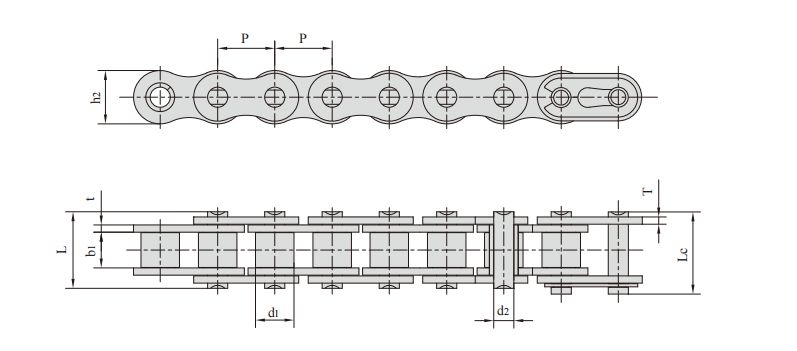

ISO Chain No. | Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | |
P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q min | Q0 | q | ||
mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | ||
- | *T3F | 9.525 | 6.00 | 9.50 | 4.50 | 18.60 | 20.00 | 9.30 | 1.85/1.50 | 11.80/2653 | 13.6 | 0.61 |
420 | 420 | 12.700 | 7.77 | 6.25 | 3.96 | 14.70 | 16.10 | 12.00 | 1.50 | 16.00/3597 | 17.6 | 0.55 |
- | 420F3 | 12.700 | 7.77 | 6.40 | 3.97 | 15.00 | 16.60 | 11.80 | 1.60/1.45 | 16.00/3597 | 17.6 | 0.64 |
- | 420HF1 | 12.700 | 7.77 | 6.25 | 3.96 | 17.00 | 18.40 | 12.00 | 2.03 | 16.00/3597 | 17.6 | 0.76 |
- | 420HT | 12.700 | 7.77 | 6.25 | 3.96 | 17.00 | - | 12.00 | 2.03 | 21.40/4811 | 23.5 | 0.76 |
428 | 428 | 12.700 | 8.51 | 7.75 | 4.45 | 16.70 | 18.20 | 11.80 | 1.60 | 17.80/4002 | 19.6 | 0.70 |
- | 428F1 | 12.700 | 8.51 | 7.94 | 4.50 | 16.70 | 18.05 | 11.80 | 1.60 | 17.15/3855 | 19.4 | 0.71 |
- | 428DS | 12.700 | 8.51 | 7.94 | 4.45 | 17.90 | 19.30 | 12.00 | 1.85 | 18.62/4186 | 21.0 | 0.76 |
428MH | 428H | 12.700 | 8.51 | 7.85 | 4.45 | 18.80 | 19.90 | 11.80 | 2.03 | 20.60/4631 | 23.4 | 0.79 |
- | 428HF1 | 12.700 | 8.51 | 7.85 | 4.45 | 17.90 | 19.00 | 11.80 | 1.80 | 19.50/4384 | 20.7 | 0.74 |
- | 428HSH | 12.700 | 8.51 | 7.75 | 4.45 | 20.00 | - | 12.00 | 2.42 | 27.00/6070 | 29.4 | 0.89 |
- | 428HF4 | 12.700 | 8.51 | 7.94 | 4.50 | 18.90 | 20.10 | 11.80 | 2.03 | 20.50/4609 | 23.4 | 0.82 |
- | 428HD | 12.700 | 8.51 | 7.85 | 4.45 | 18.80 | 19.90 | 11.80 | 2.03 | 20.60/4631 | 23.4 | 0.85 |
- | 428F3 | 12.700 | 8.51 | 7.85 | 4.45 | 16.70 | 18.20 | 11.70 | 1.60 | 17.80/4002 | 19.6 | 0.77 |
- | 428F4 | 12.700 | 8.51 | 7.85 | 4.45 | 16.70 | 18.20 | 11.80 | 1.60 | 17.80/4002 | 19.6 | 0.72 |
*Bush chain:d1 in the table indicates the external diameter of the bush. |

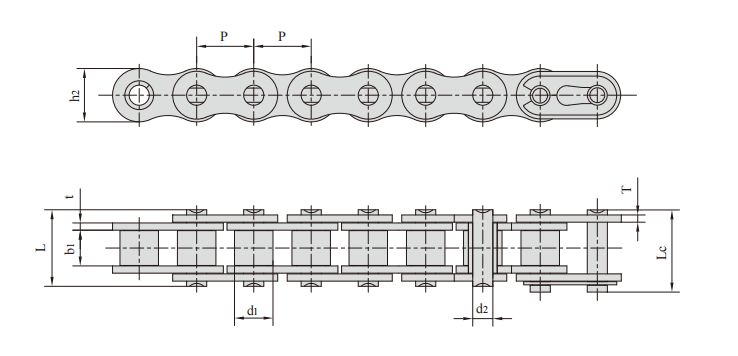

ISO Chain No. | Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | |
P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q min | Q0 | q | ||
mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | ||
520 | 520 | 15.875 | 10.16 | 6.25 | 5.08 | 17.50 | 19.00 | 15.09 | 2.03 | 26.50/5957 | 29.7 | 0.89 |
- | 520F2 | 15.875 | 10.16 | 6.35 | 5.24 | 17.50 | 19.05 | 15.09 | 2.03 | 26.50/5957 | 29.7 | 0.97 |
- | 520F3 | 15.875 | 10.16 | 6.48 | 5.08 | 17.50 | 19.00 | 15.09 | 2.03 | 26.50/5957 | 29.7 | 0.89 |
520MH | 520MH | 15.875 | 10.22 | 6.25 | 5.25 | 19.00 | 21.20 | 15.30 | 2.20 | 30.50/6857 | 33.6 | - |
- | 520HD | 15.875 | 10.16 | 6.35 | 5.34 | 18.60 | 20.00 | 15.09 | 2.20 | 35.00/7868 | 38.5 | 1.04 |
525 | 525 | 15.875 | 10.16 | 7.95 | 5.08 | 19.30 | 20.70 | 15.09 | 2.03 | 26.50/5957 | 29.7 | 1.06 |
525MH | 525MH | 15.875 | 10.22 | 7.85 | 5.25 | 21.20 | 23.20 | 15.30 | 2.20 | 30.50/6857 | 33.6 | - |
- | 525HF1 | 15.875 | 10.16 | 7.95 | 5.08 | 20.90 | 22.30 | 15.09 | 2.42 | 26.50/5957 | 29.7 | 1.20 |
530 | 530 | 15.875 | 10.16 | 9.40 | 5.08 | 20.70 | 22.20 | 15.09 | 2.03 | 26.50/5957 | 29.7 | 1.06 |
- | 530SH | 15.875 | 10.16 | 9.40 | 5.08 | 22.10 | - | 15.09 | 2.42 | 32.80/7374 | 33.5 | 1.24 |
- | 520F12 | 15.875 | 10.16 | 6.25 | 5.25 | 17.60 | - | 15.00 | 2.03 | 29.43/6615 | 32.3 | 0.98 |
- | 520HF7 | 15.875 | 10.22 | 7.80 | 5.30 | 21.35 | - | 15.30 | 2.80/2.42 | 40.00/8992 | 44.0 | 1.43 |
630 | 630 | 19.050 | 11.91 | 9.40 | 5.94 | 23.00 | 24.80 | 18.00 | 2.42 | 35.30/7936 | 38.8 | - |

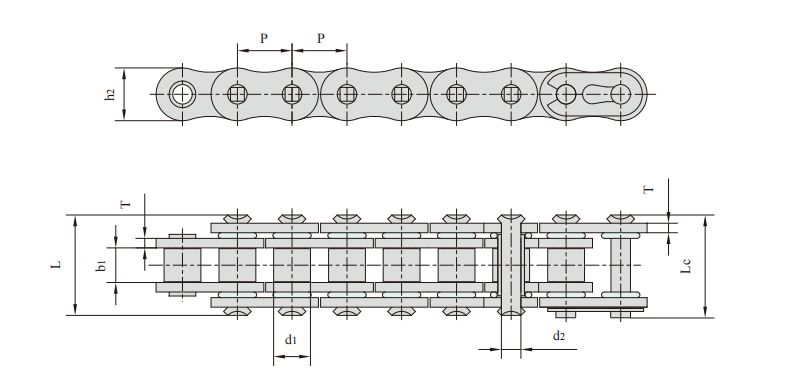

Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | |
P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Q min | Q0 | q | |
mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
420OR | 12.700 | 7.77 | 6.25 | 3.96 | 16.65 | 17.95 | 12.00 | 1.50 | 16.0/3599 | 17.00 | 0.62 |
420HOR | 12.700 | 7.77 | 6.25 | 3.96 | 18.80 | 20.10 | 12.00 | 2.03 | 16.0/3599 | 17.00 | 0.74 |
428HVS | 12.700 | 8.51 | 7.94 | 4.45 | 21.70 | 22.70 | 12.30 | 2.03 | 22.0/4946 | 23.00 | 0.85 |
50LD | 15.875 | 10.16 | 9.53 | 5.08 | 23.40 | 24.60 | 15.09 | 2.03 | 22.2/5045 | 26.50 | 1.12 |
520OR | 15.875 | 10.16 | 6.70 | 5.30 | 21.20 | 22.30 | 15.09 | 2.20 | 32.0/7200 | 34.00 | 1.11 |
520F1OR | 15.875 | 10.16 | 6.25 | 5.30 | 21.20 | 22.30 | 15.09 | 2.20 | 32.0/7200 | 34.00 | 1.09 |
520F2OR | 15.875 | 10.16 | 9.65 | 5.30 | 24.10 | 25.50 | 15.09 | 2.20 | 32.0/7200 | 34.00 | 1.21 |
520V6 | 15.875 | 10.16 | 6.25 | 5.08 | 19.80 | 21.30 | 15.09 | 2.03 | 22.2/5045 | 26.50 | 0.96 |
520HOR | 15.875 | 10.16 | 6.25 | 5.24 | 21.52 | 22.92 | 15.09 | 2.42 | 26.5/6022 | 29.60 | 1.26 |
525OR | 15.875 | 10.16 | 7.95 | 5.30 | 21.50 | 22.90 | 15.09 | 2.03 | 26.5/6022 | 29.60 | 1.30 |
525F1OR | 15.875 | 10.16 | 7.95 | 5.30 | 23.10 | 24.00 | 15.09 | 2.20 | 32.0/7200 | 34.00 | 1.16 |
520F14OR | 15.875 | 10.20 | 6.25 | 5.09 | 19.90 | - | 14.90 | 1.80 | 28.4/6391 | 30.60 | 0.92 |
525HOR | 15.875 | 10.16 | 7.95 | 5.30 | 23.10 | 24.50 | 15.09 | 2.42 | 26.5/6022 | 29.60 | 1.44 |
530HOR | 15.875 | 10.16 | 9.53 | 5.24 | 24.80 | 26.20 | 15.09 | 2.42 | 29.0/6524 | 30.00 | 1.39 |
630F1OR | 19.050 | 11.91 | 9.53 | 5.94 | 25.50 | 27.30 | 18.00 | 2.42 | 31.8/7149 | 35.00 | 1.50 |

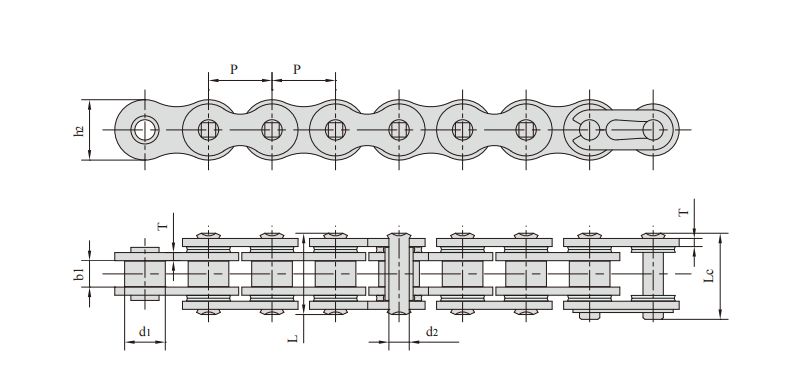

Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | |
P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Q min | Q0 | q | |
mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
520XR | 15.875 | 10.20 | 6.25 | 5.09 | 20.10 | 21.10 | 15.09 | 2.03 | 28.00/6294 | 29.4 | 1.00 |
520F9XR | 15.875 | 10.30 | 6.25 | 5.39 | 20.10 | - | 15.00 | 2.03 | 33.83/7605 | 35.5 | 1.00 |
520HXR | 15.875 | 10.16 | 6.25 | 5.24 | 21.52 | 22.92 | 15.09 | 2.42 | 30.00/6744 | 31.5 | 1.28 |
525XR | 15.875 | 10.20 | 7.85 | 5.09 | 21.70 | 22.70 | 15.09 | 2.03 | 26.50/5957 | 27.8 | 1.07 |
525HXR | 15.875 | 10.16 | 7.95 | 5.30 | 23.10 | 24.50 | 15.09 | 2.42 | 26.50/5957 | 27.8 | 1.44 |
525SHXR | 15.875 | 10.30 | 7.85 | 5.39 | 23.26 | - | 15.00 | 2.42 | 38.25/8599 | 40.2 | 1.20 |
530HXR | 15.875 | 10.16 | 9.53 | 5.24 | 24.80 | 26.20 | 15.09 | 2.42 | 29.00/6519 | 30.5 | 1.39 |
530SHXR | 15.875 | 10.30 | 9.40 | 5.39 | 24.91 | - | 15.00 | 2.42 | 38.25/8599 | 40.2 | 1.27 |
